2005 TOYOTA CAMRY window

’05Camry_U (L/O 0409)
2
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Automatic transmission selector lever or manual transmission gear shift lever
13. Cup holder
14. Parking brake lever
15. Instrument panel light control dial
16. Window lock switch
17. Power rear view mirror control switches
Instrument panel overview
 With lever type parking brake

’05Camry_U (L/O 0409)
3
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Rear vents
13. Automatic transmission selector lever
14. Cup holder
15. Instrument panel light control dial
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches

With pedal type parking brake

’05Camry_U (L/O 0409)
4
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch

With manual air conditioning controls

’05Camry_U (L/O 0409)
5
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch

With automatic air conditioning controls

’05Camry_U (L/O 0409)
11
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’05Camry_U (L/O 0409)
26
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: All windows work for
43 seconds even after the ignition switch
is turned off. They stop working when ei-
ther front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.Type A (to open only)
Type B (to open and close)
Automatic operation:
Type A—Push the switch completely down
and then release it. The window will fully
open. To stop the window partway, lightly
pull the switch up and then release it.
Type B—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Jam protection function (type B only):
During automatic closing operation or key
off closing operation, the window stops
and opens half way if something gets
caught between the window and window
frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
Power windows

’05Camry_U (L/O 0409)
27
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

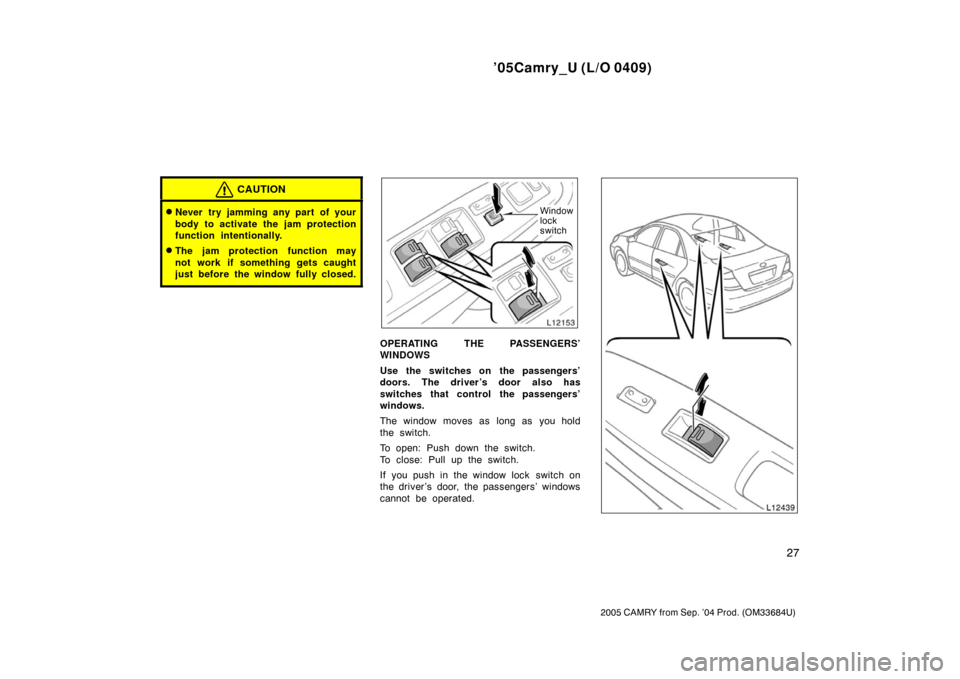

CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window fully closed.
Window
lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’05Camry_U (L/O 0409)
28
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “—Stowage precautions” on page 238
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 19 in this
Section.
Trunk lid—
