2005 TOYOTA AVENSIS air filter

A79424
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
8.8 (90, 65 in.
lbf)
8.8 (90, 6.5 in.
lbf)
8.4 (86, 74 in.
lbf)
21 (209, 15)
8.8 (90, 78 in.
lbf)
34 (347, 25)
18 (184, 13)21 (210, 15)
21 (210, 15)
42 (428, 31)
37 (377, 27)
59 (600, 43)
21 (214, 15)
45 (454, 33)

O±ring

O±ring

Gasket

O±ring

O±ring
Vacuum Pump Oil Pipe
Union Bolt
Oil Cooler AssyFuel Filter To Injection Pump
Fuel Pipe
Rear End Plate
Crankshaft Position
Sensor
Thermostat
Water Inlet
Oil Level Gage Guide Oil Filter Bracket Sub±assy
Injection or Supply Pump Assy Compressor Mounting
Bracket No. 1Generator Bracket No. 1 V±ribbed Belt
Tensioner
AssyGenerator Assy
Oil Cooler Pipe

Gasket
Turbo Oil Outlet Pipe No. 2
31 (320, 23)

Gasket
33 (331, 24)
8.8 (90, 78 in.
lbf)
47 (475, 34)
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±285
AVENSIS REPAIR MANUAL (RM1018E)

140DD±03
A57063
Measure Point for Belt
Deflection and Tension
Alternator
Crankshaft Compressor
P/S P/S
Alternator Crankshaft
A/C equipped
A/C not equipped
A61173
B
A
14±266
±
ENGINE MECHANICAL ENGINE(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE(1CD±FTV)
INSPECTION
1.INSPECT COOLANT (See page 16±37)
2.INSPECT ENGINE OIL (See page 17±20)
3.INSPECT BATTERY (See page 19±26)
4. INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY 5. INSPECT DRIVE BELT
(a) Inspect vane pump V belt.(1) Measure the belt deflection
Pressing force: 98 N
m (10 kgf 22 lbf)
New belt
mm (in.)Used belt mm (in.)
A/C equipped9.5 to 11.5
(0.37 to 0.45)12.5 to 15.5
(0.49 to 0.61)
A/C not equipped10 to 12
(0.39 to 0.47)14 to 17
(0.55 to 0.67)
(2) Measure the belt tension
New belt
N (kgf, lbf)Used belt
N (kgf, lbf)
A/C equipped519 to 755
(53 to 77, 117 to 170)196 to 392
(20 to 40, 44 to 88)
A/C not equipped686 to 784
(70 to 80, 154 to 176)294 to 441
(30 to 45, 66 to 99)
NOTICE:

Check the drive belt deflection at the specified point.

When installing a new belt, set its tension value as
specified.

When inspecting the belt which is used over 5 min-
utes, apply the specifications of ºUsed Belt.º

When reinstalling the belt which is used over 5 min-
utes, adjust its deflection and tension to the medium
value in each specification of ºUsed Belt.º

V±ribbed belt tension and deflection should be
checked after 2 revolutions of engine cranking.

When using a belt tension gauge, confirm the accura-
cy by using a master gauge first.
(b) Inspect generator V belt. (1) Check that the tension indicator is within range A onthe auto tensioner scale.
If the tension is not within the A range, replace the belt with a
new one.
HINT:
When replacing the drive belt with a new one, the belt tension
should be within the B range.

141CA±01

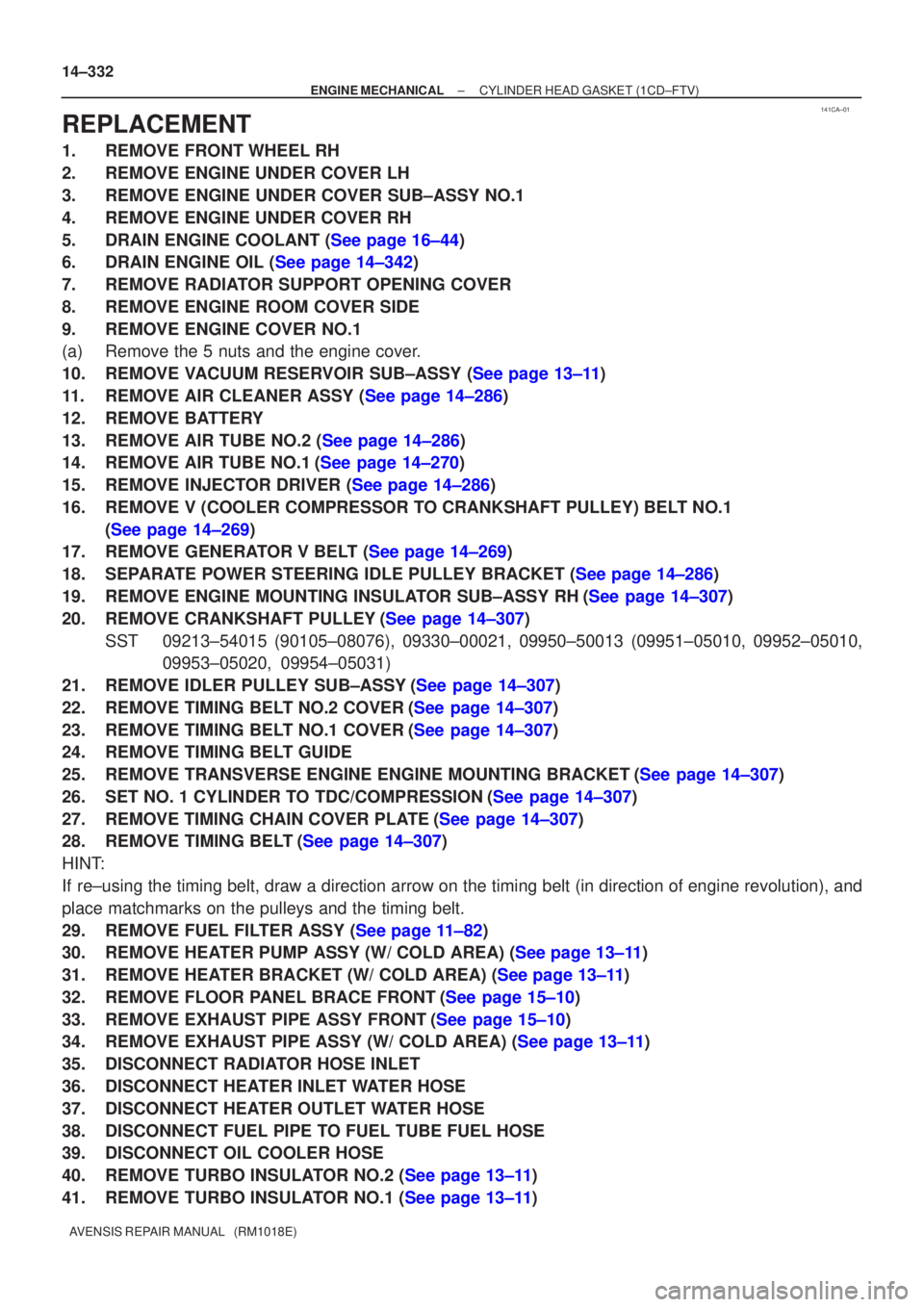

14±332
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE ENGINE UNDER COVER LH
3.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
4.REMOVE ENGINE UNDER COVER RH
5.DRAIN ENGINE COOLANT (See page 16±44)
6.DRAIN ENGINE OIL (See page 14±342)
7. REMOVE RADIATOR SUPPORT OPENING COVER
8. REMOVE ENGINE ROOM COVER SIDE
9. REMOVE ENGINE COVER NO.1
(a) Remove the 5 nuts and the engine cover.
10.REMOVE VACUUM RESERVOIR SUB±ASSY (See page 13±11)
11.REMOVE AIR CLEANER ASSY (See page 14±286)
12. REMOVE BATTERY
13.REMOVE AIR TUBE NO.2 (See page 14±286)
14.REMOVE AIR TUBE NO.1(See page 14±270)
15.REMOVE INJECTOR DRIVER (See page 14±286)
16. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
17.REMOVE GENERATOR V BELT (See page 14±269)
18.SEPARATE POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
19.REMOVE ENGINE MOUNTING INSULATOR SUB±ASSY RH(See page 14±307)
20.REMOVE CRANKSHAFT PULLEY(See page 14±307)
SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)
21.REMOVE IDLER PULLEY SUB±ASSY(See page 14±307)
22.REMOVE TIMING BELT NO.2 COVER(See page 14±307)
23.REMOVE TIMING BELT NO.1 COVER(See page 14±307)
24. REMOVE TIMING BELT GUIDE
25.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
26.SET NO. 1 CYLINDER TO TDC/COMPRESSION(See page 14±307)
27.REMOVE TIMING CHAIN COVER PLATE(See page 14±307)
28.REMOVE TIMING BELT(See page 14±307)
HINT:
If re±using the timing belt, draw a direction arrow on the timing belt (\
in direction of engine revolution), and
place matchmarks on the pulleys and the timing belt.
29.REMOVE FUEL FILTER ASSY (See page 11±82)
30.REMOVE HEATER PUMP ASSY (W/ COLD AREA) (See page 13±11)
31.REMOVE HEATER BRACKET (W/ COLD AREA) (See page 13±11)
32.REMOVE FLOOR PANEL BRACE FRONT(See page 15±10)
33.REMOVE EXHAUST PIPE ASSY FRONT(See page 15±10)
34.REMOVE EXHAUST PIPE ASSY (W/ COLD AREA) (See page 13±11)
35. DISCONNECT RADIATOR HOSE INLET
36. DISCONNECT HEATER INLET WATER HOSE
37. DISCONNECT HEATER OUTLET WATER HOSE
38. DISCONNECT FUEL PIPE TO FUEL TUBE FUEL HOSE
39. DISCONNECT OIL COOLER HOSE
40.REMOVE TURBO INSULATOR NO.2 (See page 13±11)
41.REMOVE TURBO INSULATOR NO.1 (See page 13±11)

±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1CD±FTV)
14±341
AVENSIS REPAIR MANUAL (RM1018E)
95.INSTALL TURBO INSULATOR NO.1 (See page 13±11)
96.INSTALL TURBO INSULATOR NO.2 (See page 13±11)
97.INSTALL EXHAUST PIPE ASSY (W/ COLD AREA) (See page 13±11)
98.INSTALL EXHAUST PIPE ASSY FRONT(See page 15±10)
99.INSTALL FLOOR PANEL BRACE FRONT(See page 15±10)
100.INSTALL HEATER BRACKET (W/ COLD AREA)(See page 13±11)
101.INSTALL HEATER PUMP ASSY (W/ COLD AREA)(See page 13±11)
102.INSTALL FUEL FILTER ASSY(See page 11±82)
103.SET NO. 1 CYLINDER TO TDC/COMPRESSION(See page 14±307)
SST 09960±10010 (09962±01000, 09963±01000)
104.INSTALL TIMING BELT(See page 14±307)
105.CHECK VALVE TIMING(See page 14±307)
106.TIMING CHAIN COVER PLATE(See page 14±307)
107.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
108.INSTALL TIMING BELT GUIDE(See page 14±307)
109.INSTALL TIMING BELT NO.1 COVER(See page 14±307)
110.INSTALL TIMING BELT NO.2 COVER(See page 14±307)
111.INSTALL IDLER PULLEY SUB±ASSY(See page 14±307)
112.INSTALL CRANKSHAFT PULLEY(See page 14±307) SST 09213±54015 (90105±08076), 09330±00021
113.INSTALL ENGINE MOUNTING INSULATOR SUB±ASSY RH(See page 14±307)
114.INSTALL POWER STEERING IDLE PULLEY BRACKET(See page 14±307)
115. ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
116.INSTALL INJECTOR DRIVER (See page 14±286)
117.INSTALL AIR TUBE NO.1(See page 14±270)
118.INSTALL AIR TUBE NO.2 (See page 14±286)
119.INSTALL AIR CLEANER ASSY (See page 14±286)
120.INSTALL VACUUM RESERVOIR SUB±ASSY (See page 13±11)
121. INSTALL ENGINE COVER NO.1
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
122. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
123. ADD ENGINE OIL
124.ADD ENGINE COOLANT(See page 16±44)
125.CHECK FOR FUEL LEAKS(See page 11±60)
126. CHECK FOR ENGINE OIL LEAKS
127.CHECK FOR ENGINE COOLANT LEAKS(See page 16±44)
128. CHECK FOR EXHAUST GAS LEAKS

A79430
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
52 (530, 38)
52 (530, 38)
7.5 (76, 66 in.
lbf)
7.5 (76, 66 in.
lbf)
52 (530, 38)
25 (255, 18)
25 (255, 18)
43 (440, 32)
18 (178, 13)
30 (302, 22)
7.5 (76, 66 in.
lbf)
7.5 (76, 66 in.
lbf)
43 (440, 32)
Gasket

Gasket
Gasket
Injector DriverEngine Mounting Insulator
Sub±assy RH
Vacuum Reservoir Sub±assy
w/ Cold Area:
Heater Bracket
Radiator Hose Inlet
Radiator Hose Outlet
Fuel Filter Assy Air Tube No. 1
Air Tube No. 2
Exhaust Pipe Assy Front
Floor Panel Brace Front
w/ Cold Area:
Exhaust PIpe Assy
Union To Connector Tube Hose
w/ Cold Area:
Heater Pump Assy
Compression Spring
Compression Spring
8.3 (85, 73 in.
lbf)
25 (255, 18)
5.0 (51, 44 in.
lbf)
± ENGINE MECHANICALCYLINDER HEAD GASKET (1CD±FTV)
14±327
AVENSIS REPAIR MANUAL (RM1018E)

141C4±01
A80094
14±286
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEELS
2.REMOVE ENGINE UNDER COVER LH
3.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
4.REMOVE ENGINE UNDER COVER RH
5.REMOVE RADIATOR SUPPORT OPENING COVER
6.REMOVE ENGINE ROOM COVER SIDE
7.DRAIN ENGINE COOLANT (See page 16±44)
8.DRAIN ENGINE OIL (See page 14±342)
9.DRAIN MANUAL TRANSAXLE OIL Torque: 49 N
m (500 kgf
cm,36 ft
lbf)
10.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
11.REMOVE BATTERY
12.REMOVE AIR CLEANER ASSY
(a)Disconnect the connector.
(b)Remove the air cleaner cap together with the air cleaner hose.
(c)Remove the air cleaner filter element.
(d)Remove the 3 bolts and the air cleaner case.
13.DISCONNECT UNION TO CONNECTOR TUBE HOSE
14.REMOVE FUEL FILTER ASSY
(a)Disconnect the 2 fuel hose from the fuel filter (STD).
(b)Disconnect the 3 fuel hose from the fuel filter (COLD).
(c)Disconnect the connector (STD).
(d)Disconnect the 2 connectors (COLD).
(e)Remove the 2 bolts and the fuel filter.
15.REMOVE RADIATOR HOSE INLET
16.REMOVE RADIATOR HOSE OUTLET
17.DISCONNECT WATER BY±PASS HOSE NO.2
18.REMOVE ENGINE ROOM RELAY BLOCK NO.3
(a)Remove the 2 bolts and the engine room relay block.
19.REMOVE RADIATOR ASSY (W/ AIR CONDITIONING) (See page 16±51)
20. DISCONNECT HEATER INLET WATER HOSE
21. DISCONNECT HEATER OUTLET WATER HOSE
22. DISCONNECT FUEL HOSE NO.2
23. REMOVE AIR TUBE NO.2
(a) Loosen the hose clamp and disconnect the air hose No.3.
(b) Remove the 2 bolts and the air tube No. 2.

A15985
A78280
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±291
AVENSIS REPAIR MANUAL (RM1018E)
56.REMOVE IDLER PULLEY SUB±ASSY (See page 14±307)
57.REMOVE TIMING BELT NO.2 COVER (See page 14±307)
58.REMOVE TIMING BELT NO.1 COVER (See page 14±307)
59.REMOVE TIMING BELT GUIDE
60.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
61.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307)
62.REMOVE TIMING BELT (See page 14±307)
HINT:
If re±use the timing belt, draw an arrow which indicates the engine rev\
olution direction on the belt and put
match marks on the pulleys and the belt before removing. This operation will \
be very helpful when re±instal-
ling the timing belt.
63.REMOVE GENERATOR ASSY
64.REMOVE GENERATOR BRACKET NO.1
(a)Remove the 2 bolts and the generator bracket.
65.REMOVE V±RIBBED BELT TENSIONER ASSY
66.REMOVE OIL FILTER BRACKET SUB±ASSY
(a)Remove the bolt and 2 nuts, and then remove the oil filter
bracket and the gasket.
67.REMOVE TURBO INSULATOR NO.2 (See page 13±11)
68.REMOVE TURBO INSULATOR NO.1 (See page 13±11)
69.REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO.2 (See page 13±11)
70.REMOVE MANIFOLD STAY NO.2 (See page 13±11)
71.REMOVE MANIFOLD STAY (See page 13±11)
72.REMOVE EXHAUST MANIFOLD CONVERTER SUB±ASSY (See page 13±11)
73.REMOVE TURBOCHARGER STAY (See page 13±11)
74.DISCONNECT TURBO WATER HOSE NO.1 (See page 13±11)
75.DISCONNECT TURBO WATER HOSE NO.2 (See page 13±11)
76.SEPARATE TURBO OIL INLET PIPE SUB±ASSY (See page 13±11)
77.REMOVE TURBO OIL OUTLET PIPE NO.2 (See page 13±11)
78.REMOVE TURBOCHARGER SUB±ASSY (See page 13±11) 79. DISCONNECT WATER BY±PASS HOSE NO.3

A79150
A61175
A09671
14±294
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
93.REMOVE INTAKE MANIFOLD INSULATOR NO.1
(a)Remove the 2 bolts and the intake manifold insulator.
94.REMOVE COMMON RAIL ASSY (See page 11±78) 95.REMOVE POWER STEERING IDLE PULLEY
BRACKET
(a)Remove the 3 bolts and the idle pulley bracket.
96.REMOVE INTAKE MANIFOLD
(a)Remove the 2 bolts and the wiring harness clamp bracket.
(b)Remove the 8 bolts and 2 nuts, and then remove the in- take manifold and the gasket.
97.REMOVE INJECTION PUMP DRIVE PULLEY (See page 11±69) SST 09960±10010 (09962±01000, 09963±01000)
98. REMOVE TIMING BELT NO.3 COVER
(a) Remove the 2 bolts and 2 seal washers, and then remove the timing belt c\
over.
99.REMOVE OIL LEVEL GAGE GUIDE (See page 17±22)
100.REMOVE INJECTION OR SUPPLY PUMP ASSY (See page 11±69)
101. REMOVE COMPRESSOR MOUNTING BRACKET NO.1
(a) Remove the 4 bolts and the compressor mounting bracket.
102. REMOVE WATER INLET
(a) Remove the 2 bolts and the water inlet.
103. REMOVE THERMOSTAT
104. REMOVE OIL COOLER PIPE
(a) Remove the union bolt, the oil cooler pipe and the gasket.
105. REMOVE FUEL FILTER TO INJECTION PUMP FUEL PIPE
(a) Remove the 3 bolts and nut, and then detach the fuel pipe.
