2005 TOYOTA AVENSIS code

A62378
+BHT
E1





Component Side
B2S2
H10
B1S2
H8
±

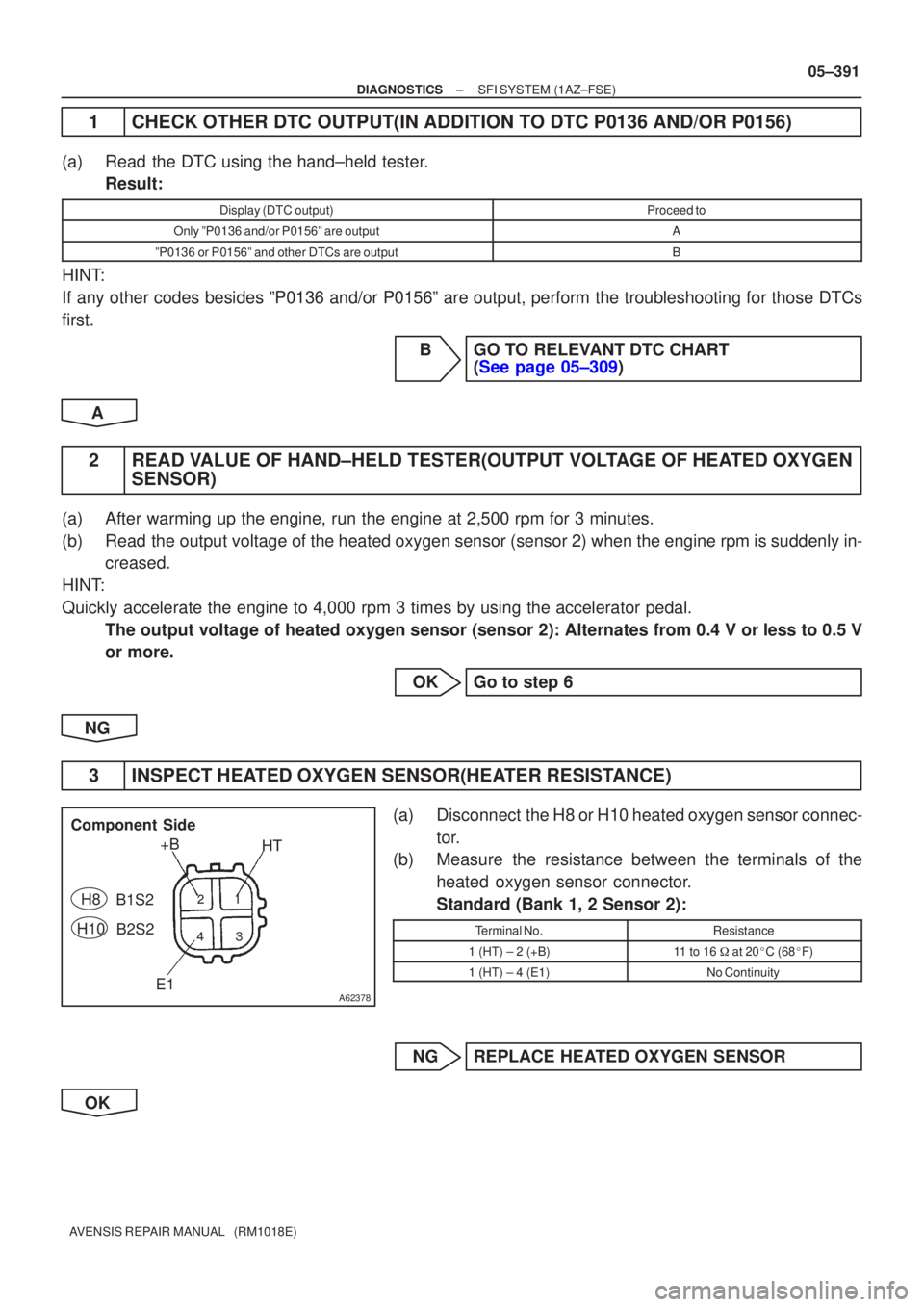

DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
05±391
AVENSIS REPAIR MANUAL (RM1018E)
1CHECK OTHER DTC OUTPUT(IN ADDITION TO DTC P0136 AND/OR P0156)
(a)Read the DTC using the hand±held tester.
Result:
Display (DTC output)Proceed to
Only ºP0136 and/or P0156º are outputA
ºP0136 or P0156º and other DTCs are outputB
HINT:
If any other codes besides ºP0136 and/or P0156º are output, perform \
the troubleshooting for those DTCs
first.
BGO TO RELEVANT DTC CHART(See page 05±309)
A
2 READ VALUE OF HAND±HELD TESTER(OUTPUT VOLTAGE OF HEATED OXYGEN SENSOR)
(a) After warming up the engine, run the engine at 2,500 rpm for 3 minutes.
(b) Read the output voltage of the heated oxygen sensor (sensor 2) when the engine rpm is suddenly\
in-
creased.
HINT:
Quickly accelerate the engine to 4,000 rpm 3 times by using the accelerator ped\
al. The output voltage of heated oxygen sensor (sensor 2): Alternates from\
0.4 V or less to 0.5 V
or more.
OK Go to step 6
NG
3 INSPECT HEATED OXYGEN SENSOR(HEATER RESISTANCE)
(a) Disconnect the H8 or H10 heated oxygen sensor connec- tor.
(b) Measure the resistance between the terminals of the
heated oxygen sensor connector.
Standard (Bank 1, 2 Sensor 2):
Terminal No.Resistance
1 (HT) ± 2 (+B)11 to 16
at 20
C (68
F)
1 (HT) ± 4 (E1)No Continuity
NG REPLACE HEATED OXYGEN SENSOR
OK

A73686
05±376
±

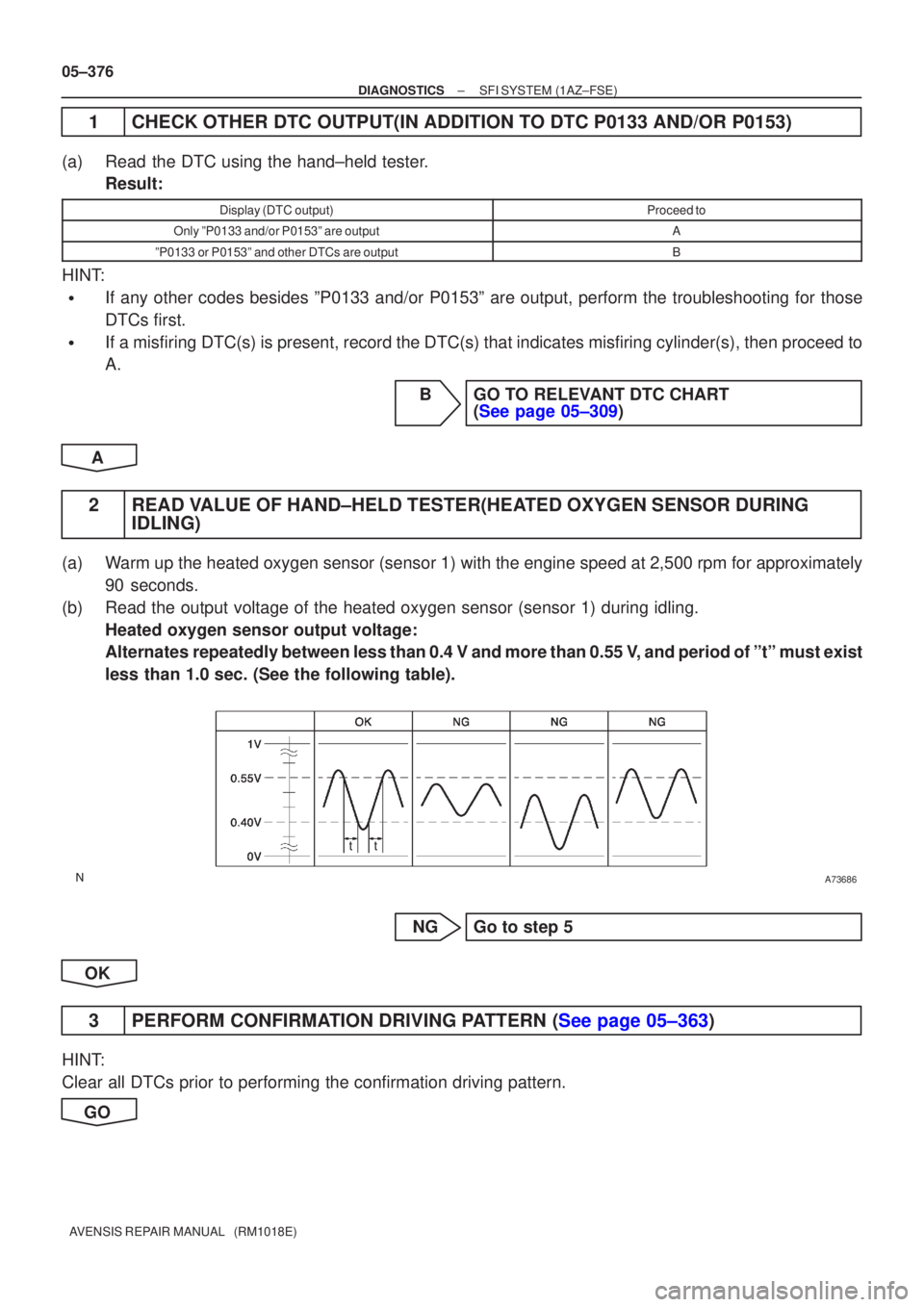

DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
1CHECK OTHER DTC OUTPUT(IN ADDITION TO DTC P0133 AND/OR P0153)
(a)Read the DTC using the hand±held tester. Result:
Display (DTC output)Proceed to
Only ºP0133 and/or P0153º are outputA
ºP0133 or P0153º and other DTCs are outputB
HINT:

If any other codes besides ºP0133 and/or P0153º are output, perform t\
he troubleshooting for those
DTCs first.

If a misfiring DTC(s) is present, record the DTC(s) that indicates mis\
firing cylinder(s), then proceed to
A.
BGO TO RELEVANT DTC CHART (See page 05±309)
A
2READ VALUE OF HAND±HELD TESTER(HEATED OXYGEN SENSOR DURING IDLING)
(a)Warm up the heated oxygen sensor (sensor 1) with the engine speed at 2,\
500 rpm for approximately
90 seconds.
(b)Read the output voltage of the heated oxygen sensor (sensor 1) during \
idling. Heated oxygen sensor output voltage:
Alternates repeatedly between less than 0.4 V and more than 0.55 V, and period of ºtº must exist
less than 1.0 sec. (See the following table).
NGGo to step 5
OK
3PERFORM CONFIRMATION DRIVING PATTERN (See page 05±363)
HINT:
Clear all DTCs prior to performing the confirmation driving pattern. GO

A76882
Battery
FL MAIN
IGN
B±G 11
E9
2
6
Engine
Room
J/B No.4 Engine Room
R/B No.1
and
Engine Room
J/B No.1
AM2
1 2
B±G 4
18Driver
Side J/B
B±W
B±R
WECM
DH DA
B±R
B±R
1
1A 1
1
4A
1
4B (LHD)(RHD)
IP1
IE4 1
1
I13
Ignition Switch
AM2
IG2
(LHD) J8
C
(RHD)J26
A
(LHD)J8
C
(RHD)J26
A B±WCheck
Engine
Warning
Light
W
C11
Combination Meter
22 9
J/C
±

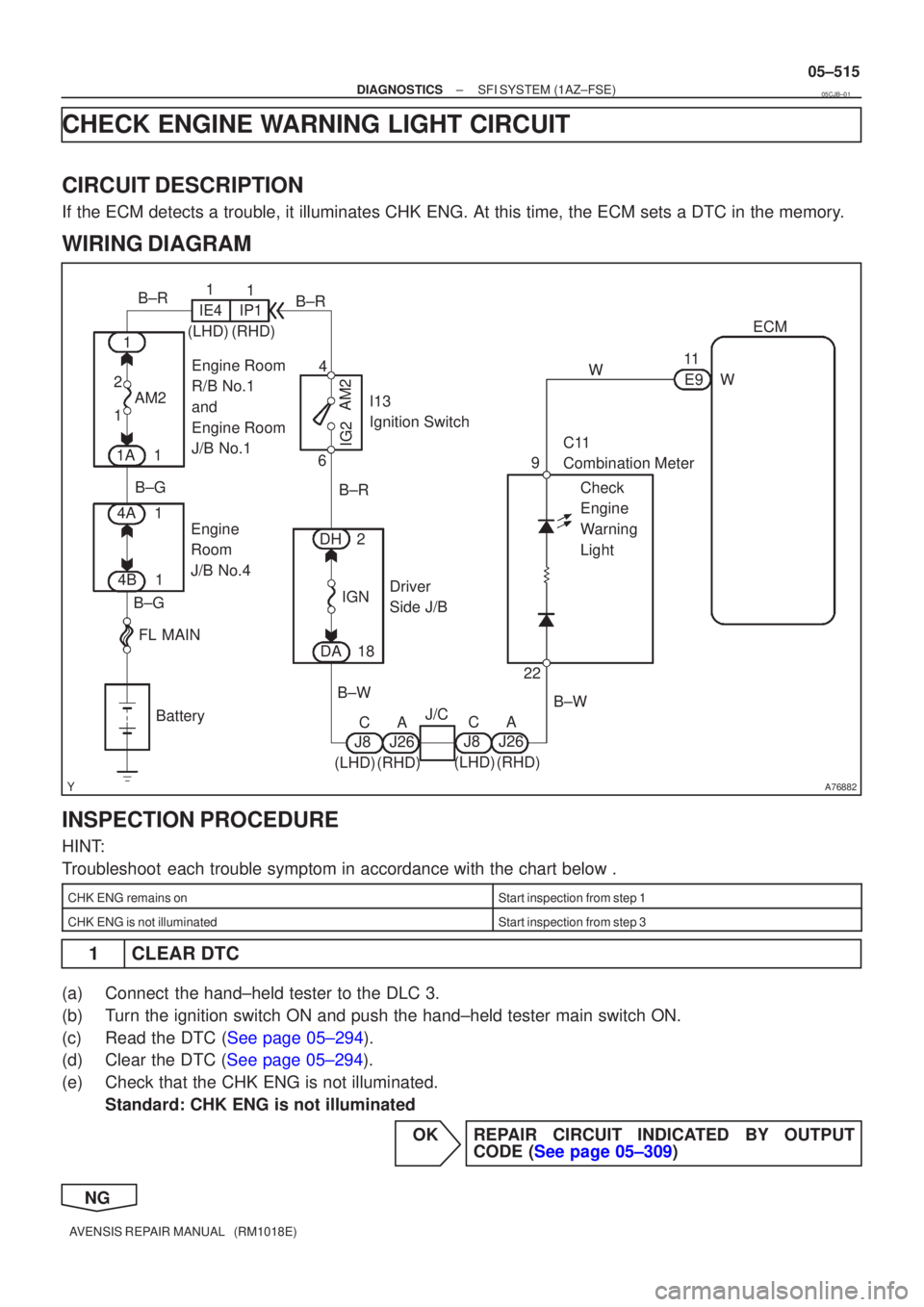

DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
05±515
AVENSIS REPAIR MANUAL (RM1018E)
CHECK ENGINE WARNING LIGHT CIRCUIT
CIRCUIT DESCRIPTION
If the ECM detects a trouble, it illuminates CHK ENG. At this time, the EC\
M sets a DTC in the memory.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Troubleshoot each trouble symptom in accordance with the chart below .
CHK ENG remains onStart inspection from step 1
CHK ENG is not illuminatedStart inspection from step 3
1CLEAR DTC
(a)Connect the hand±held tester to the DLC 3.
(b)Turn the ignition switch ON and push the hand±held tester main switch \
ON.
(c)Read the DTC (See page 05±294).
(d)Clear the DTC (See page 05±294).
(e) Check that the CHK ENG is not illuminated.
Standard: CHK ENG is not illuminated
OK REPAIR CIRCUIT INDICATED BY OUTPUTCODE (See page 05±309)
NG
05CJB±01

05±420
± DIAGNOSTICSSFI SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0300 RANDOM/MULTIPLE CYLINDER MISFIRE
DETECTED
DTC P0301 CYLINDER 1 MISFIRE DETECTED
DTC P0302 CYLINDER 2 MISFIRE DETECTED
DTC P0303 CYLINDER 3 MISFIRE DETECTED
DTC P0304 CYLINDER 4 MISFIRE DETECTED
CIRCUIT DESCRIPTION
Misfire: The ECM uses the crankshaft position sensor and camshaft position sensor to monitor changes in
the crankshaft rotation for each cylinder.
The ECM counts the number of times the engine speed change rate indicates that misfire has occurred. And
when the misfire rate equals to or exceeds the count of indicating that the engine condition has deteriorated,
the CHK ENG is illuminated.
If the misfire rate is high enough and the driving conditions will cause the catalyst to overheat, the CHK ENG
blinks when misfiring occurs.
HINT:

For any particular 200 revolutions of the engine, misfiring which would result in overheating of catalyst
is detected. This cause CHK ENG to blink (1 trip detection logic).

For any particular 1,000 revolutions of engine, misfiring which would result in a deterioration of emis-
sions. This illuminates CHK ENG (2 trip detection logic).
DTC No.DTC Detection ConditionTrouble Area
P0300Misfiring of random cylinders is detected

Open or short in engine wire

Connector connection

Vacuum hose connection

Ignition system

Injector
P0301
P0302
Misfiring of each cylinder is detected

Fuel pressure

Mass air flow meter

Engine coolant temperature sensor

Compression pressure


Valve clearanceP0302
P0303
P0304Misfiring of each cylinder is detected
Valve clearance

Valve timing

PCV hose connection

PCV hose

ECM
HINT:
When codes for a misfiring cylinder are recorded repeatedly but no random misfire code is recorded, it indi-
cates that the misfires have been detected and recorded at different times.
05CKH±01

05±422
±
DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
1CHECK OTHER DTC OUTPUT(IN ADDITION TO MISFIRE DTCS)
(a)Read the DTC using the hand±held tester. Result :
DisplayProceed to
DTC ºP0300, P0301, P0302, P0303 and/or P0304º are output.A
DTC ºP0300, P0301, P0302, P0303 or P0304º and other codes are outp\
ut.B
HINT:
If any other codes besides ºP0300, P0301, P0302, P0303 and/or P0304º are output, perform the trouble-
shooting for those DTCs first.
BGO TO RELEVANT DTC CHART (See page 05±309)
A
2 CHECK WIRE HARNESS, CONNECTOR AND VACUUM HOSE IN ENGINE ROOM
(a) Check the connection conditions of the wire harness and connector.
(b) Check the disconnection, piping and break of the vacuum hose. NG REPAIR OR REPLACE, THEN CONFIRM THATTHERE IS NO MISFIRE
OK
3 CHECK CONNECTION OF PCV HOSE
NG REPAIR OR REPLACE PCV HOSE
OK
4 READ VALUE OF HAND±HELD TESTER(NUMBER OF MISFIRE)
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand±held tester main switch \
ON.
(c) Start the engine.
(d) Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL / CYL#1 ± CYL#4º.
(e) Read the number of misfire on the hand±held tester.
HINT:
When a misfire is not reproduced, be sure to branch below based on the s\
tored DTC. Result:
High Misfire Rate CylinderProceed to
1 or 2 cylindersA
More than 3 cylindersB
B Go to step 12
A

±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
05±583
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0101MASS OR VOLUME AIR FLOW CIRCUIT
RANGE/PERFORMANCE PROBLEM
CIRCUIT DESCRIPTION
Refer to DTC P0100 on page 05±577.
DTC No.DTC Detection ConditionTrouble Area
After engine is warmed up, condition (a)continues for more
than 10 sec. at idling: (2 trip detection logic)
(a)Mass air flow meter output greater than 2.2 V
P0101Conditions (a) and (b) continue for more than 6 sec. with en-
gine speed 2000 rpm or more: (2 trip detection logic)
(a)VTA greater than 0.1 V
(b)Mass air flow meter output less than 0.25 V
Mass air flow meter
INSPECTION PROCEDURE
HINT:
Read freeze frame data using \b
 . Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, etc. at the time of the malfu\
nction.
1CHECK OTHER DTC OUTPUT(BESIDES DTC P0101)
(a)Read the DTC using the hand±held tester. Result:
Display (DTC output)Proceed to
P0101 and other DTCs are outputA
Only P0101 is outputB
HINT:
If any other codes besides P0101 are output, perform the troubleshoot for \
those DTCs first.
BREPLACE MASS AIR FLOW METER
A
GO TO RELEVANT DTC CHART (See page 05±544)
05CPI±01

±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
05±563
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0088FUEL RAIL/SYSTEM PRESSURE ± TOO
HIGH
DTCP1229FUEL PUMP SYSTEM
HINT:

For more information on the supply pump (suction control valve) and the c\
ommon rail system,
see page 05±517.

If P0088 and/or P1229 are present, use the diagnostic trouble code matri\
x for fuel system,
see page 05±517.
CIRCUIT DESCRIPTION
Refer to description on page 05±517.
DTC No.DTC Detection ConditionTrouble Area
P0088
Internal fuel pressure of the common rail is too high.
The fuel pressure exceeds 200 MPa (2,039 kgf/cm2, 29,007
psi).

Supply pump (Suction control valve)

Pressure discharge valve

Short in supply pump (Suction control valve) circuit

Open in pressure discharge valve circuit

ECM
P1229
Fuel over fed.
Internal fuel pressure is beyond the target fuel pressure de-
spite the ECM closing the suction control valve.
Short in supply pump (Suction control valve) circuit

Supply pump (Suction control valve)

ECM
HINT:
After confirming DTC ºP0088 and P1229º, use the hand±held tester to \
confirm the fuel rail pressure from
the ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL / COMN RAIL PRESSº.
Engine SpeedFuel Pressure (MPa)
IdlingApprox. 30 to 40
Running the engine at 2,500 rpm (No engine load)Approx. 50 to 100
MONITOR DESCRIPTION
P0088 (Internal fuel pressure too high):
The ECM will set this DTC if the fuel pressure inside the common rail is\
beyond 200 MPa (2,039 kgf/cm
2,
29,007 psi). This DTC indicates that the suction control valve may be stuck o\
pen, or there may be short in
its circuit, and the pressure discharge valve may be stuck close, or the\
re may be open in its circuit.
If this DTC is present, the ECM enters fail±safe mode and limits the \
engine power. The fail±safe mode will
continue until the ignition switch is turned OFF.
P1229 (Fuel over fed):
The ECM will set this DTC if the actual fuel pressure inside the common rai\
l stays higher than the target fuel
pressure, despite the ECM closing the suction control valve. This DTC co\
de represents that the suction con-
trol valve may be stuck open, or there may be short in its circuit. Unde\
r this condition, the pressure discharge
valve will operate quite often.
If this DTC is present, the ECM enters fail±safe mode and limits the en\
gine power. The fail±safe mode will
continue until the ignition switch is turned OFF.
05CPE±01

05±566
±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
1CHECK OTHER DTC OUTPUT(BESIDS DTC P0088 AND/OR P1229)
(a)Connect the hand±held tester to the DLC3.
(b)Turn the ignition switch ON and push the hand±held tester main switch \
ON.
(c)Select the item ºDIAGNOSIS / OBD/MOBD / DTC INFO / CURRENT CODESº.\
(d)Read the DTCs.
Result:
Display (DTC output)Proceed to
ºOnly DTC P0088º or ºDTC P0088 and P1229º are outputA
Only DTC P1229 is outputB
DTC ºP0190, P0191, P0192, P0193 and/or P1271º are out- putC
Only DTC P1272 is outputD
BGo to step 4
CGO TO RELEVANT DTC CHART (See page 05±544)
D Go to step 3
A
2 READ OUTPUT DTC(DTC P1272 OUTPUT)
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand±held tester main switch \
ON.
(c) Select the item ºDIAGNOSIS / OBD/MOBD / DTC INFO / CLEAR CODESº.
(d) Clear the DTCs.
(e) Start the engine and turn the ignition switch OFF. Wait for 10 seconds and then restart the engine and turn the ignition switch OFF again.
(f) Select the item ºDIAGNOSIS / OBD/MOBD / DTC INFO / CURRENT CODESº.\
(g) Read the DTCs.
Result:
Display (DTC output)Proceed to
DTC P1272 is outputA
DTC P1272 is not outputB
B Go to step 4
A
