D26542
E1
ECT SolenoidECM
17
SLT+ E13 P±L
2 O
16
SLT± E13 P
7 SLT+
SLT± G
D25234
SLT+
SLT±
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±895
AVENSIS REPAIR MANUAL (RM1018E)

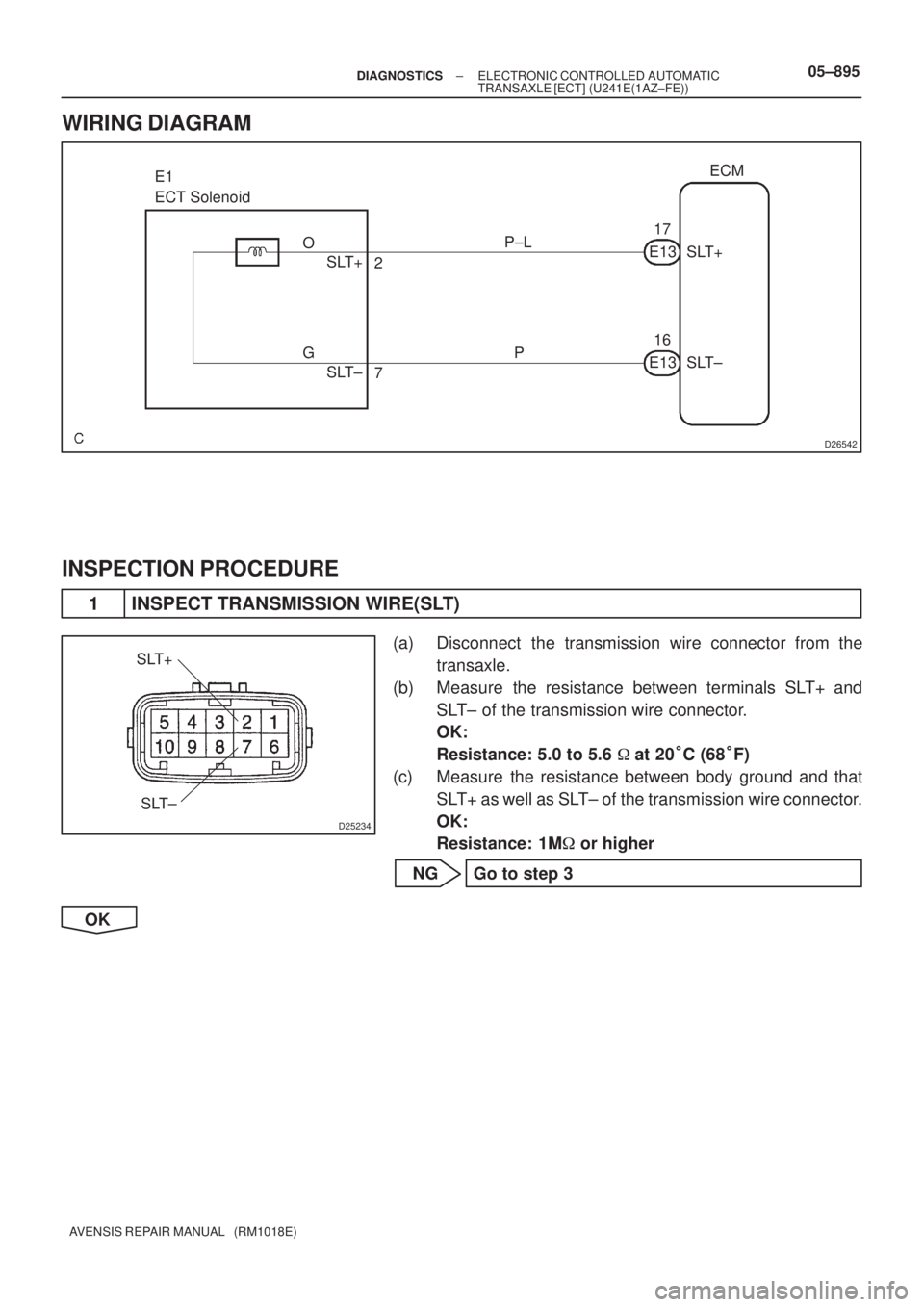

WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(SLT)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals SLT+ and
SLT± of the transmission wire connector.
OK:
Resistance: 5.0 to 5.6 at 20
C (68
F)
(c) Measure the resistance between body ground and that
SLT+ as well as SLT± of the transmission wire connector.
OK:
Resistance: 1M or higher
NG Go to step 3
OK

D26541
C3
Counter Gear Speed
SensorECM
26
E12 NC+ LG
2
34
E12 NC± LG±B 1 05±892
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0793/67 INTERMEDIATE SHAFT SPEED SENSOR
ºAº
CIRCUIT DESCRIPTION
This sensor detects the rotation speed of the counter gear. By comparing the counter gear speed signal (NC)
with the direct clutch speed sensor signal (NT), the ECM detects the shift timing of the gears and appropriate-
ly controls the engine torque and hydraulic pressure according to various conditions. Thus smooth gear shift-
ing is performed.
DTC No.DTC Detection ConditionTrouble Area
P0793/67
ECM detects conditions (a), (b), (c) and (d) continuity for 5 sec.
or more: (2 trip detection logic)
(a) Vehicle speed: 50 km/h (20 mph) or more
(b) 2nd, 3rd or O/D gear
(c) Solenoid valves and park/neutral position switch are normal
(d) NC < 300 rpm

Open or short in speed sensor (NC) circuit

Speed sensor (NC)

ECM

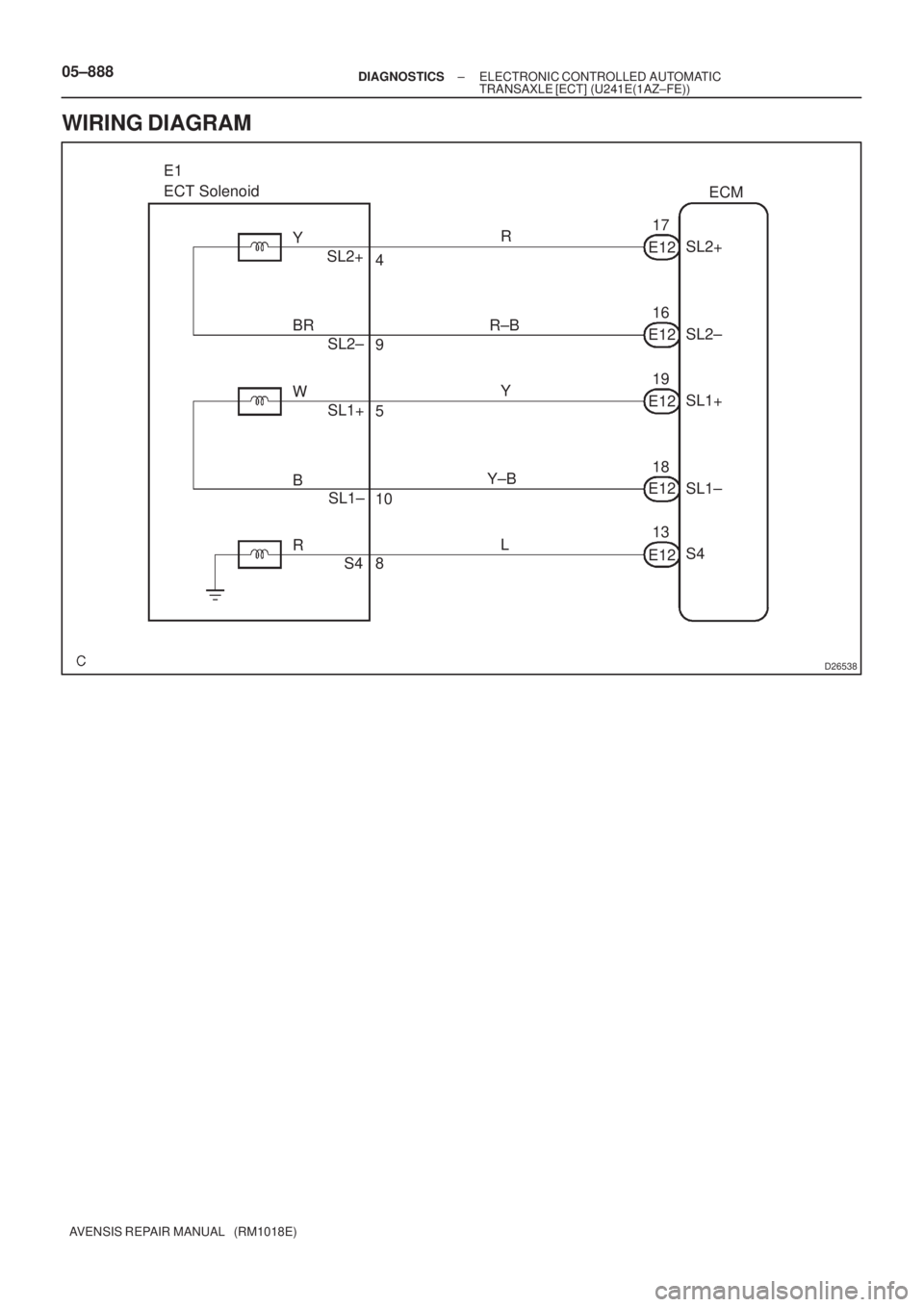

WIRING DIAGRAM
05C8W±01

D26538
E1
ECT Solenoid
ECM
17
SL2+
E12 R
4 Y
16
SL2±
E12
19
SL1+
E12
18
SL1± E12
13
S4
E12 R±B
Y
Y±B
L 9
5
10
8 SL2+
SL2±
SL1+
SL1±
S4 BR
W
B
R 05±888
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)

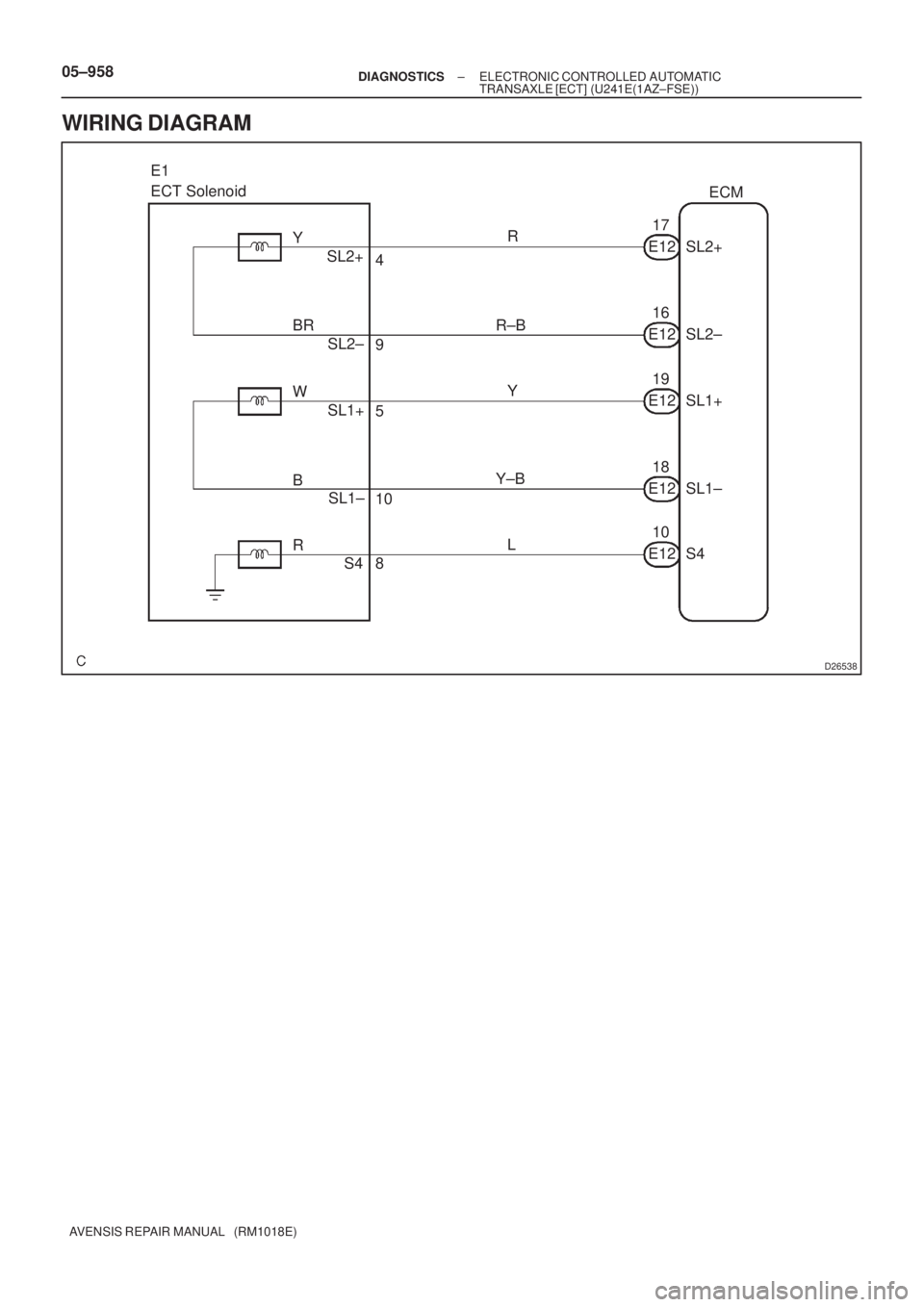

WIRING DIAGRAM

D26538
E1
ECT Solenoid
ECM
17
SL2+ E12 R
4 Y
16
SL2± E12
19
SL1+ E12
18
SL1± E12
10
S4 E12 R±B
Y
Y±B
L 9
5
10
8 SL2+
SL2±
SL1+
SL1±
S4 BR
W
B
R 05±958
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FSE))
AVENSIS REPAIR MANUAL (RM1018E)
WIRING DIAGRAM

D26539
E1
ECT SolenoidECM
11
DSL E12 L±B
3 DSL G
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FSE))05±951
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0743 TORQUE CONVERTER CLUTCH CIRCUIT
ELECTRICAL (SHIFT SOLENOID VALVE
DSL)
CIRCUIT DESCRIPTION
The shift solenoid valve DSL is turned ON and OFF by signals from the ECM in order to control the hydraulic
pressure operation the lock±up relay valve, which then the controls operation of the lock±up clutch.
DTC No.DTC Detection ConditionTrouble Area
P0743
Either (a) or (b) is detected at 1 time:
(2 trip detection logic)
(a) Solenoid resistance is 8  or less short circuit when sole-
noid is energized
(b) Solenoid resistance is 100 k or more open circuit when
solenoid is not energized

Open or short in shift solenoid valve DSL circuit

Shift solenoid valve DSL

ECM
Fail safe function:
If the ECM detects a malfunction, it turns the shift solenoid valve DSL OFF.
WIRING DIAGRAM
05C9C±01

±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FSE))05±947
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0724BRAKE SWITCH ºBº CIRCUIT HIGH
CIRCUIT DESCRIPTION
The purpose of this circuit is to prevent the engine from stalling while dr\
iving in lock±up condition, when
brakes are suddenly applied.
When the brake pedal is depressed, this switch sends signals to the ECM. Then\
the ECM cancels the opera-
tion of the lock±up clutch while braking is in progress.
DTC No.DTC Detecting ConditionTrouble Area
P0724The stop light switch does not turn off even once the vehicle is
driven (2±trip detection logic).
Short in stop light switch signal circuit

Stop light switch

ECM
WIRING DIAGRAM
See page 05±475.
INSPECTION PROCEDURE
1 INSPECT STOP LAMP SWITCH ASSY
NG REPLACE STOP LAMP SWITCH ASSY
OK
2 CHECK HARNESS AND CONNECTOR(STOP LAMP SWITCH ASSY ± ECM)
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPAIR OR REPLACE ECM
05C9A±01

D26540
T4
Turbine Speed SensorECM
NT+ E1227
B±O
2
B
NT± E1235 1
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FSE))05±945
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0717 TURBINE SPEED SENSOR CIRCUIT NO
SIGNAL
CIRCUIT DESCRIPTION
This sensor detects the rotation speed of the input turbine. By comparing the input turbine speed signal (NT)
with the counter gear speed sensor signal (NC), the ECM detects the shift timing of the gears and appropri-
ately controls the engine torque and hydraulic pressure according to various conditions. Thus smooth gear
shifting is performed.
DTC No.DTC Detection ConditionTrouble Area
P0717
ECM detects conditions (a), (b), (c) and (d) continuity for 5 sec.
or more: (1 trip detection logic)
(a) Vehicle speed: 50 km/h (20 mph) or more
(b) 2nd, 3rd or O/D gear
(c) Solenoid valves and park/neutral position switch are normal
(d) NT < 300 rpm

Open or short in speed sensor (NT) circuit

Speed sensor (NT)

ECM
WIRING DIAGRAM
05C99±01

C54864
THOE2
±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FSE))05±943
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0711TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº PERFORMANCE
CIRCUIT DESCRIPTION
The ATF temperature sensor converts the fluid temperature into a resistance v\
alue which is input into the
ECM.
DTC No.DTC Detection ConditionTrouble Area
P0711
Both (a) and (b) are detected: (2±trip detection logic)
(a)After 12 sec. of engine start, temp. of atmosphere and that
of engine coolant is more than ±10
C
(b)After normal driving for over 20 min. and 10 km, ATF temp.
is less than 10
C

Open or short in ATF temperature sensor circuit

ATF temperature sensor

ECM
WIRING DIAGRAM
See page 05±941.
INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals THO and E2. OK:
Temperature: C ( F)Resistance: k

10 (50)6.4
110 (230)0.2
(c) Measure the resistance between body ground and that
THO as well as E2 of the transmission wire connector.
OK:
Resistance: 1M
or higher
NG REPAIR OR REPLACE TRANSMISSION WIRE
OK
05C98±01
