DTC P0217 ENGINE OVER TEMPERATURE
EC-1131
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

8. CHECK RADIATOR CAP
Apply pressure to cap with a tester and check radiator cap relief
pressure.
OK or NG
OK >> GO TO 9.
NG >> Replace radiator cap.
9. CHECK THERMOSTAT
1. Remove thermostat.
2. Check valve seating condition at normal room temperatures.
It should seat tightly.
3. Check valve opening temperature and valve lift.
4. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature. For details, refer to CO-45, "
THERMOSTAT AND
WATER PIPING" .
OK or NG
OK >> GO TO 10.
NG >> Replace thermostat.
10. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-1137, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace engine coolant temperature sensor.
11 . CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-1136, "
Main 12 Causes of Overheating" .
>>INSPECTION END Radiator cap relief pressure:
59 - 98 kPa (0.59 - 0.98 bar, 0.6 - 1.0 kg/cm
2 , 9 - 14 psi)
SLC755A
Valve opening temperature:
80 - 84 °C (176 - 183 °F)
Valve lift:
More than 10 mm/95 °C (0.39 in/203 °F)
SLC343

EC-1138
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR

DTC P0222, P0223 APP SENSORPFP:18002
DescriptionEBS011A6
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS011A7
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
On Board Diagnosis LogicEBS011A9
These self-diagnoses have the one trip detection logic.
MI will not light up for these self-diagnoses.
NOTE:

If DTC P0222 or P0223 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for
DTC P0652 or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011AA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1142, "
Diagnostic Procedure" .
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222Accelerator pedal position
sensor 2 circuit low inputAn excessively low voltage from the APP sensor
2 is sent to ECM.

Harness or connectors
(The APP sensor 2 circuit is open or
shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 2) P0223
0223Accelerator pedal position
sensor 2 circuit high inputAn excessively high voltage from the APP sen-
sor 2 is sent to ECM.
SEF817Y

DTC P0222, P0223 APP SENSOR
EC-1139
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

WITH GST
Follow the procedure “WITH CONSULT-II” above.

EC-1140
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR

Wiring DiagramEBS011AB
TBWA0729E

DTC P0222, P0223 APP SENSOR
EC-1141
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V
91 GAccelerator pedal position
sensor 2[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V

EC-1142
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR

Diagnostic ProcedureEBS011AC
1. CHCEK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

DTC P0222, P0223 APP SENSOR
EC-1143
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 92.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 91 and APP sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-1144, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0915E
Continuity should exist.
Continuity should exist.

EC-1144
[YD (WITH EURO-OBD)]
DTC P0222, P0223 APP SENSOR

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

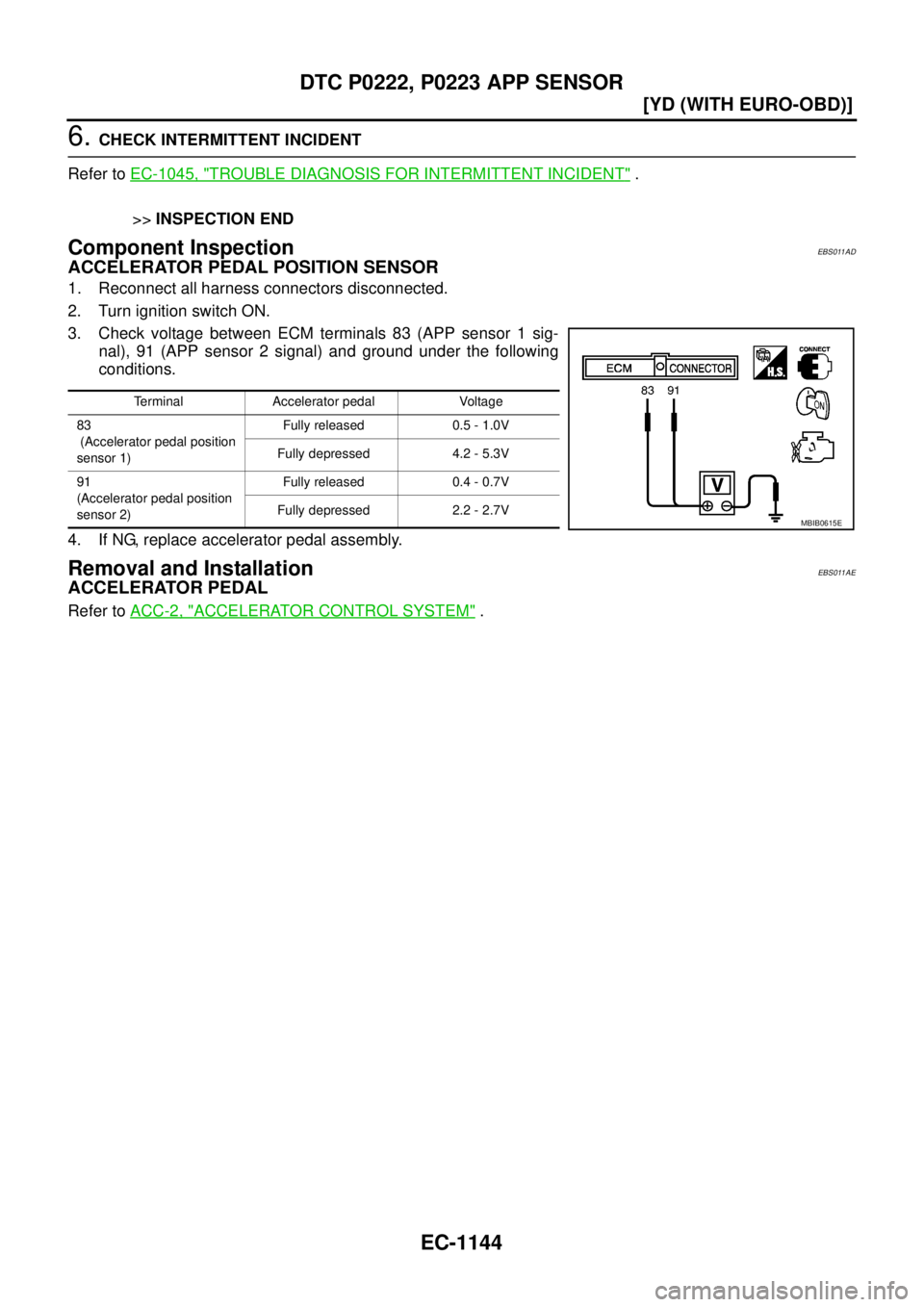

Component InspectionEBS011AD
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly.
Removal and InstallationEBS011AE
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
83
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 4.2 - 5.3V
91
(Accelerator pedal position
sensor 2)Fully released 0.4 - 0.7V
Fully depressed 2.2 - 2.7V
