2005 NISSAN X-TRAIL sensor

DTC P0192, P0193 FRP SENSOR
EC-1111
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS0119I
TBWA0568E

EC-1112
[YD (WITH EURO-OBD)]
DTC P0192, P0193 FRP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
48
49Y/R
RFuel rail pressure sensor[Engine is running]

Warm-up condition

Idle speed1.7 - 2.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.0 - 2.3V
63 WFuel rail pressure sensor
power supply[Ignition switch ON]Approximately 5.3V
67 —Sensor ground
(Sensors shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
68 BFuel rail pressure sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V

DTC P0192, P0193 FRP SENSOR
EC-1113
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

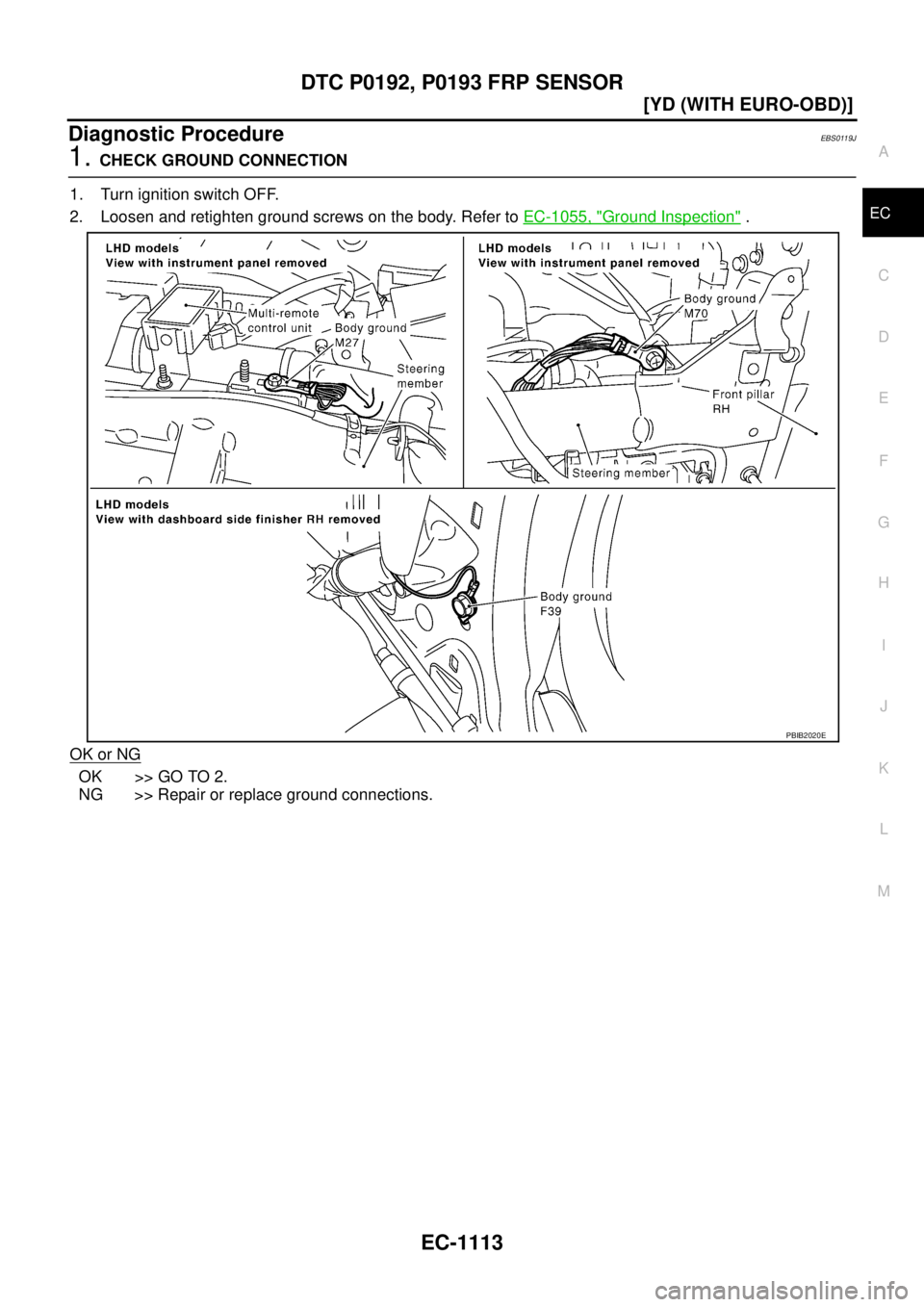

Diagnostic ProcedureEBS0119J
1. CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

EC-1114
[YD (WITH EURO-OBD)]
DTC P0192, P0193 FRP SENSOR

2. CHECK FUEL RAIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel rail pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between fuel rail pressure sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK FUEL RAIL PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between fuel rail pressure sensor terminal 3 and ECM terminal 68.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL RAIL PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals 48, 49 and fuel rail pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness connectors.
5. CHECK FUEL RAIL PRESSURE SENSOR
Refer to E C - 111 5 , "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace fuel rail.
PBIB1894E
Voltage: Approximately 5.3V
PBIB0405E
Continuity should exist.
Continuity should exist.

DTC P0192, P0193 FRP SENSOR
EC-1115
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0119K
FUEL RAIL PRESSURE SENSOR
1. Reconnect harness connector disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminals 48, 49 (Fuel rail pres-
sure sensor signal) and ground under the following conditions.
4. If the voltage is out of specification, disconnect fuel rail pressure
sensor harness connector and connect it again. Then repeat
above check.
5. If NG, replace fuel rail.
Removal and InstallationEBS0119L
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Condition Voltage V
Idle 1.7 - 2.0
2,000 rpm 2.0 - 2.3
MBIB0613E

EC-1124
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

DTC P0217 ENGINE OVER TEMPERATUREPFP:21481
System DescriptionEBS0119Y
COOLING FAN CONTROL
*: These signals are sent to the ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, air condi-
tioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS0119Z
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Vehicle speed sensor* Vehicle speed
Cooling fan
controlCooling fan relay Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch* Air conditioner ON signal
SEF421Z
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI

EC-1126
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch ON.
6. Turn blower fan switch ON.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
8. Make sure that cooling fans operates at low speed.
If NG, go to EC-762, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch OFF.
10. Turn air conditioner switch and blower fan switch OFF.
11. Disconnect engine coolant temperature sensor harness connec-
tor.
12. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go to EC-762, "
Diagnostic Procedure" .
SEF621W
SEC163BA
MEC475B

EC-1130
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

5. CHECK COOLING FAN HIGH SPEED OPERATION-I
Without CONSULT-II
1. Turn ignition switch OFF.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch OFF.
4. Disconnect engine coolant temperature sensor harness connec-
tor.
5. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
11 3 4 , "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following for leak.

Hose

Radiator

Water pump (Refer to CO-43, "WATER PUMP" .)
>> Repair or replace.
PBIB1892E
MEC475B
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2 , 23psi)
Pressure should not drop.
SLC754A
