2005 NISSAN X-TRAIL ECO mode

AT-332
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS004TJ
The revolution sensor detects the revolution of the idler gear parking
pawl lock gear and emits a pulse signal. The pulse signal is sent to
the TCM which converts it into vehicle speed.
CONSULT-II Reference ValueECS00CS5
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CS6
Possible CauseECS00CS7
Check the following items.

Harness or connector
(The sensor circuit is open or shorted.)

Revolution sensor
DTC Confirmation ProcedureECS00CS8
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
SCIA0715E
Monitor item Condition Display value
VHCL/S SE·A/T (km/h) During driving Approximately matches the speedometer
reading.
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·AT
TCM does not receive the proper voltage
signal from the sensor.

Harness or connectors
(The sensor circuit is open or shorted.)

Revolution sensor
: 1st judgement flicker
SAT014K

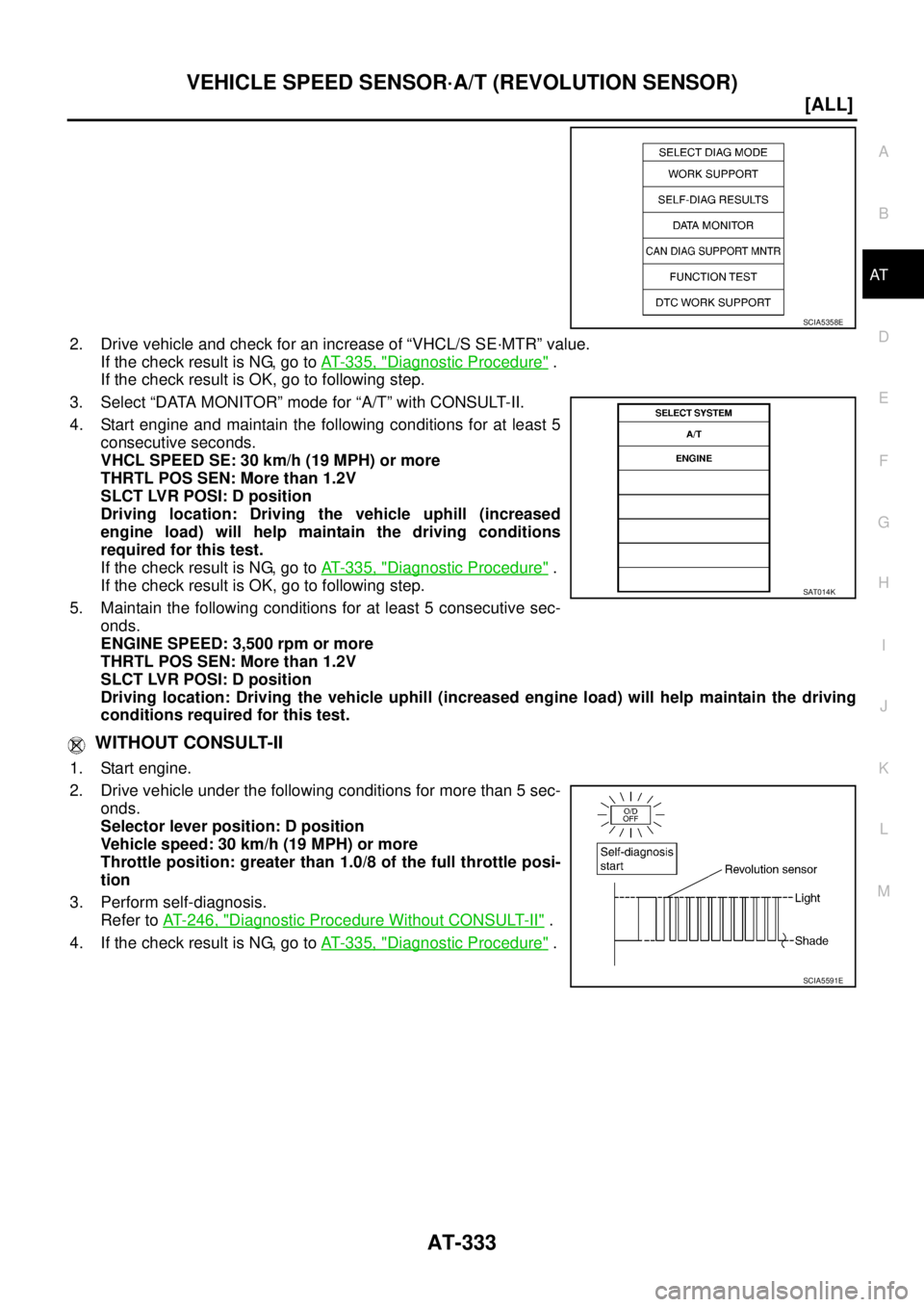

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-333
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

2. Drive vehicle and check for an increase of “VHCL/S SE·MTR” value.
If the check result is NG, go to AT- 3 3 5 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
3. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
4. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.2V
SLCT LVR POSI: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
If the check result is NG, go to AT- 3 3 5 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
5. Maintain the following conditions for at least 5 consecutive sec-
onds.
ENGINE SPEED: 3,500 rpm or more
THRTL POS SEN: More than 1.2V
SLCT LVR POSI: D position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions for more than 5 sec-
onds.
Selector lever position: D position
Vehicle speed: 30 km/h (19 MPH) or more
Throttle position: greater than 1.0/8 of the full throttle posi-
tion
3. Perform self-diagnosis.
Refer to AT- 2 4 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 3 3 5 , "
Diagnostic Procedure" .
SCIA5358E
SAT014K
SCIA5591E

DTC VEHICLE SPEED SENSOR MTR
AT-339
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionECS004TM
The vehicle speed sensor·MTR is built into the speedometer assem-
bly. The sensor functions as an auxiliary device to the revolution sen-
sor when it is malfunctioning. The TCM will then use a signal sent
from the vehicle speed sensor·MTR.
CONSULT-II Reference ValueECS00CSH
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSA
Possible CauseECS00CSB
Check the following items.

Harness or connector
(The sensor circuit is open or shorted.)

Vehicle speed sensor
DTC Confirmation ProcedureECS00CSC
After the repair, perform the following procedure to confirm the malfunction is eliminated.
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
SCIA0716E
Monitor item Condition Display value
VHCL/S SE·MTR (km/h) During driving Approximately matches the speedometer
reading.
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·MTR
TCM does not receive the proper voltage
signal from the sensor.

Harness or connectors
(The sensor circuit is open or shorted.)

Combination meter

4WD/ABS control unit : 2nd judgement flicker
SAT014K

ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-345
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

ACCELE RATOR PEDAL POSITION (APP) SENSORPFP:22620
DescriptionECS004TP

Accelerator pedal position (APP) sensor
Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc.
The actuator sends a signal to the ECM.
CONSULT-II REFERENCE VALUE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSD
*:This code means Accelerator pedal position (APP) sensor in reality.
Possible CauseECS00CSE
Harness or connector
(The sensor circuit is open or shorted.)
DTC Confirmation ProcedureECS00CSF
After the repair, perform the following procedure to confirm the malfunction is eliminated.
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-II.
2. Touch “TCM INPUT SIGNALS”.
3. Touch “START”
If the check result is NG, go to AT- 3 4 8 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
PBIB0498E
Monitor item Condition Specification
Accelerator pedal position (APP) sensor
(THRTL POS SEN)Fully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: THROTTLE POSI SEN*
TCM receives an excessively low or high
voltage from the sensor.

Harness or connectors
(The sensor circuit is open or shorted.)

Accelerator pedal position (APP) sensor
: 3rd judgement flicker
Accelerator pedal condition THRTL POS SEN
Fully released Approx. 0.5V
Partially depressed 0.5 - 4V
Fully depressed Approx. 4V
SAT014K

AT-346
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR

4. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
5. Touch “SELECTION FROM MENU”
6. Touch “VHCL SPEED SE” and “THRTL POS SEN”.
Touch “START”.
7. Start engine and maintain the following conditions for at least 3
consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3V or less
SLCT LVR POSI: D position
If the check result is NG, go to AT- 3 4 8 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
8. Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THROTTLE POSI: 8.0/8
SLCT LVR POSI: D position
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions for more than 3 seconds.
Selector lever position: D position
Vehicle speed: 10 km/h (6 MPH) or more
Throttle position: greater than 4.0/8 of the full throttle position
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 3 4 8 , "
Diagnostic Procedure" .
SCIA5358E
SAT014K
SCIA5593E

AT-356
[ALL]
SHIFT SOLENOID VALVE B

SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004TW
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II Reference ValueECS00CSN
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSM
DTC Confirmation ProcedureECS00CSO
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine.
3. Drive vehicle in D position and allow the transaxle to shift 1 → 2
→ 3 (“GEAR”).
4. If the check result is NG, go to AT- 3 5 9 , "
Diagnostic Procedure" .
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V B (ON/OFF)When shift solenoid valve B operates.
(When driving in “D
1 ” or “D2 ”.)ON
When shift solenoid valve B does not operate.
(When driving in “D
3 ” or “D4 ”.)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VB
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

Shift solenoid valve B
: 5th judgement flicker
SAT014K

AT-362
[ALL]
OVERRUN CLUTCH SOLENOID VALVE

OVERRUN CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U0
The overrun clutch solenoid valve is activated by the TCM in
response to signals sent from the inhibitor switch, overdrive control
switch, vehicle speed and throttle position sensors. The overrun
clutch operation will then be controlled.
CONSULT-II Reference ValueECS00CSR
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSS
Possible CauseECS00CST

Harness or connector
(The solenoid circuit is open or shorted.)

Overrun clutch solenoid valve
DTC Confirmation ProcedureECS00CSU
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine.
3. Accelerate vehicle to a speed of more than 10 km/h (6 MPH)
with selector lever in D position.
4. Release accelerator pedal completely with selector lever in 3rd
position.
5. If the check result is NG, go to AT- 3 6 5 , "
Diagnostic Procedure" .
SCIA0718E
Monitor item Condition Display value
OVERRUN/C S/V (ON/OFF)When overrun clutch solenoid valve operates. ON
When overrun clutch solenoid valve does not oper-
ate.OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: OVERRUN CLUTCH S/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

Overrun clutch solenoid valve
: 6th judgement flicker
SAT014K

AT-368
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE

TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U4
The torque converter clutch solenoid valve is activated, with the gear
in “D
4 ”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II Reference ValueECS00CSV
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSW
Possible CauseECS00CW8
Check the following items.

Torque converter clutch solenoid valve.

Harness or connector.
(The solenoid circuit is open or shorted.)
DTC Confirmation ProcedureECS00CSX
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II and
wait at least 1 second.
3. Start engine and maintain the following condition for at least 5
consecutive seconds.
VHCL SPEED SE: 80 km/h (50 MPH) or more
THROTTLE POSI: 0.5/8 - 1.0/8
SLCT LVR POSI: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
4. If the check result is NG, go to AT- 3 7 1 , "
Diagnostic Procedure" .
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up OFF
↓
Lock-up ONApproximately 4%
↓
Approximately 94%
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: T/C CLUTCH SOL/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

T/C clutch solenoid valve
: 7th judgement flicker
SAT014K
