2005 NISSAN X-TRAIL ECO mode

TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-53
C
E
F
G
H
I
J
K
L
MA
B
TF

While Driving, 4WD Warning Lamp Flashes Slowly (When Continuing to Flash
until Turning Ignition Switch OFF)
EDS001W0
NOTE:
Slow flashing: 1 time/2 seconds
DIAGNOSTIC PROCEDURE
1. CHECK TIRE
Check the following.

Tire pressure

Wear condition

Longitudinal tire size (There shall be no difference of tire size between front and rear tires.)
OK or NG
OK >> GO TO 2.
NG >> Drive at vehicle speed of 20 km/h (12 MPH) or more for 5 seconds or more after repairing or
replacing damaged parts. (Initialize improper size tire information.)

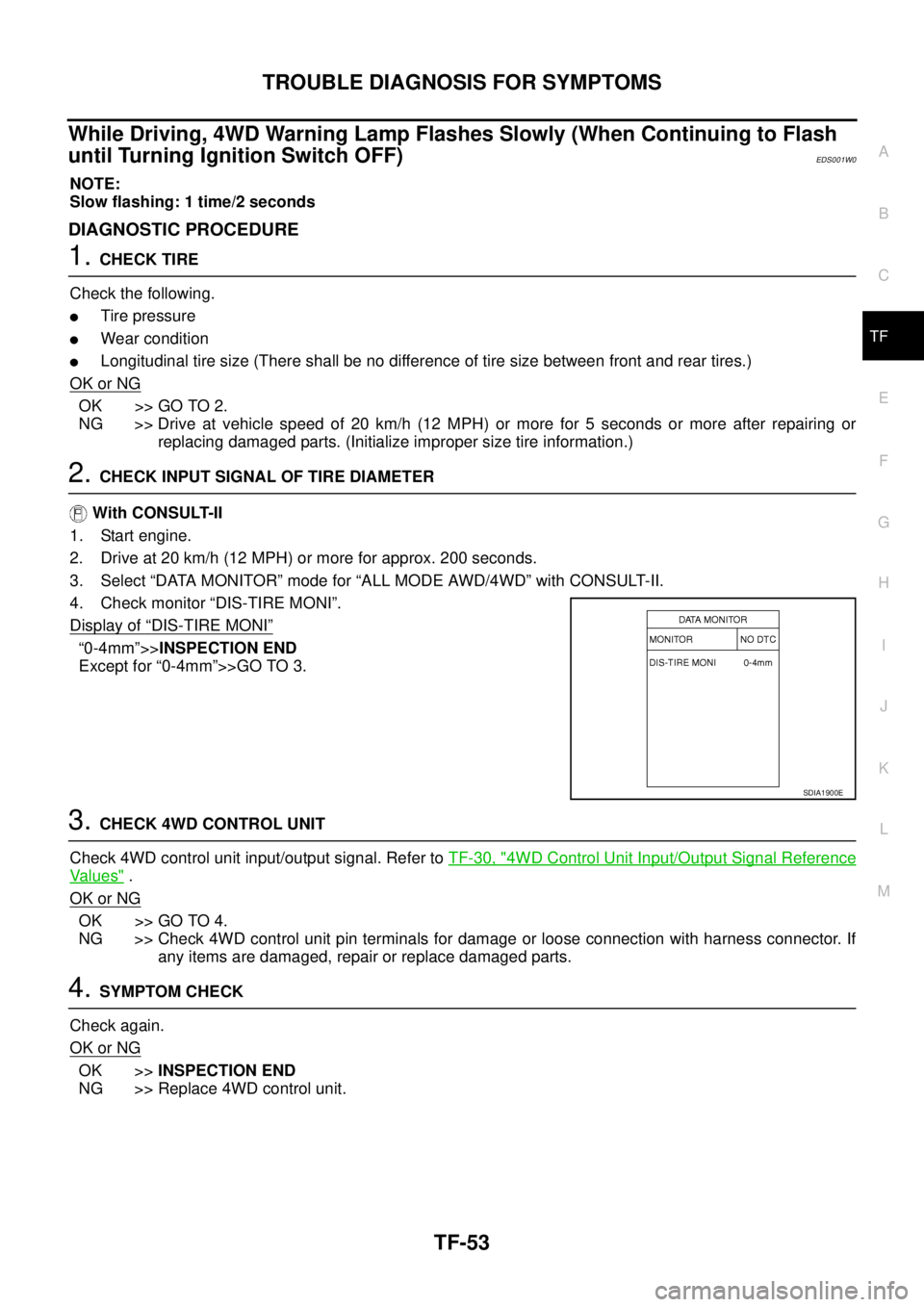

2. CHECK INPUT SIGNAL OF TIRE DIAMETER
With CONSULT-II
1. Start engine.
2. Drive at 20 km/h (12 MPH) or more for approx. 200 seconds.
3. Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.
4. Check monitor “DIS-TIRE MONI”.
Display of
“DIS-TIRE MONI”
“0-4mm”>>INSPECTION END
Except for “0-4mm”>>GO TO 3.
3. CHECK 4WD CONTROL UNIT
Check 4WD control unit input/output signal. Refer to TF-30, "
4WD Control Unit Input/Output Signal Reference
Va l u e s" .
OK or NG
OK >> GO TO 4.
NG >> Check 4WD control unit pin terminals for damage or loose connection with harness connector. If
any items are damaged, repair or replace damaged parts.
4. SYMPTOM CHECK
Check again.
OK or NG
OK >>INSPECTION END
NG >> Replace 4WD control unit.
SDIA1900E

BRAKE FLUID
BR-9
C
D
E
G
H
I
J
K
L
MA
B
BR

4. Be sure there is no foreign material in reservoir tank. Refill with
new brake fluid.
5. Connect a vinyl tube to bleed valve.
6. Rest foot on brake pedal. Loosen bleed valve. Slowly depress
pedal until it stops. Tighten bleed valve. Release brake pedal.
Repeat this process a few times at 2-3 second intervals until
new brake fluid flows out.
For bleeding procedure. Refer to BR-9, "
Bleeding Brake Sys-
tem" .
Bleeding Brake SystemEFS000C4
CAUTION:

Carefully monitor brake fluid level at master cylinder during bleeding operation.

Fill reservoir with new brake fluid “DOT 3” or “DOT 4”. Make sure it is full at all times while bleed-
ing air out of system.

Place a container under master cylinder to avoid spillage of brake fluid.

While bleeding, pay attention to master cylinder fluid level.

For models with ABS, turn ignition switch OFF and disconnect ABS actuator connectors or bat-
tery ground cable.

Bleed air in the following order.
Right rear brake, left front brake, left rear brake, right front brake
1. Turn OFF ignition switch. Remove ABS actuator connector.
2. Connect a vinyl tube to bleed valve.
3. Fully depress the brake pedal 4 to 5 times.
4. With brake pedal depressed, loosen air bleeder and bleed air.
5. Close bleed valve.
6. Slowly release brake pedal.
7. Tighten bleed valve to the specified torque.
8. Repeat steps 2 - 7. Occasionally refill master cylinder reservoir tank. Be sure to keep it at least half-full.
BRA0006D
: 6.9 - 8.8 N·m (0.7 - 0.9 kg-m, 61- 78 in-lb)

BR-14
BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDERPFP:46010

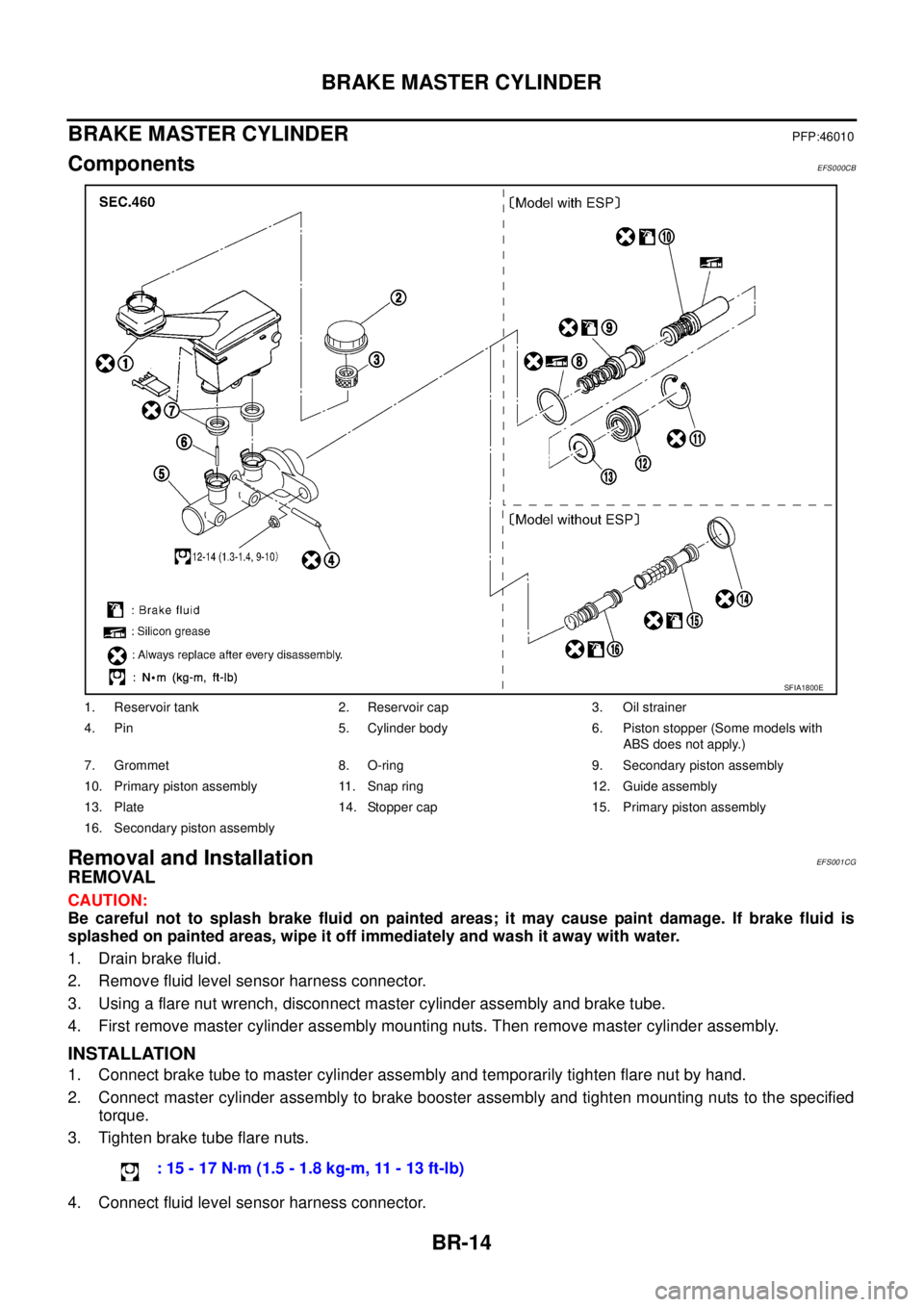

ComponentsEFS000CB
Removal and InstallationEFS001CG
REMOVAL
CAUTION:
Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted areas, wipe it off immediately and wash it away with water.
1. Drain brake fluid.
2. Remove fluid level sensor harness connector.
3. Using a flare nut wrench, disconnect master cylinder assembly and brake tube.
4. First remove master cylinder assembly mounting nuts. Then remove master cylinder assembly.
INSTALLATION
1. Connect brake tube to master cylinder assembly and temporarily tighten flare nut by hand.
2. Connect master cylinder assembly to brake booster assembly and tighten mounting nuts to the specified
torque.
3. Tighten brake tube flare nuts.
4. Connect fluid level sensor harness connector.
1. Reservoir tank 2. Reservoir cap 3. Oil strainer
4. Pin 5. Cylinder body 6. Piston stopper (Some models with
ABS does not apply.)
7. Grommet 8. O-ring 9. Secondary piston assembly
10. Primary piston assembly 11. Snap ring 12. Guide assembly
13. Plate 14. Stopper cap 15. Primary piston assembly
16. Secondary piston assembly
SFIA1800E
: 15 - 17 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

BRAKE MASTER CYLINDER
BR-15
C
D
E
G
H
I
J
K
L
MA
B
BR

5. Refill with new brake fluid and bleed air from the brake piping.
Disassembly and AssemblyEFS001CH

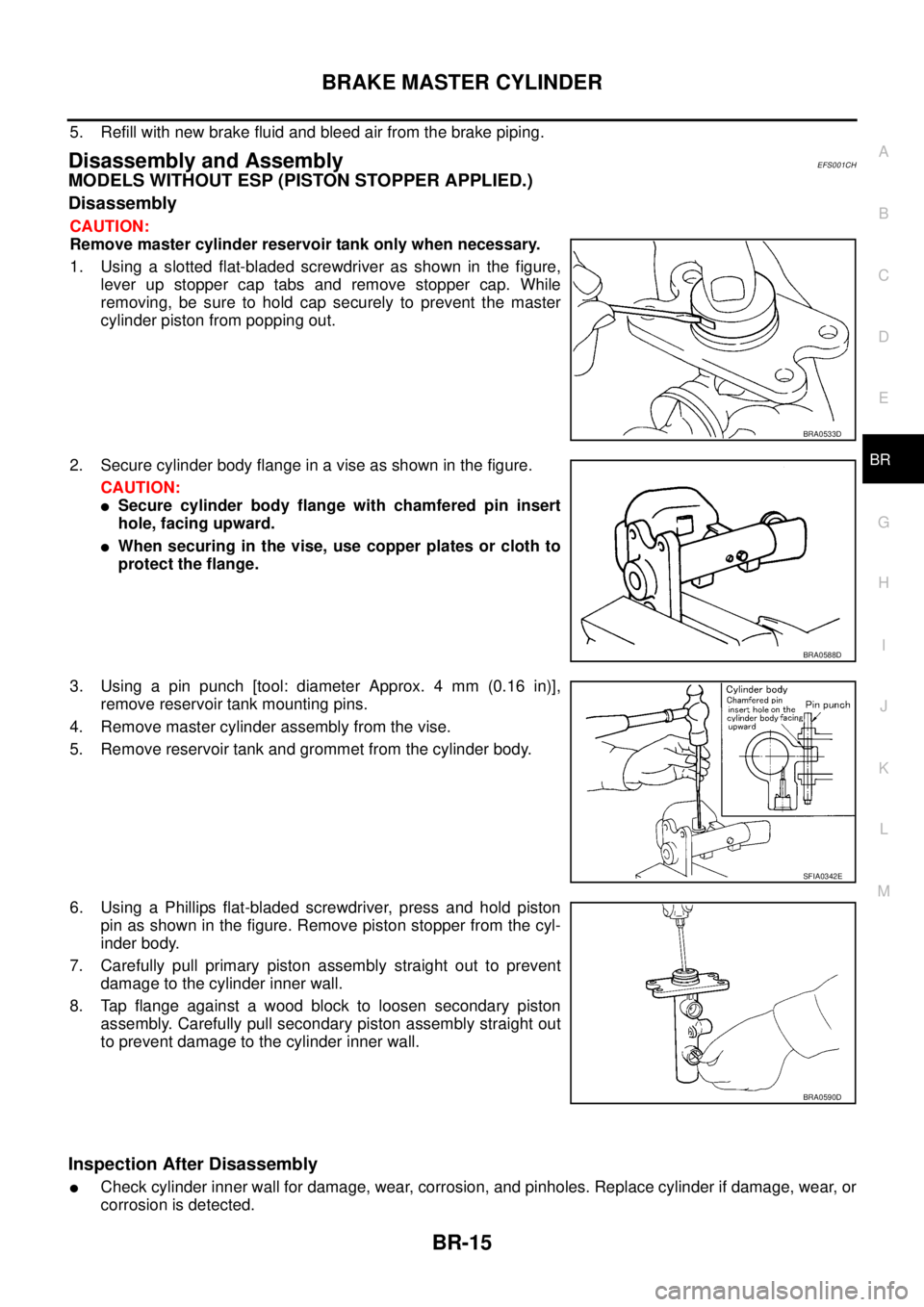

MODELS WITHOUT ESP (PISTON STOPPER APPLIED.)
Disassembly
CAUTION:
Remove master cylinder reservoir tank only when necessary.
1. Using a slotted flat-bladed screwdriver as shown in the figure,
lever up stopper cap tabs and remove stopper cap. While
removing, be sure to hold cap securely to prevent the master
cylinder piston from popping out.
2. Secure cylinder body flange in a vise as shown in the figure.
CAUTION:

Secure cylinder body flange with chamfered pin insert
hole, facing upward.

When securing in the vise, use copper plates or cloth to
protect the flange.
3. Using a pin punch [tool: diameter Approx. 4 mm (0.16 in)],
remove reservoir tank mounting pins.
4. Remove master cylinder assembly from the vise.
5. Remove reservoir tank and grommet from the cylinder body.
6. Using a Phillips flat-bladed screwdriver, press and hold piston
pin as shown in the figure. Remove piston stopper from the cyl-
inder body.
7. Carefully pull primary piston assembly straight out to prevent
damage to the cylinder inner wall.
8. Tap flange against a wood block to loosen secondary piston
assembly. Carefully pull secondary piston assembly straight out
to prevent damage to the cylinder inner wall.
Inspection After Disassembly

Check cylinder inner wall for damage, wear, corrosion, and pinholes. Replace cylinder if damage, wear, or
corrosion is detected.
BRA0533D
BRA0588D
SFIA0342E
BRA0590D

BRAKE MASTER CYLINDER
BR-17
C
D
E
G
H
I
J
K
L
MA
B
BR

CAUTION:

Do not reuse reservoir tank mounting pin.

Do not reuse reservoir tank.

Be sure to insert pin from the chamfered pinhole on the cylinder body.
MODELS WITHOUT ESP (PISTON STOPPER NOT APPLIED.)
CAUTION:
Remove reservoir tank only when absolutely necessary.

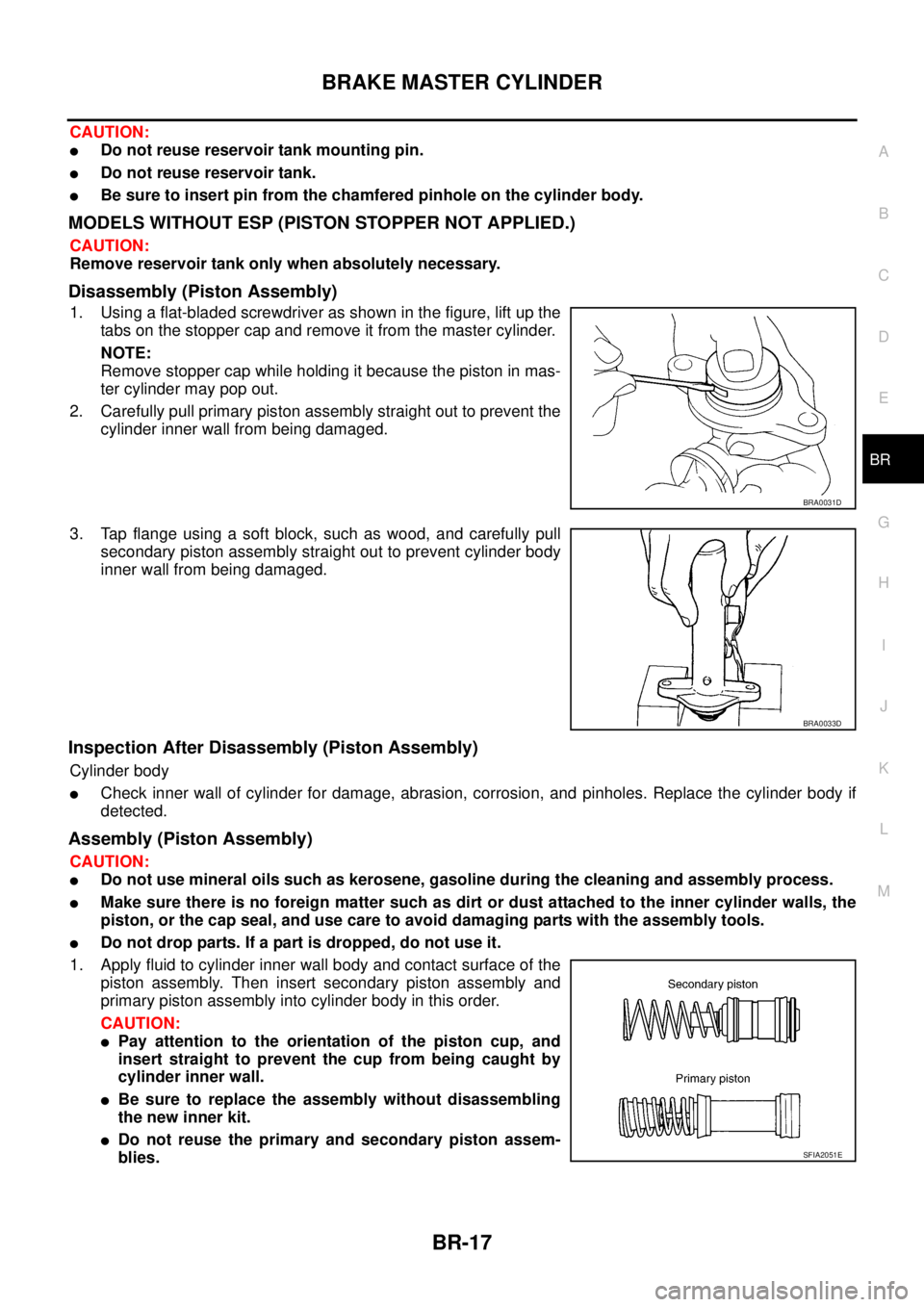

Disassembly (Piston Assembly)
1. Using a flat-bladed screwdriver as shown in the figure, lift up the
tabs on the stopper cap and remove it from the master cylinder.
NOTE:
Remove stopper cap while holding it because the piston in mas-
ter cylinder may pop out.
2. Carefully pull primary piston assembly straight out to prevent the
cylinder inner wall from being damaged.
3. Tap flange using a soft block, such as wood, and carefully pull
secondary piston assembly straight out to prevent cylinder body
inner wall from being damaged.
Inspection After Disassembly (Piston Assembly)
Cylinder body

Check inner wall of cylinder for damage, abrasion, corrosion, and pinholes. Replace the cylinder body if
detected.
Assembly (Piston Assembly)
CAUTION:

Do not use mineral oils such as kerosene, gasoline during the cleaning and assembly process.

Make sure there is no foreign matter such as dirt or dust attached to the inner cylinder walls, the
piston, or the cap seal, and use care to avoid damaging parts with the assembly tools.

Do not drop parts. If a part is dropped, do not use it.
1. Apply fluid to cylinder inner wall body and contact surface of the
piston assembly. Then insert secondary piston assembly and
primary piston assembly into cylinder body in this order.
CAUTION:

Pay attention to the orientation of the piston cup, and
insert straight to prevent the cup from being caught by
cylinder inner wall.

Be sure to replace the assembly without disassembling
the new inner kit.

Do not reuse the primary and secondary piston assem-
blies.
BRA0031D
BRA0033D
SFIA2051E

BRAKE MASTER CYLINDER
BR-19
C
D
E
G
H
I
J
K
L
MA
B
BR

3. Tilt reservoir tank as shown in the figure for the mounting pin to
be inserted. Return the reservoir tank to the upright position
when mounting pin passes through pinhole in the cylinder body.
Push mounting pin to the opposite pinhole of the reservoir tank,
so that it is the same condition as the insertion side.
CAUTION:

Be sure to insert pin from the chamfered pinhole of cylin-
der body.

Do not reuse the mounting pin.

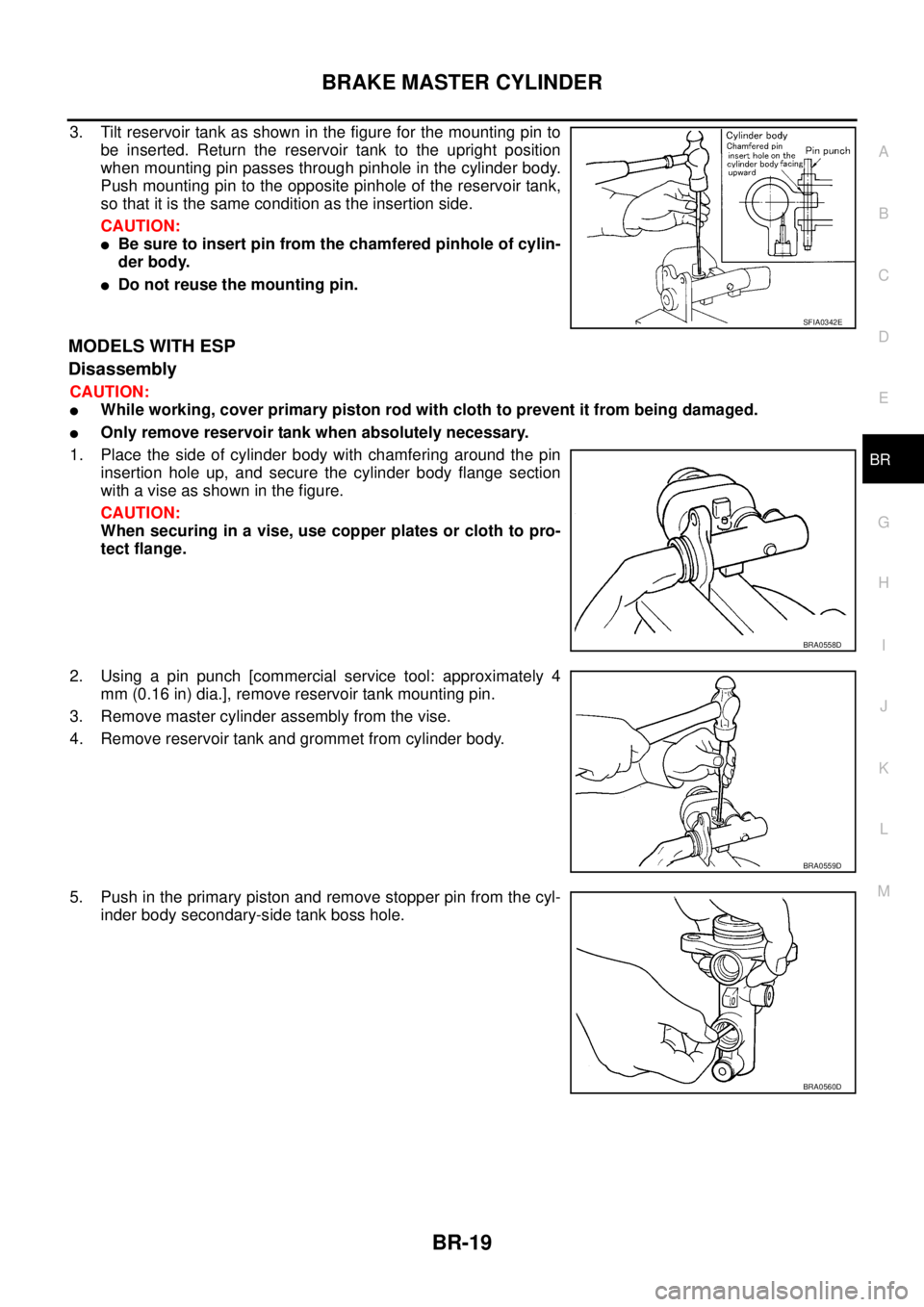

MODELS WITH ESP
Disassembly
CAUTION:

While working, cover primary piston rod with cloth to prevent it from being damaged.

Only remove reservoir tank when absolutely necessary.
1. Place the side of cylinder body with chamfering around the pin
insertion hole up, and secure the cylinder body flange section
with a vise as shown in the figure.
CAUTION:
When securing in a vise, use copper plates or cloth to pro-
tect flange.
2. Using a pin punch [commercial service tool: approximately 4
mm (0.16 in) dia.], remove reservoir tank mounting pin.
3. Remove master cylinder assembly from the vise.
4. Remove reservoir tank and grommet from cylinder body.
5. Push in the primary piston and remove stopper pin from the cyl-
inder body secondary-side tank boss hole.
SFIA0342E
BRA0558D
BRA0559D
BRA0560D

BR-38
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsEFS000CQ
Unit: mm (in)
Brake PedalEFS000CR
Check ValveEFS000CS
Brake BoosterEFS000CT
Vacuum type
Front Disc BrakeEFS000CU
Front brakeBrake model AD31VD
Cylinder bore diameter 44.4 × 2 (1.748 × 0.08)
Pad
Length x width x thickness132.0 × 52.5 × 11.0
(5.20 × 2.067 × 0.433)
Rotor outer diameter x thickness 280 × 28 (11.02 × 1.10)
Rear brakeBrake model AD9VA
Cylinder bore diameter 34.9 (1.374)
Pad
Length x width x thickness83.0 × 33.0 × 8.5
(3.268 × 1.299 × 0.335)
Rotor outer diameter x thickness 292 × 16 (11.50 × 0.63)
Master cylinder Cylinder bore diameter 25.4 (1)
Control valve Valve model Electronic control type
Brake boosterBooster model C215T
Diaphragm diameterPrimary 230 (9.06)
Secondary 205 (8.07)
Recommended brake fluid DOT 3 or DOT 4
Pedal play3 - 11 mm (0.12 - 0.43 in)
Looseness at clevis pin 1 - 3 mm (0.04 - 0.12 in)
Brake pedal height (from dash panel top surface)M/T model 156 - 166 mm (6.14 - 6.54 in)
A/T model 164 - 174 mm (6.46 - 6.85 in)
Depressed pedal height under a force of 490 N (50 kg,110.6 lb)
(from dash panel top surface)M/T model 80 mm (3.15 in) or more
A/T model 85 mm (3.35 in) or more
Clearance between threaded end of stop lamp switch and pedal stopper 0.74 - 1.96 mm (0.0291 - 0.0772 in)
Vacuum leakage [at vacuum of 66.7 kPa (-500 mmHg, -19.69
inHg)]Within 1.3 kPa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds
Vacuum leakage [at vacuum of -66.7 kPa (-500 mmHg, -19.69
inHg)]Within 3.3 kPa (25 mmHg, 0.98 inHg) of vacuum for 15 seconds
Input rod installation standard dimension 125 mm (4.92 in)
Brake typeAD31VD
Brake padStandard thickness (new) 11 mm (0.43 in)
Repair limit thickness 2.0 mm (0.079 in)
Disc rotorStandard thickness (new) 28.0 mm (1.102 in)
Repair limit thickness 26.0 mm (1.024 in)
Runout limit 0.04 mm (0.0016 in)

TROUBLE DIAGNOSIS
BRC-25
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Control Unit Input/Output Signal StandardEFS004GA
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short - circulated.
Note 1: Confirm tyre pressure is normal.
Note 2: ABS warning lamp ON/OFF timing
ON: For approximately 1 second after the ignition switch is turned on or when an malfunction is detected.
OFF: Approximately 1 second after the ignition switch is turned on (when system is normal).Monitor item Display ContentData monitor
Reference: Inspection
checklist
ConditionReference values
for normal opera-
tion
FR LH SENSOR
FR RH SENSOR
RR LH SENSOR
RR RH SENSORWheel speed calcu-
lated using signals
from all four wheel
sensorsVehicle stopped 0 km/h (0 MPH)
BRC-36, "
Inspection 1:
Wheel Sensor System"While driving (Note 1)Nearly matches
the speedometer
display (± 10% or
less)
DOCILE G-SEN. 1
DOCILE G-SEN. 2
(4WD model)Fore-and-aft G
detected by G sensorWhen vehicle is stopped on
level groundOFF
BRC-41, "
Inspection 6: G
Sensor System"When G sensor is tilted toward
the front with G sensor mount-
ing bolt removedON
ABS IN SOL
ABS OUT SOLOperation status of all
solenoidsWhen the actuator solenoid
operates or during a fail-safeON
BRC-39, "
Inspection 4:
ABS Actuator Relay or
ABS Motor Relay Power
System"
When the actuator relay oper-
ates and the actuator solenoid
does not operateOFF
STOP LAMP SW Brake pedal operationBrake pedal depressed ON
Stop lamp switch circuit
Brake pedal not depressed OFF
MOTOR RELAYMotor and motor relay
operation statusWhen the motor relay and
motor are operatingON
BRC-39, "
Inspection 4:
ABS Actuator Relay or
ABS Motor Relay Power
System"
When the motor relay and
motor are not operatingOFF
ACTUATOR RELAYActuator relay opera-
tion statusWhen the actuator relay is
operatingOFF
When the actuator relay is not
operatingON
ABS WARN LAMPABS warning lamp on
condition (Note 2)ABS warning lamp ON ONBRC-35, "
BASIC
INSPECTION 3 ABS
WARNING LAMP"ABS warning lamp OFF OFF
BATTERY VOLTBattery voltage sup-
plied to ABS actuator
and electric unit (con-
trol unit) Ignition switch ON 10 - 16VBRC-38, "
Inspection 3:
ABS Actuator and Elec-
tric Unit (Control Unit)
Power Supply and
Ground Circuit"
EBD FAIL SIG
ABS FAIL SIGFail signal statusEBD Fail
ABS FailON
EBD system
ABS system EBD normal
ABS normalOFF
EBD SIGNAL
ABS SIGNALEBD operation
ABS operationEBD active
ABS activeON
EBD not active
ABS not activeOFF
