TROUBLE DIAGNOSIS
EC-611
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

*: For QR25DE engine models
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MONITOR (SPEC) MODE
Monitored Item
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.AT OD MONITOR*
[ON/OFF]

Indicates [ON/OFF] condition of A/T O/D
according to the input signal from the TCM.
For M/T models, always “OFF” is
displayed.
AT OD CANCEL*
[ON/OFF]

Indicates [ON/OFF] condition of A/T O/D can-
cel signal sent from the TCM.
For M/T models, always “OFF” is
displayed.
CRUISE LAMP*
[ON/OFF]

Indicates [ON/OFF] condition of CRUISE lamp
determined by the ECM according to the input
signals.
SET LAMP*
[ON/OFF]

Indicates [ON/OFF] condition of SET lamp
determined by the ECM according to the input
signals.
Voltage [V]

Voltage, frequency, duty cycle or pulse width
measured by the probe.

Only “#” is displayed if item is
unable to be measured.

Figures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOW Monitored item [Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks
Monitored item [Unit]ECM
INPUT
SIGNALSMAIN
SIGNALSDescription Remarks
ENG SPEED [rpm]×

Indicates the engine speed computed
from the signals of the crankshaft posi-
tion sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow
sensor specification is displayed.
When engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]

“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.

When engine is running specification
range is indicated.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.
When engine is running specification
range is indicated.

This data also includes the data for
the air-fuel ratio learning control.

EC-612
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

ACTIVE TEST MODE
Test Item
*:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION

Engine: Return to the original
trouble condition

Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Fuel injector

Heated oxygen sensor 1
IGNITION TIM-
ING

Engine: Return to the original
trouble condition

Timing light: Set

Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Perform Idle Air Volume Learning.
POWER BAL-
ANCE

Engine: After warming up, idle
the engine.

Air conditioner switch OFF

Shift lever: N (A/T), Neutral (M/T)

Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.

Harness and connectors

Compression

Fuel injector

Power transistor

Spark plug

Ignition coil
COOLING FAN*

Ignition switch: ON

Turn the cooling fan LOW, HI,
OFF with CONSULT-II.Cooling fan moves and stops.

Harness and connectors

Cooling fan relay

Cooling fan motor
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP
RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the operat-
ing sound.
Harness and connectors

Fuel pump relay
PURG VOL
CONT/V

Engine: After warming up, run
engine at 1,500 rpm.

Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according to
the opening percent.
Harness and connectors

Solenoid valve
V/T ASSIGN
ANGLE

Engine: Return to the original
trouble condition

Change intake valve timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Intake valve timing control sole-
noid valve

TROUBLE DIAGNOSIS
EC-615
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS010XE
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indi-
cation.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-620, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-620, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1 See EC-620, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)

Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S2 (B1)

Engine: After warming up

Keeping the engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000
rpm quickly.0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)

Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times dur-
ing 10 seconds.
HO2S2 MNTR (B1)

Engine: After warming up

Keeping the engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000
rpm quickly.LEAN ←→ RICH
VEH SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication.
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.7V
ACCEL SEN 2*
1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*
1

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V

Shift lever: D (A/T), 1st (M/T) Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS

Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly
depressedOFF
AIR COND SIG

Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW

Ignition switch: ONShift lever:
P or N (A/T), Neutral (M/T)ON
Shift lever: Except above OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is not being turned OFF
Steering wheel is being turned ON

TROUBLE DIAGNOSIS
EC-617
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signals.
*2: For QR25DE engine modelsCOOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)LOW
Engine coolant temperature is
100°C (212°F) or moreHIGH
HO2S1 HTR (B1)

Engine: After warming up

Engine speed: Below 3,600 rpmON

Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)

Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no load.ON

Engine speed: Above 3,600 rpm OFF
O2SEN HTR DTY

Engine coolant temperature when engine started: More than 80°C
(176°F)

Engine speed: below 3,600 rpmApprox. 50%
AC PRESS SEN

Engine: Idle

Both A/C switch and blower fan seitch: ON (Compressor operates)1.0 - 4.0V
VEH SPEED SE*
2
Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication
SET VHCL SPD*
2
Engine: Running ASCD: Operating.The preset vehicle speed is dis-
played.
MAIN SW*
2
Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW*
2
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW*
2
Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1*
2
Ignition switch: ONClutch pedal (M/T) and brake pedal:
Fully releasedON
Clutch pedal (M/T) and/or brake
pedal: Slightly depressedOFF
BRAKE SW2*
2
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
CRUISE LAMP*
2
Ignition switch: ONMAIN switch: Pressed at the 1st
time → at the 2nd timeON → OFF
SET LAMP*
2

MAIN switch: ON

Vehicle speed: Between 40 km/h
(25 MPH) and 144 km/h (89
MPH)ASCD: Operating ON
ASCD: Not operating OFF MONITOR ITEM CONDITION SPECIFICATION

EC-618
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

Major Sensor Reference Graph in Data Monitor ModeEBS010XF

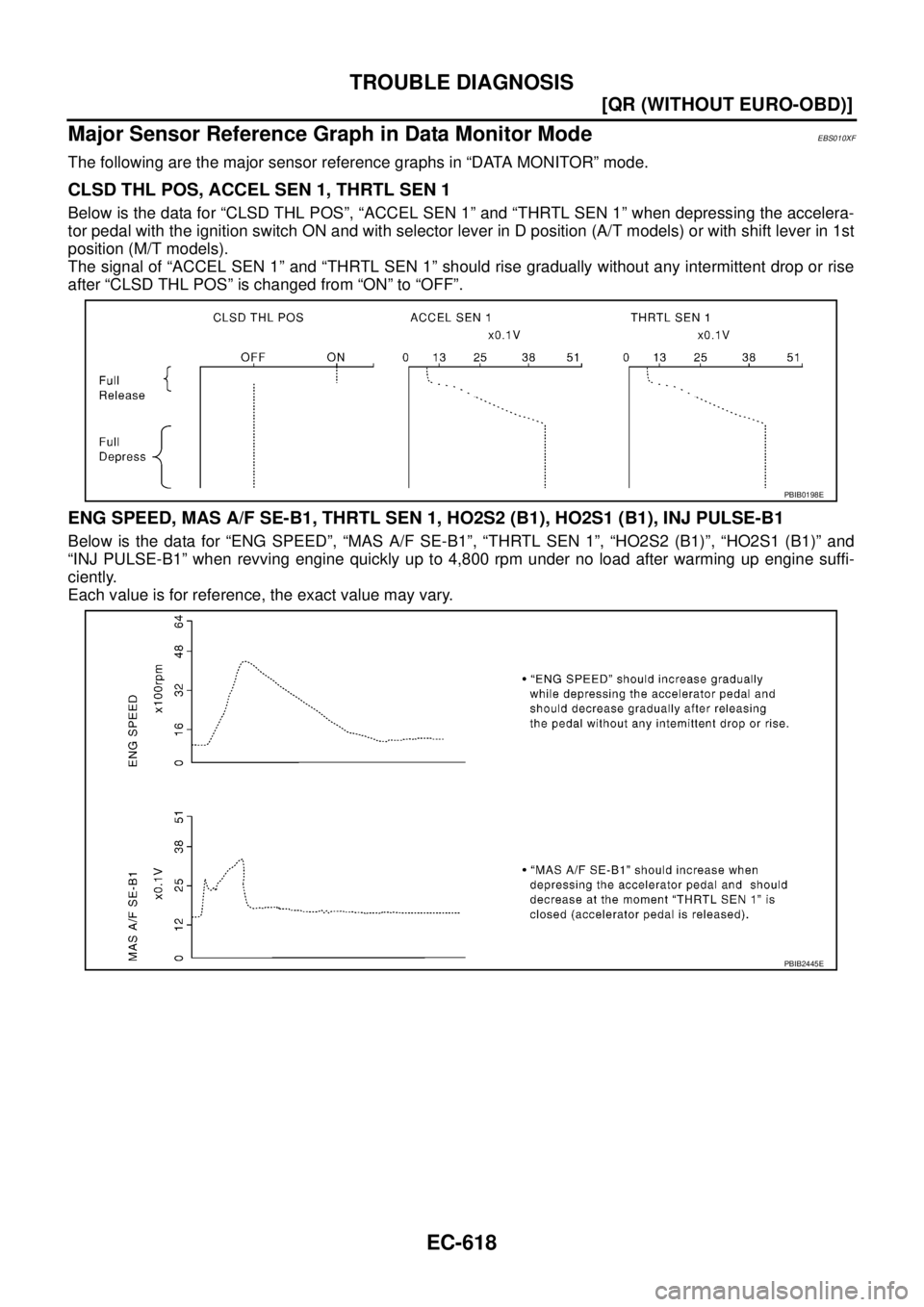

The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with selector lever in D position (A/T models) or with shift lever in 1st
position (M/T models).
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.
ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.
Each value is for reference, the exact value may vary.
PBIB0198E
PBIB2445E

EC-620
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionEBS010XG
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionEBS010XH

Vehicle driven distance: More than 5,000 km (3,017 miles)

Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30°C (68 - 86°F)

Engine coolant temperature: 75 - 95°C (167 - 203°F)

Transmission: Warmed-up*1

Electrical load: Not applied*2

Engine speed: Idle
*1: For A/T models, after the engine is warmed up to normal operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60°C (140°F).
For M/T models, after the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureEBS010XI
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-578, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-
B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-621, "
Diagnostic Procedure" .
SEF601Z

EC-636
[QR (WITHOUT EURO-OBD)]
DTC P0011 IVT CONTROL

DTC P0011 IVT CONTROLPFP:23796
DescriptionEBS010XU
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
COMPONENT DISCRIPTION
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
Intake valve
timing controlIntake valve timing control
solenoid valve Engine coolant temperature sensor Engine coolant temperature
Wheel sensor* Vehicle speed
PBIB0540E
PBIB1842E

DTC P0011 IVT CONTROL
EC-637
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS010XV
Specification data are reference values.
On Board Diagnosis LogicEBS010XW
The MI will not light up for this diagnosis.
FAIL-SAFE MODE
ECM enters in fail-safe mode when the malfunction is detected.
DTC Confirmation ProcedureEBS010XX
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Maintain the following conditions for at least 6 consecutive sec-
onds.
Hold the accelerator pedal as steady as possible.
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No loadIdle−5° - 5°CA
2,000 rpm Approx. 0° - 20°CA
INT/V SOL (B1)

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No loadIdle 0% - 2%
2,000 rpm Approx. 0% - 50%
DTC No.Trouble diagnosis
nameDetecting condition Possible cause
P0011
0011Intake valve timing
control performanceThere is a gap between angle of target and
phase-control angle degree.

Harness or connectors
(Intake valve timing control solenoid valve
circuit is open or shorted.)

Intake valve timing control solenoid valve

Crankshaft position sensor (POS)

Camshaft position sensor (PHASE)

Accumulation of debris to the signal pick-up
portion of the camshaft
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function
ENG SPEED1,200 - 2,000 (A constant rotation is
maintained.)
SEF174Y
