Page 4319 of 4555
CAN SYSTEM (TYPE 4)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3

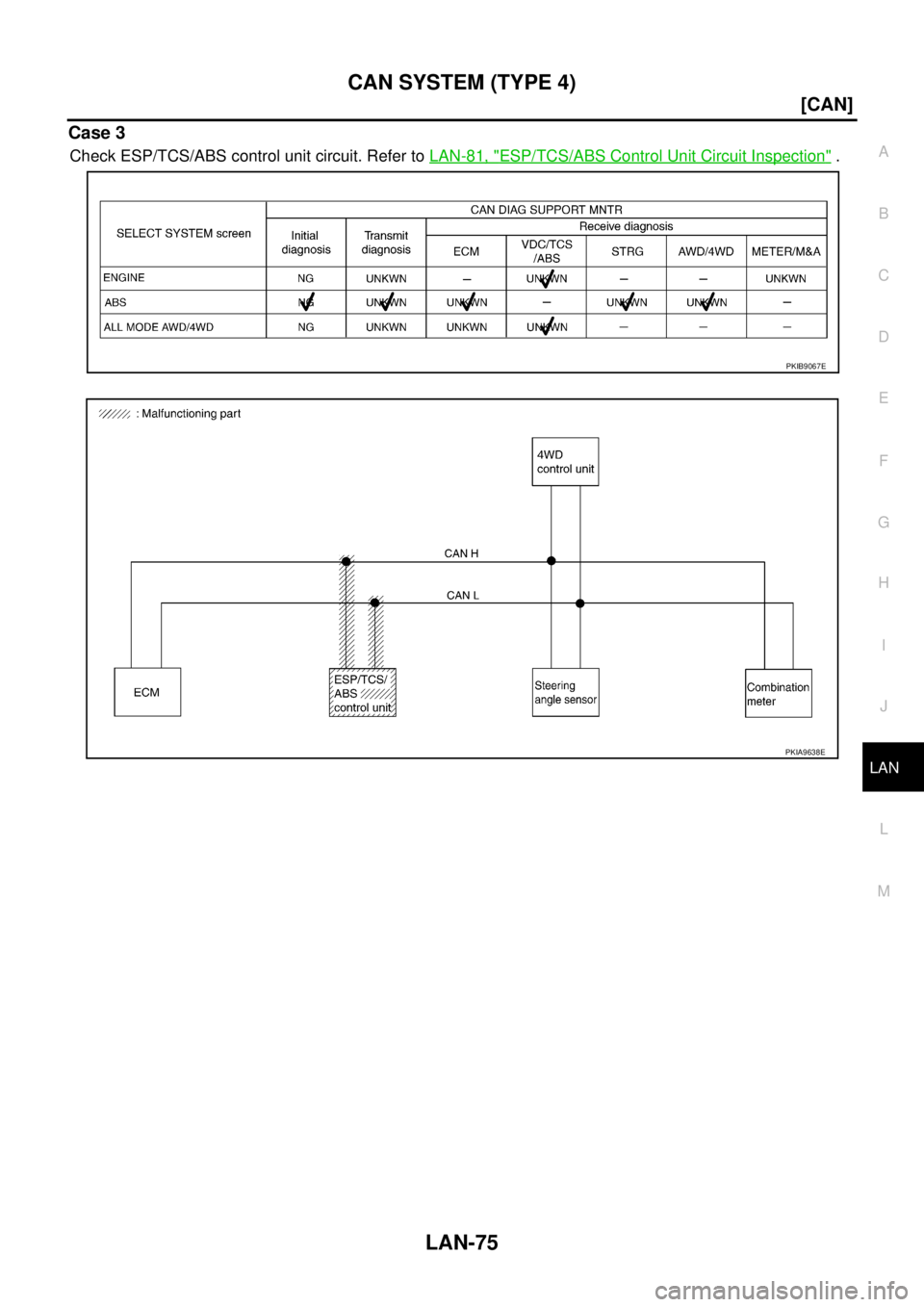

Check ESP/TCS/ABS control unit circuit. Refer to LAN-81, "ESP/TCS/ABS Control Unit Circuit Inspection" .
PKIB9067E
PKIA9638E
Page 4323 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-79
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LV1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Discon NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-79
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LV1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Discon](/manual-img/5/57403/w960_57403-4322.png)
CAN SYSTEM (TYPE 4)
LAN-79
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LV1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector E116
–Harness connector M75
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check the following.
–LHD models
Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 14 (W), 5 (R).
–RHD models
Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 9 (W), 2 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.61 (W) - 14 (W) : Continuity should exist.
63 (R) - 5 (R) : Continuity should exist.
SKIB0109E
61 (W) - 9 (W) : Continuity should exist.
63 (R) - 2 (R) : Continuity should exist.
SKIB0110E
Page 4325 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-81
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M118 termi-
nals 95 (G/R) NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-81
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M118 termi-
nals 95 (G/R)](/manual-img/5/57403/w960_57403-4324.png)
CAN SYSTEM (TYPE 4)
LAN-81
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M118 termi-
nals 95 (G/R) and 87 (GY/R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and ESP/TCS/ABS con-
trol unit.
ESP/TCS/ABS Control Unit Circuit InspectionEKS00LV3
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ESP/TCS/ABS control unit for damage, bend and loose connection
(control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check resistance between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> Replace ESP/TCS/ABS control unit.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
Steering Angle Sensor Circuit InspectionEKS00LV4
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.95 (G/R) - 87 (GY/R) : Approx. 108 - 132 Ω
SKIB0120E
61 (W) - 63 (R) : Approx. 54 - 66 Ω
PKIA9632E
Page 4327 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec- NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 4)
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-](/manual-img/5/57403/w960_57403-4326.png)
CAN SYSTEM (TYPE 4)
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and 4WD
control unit.
CAN Communication Circuit InspectionEKS00LV7
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, connector side and harness side).
–ECM
–ESP/TCS/ABS control unit
–Steering angle sensor
–4WD control unit
–Combination meter
–Between ECM and combination meter
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector and harness connector M75.
2. Check continuity between ECM harness connector M118 termi-
nals 95 (G/R) and 87 (GY/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between ECM and harness connector
M75. 22 (W) - 23 (R) : Approx. 108 - 132 Ω
SKIA9780E
95 (G/R) - 87 (GY/R) : Continuity should not exist.
SKIB0120E
Page 4328 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-84
[CAN]
CAN SYSTEM (TYPE 4)
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
95 (G/R), 87 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair NISSAN X-TRAIL 2005 Service Repair Manual LAN-84
[CAN]
CAN SYSTEM (TYPE 4)
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
95 (G/R), 87 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair](/manual-img/5/57403/w960_57403-4327.png)
LAN-84
[CAN]
CAN SYSTEM (TYPE 4)

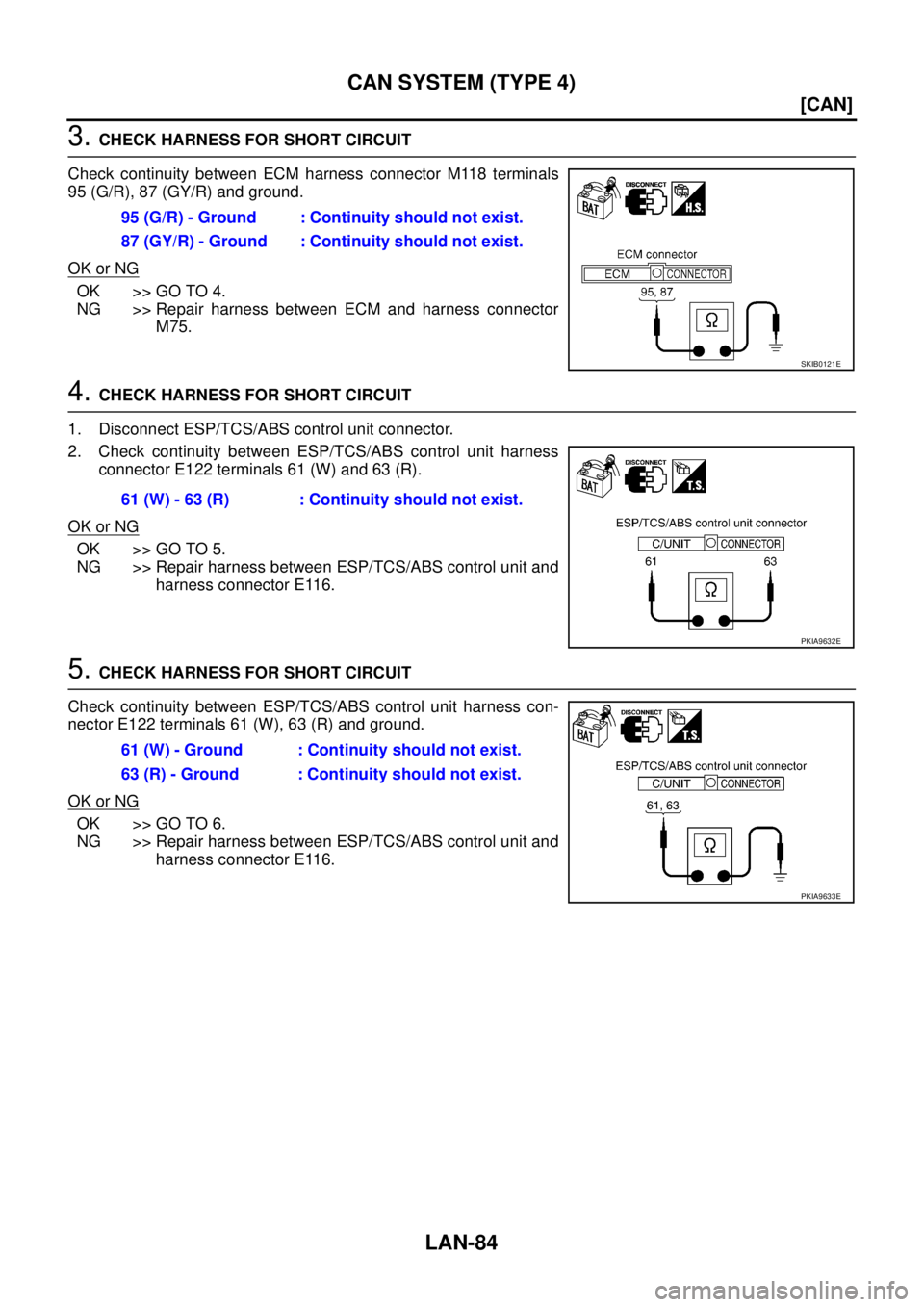

3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
95 (G/R), 87 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between ECM and harness connector
M75.
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ESP/TCS/ABS control unit harness con-
nector E122 terminals 61 (W), 63 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116. 95 (G/R) - Ground : Continuity should not exist.
87 (GY/R) - Ground : Continuity should not exist.
SKIB0121E
61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - Ground : Continuity should not exist.
63 (R) - Ground : Continuity should not exist.
PKIA9633E
Page 4335 of 4555
CAN SYSTEM (TYPE 5)
LAN-91
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

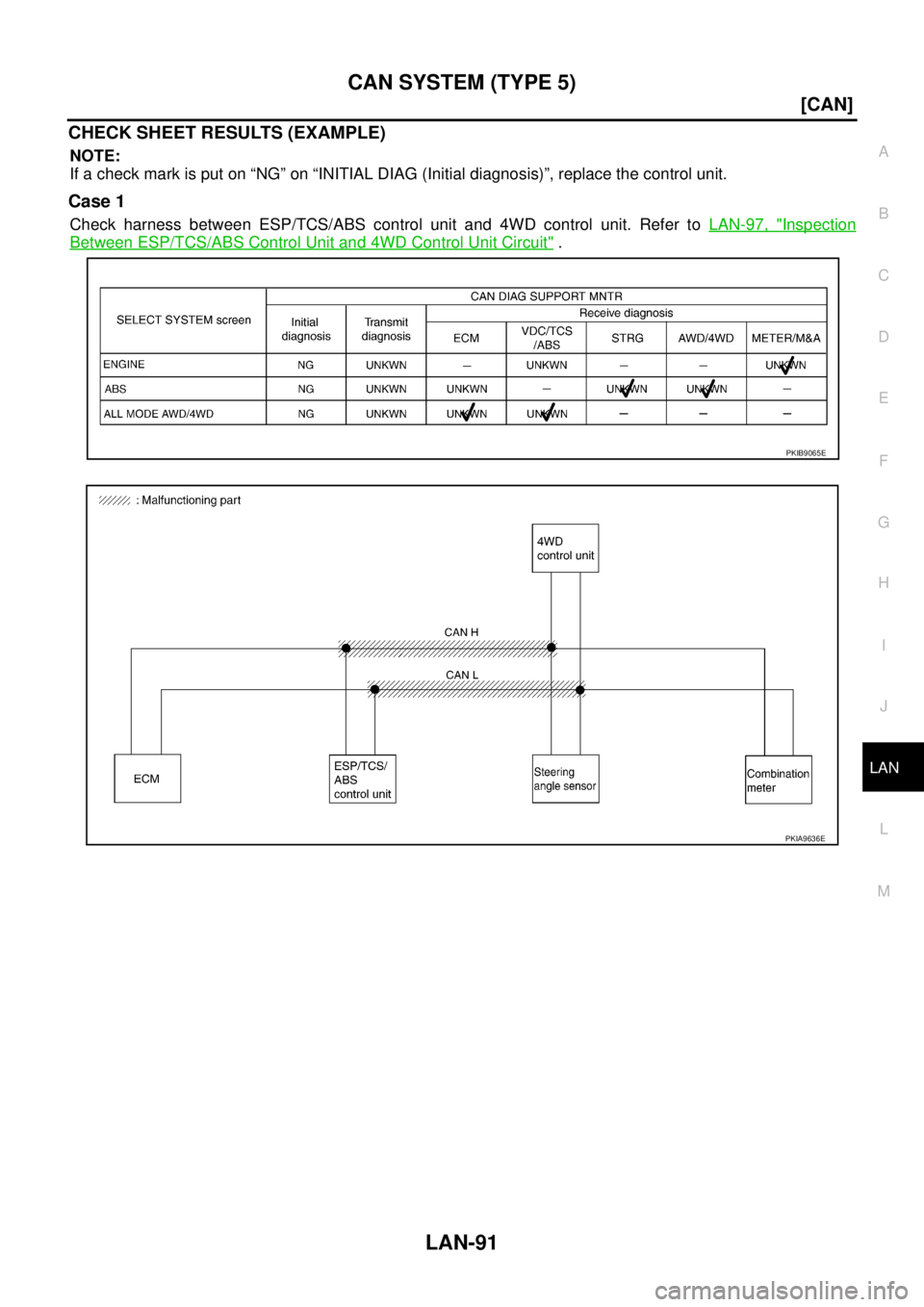

Check harness between ESP/TCS/ABS control unit and 4WD control unit. Refer to LAN-97, "Inspection
Between ESP/TCS/ABS Control Unit and 4WD Control Unit Circuit" .
PKIB9065E
PKIA9636E
Page 4337 of 4555
CAN SYSTEM (TYPE 5)
LAN-93
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3
Check ESP/TCS/ABS control unit circuit. Refer to LAN-99, "ESP/TCS/ABS Control Unit Circuit Inspection" .
PKIB9067E
PKIA9638E
Page 4341 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-97
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LVD
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Discon NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-97
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LVD
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Discon](/manual-img/5/57403/w960_57403-4340.png)
CAN SYSTEM (TYPE 5)
LAN-97
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Inspection Between ESP/TCS/ABS Control Unit and 4WD Control Unit CircuitEKS00LVD
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector E116
–Harness connector M75
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check the following.
–LHD models
Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 14 (W), 5 (R).
–RHD models
Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 9 (W), 2 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.61 (W) - 14 (W) : Continuity should exist.
63 (R) - 5 (R) : Continuity should exist.
SKIB0109E
61 (W) - 9 (W) : Continuity should exist.
63 (R) - 2 (R) : Continuity should exist.
SKIB0110E
