2005 NISSAN X-TRAIL ESP

LAN-120
[CAN]
CAN SYSTEM (TYPE 6)

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check the following.
–LHD models
 Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 14 (W), 5 (R).
–RHD models
 Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 9 (W), 2 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.61 (W) - 14 (W) : Continuity should exist.
63 (R) - 5 (R) : Continuity should exist.
SKIB0109E
61 (W) - 9 (W) : Continuity should exist.
63 (R) - 2 (R) : Continuity should exist.
SKIB0110E

LAN-122
[CAN]
CAN SYSTEM (TYPE 6)

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and TCM.
TCM Circuit InspectionEKS00LVS
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of TCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect TCM connector.
2. Check resistance between TCM harness connector F46 termi-
nals 5 (G/R) and 6 (GY/R).
OK or NG
OK >> Replace TCM.
NG >>

LHD models
–Repair harness between TCM and harness connector
F41.

RHD models
–Repair harness between TCM and harness connector
F36.
ESP/TCS/ABS Control Unit Circuit InspectionEKS00LVT
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ESP/TCS/ABS control unit for damage, bend and loose connection
(control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.94 (G/R) - 86 (GY/R) : Approx. 108 - 132 Ω
PKIA9592E
5 (G/R) - 6 (GY/R) : Approx. 54 - 66 Ω
SKIB0094E

CAN SYSTEM (TYPE 6)
LAN-123
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check resistance between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> Replace ESP/TCS/ABS control unit.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
Steering Angle Sensor Circuit InspectionEKS00LVU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M81 terminals 4 (W) and 5 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and
4WD control unit.
4WD Control Unit Circuit InspectionEKS00M48
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of 4WD control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.61 (W) - 63 (R) : Approx. 54 - 66 Ω
PKIA9632E
4 (W) - 5 (R) : Approx. 54 - 66 Ω
SKIA6870E

CAN SYSTEM (TYPE 6)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CAN Communication Circuit InspectionEKS00LVX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, connector side and harness side).
–ECM
–TCM
–ESP/TCS/ABS control unit
–Steering angle sensor
–4WD control unit
–Combination meter
–Between ECM and combination meter
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector and harness connector M61.
2. Check continuity between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between ECM and harness connector
M61.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between ECM and harness connector
M61. 94 (G/R) - 86 (GY/R) : Continuity should not exist.
PKIA9592E
94 (G/R) - Ground : Continuity should not exist.
86 (GY/R) - Ground : Continuity should not exist.
PKIA9593E

LAN-128
[CAN]
CAN SYSTEM (TYPE 6)

6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
RHD models
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> GO TO 7.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ESP/TCS/ABS control unit harness con-
nector E122 terminals 61 (W), 63 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116. 61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - Ground : Continuity should not exist.
63 (R) - Ground : Continuity should not exist.
PKIA9633E

CAN SYSTEM (TYPE 9)
LAN-161
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between ESP/TCS/ABS control unit and steering angle sensor. Refer to LAN-166, "Inspection
Between ESP/TCS/ABS Control Unit and steering angle sensor Circuit" .
PKIC0332E
PKIC0333E

CAN SYSTEM (TYPE 9)
LAN-163
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

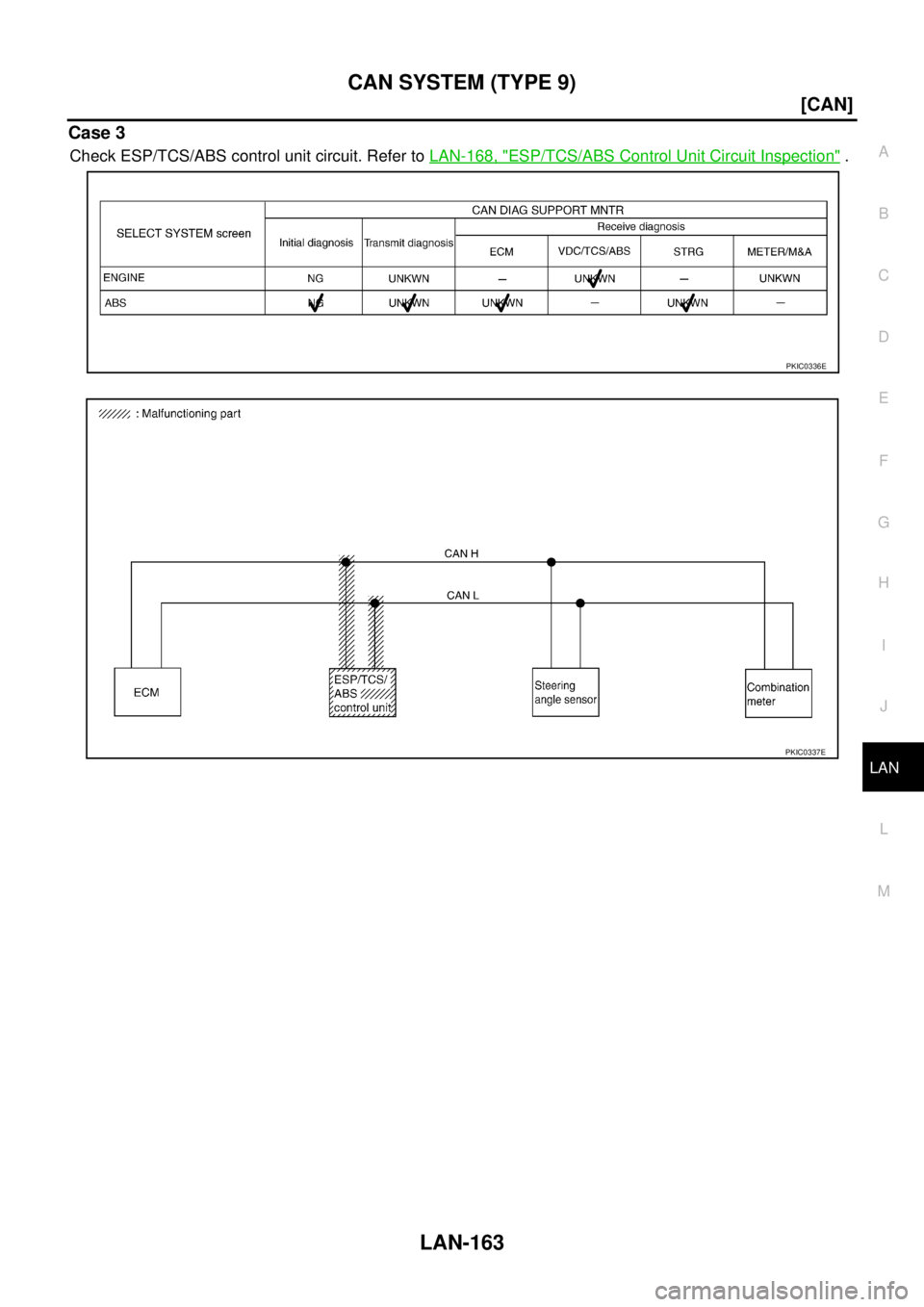

Case 3
Check ESP/TCS/ABS control unit circuit. Refer to LAN-168, "ESP/TCS/ABS Control Unit Circuit Inspection" .
PKIC0336E
PKIC0337E

LAN-166
[CAN]
CAN SYSTEM (TYPE 9)

Inspection Between ESP/TCS/ABS Control Unit and steering angle sensor Cir-
cuit
EKS00NLC
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector E116
–Harness connector M75
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check the following.
–LHD models
 Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 14 (W), 5 (R).
–RHD models
 Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 9 (W), 2 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.61 (W) - 14 (W) : Continuity should exist.
63 (R) - 5 (R) : Continuity should exist.
SKIB0109E
61 (W) - 9 (W) : Continuity should exist.
63 (R) - 2 (R) : Continuity should exist.
SKIB0110E
