2005 NISSAN X-TRAIL torque

SE-2
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS003UN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Service NoticeEIS003UV

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

Handle trim, molding instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.

Apply sealing compound where necessary when installing parts.

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

When replacing any metal parts (for example body outer panel, member, etc.), be sure to take rust pre-
vention measures.
Precautions EIS001O8

When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.

When removing parts with a screwdriver or other tool, protect parts by wrapping tools with vinyl or tape.

Keep removed parts protected with cloth.

If a clip is deformed or damaged, replace it.

If an unreusable part is removed, replace it with a new one.

Tighten bolts and nuts firmly to the specified torque.

After re-assembly has been completed, make sure each part functions correctly.

Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.

Do not use any organic solvent, such as thinner or benzine.

SC-12
BATTERY

Removal and Installation EKS00315
Observe the following to ensure proper servicing.
CAUTION:

When disconnecting, disconnect the battery cable from the
negative terminal first. But when connecting, connect the
battery cable to the positive terminal first.

Tighten parts to the specified torque shown below.
Battery fix frame mounting nut:
: 3.5 - 5.3 N·m (0.36 - 0.54 kg-m, 31 - 46 in-lb)
Battery cable tightening nut:
: 3.0 - 5.0 N·m (0.31 - 0.51 kg-m, 27 - 44 in-lb)
SKIA0068E

SC-16
CHARGING SYSTEM

Trouble DiagnosisEKS00319
Before performing an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit-
able test probes are necessary for the test. The alternator can be checked easily by referring to the Inspection
Ta b l e .

Before starting, inspect the fusible link.

Use fully charged battery.
WITH IC REGULATOR
NOTE:

If the inspection result is OK even though the charging system is malfunctioning, check the “B” terminal
connection. (Check the tightening torque and voltage drop.)

Check condition of rotor coil, rotor slip ring, brush and stator coil. If necessary, replace malfunctioning
parts with new ones.
MALFUNCTION INDICATOR
The IC regulator warning function activates to illuminate charge warning lamp, if any of the following symp-
toms occur while alternator is operating:

Excessive voltage is produced.

No voltage is produced.
PKIA3570E

SC-22
CHARGING SYSTEM

Stator Check
1. Continuity test

No continuity... Replace stator.
2. Ground test

Continuity exists... Replace stator.
ASSEMBLY
Assembly is the reverse order of disassembly.
CAUTION:
Note the tightening torque shown, in the figure.
Rear Bearing
CAUTION:

Never reuse rear bearing. Replace with a new one.

Never lubricate rear bearing outer race.
Rear Cover Installation
1. Fit brush assembly, diode assembly, regulator assembly and
stator.
2. Push brushes up with fingers and install them to rotor.
Take care not to damage slip ring sliding surface.
SKIB4527E
SKIB4528E
SKIB4529E
SKIB4530E

WW-8

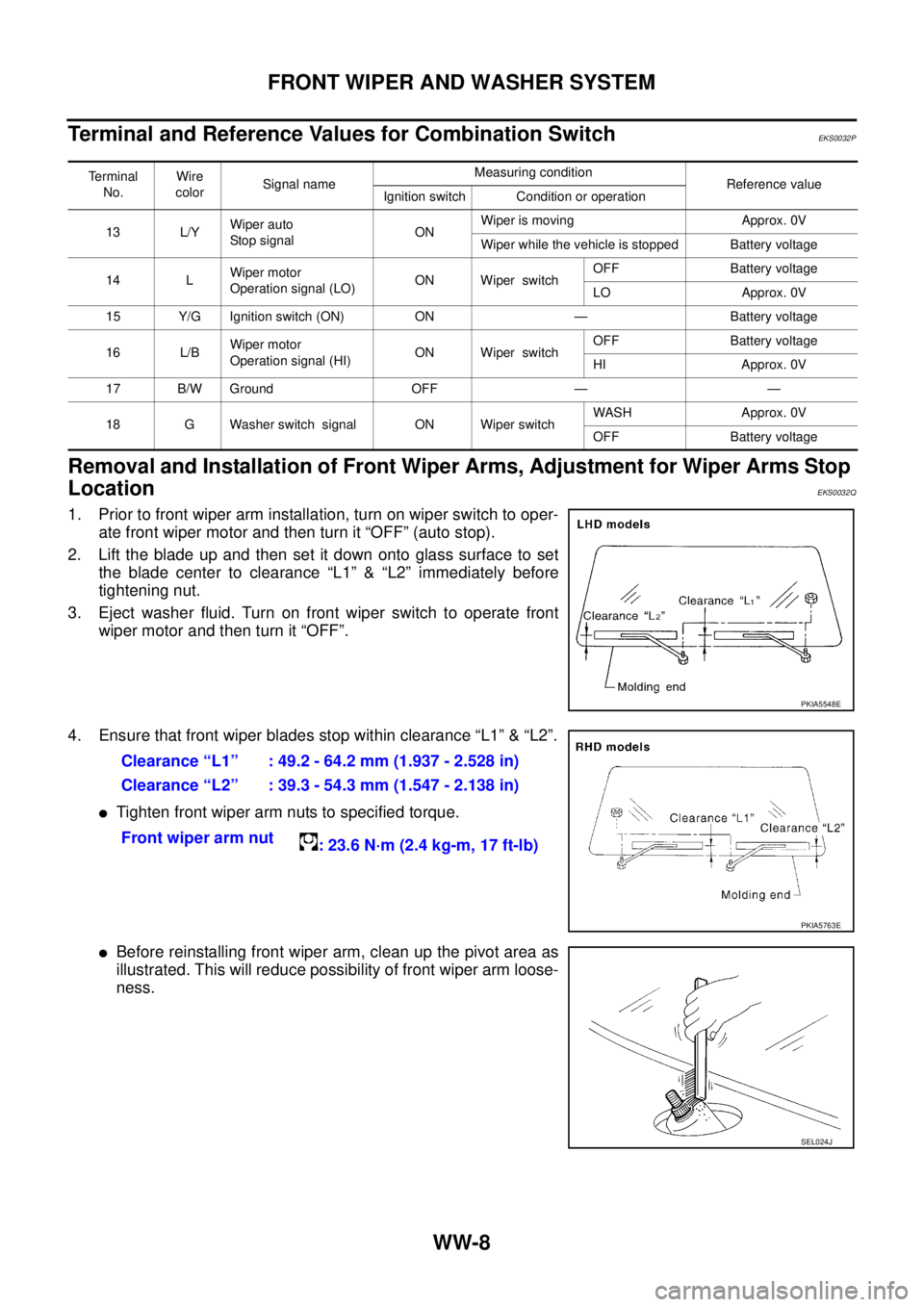

FRONT WIPER AND WASHER SYSTEM

Terminal and Reference Values for Combination SwitchEKS0032P
Removal and Installation of Front Wiper Arms, Adjustment for Wiper Arms Stop
Location
EKS0032Q
1. Prior to front wiper arm installation, turn on wiper switch to oper-
ate front wiper motor and then turn it “OFF” (auto stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” & “L2” immediately before
tightening nut.
3. Eject washer fluid. Turn on front wiper switch to operate front
wiper motor and then turn it “OFF”.
4. Ensure that front wiper blades stop within clearance “L1” & “L2”.

Tighten front wiper arm nuts to specified torque.

Before reinstalling front wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of front wiper arm loose-
ness.
Terminal
No.Wire
colorSignal name Measuring condition
Reference value
Ignition switch Condition or operation
13 L/YWiper auto
Stop signalONWiper is moving Approx. 0V
Wiper while the vehicle is stopped Battery voltage
14 LWiper motor
Operation signal (LO)ON Wiper switchOFF Battery voltage
LO Approx. 0V
15 Y/G Ignition switch (ON) ON — Battery voltage
16 L/BWiper motor
Operation signal (HI)ON Wiper switchOFF Battery voltage
HI Approx. 0V
17 B/W Ground OFF — —
18 G Washer switch signal ON Wiper switchWASH Approx. 0V
OFF Battery voltage
PKIA5548E
Clearance “L1” : 49.2 - 64.2 mm (1.937 - 2.528 in)
Clearance “L2” : 39.3 - 54.3 mm (1.547 - 2.138 in)
Front wiper arm nut
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PKIA5763E
SEL024J

WW-16

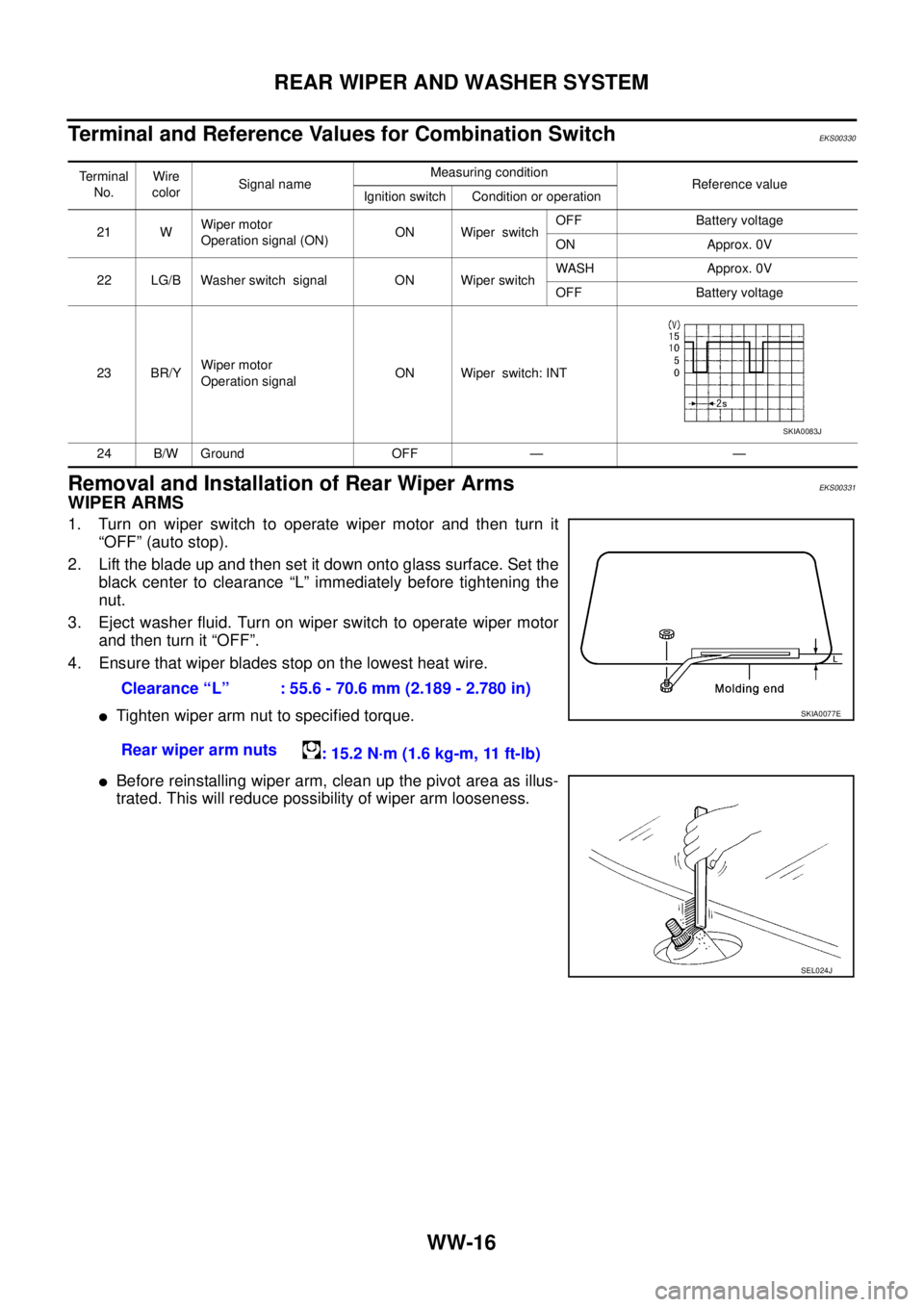

REAR WIPER AND WASHER SYSTEM

Terminal and Reference Values for Combination SwitchEKS00330
Removal and Installation of Rear Wiper Arms EKS00331
WIPER ARMS
1. Turn on wiper switch to operate wiper motor and then turn it
“OFF” (auto stop).
2. Lift the blade up and then set it down onto glass surface. Set the
black center to clearance “L” immediately before tightening the
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop on the lowest heat wire.

Tighten wiper arm nut to specified torque.

Before reinstalling wiper arm, clean up the pivot area as illus-
trated. This will reduce possibility of wiper arm looseness.
Terminal
No.Wire
colorSignal name Measuring condition
Reference value
Ignition switch Condition or operation
21 WWiper motor
Operation signal (ON)ON Wiper switchOFF Battery voltage
ON Approx. 0V
22 LG/B Washer switch signal ON Wiper switchWASH Approx. 0V
OFF Battery voltage
23 BR/YWiper motor
Operation signalON Wiper switch: INT
24 B/W Ground OFF — —
SKIA0083J
Clearance “L” : 55.6 - 70.6 mm (2.189 - 2.780 in)
Rear wiper arm nuts
: 15.2 N·m (1.6 kg-m, 11 ft-lb)
SKIA0077E
SEL024J

HARNESS
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG

NATS BL Nissan Anti-Theft System
NAVI AV Navigation System
NONDTC AT Non-Detective Items
OVRCSV AT Overrun Clutch Solenoid Valve
P/SCKT WW Power Socket
PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE)
PHONE AV Telephone (Pre-wire)
PNP/SW AT Park/Neutral Position Switch
PNP/SW EC Park/Neutral Position Switch
PNPSW1 EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (CKPS) (POS)
POWER PG Power Supply Routing
PRGVLV EC EVAP Canister Purge Volume Control Solenoid Valve
PRWIRE BL Theft Warning System (Pre-wire)
PS/SEN EC Power Steering Pressure Sensor
PST/SW EC Power Steering Oil Pressure Switch
R/FOG LT Rear Fog Lamp
ROOM/L LT Interior Room Lamp
RP/SEN EC Refrigerant Pressure Sensor
RRO2 EC Rear Heated Oxygen Sensor
RRO2/H EC Rear Heated Oxygen Sensor Heater
S/LOCK BL Power Door Lock - Super Lock
S/SIG EC Start Signal
S/WARN SB Seat Belt Warning System
SEAT SE Power Seat
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
SSV/A AT Shift Solenoid Valve A
SSV/B AT Shift Solenoid Valve B
START SC Starting System
STEP/L LT Step Lamp
STOP/L LT Stop Lamp
TAIL/L LT Parking, License and Tail Lamps
TCC/V EC Turbocharger Boost Control Solenoid Valve
TCCSV EC Turbocharger Boost Control Solenoid Valve
TCV AT Torque Converter Clutch Solenoid Valve
TPS AT Throttle Position Sensor
TPS1 EC Throttle Position Sensor (Sensor 1)
TPS2 EC Throttle Position Sensor (Sensor 2)
TPS3 EC Throttle Position Sensor
TURN LT Turn Signal and Hazard Warning LampCode Section Wiring Diagram Name

MA-4
DESCRIPTION

DESCRIPTIONPFP:00000
Pre-Delivery Inspection ItemsELS000Y5
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
Install vehicle protection kit
Fit all accessories ordered (if applicable) (e.g. towbar, audio, navigation, air conditioner, styling kit)
UNDER HOOD — engine off
Check coolant level and cooling system for leaks
Charge battery and check terminals for condition
Check drive belts tension (diesel only)
Check fuel filter for water or dust (diesel only) and fuel system for leaks
Check engine oil level and for oil leaks
Check brake and clutch fluid levels and fluid lines for leaks
Check and top up washer reservoirs
Check power steering fluid level and fluid lines for leaks (if applicable)
Check air conditioning system for gas leaks (if applicable)
ON INSIDE AND OUTSIDE
Install transit fuse if removed for vehicle storage
Check instruments, gauges, lamps, horn and accessories for operation
Check wipers and washers for operation and adjustment
Check interior and door mirrors and sun visors for operation
Set radio code and set clock
Check parking brake adjustment
Check clutch pedal adjustment
Check steering lock operation
Check seat adjusters and seat belts for operation
Check all windows for operation and alignment
Check mouldings, trim and fittings for fit and alignment
Check weatherstrips for fit and adhesion
Check hood, trunk lid, door panels and fuel lid for fit and alignment
Check latches, keys, remote key, door locks and remote trunk lid and fuel lid release for operation
Check wheel nut torques
Check tyre pressure (incl. spare tyre)
Check tool kit and jack for operation
Check automatic transmission/transaxle starter inhibitor (if applicable)
Check sunroof for operation and alignment (if applicable)
UNDER BODY
Check manual transmission/transaxle, differential and transfer box for oil level and oil leaks
Tighten bolts and nuts steering linkage and gear box, axle/suspension parts, propeller and exhaust system
Check brake and clutch lines, and oil/fluid reservoirs for leaks
Remove front suspension spacer blocks (if applicable)
Check body mounting torque (if applicable)
