2005 NISSAN X-TRAIL ECO mode

EC-1252
[YD (WITH EURO-OBD)]
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR

DTC Confirmation ProcedureEBS011DB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1254, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF817Y

EC-1258
[YD (WITH EURO-OBD)]
DTC P1268 - P1271 FUEL INJECTOR

DTC Confirmation ProcedureEBS011DK
CAUTION:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws when driv-
ing.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON, and select “DATA MONITOR” mode
with CONSULT-II.
2. Restart engine and let it idle for about 15 minutes.
3. If DTC is detected, go to EC-1261, "
Diagnostic Procedure" .
If DTC is not detected, go to next step.
4. Drive vehicle and maintain the following conditions for at least
60 seconds.
5. If DTC is detected, go to EC-1261, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
CKPS·RPM 700 - 2000 rpm (A constant rotation is maintained)
COOLAN TEMP/S Less than 75°C (167°F)
Shift lever Suitable position
Accelerator pedal Hold the accelerator pedal as steady as possible.
PBIB2156E

EC-1262
[YD (WITH EURO-OBD)]
DTC P1268 - P1271 FUEL INJECTOR

4. CHECK FUEL INJECTOR-II
With CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select “SELF DIAG RESULTS” mode with CONSULT-II.
6. Touch “ERASE”.
7. Perform EC-1258, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
With GST
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select Service $04 with GST.
6. Touch “ERASE”.
7. Perform EC-1258, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
Ye s o r N o
Yes >> Replace fuel injector of malfunctioning cylinder.
No >> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011DN
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS011DO
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Continuity should exist.
PBIB0406E

DTC P1272 FUEL PUMP
EC-1263
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1272 FUEL PUMPPFP:16700
DescriptionEBS011DP
When the fuel pressure in fuel rail increases to excessively high, fuel
pressure relief valve opens to carry excess fuel to the return hose.
CONSULT-II Reference Value in Data Monitor ModeEBS012AQ
Specification data are reference values.
On Board Diagnosis LogicEBS011DQ
NOTE:

If DTC P1272 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011DR
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and keep engine speed more than 4,000 rpm for at
least 5 seconds, then release the accelerator pedal.
4. If 1st trip DTC is detected, go to EC-1266, "
Diagnostic Proce-
dure" .
PBIB1900E
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1272
1272Fuel rail pressure relief
valve openFuel rail pressure relief valve is open
because of fuel pressure control system
malfunction.

Harness or connectors
(Fuel pump circuit is open or shorted.)

Fuel pump

Fuel rail pressure sensor

Air mixed with fuel

Lack of fuel

Fuel transport pump operation
SEF817Y

DTC P1272 FUEL PUMP
EC-1267
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

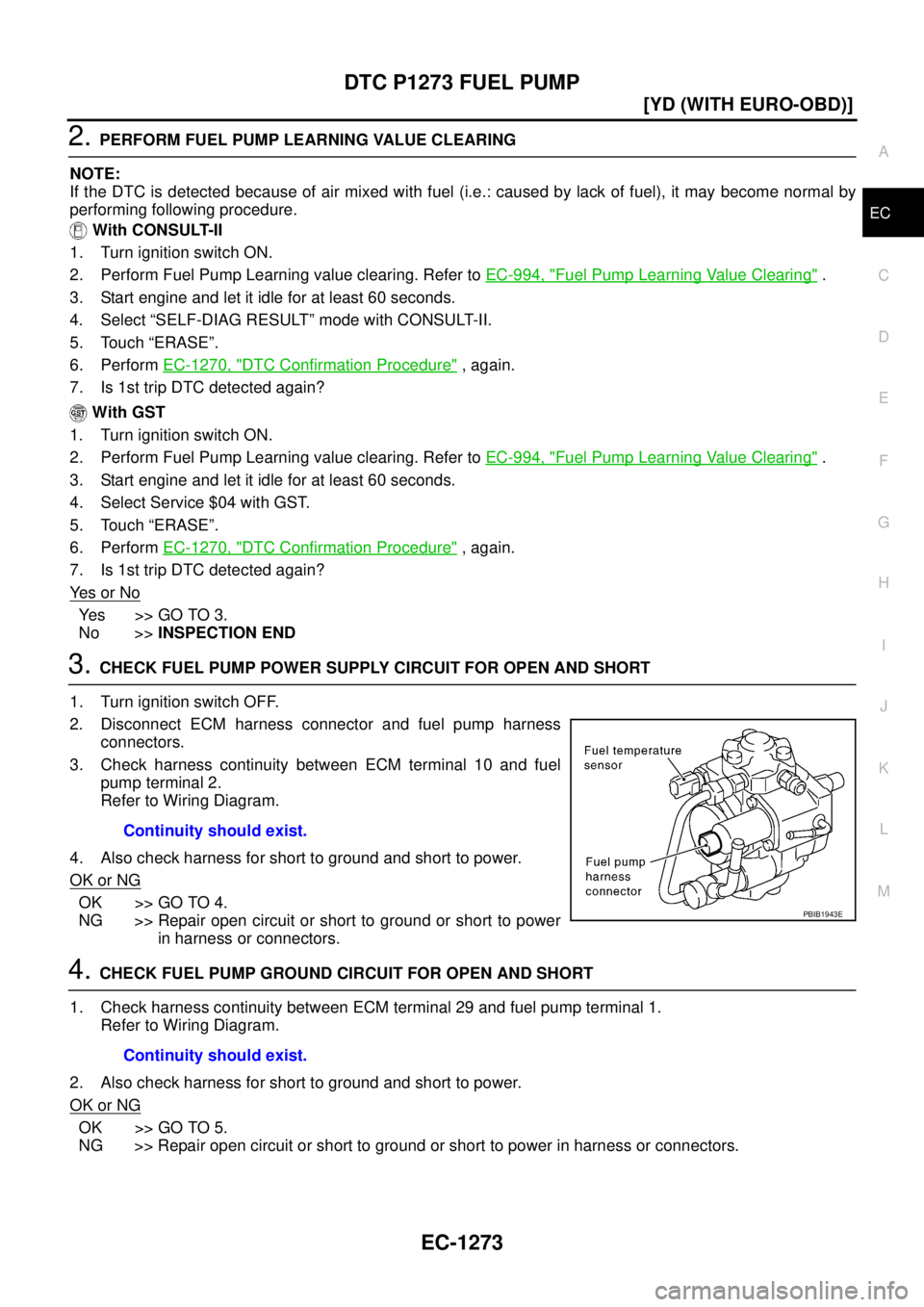

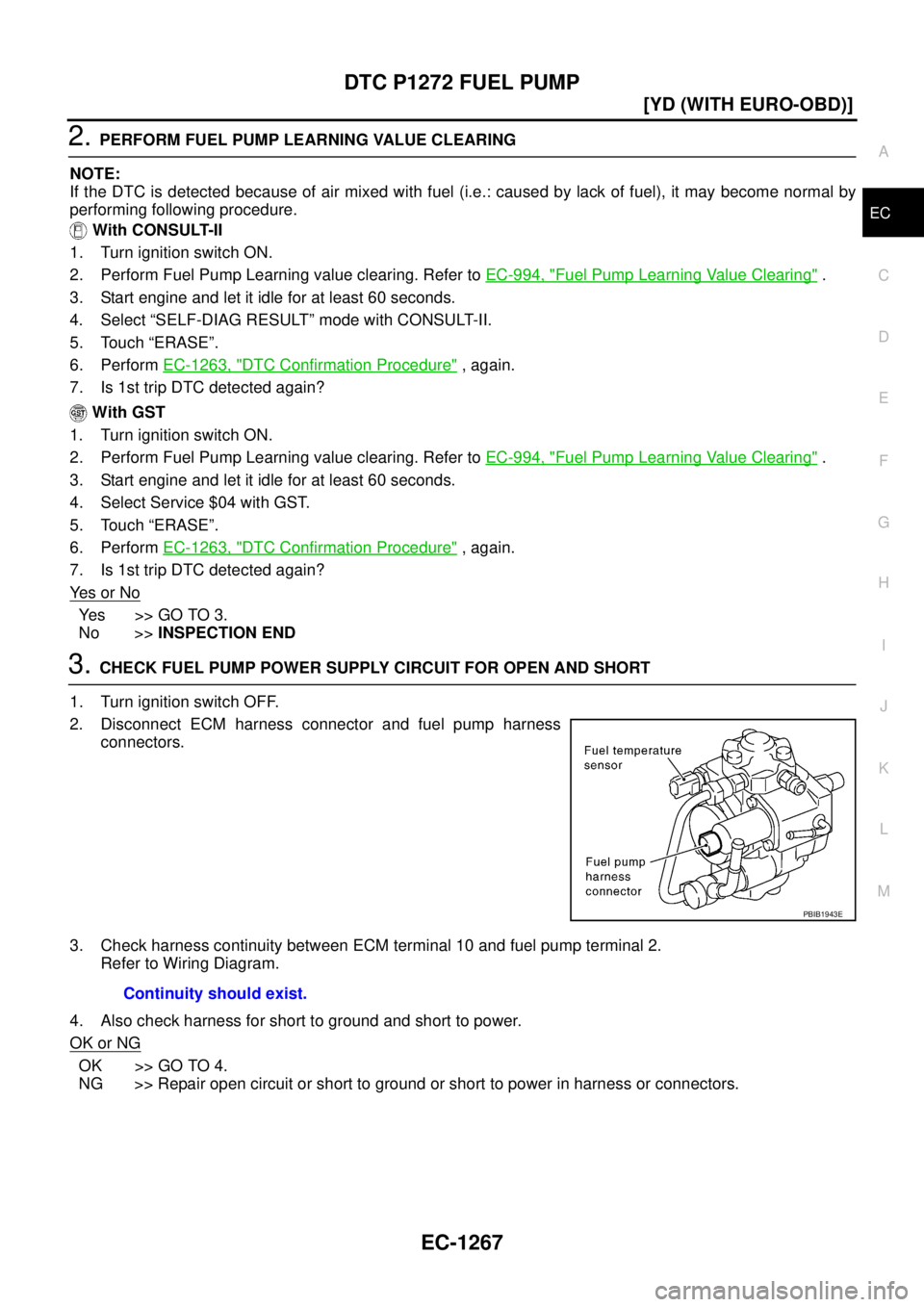

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1263, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
With GST
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select Service $04 with GST.
5. Touch “ERASE”.
6. Perform EC-1263, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
Ye s o r N o
Ye s > > G O T O 3 .
No >>INSPECTION END
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1943E
Continuity should exist.

EC-1270
[YD (WITH EURO-OBD)]
DTC P1273 FUEL PUMP

DTC P1273 FUEL PUMPPFP:16700
DescriptionEBS011DU
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel pump increases, the fuel raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS011DV
Specification data are reference values.
On Board Diagnosis LogicEBS011DX
NOTE:

If DTC P1273 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011DY
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Keep engine speed more than 2,000 rpm for at least 10 sec-
onds.
4. If 1st trip DTC is detected, go to EC-1272, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1273
1273Fuel pump insufficient flowECM detects the abnormal pulse of fuel pres-
sure.

Fuel pump

Air mixed with fuel

Lack of fuel

Fuel rail pressure sensor

Fuel transport pump operation
SEF817Y

DTC P1273 FUEL PUMP
EC-1273
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1270, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
With GST
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select Service $04 with GST.
5. Touch “ERASE”.
6. Perform EC-1270, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
Ye s o r N o
Ye s > > G O T O 3 .
No >>INSPECTION END
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel
pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Continuity should exist.
PBIB1943E
Continuity should exist.

DTC P1274 FUEL PUMP
EC-1275
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1274 FUEL PUMPPFP:16700
DescriptionEBS011E3
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS011E4
Specification data are reference values.
On Board Diagnosis LogicEBS011E6
This self-diagnosis has the one trip detection logic.
NOTE:

If DTC P1274 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011E7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Tuning ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let idle for at least 5 seconds.
4. If DTC is detected, go to EC-1278, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1274
1274Fuel pump protectionFuel pressure is too much higher than the target
value.

Harness or connectors
(The fuel pump circuit is open or
shorted.)

Fuel pump

Fuel rail pressure sensor
SEF817Y
