CYLINDER HEAD
EM-71
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


If the engine speed is out of specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.

If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.

If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole
of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, piston rings may be worn out or damaged. Check
piston rings and replace if necessary.
–If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.

If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, gaskets are leaking. In such a case, replace cylinder head gas-
kets.
8. After inspection is completed, install removed parts.
9. Start engine, and confirm that engine runs smoothly.
10. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-73, "
TROUBLE DIAGNOSIS" (WITH
EURO-OBD) or EC-572, "
TROUBLE DIAGNOSIS" (WITHOUT EURO-OBD).
Removal and InstallationEBS00KNQ
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Drain engine coolant and engine oil. Refer to CO-9, "
Changing Engine Coolant" and LU-8, "Changing
Engine Oil" .
3. Remove the following components and related parts.

Exhaust manifold and three way catalyst assembly; Refer to EM-25, "EXHAUST MANIFOLD AND
THREE WAY CATALYST" .

Intake manifold and fuel tube assembly (QR20DE); Refer to EM-18, "Removal and Installation
(QR20DE)" .

Intake manifold collector, intake manifold and fuel tube assembly (QR25DE); Refer to EM-21, "Removal
and Installation (QR25DE)" .

Water control valve and water control valve housing (water outlet); Refer to CO-23, "THERMOSTAT
AND WATER CONTROL VALVE" .

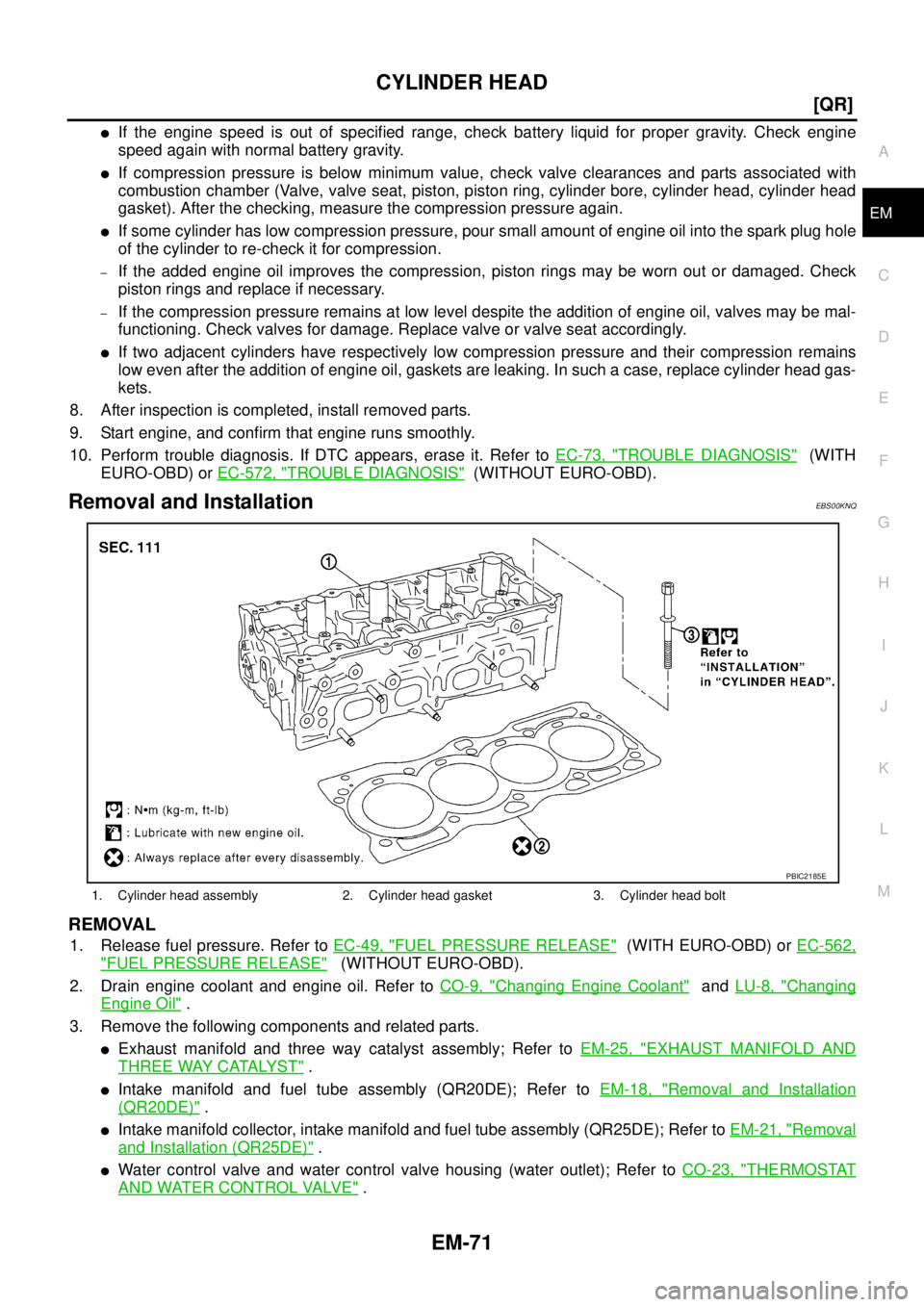

1. Cylinder head assembly 2. Cylinder head gasket 3. Cylinder head bolt
PBIC2185E

EM-72
[QR]
CYLINDER HEAD

NOTE:
Can be removed and installed even when assembled with cylinder head.
4. Remove front cover and timing chain. Refer to EM-46, "
TIMING CHAIN" .
5. Remove camshafts. Refer to EM-56, "
CAMSHAFT" .
6. Securely support bottom of cylinder block with a jack or equivalent tool, and release the hoist that was
supporting it.
7. Remove cylinder head loosening bolts in reverse order as
shown in the figure.

Using the following tool, loosen cylinder head bolts.
NOTE:
There are two types of cylinder head bolt because of parallel
manufacture.
8. Remove cylinder head gasket.
INSPECTION AFTER REMOVAL
Cylinder Head Bolts Outer Diameter

Cylinder head bolts are tightened by plastic zone tightening
method. Whenever the size difference between “d1” and “d2”
exceeds the limit, replace them with a new one.

If reduction of outer diameter appears in a position other than
“d2”, use it as “d2” point.
NOTE:
When replacing any cylinder head bolts, it is possible to use them
with mixing flange bolt and bolt with washer.
Cylinder Head Distortion
NOTE:
When performing this inspection, cylinder block distortion should be also checked. Refer to EM-110, "
CYLIN-
DER BLOCK DISTORTION" .
1. Wipe off engine oil and remove water scale (like deposit), gasket, sealant, carbon, etc. with a scraper.
CAUTION:
Use utmost care not to allow gasket debris to enter passages for engine oil or water.
2. At each of several locations on bottom surface of cylinder head,
measure the distortion in six directions.

If it exceeds the limit, replace cylinder head.Bolt with washer
: Hexagonal wrench [size 10 mm (0.39 in)]
Flange bolt
: TORX socket (size E20)
KBIA0058E
Limit (“d1” – “d2”): 0.23 mm (0.0091 in)
SBIA0269E
Limit: 0.1 mm (0.004 in)
PBIC0075E

CYLINDER HEAD
EM-73
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
1. Install cylinder head gasket.

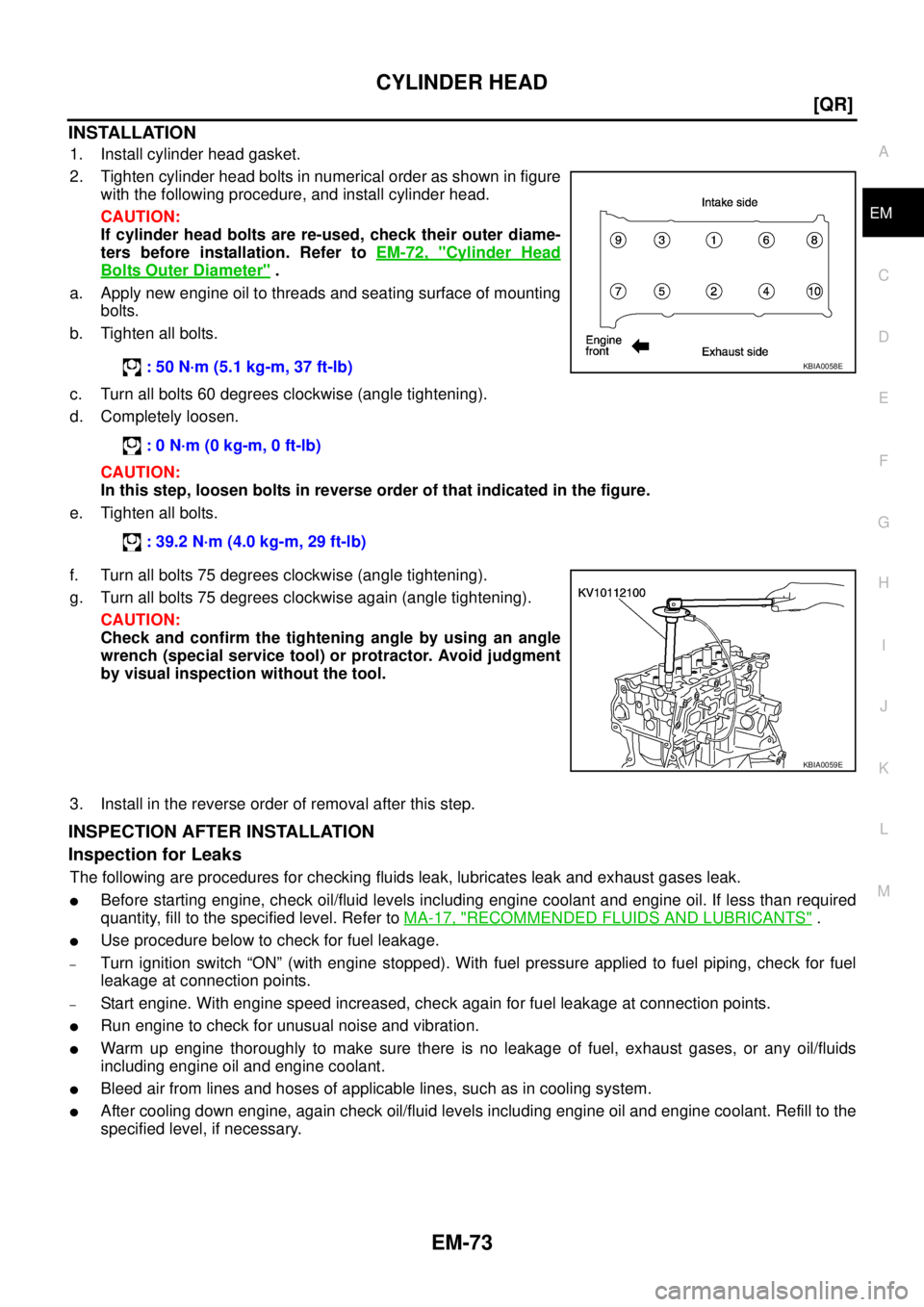

2. Tighten cylinder head bolts in numerical order as shown in figure
with the following procedure, and install cylinder head.
CAUTION:
If cylinder head bolts are re-used, check their outer diame-
ters before installation. Refer to EM-72, "
Cylinder Head
Bolts Outer Diameter" .
a. Apply new engine oil to threads and seating surface of mounting
bolts.
b. Tighten all bolts.
c. Turn all bolts 60 degrees clockwise (angle tightening).
d. Completely loosen.
CAUTION:
In this step, loosen bolts in reverse order of that indicated in the figure.
e. Tighten all bolts.
f. Turn all bolts 75 degrees clockwise (angle tightening).
g. Turn all bolts 75 degrees clockwise again (angle tightening).
CAUTION:
Check and confirm the tightening angle by using an angle
wrench (special service tool) or protractor. Avoid judgment
by visual inspection without the tool.
3. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary. : 50 N·m (5.1 kg-m, 37 ft-lb)
: 0 N·m (0 kg-m, 0 ft-lb)
: 39.2 N·m (4.0 kg-m, 29 ft-lb)
KBIA0058E
KBIA0059E

CYLINDER HEAD
EM-79
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

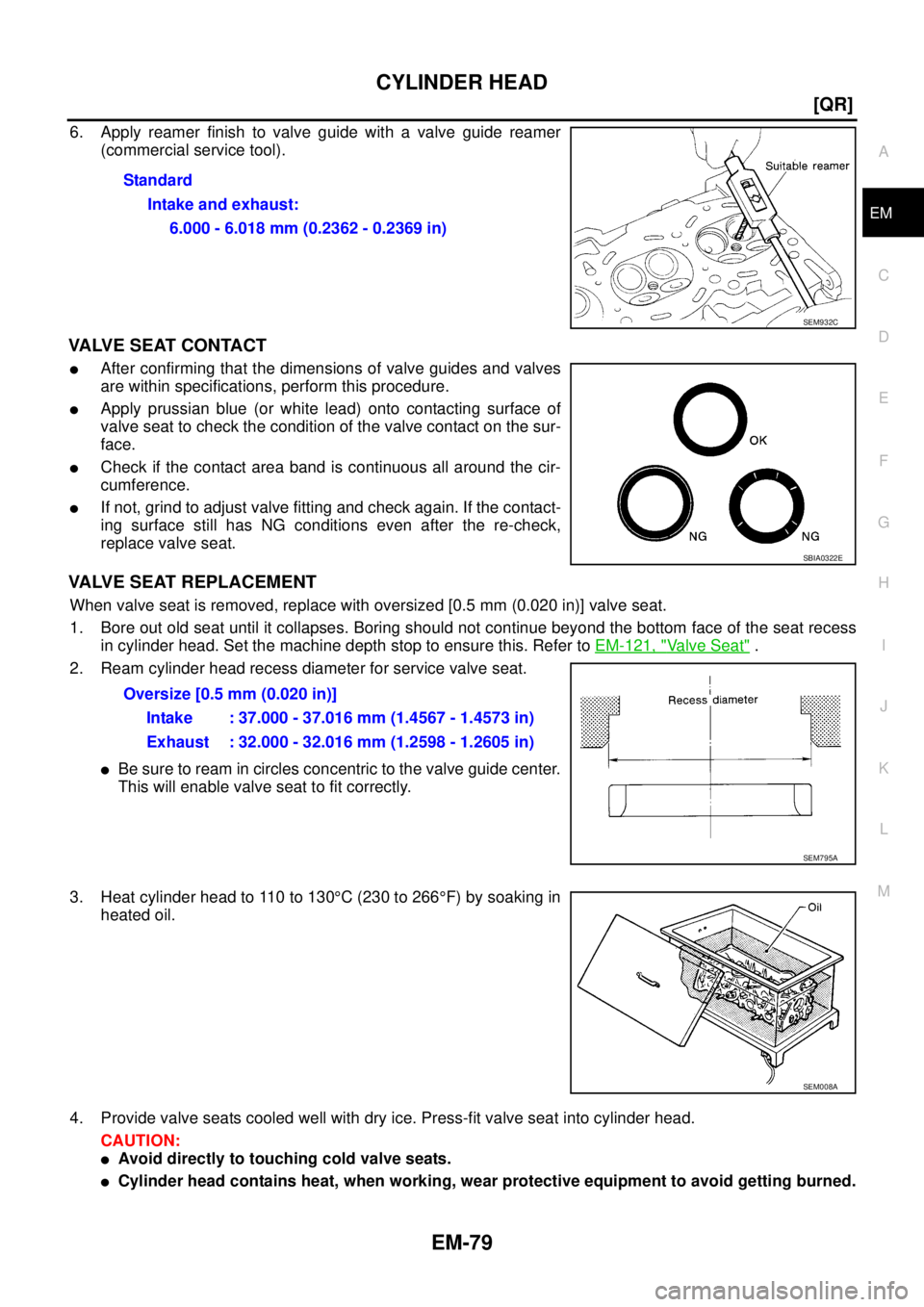

6. Apply reamer finish to valve guide with a valve guide reamer
(commercial service tool).
VALVE SEAT CONTACT

After confirming that the dimensions of valve guides and valves
are within specifications, perform this procedure.

Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.

Check if the contact area band is continuous all around the cir-
cumference.

If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has NG conditions even after the re-check,
replace valve seat.
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess
in cylinder head. Set the machine depth stop to ensure this. Refer to EM-121, "
Va l v e S e a t" .
2. Ream cylinder head recess diameter for service valve seat.

Be sure to ream in circles concentric to the valve guide center.
This will enable valve seat to fit correctly.
3. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Press-fit valve seat into cylinder head.
CAUTION:

Avoid directly to touching cold valve seats.

Cylinder head contains heat, when working, wear protective equipment to avoid getting burned.Standard
Intake and exhaust:
6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E
Oversize [0.5 mm (0.020 in)]
Intake : 37.000 - 37.016 mm (1.4567 - 1.4573 in)
Exhaust : 32.000 - 32.016 mm (1.2598 - 1.2605 in)
SEM795A
SEM008A

ENGINE ASSEMBLY
EM-83
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Use alternator bracket mounting bolt holes for the front side.
2. Lift with hoist and secure engine in appropriate position.
3. Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a transmission jack. Securely support
bottom of engine and transaxle, and simultaneously adjust hoist
tension.
CAUTION:
Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.
4. Remove RH engine mounting insulator.
5. Pull LH engine mounting through-bolt out.
6. Remove center member.
7. Remove engine and transaxle assembly from vehicle downward by carefully operating supporting tools.
CAUTION:

During the operation, make sure that no part interferes with vehicle side.

Before and during this lifting, always check if any harnesses are left connected.

During the removal operation, always be careful to prevent vehicle from falling off the lift due to
changes in the center of gravity.

If necessary, support vehicle by setting jack or suitable tool at the rear.
8. Remove starter motor. Refer to SC-23, "
STARTING SYSTEM" .
9. Remove rear engine mounting bracket.
10. Separate the engine and the transaxle. Refer to MT-19, "
TRANSAXLE ASSEMBLY" .
INSTALLATION
Note the following, and install in the reverse order of removal.

Do not allow engine oil to get on engine mounting insulator. Be careful not to damage engine mounting
insulator.

When installation directions are specified, install parts according to the direction marks on them referring
to the figure of components. Refer to EM-81, "
Removal and Installation (2WD Models)" .

Make sure that each mounting insulator is seated properly, and tighten mounting nuts and bolts.Slinger bolts:
Front
: 57.9 N·m (5.9 kg-m, 43 ft-lb)
Rear
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
SBIA0271E
KBIA0256E
PBIC2748E

EM-84
[QR]
ENGINE ASSEMBLY

INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

EM-88
[QR]
ENGINE ASSEMBLY

9. Remove power steering oil pump with piping connected from engine. Move it aside on front suspension
member. Refer to PS-37, "
HYDRAULIC LINE" .
10. Remove front engine mounting and rear engine mounting through-bolts to remove front suspension mem-
ber and center member.
11. Remove starter motor. Refer to SC-23, "
STARTING SYSTEM" .
12. Separate engine and transaxle. Refer to MT-19, "
TRANSAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 ,
"REMOVAL AND INSTALLATION" (A/T models).
INSTALLATION
Note the following, and install in the reverse order of removal.

Do not allow engine oil to get on engine mounting insulator. Be careful not to damage engine mounting
insulator.

When installation directions are specified, install parts according to the direction marks on them referring
to figure of components. Refer to EM-85, "
Removal and Installation (4WD Models)" .

Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

EM-96
[QR]
CYLINDER BLOCK

ii. Tighten M8 bolts in numerical order from No. 11 to 22 in the fig-
ure.
NOTE:
There are more processes to complete the tightening of mount-
ing bolts. However stop procedure here to install rear oil seal.
c. Install rear oil seal. Refer to EM-68, "
Removal and Installation of Rear Oil Seal" .
d. Restart tightening of lower cylinder block mounting bolts with the following procedure:
i. Tighten M10 bolts in numerical order from No. 1 to 10.
ii. Turn M10 bolts 60 degrees clockwise (angle tightening) in order
from No. 1 to 10 in the figure.
CAUTION:
Check and confirm the tightening angle by using an angle
wrench (special service tool) or protractor. Avoid judgment
by visual inspection without the tool.

After installing mounting bolts, make sure that crankshaft can be rotated smoothly by hand.

Wipe off completely any protruding liquid gasket on front side of engine.

Check crankshaft end play. Refer to EM-107, "CRANKSHAFT END PLAY" .
7. Install piston to connecting rod with the following procedure:
a. Using snap ring pliers, install new snap ring to the groove of the piston rear side.

Insert it fully into groove to install.
b. Assemble piston to connecting rod.

Using an industrial use drier or similar tool, heat the piston until the piston pin can be pushed in by hand
without excess force [approx. 60 to 70 °C (140 to 158 °F)]. From the front to the rear, insert piston pin
into piston and connecting rod. : 25.1 N·m (2.6 kg-m, 19 ft-lb)
KBIA0063E
: 39.2 N·m (4.0 kg-m, 29 ft-lb)
KBIA0063E
KBIA0065E
