NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

Use the Chart Below to Help You Find the Cause of the Symptom.EBS00L7Q
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseType of
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
To p o f
engine
Rocker
cover
Cylinder
headTicking or
clickingCA—AB—Tappet
noiseValve clearanceEM-64
Rattle C A — A B CCamshaft
bearing
noiseCamshaft journal oil
clearance
Camshaft runoutEM-59EM-58
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—BB—Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bush-
ing oil clearanceEM-107
EM-109
Slap or
rapA ——BBAPiston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-112EM-108
EM-108
EM-109
Knock A B CBBBConnect-
ing rod
bearing
noiseConnecting rod bush-
ing oil clearance
Connecting rod bear-
ing oil clearanceEM-109EM-113
Knock A B — A B CMain
bearing
noiseMain bearing oil clear-
ance
Crankshaft runoutEM-114EM-113
Front of
engine
Front
coverTapping or
tickingA A —BBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-50
EM-46
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belt
(Sticking
or slip-
ping)Drive belt deflection
EM-13
Creaking A B A B A BDrive belt
(Slipping)Idler pulley bearing
operation
Squall
CreakA B —BABWater
pump
noiseWater pump operationCO-21,
"WATER
PUMP"

EM-14
[QR]
DRIVE BELTS

INSTALLATION

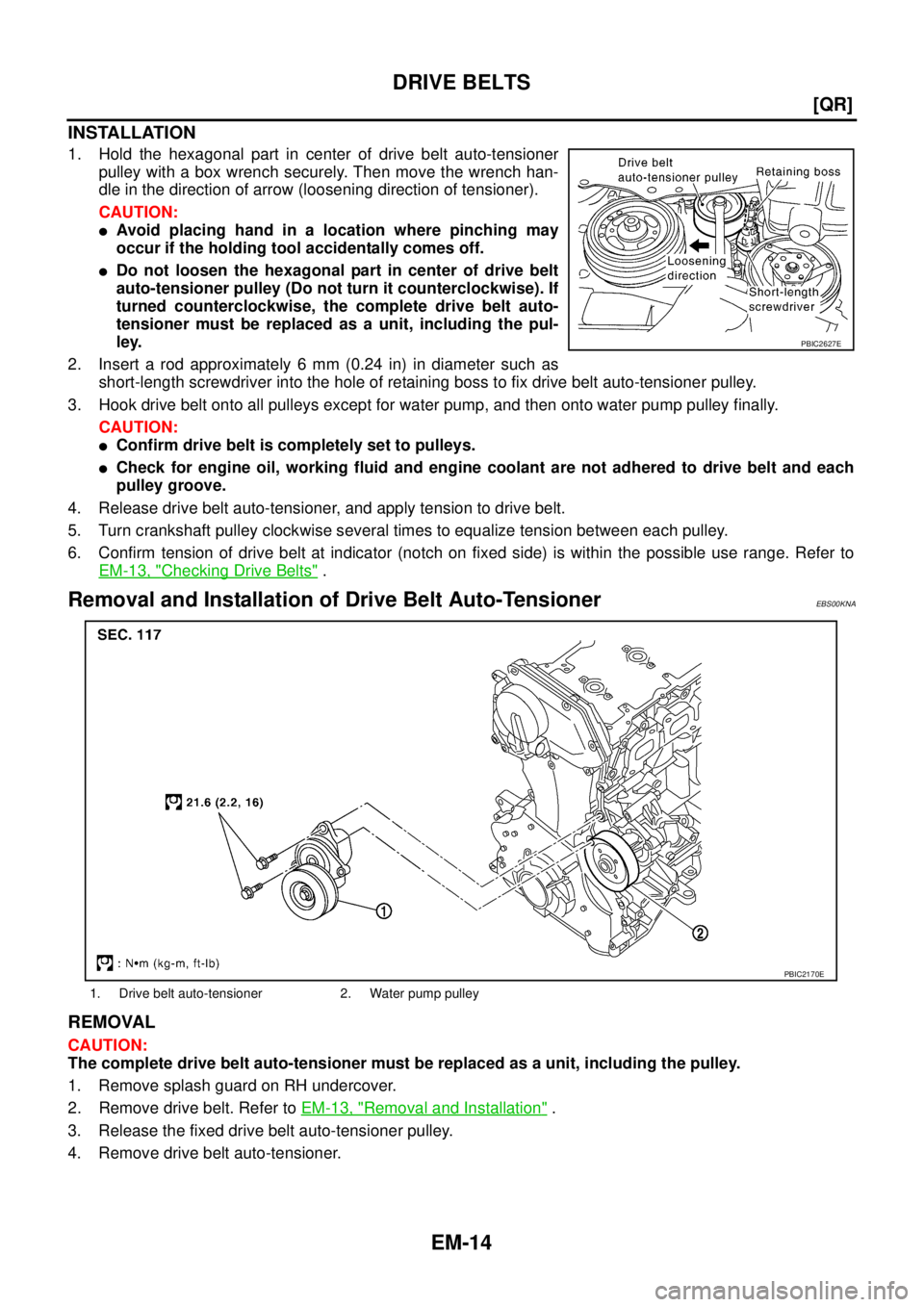

1. Hold the hexagonal part in center of drive belt auto-tensioner
pulley with a box wrench securely. Then move the wrench han-
dle in the direction of arrow (loosening direction of tensioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto-tensioner pulley (Do not turn it counterclockwise). If
turned counterclockwise, the complete drive belt auto-
tensioner must be replaced as a unit, including the pul-
ley.
2. Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole of retaining boss to fix drive belt auto-tensioner pulley.
3. Hook drive belt onto all pulleys except for water pump, and then onto water pump pulley finally.
CAUTION:

Confirm drive belt is completely set to pulleys.

Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each
pulley groove.
4. Release drive belt auto-tensioner, and apply tension to drive belt.
5. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
6. Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to
EM-13, "
Checking Drive Belts" .
Removal and Installation of Drive Belt Auto-TensionerEBS00KNA
REMOVAL
CAUTION:
The complete drive belt auto-tensioner must be replaced as a unit, including the pulley.
1. Remove splash guard on RH undercover.
2. Remove drive belt. Refer to EM-13, "
Removal and Installation" .
3. Release the fixed drive belt auto-tensioner pulley.
4. Remove drive belt auto-tensioner.
PBIC2627E
1. Drive belt auto-tensioner 2. Water pump pulley
PBIC2170E

EM-30
[QR]
OIL PAN AND OIL STRAINER

a. Use a scraper to remove old liquid gasket from mating surfaces.

Also remove old liquid gasket from mating surface of oil
pan (upper).
b. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
c. Tighten bolts in numerical order as shown in the figure.
4. Install oil pan drain plug.

Refer to the figure of components of former page for installation direction of washer. Refer to EM-27,
"Removal and Installation" .
5. Install in the reverse order of removal after this step.
NOTE:
Pour engine oil at least 30 minutes after oil pan is installed.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and adjust engine oil. Refer to LU-7, "ENGINE OIL" .
2. Start engine, and make sure there is no leaks of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level again. Refer to LU-7, "
ENGINE OIL" .
SEM958F
SBIA0254E
KBIA0096E

TIMING CHAIN
EM-51
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
NOTE:

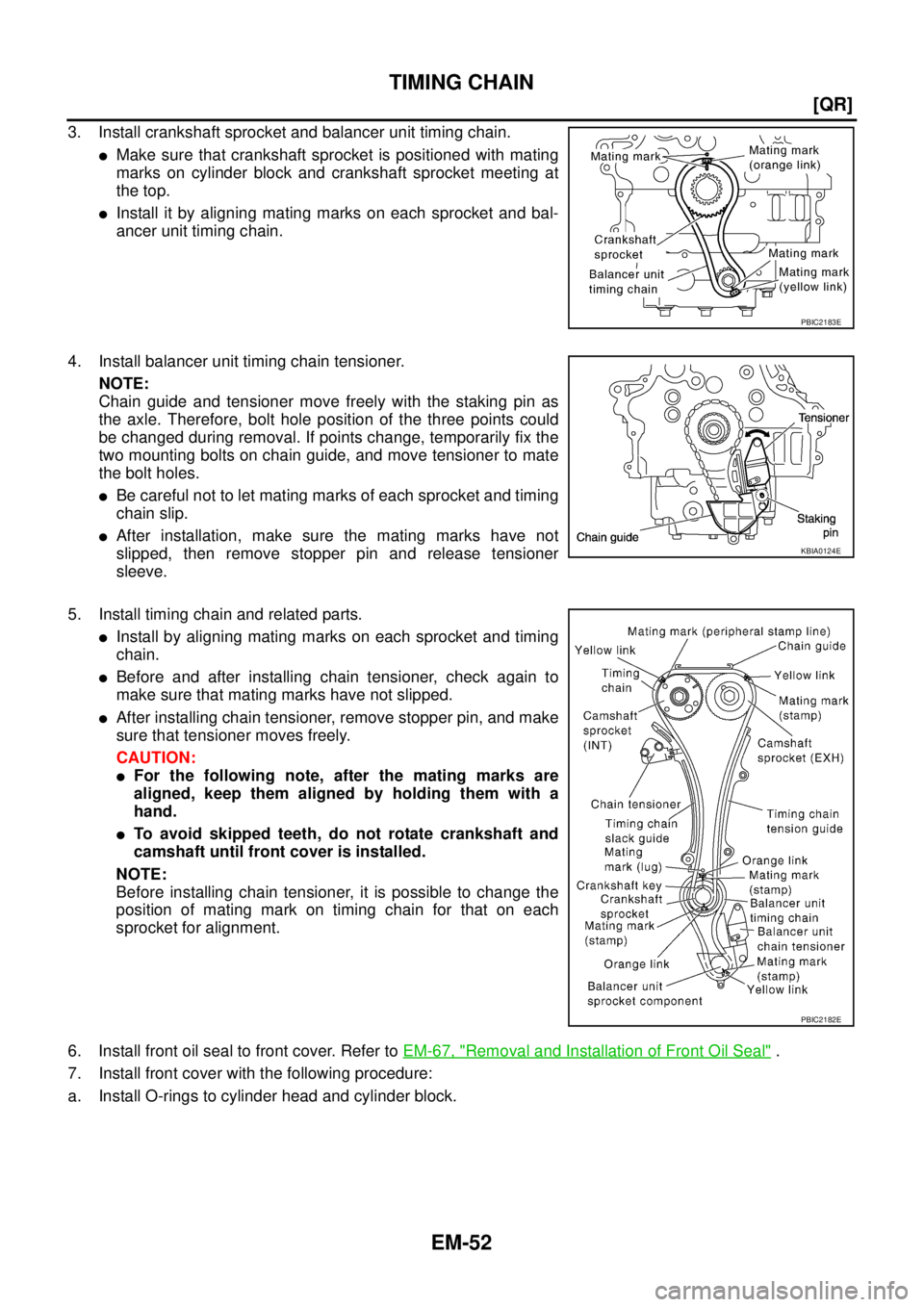

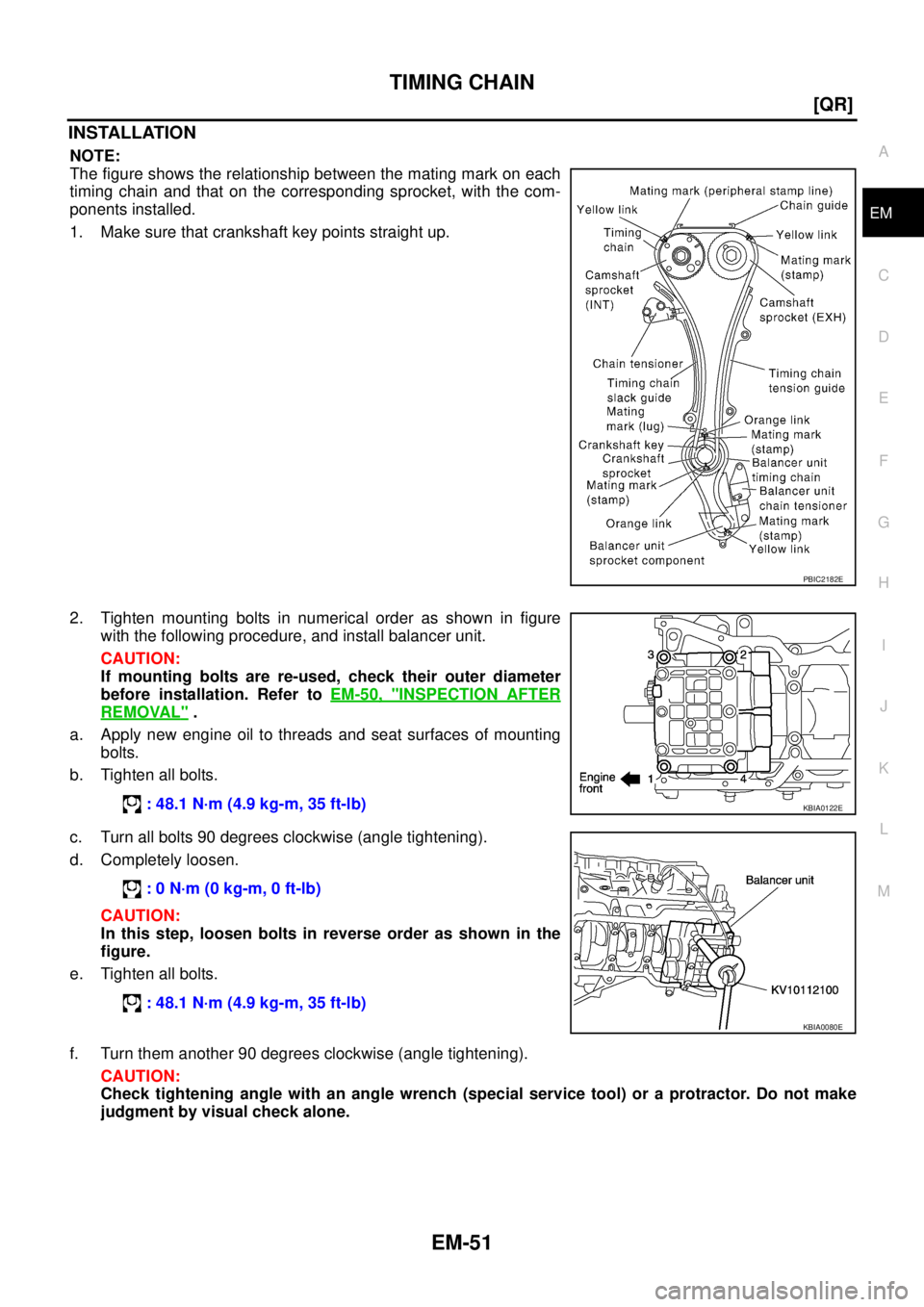

The figure shows the relationship between the mating mark on each
timing chain and that on the corresponding sprocket, with the com-
ponents installed.
1. Make sure that crankshaft key points straight up.
2. Tighten mounting bolts in numerical order as shown in figure
with the following procedure, and install balancer unit.
CAUTION:
If mounting bolts are re-used, check their outer diameter
before installation. Refer to EM-50, "
INSPECTION AFTER
REMOVAL" .
a. Apply new engine oil to threads and seat surfaces of mounting
bolts.
b. Tighten all bolts.
c. Turn all bolts 90 degrees clockwise (angle tightening).
d. Completely loosen.
CAUTION:
In this step, loosen bolts in reverse order as shown in the
figure.
e. Tighten all bolts.
f. Turn them another 90 degrees clockwise (angle tightening).
CAUTION:
Check tightening angle with an angle wrench (special service tool) or a protractor. Do not make
judgment by visual check alone.
PBIC2182E
: 48.1 N·m (4.9 kg-m, 35 ft-lb)KBIA0122E
: 0 N·m (0 kg-m, 0 ft-lb)
: 48.1 N·m (4.9 kg-m, 35 ft-lb)
KBIA0080E

EM-52
[QR]
TIMING CHAIN

3. Install crankshaft sprocket and balancer unit timing chain.

Make sure that crankshaft sprocket is positioned with mating
marks on cylinder block and crankshaft sprocket meeting at
the top.

Install it by aligning mating marks on each sprocket and bal-
ancer unit timing chain.
4. Install balancer unit timing chain tensioner.
NOTE:
Chain guide and tensioner move freely with the staking pin as
the axle. Therefore, bolt hole position of the three points could
be changed during removal. If points change, temporarily fix the
two mounting bolts on chain guide, and move tensioner to mate
the bolt holes.

Be careful not to let mating marks of each sprocket and timing
chain slip.

After installation, make sure the mating marks have not
slipped, then remove stopper pin and release tensioner
sleeve.
5. Install timing chain and related parts.

Install by aligning mating marks on each sprocket and timing
chain.

Before and after installing chain tensioner, check again to
make sure that mating marks have not slipped.

After installing chain tensioner, remove stopper pin, and make
sure that tensioner moves freely.
CAUTION:

For the following note, after the mating marks are
aligned, keep them aligned by holding them with a
hand.

To avoid skipped teeth, do not rotate crankshaft and
camshaft until front cover is installed.
NOTE:
Before installing chain tensioner, it is possible to change the
position of mating mark on timing chain for that on each
sprocket for alignment.
6. Install front oil seal to front cover. Refer to EM-67, "
Removal and Installation of Front Oil Seal" .
7. Install front cover with the following procedure:
a. Install O-rings to cylinder head and cylinder block.
PBIC2183E
KBIA0124E
PBIC2182E

EM-54
[QR]
TIMING CHAIN

d. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) to intake valve timing con-
trol cover as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
10. Insert crankshaft pulley by aligning with crankshaft key.

When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).
CAUTION:
Install protecting front oil seal lip section from any damage.
11. Tighten crankshaft pulley bolt.

Secure crankshaft pulley with a pulley holder (commercial service tool), and tighten crankshaft pulley
bolt.

Perform angle tightening with the following procedure:
a. Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
b. Tighten crankshaft pulley bolt.
c. Put a paint mark on crankshaft pulley, mating with any one of six
easy to recognize angle marks on bolt flange.
d. Turn another 60 degrees clockwise (angle tightening).

Check the tightening angle with movement of one angle mark.
12. Install all removed parts in the reverse order of removal.
SBIA0260E
KBIA0085E
: 42.1 N·m (4.3 kg-m, 31 ft-lb)
SEM751G

TIMING CHAIN
EM-55
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

EM-70
[QR]
CYLINDER HEAD

CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00KNP
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).

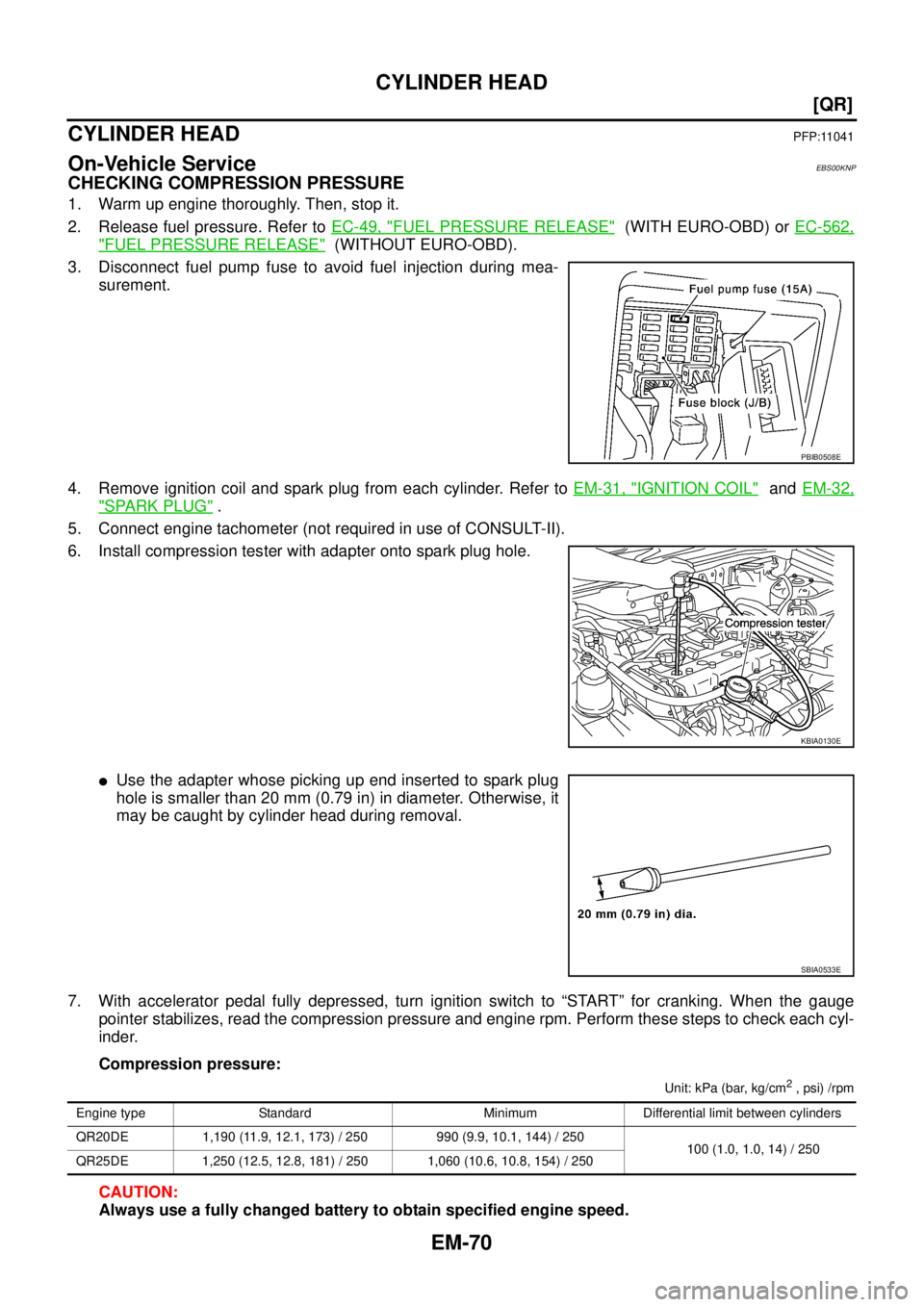

3. Disconnect fuel pump fuse to avoid fuel injection during mea-
surement.
4. Remove ignition coil and spark plug from each cylinder. Refer to EM-31, "
IGNITION COIL" and EM-32,
"SPARK PLUG" .
5. Connect engine tachometer (not required in use of CONSULT-II).
6. Install compression tester with adapter onto spark plug hole.

Use the adapter whose picking up end inserted to spark plug
hole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.
7. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and engine rpm. Perform these steps to check each cyl-
inder.
Compression pressure:
Unit: kPa (bar, kg/cm2 , psi) /rpm
CAUTION:
Always use a fully changed battery to obtain specified engine speed.
PBIB0508E
KBIA0130E
SBIA0533E
Engine type Standard Minimum Differential limit between cylinders
QR20DE 1,190 (11.9, 12.1, 173) / 250 990 (9.9, 10.1, 144) / 250
100 (1.0, 1.0, 14) / 250
QR25DE 1,250 (12.5, 12.8, 181) / 250 1,060 (10.6, 10.8, 154) / 250
