2005 NISSAN X-TRAIL check oil

MA-40
CHASSIS AND BODY MAINTENANCE

Changing M/T OilELS000BD
1. Drain oil from drain plug and refill with new gear oil.
(For details, refer to MT-12, "
Changing M/T Oil" .)
2. Check oil level.

For 2WD models

For 4WD models
CAUTION:
Do not reuse gasket.
Checking A/T FluidELS000BV
1. Warm up engine.
2. Check for fluid leakage.
3. Before driving, fluid level can be checked at fluid temperatures of 30 to 50°C (86 to 122°F) using “COLD”
range on A/T fluid level gauge.
a. Park vehicle on level surface and set parking brake.
b. Start engine and move selector lever through each gear position. Leave selector lever in “P” position.
c. Check fluid level with engine idling.Oil grade and viscosity:
Refer to MA-17, "
RECOMMENDED FLUIDS AND
LUBRICANTS" .
Oil capacity (reference):
Approx. 2.2 (3-7/8 lmp pt)
Oil level “L” : 55.0 - 61.0 mm (2.17 - 2.40 in)
PCIB1477E
Oil level “L” : 168.0 - 174.0 mm (6.61 - 6.85 in)
Drain plug:
: 34.5 N·m (3.5 kg-m, 25 ft-lb)
PCIB1478E
SMA146B

CHASSIS AND BODY MAINTENANCE
MA-41
C
D
E
F
G
H
I
J
K
MA
B
MA

d. Remove A/T fluid level gauge and wipe clean lint-free paper.
CAUTION:
When wiping away the A/T fluid level gauge, always use lint-free paper, not cloth one.
e. Re-insert A/T fluid level gauge into charging pipe as far as it will go.
CAUTION:
To check fluid level, insert the A/T fluid level gauge until the cap contacts the end of the A/T fluid
charging pipe, with the A/T fluid level gauge reversed from the normal attachment conditions.
f. Remove A/T fluid level gauge and note reading. If reading is at low side of range, add fluid to the A/T fluid
charging pipe.
CAUTION:
Do not overfill.
4. Drive vehicle for approximately 5 minutes in urban areas.
5. Re-check fluid level at fluid temperatures of 50 to 80°C (122 to 176°F) using “HOT” range on A/T fluid
level gauge.
CAUTION:

When wiping away the A/T fluid level gauge, always use lint-free paper, not cloth one.

To check fluid level, insert the A/T fluid level gauge until the cap contacts the end of the A/T fluid
charging pipe, with the A/T fluid level gauge reversed from the normal attachment conditions.
6. Check fluid condition.

If fluid is very dark or smells burned, refer to AT section for
checking operation of A/T. Flush cooling system after repair of
A/T.

If A/T fluid contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of A/T. Refer to CO-12,
"RADIATOR" , CO-15, "RADIATOR (ALUMINUM TYPE)" .
7. Install the removed A/T fluid level gauge in the A/T fluid charging
pipe.
Changing A/T FluidELS000BW
1. Warm up A/T fluid.
2. Stop engine.
3. Drain A/T fluid from drain plug and refill with new A/T fluid.
Always refill same volume with drained fluid.
4. Run engine at idle speed for five minutes.
5. Check fluid level and condition. Refer to MA-40, "
Checking A/T Fluid" . If fluid is still dirty, repeat steps 2
through 5.
Checking Transfer OilELS000BT
Check for oil leakage and oil level.
(For details, refer to TF-10, "
Inspection" .)
SMA853B
Fluid grade:
Genuine NISSAN ATF or equivalent. Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS" .
Fluid capacity (With torque converter):
Approx. 8.5 (7-1/2 lmp qt)
Drain plug:
: 34 N·m (3.5 kg-m, 25 ft-lb)
SMA052D

MA-42
CHASSIS AND BODY MAINTENANCE

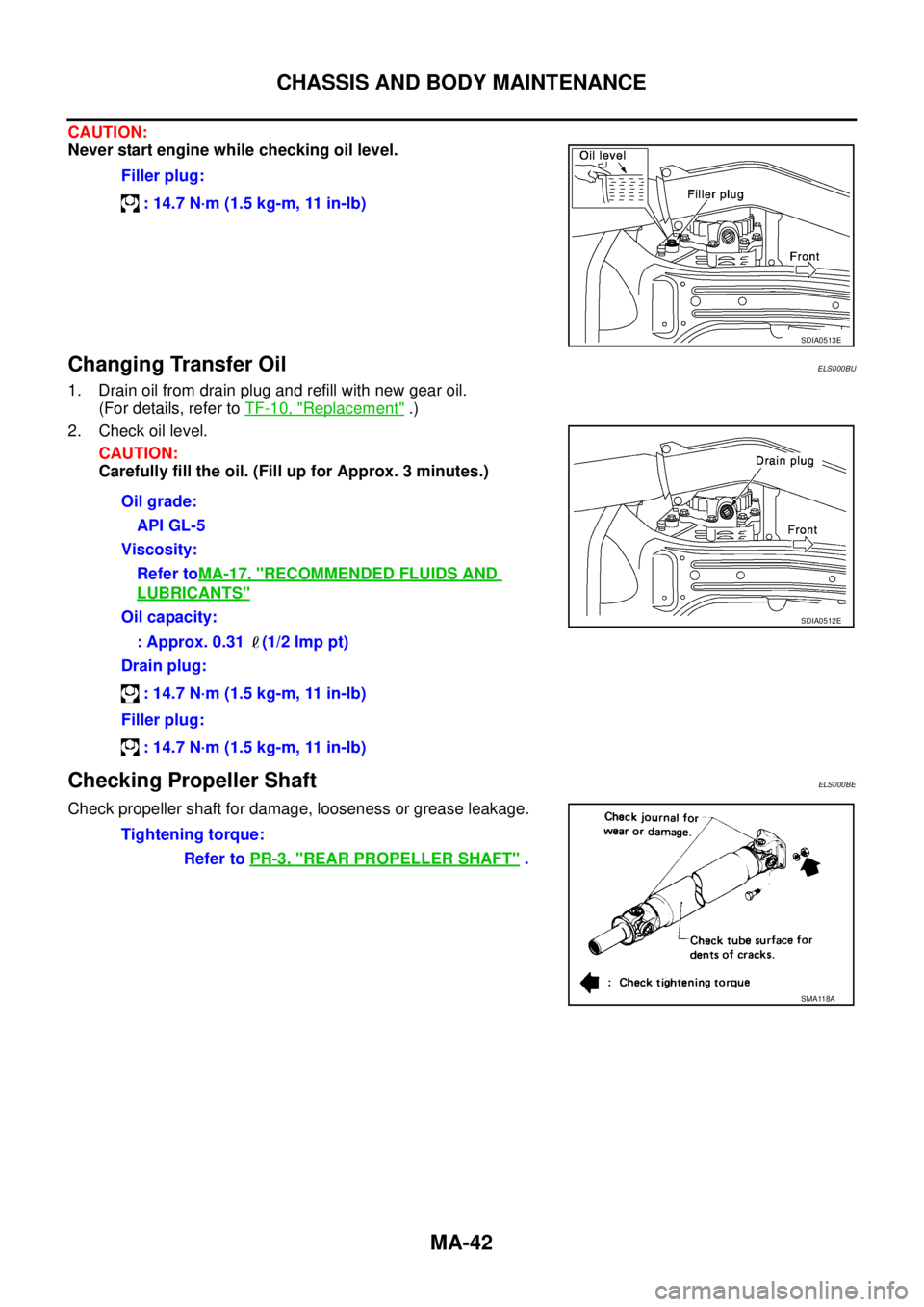

CAUTION:
Never start engine while checking oil level.
Changing Transfer OilELS000BU
1. Drain oil from drain plug and refill with new gear oil.
(For details, refer to TF-10, "
Replacement" .)
2. Check oil level.
CAUTION:
Carefully fill the oil. (Fill up for Approx. 3 minutes.)
Checking Propeller ShaftELS000BE
Check propeller shaft for damage, looseness or grease leakage.Filler plug:
: 14.7 N·m (1.5 kg-m, 11 in-lb)
SDIA0513E
Oil grade:
API GL-5
Viscosity:
Refer toMA-17, "
RECOMMENDED FLUIDS AND
LUBRICANTS"
Oil capacity:
: Approx. 0.31 (1/2 lmp pt)
Drain plug:
: 14.7 N·m (1.5 kg-m, 11 in-lb)
Filler plug:
: 14.7 N·m (1.5 kg-m, 11 in-lb)SDIA0512E
Tightening torque:
Refer to PR-3, "
REAR PROPELLER SHAFT" .
SMA118A

CHASSIS AND BODY MAINTENANCE
MA-43
C
D
E
F
G
H
I
J
K
MA
B
MA

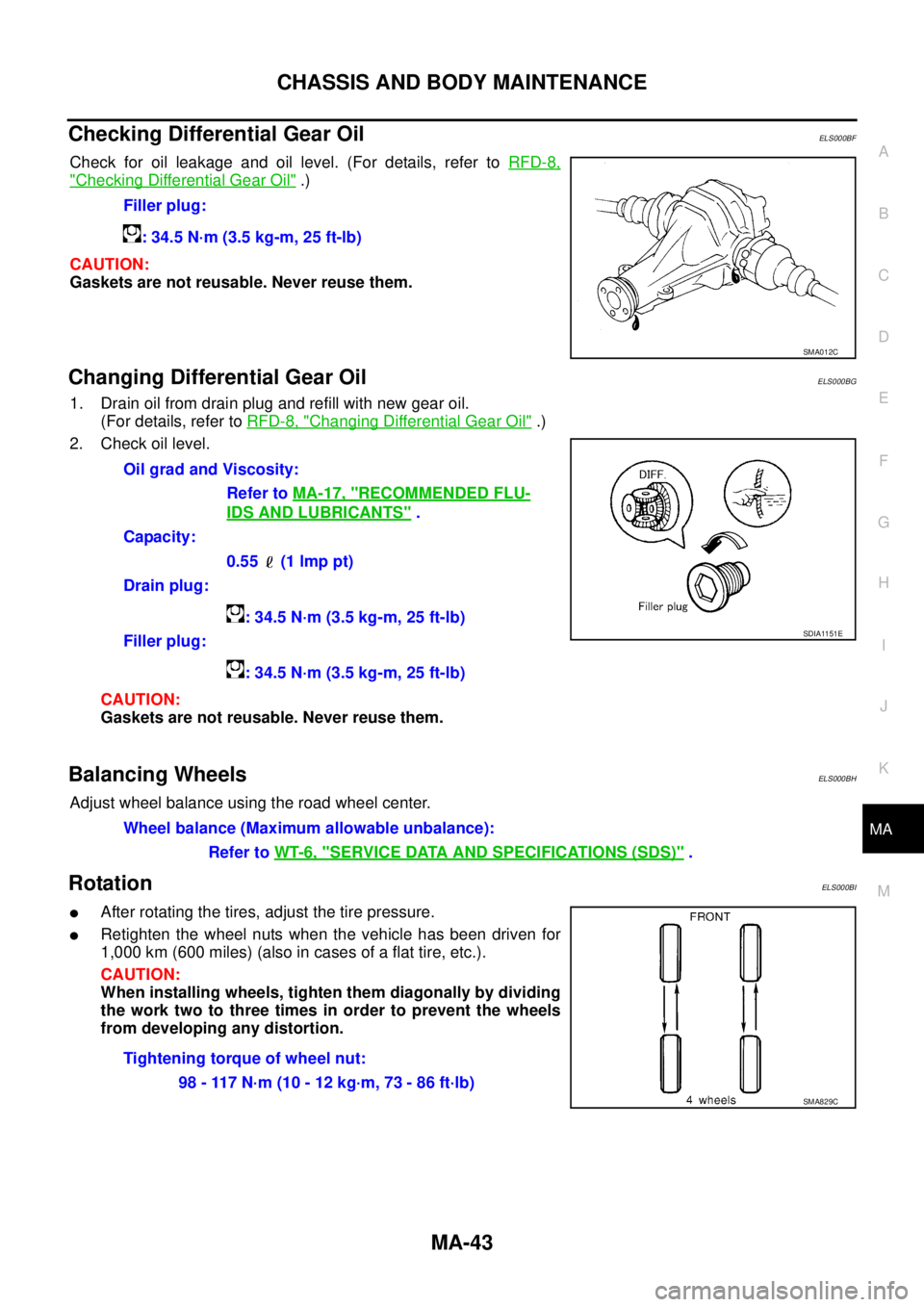

Checking Differential Gear OilELS000BF
Check for oil leakage and oil level. (For details, refer to RFD-8,
"Checking Differential Gear Oil" .)
CAUTION:
Gaskets are not reusable. Never reuse them.
Changing Differential Gear OilELS000BG
1. Drain oil from drain plug and refill with new gear oil.
(For details, refer to RFD-8, "
Changing Differential Gear Oil" .)
2. Check oil level.
CAUTION:
Gaskets are not reusable. Never reuse them.
Balancing WheelsELS000BH
Adjust wheel balance using the road wheel center.
RotationELS000BI

After rotating the tires, adjust the tire pressure.

Retighten the wheel nuts when the vehicle has been driven for
1,000 km (600 miles) (also in cases of a flat tire, etc.).
CAUTION:
When installing wheels, tighten them diagonally by dividing
the work two to three times in order to prevent the wheels
from developing any distortion.Filler plug:
: 34.5 N·m (3.5 kg-m, 25 ft-lb)
SMA012C
Oil grad and Viscosity:
Refer to MA-17, "
RECOMMENDED FLU-
IDS AND LUBRICANTS" .
Capacity:
0.55 (1 lmp pt)
Drain plug:
: 34.5 N·m (3.5 kg-m, 25 ft-lb)
Filler plug:
: 34.5 N·m (3.5 kg-m, 25 ft-lb)
SDIA1151E
Wheel balance (Maximum allowable unbalance):
Refer to WT-6, "
SERVICE DATA AND SPECIFICATIONS (SDS)" .
Tightening torque of wheel nut:
98 - 117 N·m (10 - 12 kg·m, 73 - 86 ft·lb)
SMA829C

MA-46
CHASSIS AND BODY MAINTENANCE


Check lines for improper attachment, leaks, cracks, dam-
age, loose connections, chafing and deterioration.

Check rack boots for accumulation of power steering fluid.
Axle and Suspension PartsELS000BQ
Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.

Shake each wheel to check for excessive play.

Check wheel bearings for smooth operation.

Check axle and suspension nuts and bolts for looseness.

Check strut (shock absorber) for oil leakage or other damage.

Check suspension ball joint for grease leakage and ball joint
dust cover for cracks or other damage.
Drive ShaftELS000CL

Check boot and drive shaft for cracks, wear, damage and
grease leakage.
Lubricating Locks, Hinges and Hood LatchesELS000BR
SST851C
SMA525A
SFA392B
SFA108A
Front door Refer to BL-18, "DOOR" .
Back door Refer to BL-99, "
BACK DOOR" .
