2005 NISSAN X-TRAIL engine coolant temperature sensor

ENGINE CONTROL SYSTEM
EC-1369
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2WD Models With ESP

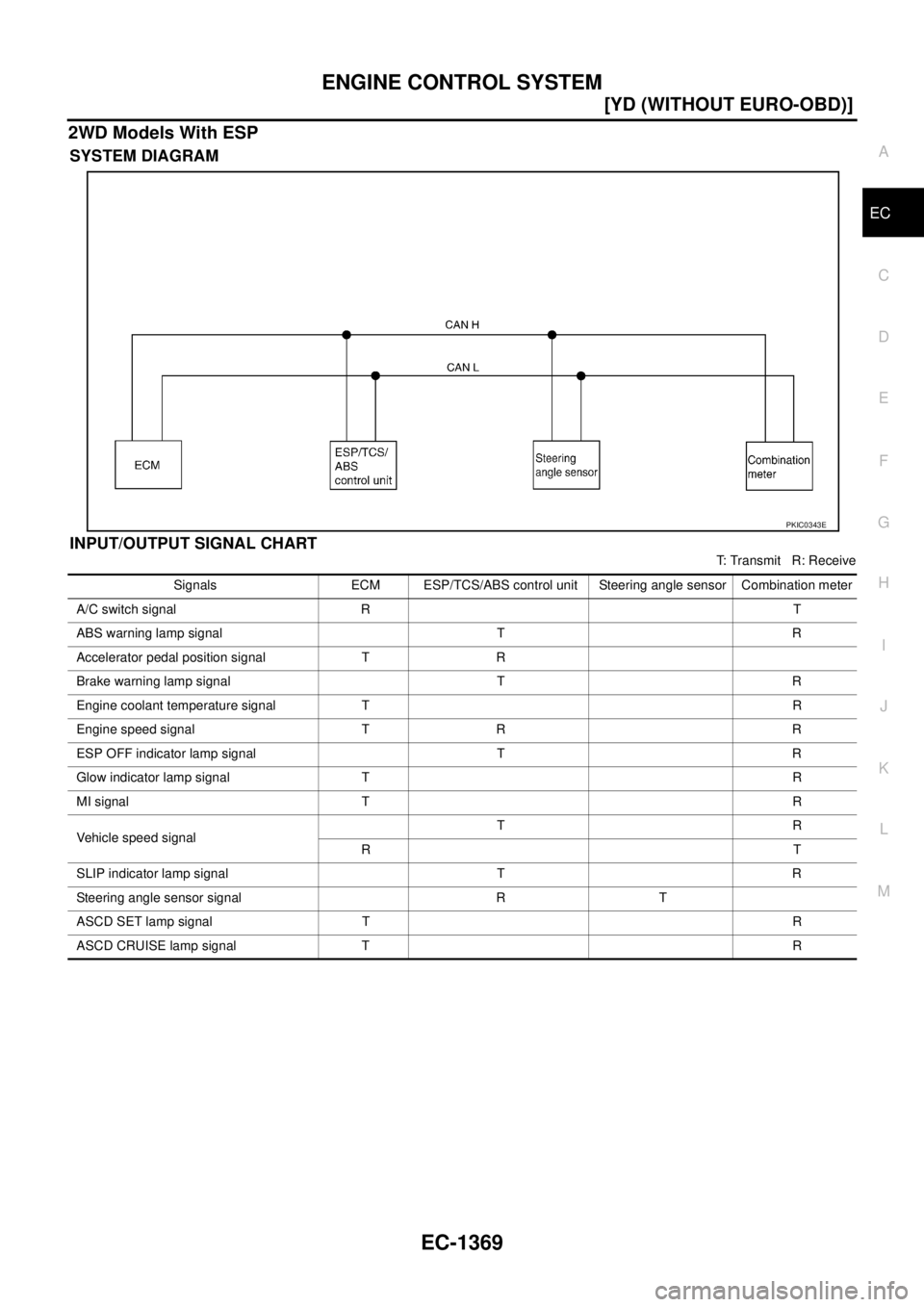

SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive
PKIC0343E
Signals ECM ESP/TCS/ABS control unit Steering angle sensor Combination meter
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Vehicle speed signalTR
RT
SLIP indicator lamp signal T R
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

EC-1382
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

Basic InspectionEBS011XF
Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;

Headlamp switch is OFF.

On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light
only small lamps.

Air conditioner switch is OFF.

Rear defogger switch is OFF.

Steering wheel is in the straight-ahead position, etc.
Priority Detected items (DTC)
1

U1000 CAN communication line

P0016 Crankshaft position - camshaft position correlation

P0102 P0103 Mass air flow sensor

P0112 P0113 Intake air temperature sensor

P0117 P0118 Engine coolant temperature sensor

P0122 P0123 P0222 P0223 P2135 Accelerator pedal position sensor

P0182 P0183 Fuel pump temperature sensor

P0192 P0193 Fuel rail pressure sensor

P0237 P0238 Turbocharger boost sensor

P0335 P0336 Crankshaft position sensor

P0340 P0341 Camshaft position sensor

P0563 Battery voltage

P0605 P0606 ECM

P0642 P0643 P0652 P0653 Sensor power supply

P1260 - P1267 Fuel injector adjustment resistor

P1610 - P1617 NATS

P2228 P2229 Barometric pressure sensor
2

P0089 P0628 P0629 P1272 - P1275 Fuel pump

P0200 - P0204 P1268 - P1271 P2146 - P2149 Fuel injector

P0686 ECM relay

P1212 TCS communication line
3

P0088 P0093 Fuel system

P0217 Engine over temperature (OVERHEAT)

P0234 Turbocharger system

P0501 P0502 P0503 ASCD vehicle speed sensor

P0504 ASCD brake switch

P0580 P0581 ASCD steering switch

P1211 TCS control unit

TROUBLE DIAGNOSIS
EC-1387
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Symptom Matrix ChartEBS011XG
SYSTEM — Basic engine control systemSYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA) ENGINE STALL HESITATION/SURGING/FLAT SPOT KNOCK/DETONATION
LACK OF POWER POOR ACCELERATION HI IDLE LOW IDLE
NO START (with first firing) NO START (without first firing) HARD TO START WHEN ENGINE IS COLD HARD TO START WHEN ENGINE IS HOT
AT I D L E DURING DRIVING WHEN DECELERATING
Warranty symptom code AA AB AC AD AE AF
Fuel pump 55555555 55 5 —
Fuel injector 3333333334433EC-1474
Glow control system 1 1 1 1 1EC-1643
Engine body 3333333 344 3EM-222
Fuel transport pump 2 2 2EC-1682
EGR system33EC-1651
Air cleaner and duct33EM-142
Fuel rail pressure relief valve 3 3 3 3 3 3 3 3 3 3 3EC-1434
ENGINE CONTROLFuel pump circuit 4 4 4 4 4 4 4 4 4 4 4EC-1570
Fuel injector circuit 1111111111111EC-1474
Mass air flow sensor circuit 1 1 1EC-1438
Engine coolant temperature circuit 1 1 1 1EC-1449
Vehicle speed signal circuit1LAN-4
Accelerator pedal position sensor circuit 1 1 1EC-1455
Fuel rail pressure sensor circuitEC-1466

TROUBLE DIAGNOSIS
EC-1389
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

SYSTEM — Basic engine control systemSYMPTOM
Reference page
ROUGH IDLE/HUNTING IDLING VIBRATION
SLOW/NO RETURN TO IDLE OVERHEAT/HIGH ENGINE COOLANT TEMPERATURE EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION ABNORMAL SMOKE COLOR DEAD BATTERY (UNDER CHARGE) Malfunction indicator illuminates. Can be detected by CONSULT-II?
BLACK SMOKE WHITE SMOKE
Warranty symptom code AG AH AJ AK AL AM AP HA
Fuel pump 5 5 5 5 1 1 —
Fuel injector 33344411EC-1474
Glow control system1EC-1643
Engine body 3 3 3 3 1 3EM-222
Fuel transport pumpEC-1682
EGR system3EC-1651
Air cleaner and duct3EM-142
Fuel rail pressure relief valve 3 3 3 3 1 1EC-1434
ENGINE CONTROLFuel pump circuit 4 4 4 4 1 1EC-1609
Fuel injector circuit 1 1 1 1 1 1 1 1EC-1474
Mass air flow sensor circuit 1 1 1EC-1438
Engine coolant temperature circuit 1 1 1 1 1EC-1449
Vehicle speed signal circuit11LAN-4
Accelerator pedal position sensor circuit 1 1 1EC-1455
Fuel rail pressure sensor circuit11EC-1466

EC-1390
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

1 - 5: The numbers refer to the order of inspection.
ENGINE CONTROLCrankshaft position sensor circuit 1 1 1 1EC-1512
Camshaft position sensor circuit11EC-1525
Turbocharger boost sensor circuit 1 1EC-1506
Turbocharger boost control solenoid valve cir-
cuit11EC-1659
Start signal circuitEC-1696
Ignition switch circuitEC-1415
Power supply for ECM circuit11EC-1415
Cooling fan relay circuit 2EC-1480
EGR volume control valve circuit 1EC-1651
Glow relay circuit1EC-1643
ECM relay (Self-shutoff) circuit1EC-1584
ECM, connector circuit22222222222EC-1566,EC-
1641
NATS (Nissan Anti-theft System)1EC-1373
SYSTEM — Basic engine control systemSYMPTOM
Reference page
ROUGH IDLE/HUNTING IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEAT/HIGH ENGINE COOLANT TEMPERATURE EXCESSIVE FUEL CONSUMPTION EXCESSIVE OIL CONSUMPTION ABNORMAL SMOKE COLOR
DEAD BATTERY (UNDER CHARGE) Malfunction indicator illuminates.
Can be detected by CONSULT-II?
BLACK SMOKE WHITE SMOKE
Warranty symptom code AG AH AJ AK AL AM AP HA

EC-1402
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

47 G/R Camshaft position sensor[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 6V
48
49Y/R
RFuel rail pressure sensor[Engine is running]

Warm-up condition

Idle speed1.7 - 2.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.0 - 2.3V
50 PUFuel pump temperature
sensor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.3V
Output voltage varies with fuel
pump temperature
51 L/OREngine coolant tempera-
ture sensor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.3V
Output voltage varies with engine
coolant temperature
52 Y Turbocharger boost sensor[Engine is running]

Warm-up condition

Idle speed2.3 - 2.6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.5 - 2.8V
54 W Mass air flow sensor[Engine is running]

Warm-up condition

Idle speed1.8 - 2.3V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.5 - 3.0V
55 GIntake air temperature sen-
sor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.2V
Output voltage varies with intake
air temperature
59
60
61
62W/B
Y/B
G/B
R/BFuel injector adjustment
resistor No. 1
Fuel injector adjustment
resistor No. 3
Fuel injector adjustment
resistor No. 4
Fuel injector adjustment
resistor No. 2[Ignition switch ON]0.5 - 5.1V
(There are individual differences
between fuel injector adjustment
resistors.) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0877E
MBIB0878E

TROUBLE DIAGNOSIS
EC-1403
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
63 WFuel rail pressure sensor
power supply[Ignition switch ON]Approximately 5.3V
64 WTurbocharger boost sensor
power supply[Ignition switch ON]Approximately 5.3V
65 L/RCrankshaft position sen-
sor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
66 G/YCamshaft position sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
67 —Sensor ground
(Sensors shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
68 BFuel rail pressure sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
69 BFuel pump temperature
sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
70 BEngine coolant tempera-
ture sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
71 BTurbocharger boost sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
73 BMass air flow sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
74 RIntake air temperature sen-
sor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
78 RFuel injector adjustment
resistor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)

TROUBLE DIAGNOSIS
EC-1407
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
SELF-DIAGNOSTIC MODE
Self Diagnostic Item
Regarding items detected in “SELF-DIAG RESULTS” mode, refer to EC-1351, "INDEX FOR DTC" .
Freeze Frame Data
ItemDIAGNOSTIC TEST MODE
SELF-DIAG RESULTS
DATA MON-
ITORACTIVE
TEST
DTCFREEZE
FRAME
DATA
ENGINE CONTROL COMPONENT PARTS
INPUTCrankshaft position sensor×××
Camshaft position sensor×
Engine coolant temperature sensor××××
Vehicle speed sensor×××
Fuel pump temperature sensor××
Accelerator pedal position sensor 1××
Accelerator pedal position sensor 2××
Fuel rail pressure sensor××
Mass air flow sensor××
Intake air temperature sensor×
Turbocharger boost sensor×××
Battery voltage××
Park/neutral position (PNP) switch×
Power steering pressure switch×
Stop lamp switch×
Barometric pressure sensor (built-into ECM)××
Fuel injector adjustment resistor×
ASCD steering switch××
ASCD brake switch××
ASCD clutch switch××
OUTPUTFuel pump×××
Fuel injector×××
Glow relay××
Cooling fan relay×××
EGR volume control valve××
Freeze frame data item Description
DIAG TROUBLE CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as “PXXXX”.
(Refer to EC-1351, "
INDEX FOR DTC" .)
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C] or
[°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
ENGINE SPEED [rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED [km/h] or
[mph]

The vehicle speed at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]

The intake manifold pressure at the moment a malfunction is detected is displayed.
