GLOW CONTROL SYSTEM
EC-1305
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

GLOW CONTROL SYSTEMPFP:25230
DescriptionEBS011FG
SYSTEM DESCRIPTION
When engine coolant temperature is more than approximately 80°C (176°F), the glow relay turns off.
When coolant temperature is lower than approximately 80°C (176°F):

Ignition switch ON
After ignition switch has turned to ON, the glow relay turns ON for a certain period of time in relation to
engine coolant temperature, allowing current to flow through glow plug.

Cranking
The glow relay turns ON, allowing current to flow through glow plug.

Sta rti ng
After engine has started, current continues to flow through glow plug (after-glow mode) for a certain period
in relation to engine coolant temperature.
The glow indicator lamp turns ON for a certain period of time in relation to engine coolant temperature at the
time glow relay is turned ON.
COMPONENT DESCRIPTION
Glow Plug
The glow plug is provided with a ceramic heating element to obtain a
high-temperature resistance. It glows in response to a signal sent
from the ECM, allowing current to flow through the glow plug via the
glow relay.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor Engine speed
Glow controlGlow lamp
Glow relay
Glow plugs Engine coolant temperature sensor Engine coolant temperature
SEF376Y

EC-1350
[YD (WITH EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
General SpecificationsEBS011GJ
Mass Air Flow SensorEBS011GK
Engine Coolant Temperature SensorEBS011GL
Fuel Rail Pressure SensorEBS011GM
Glow PlugEBS011GN
EGR Volume Control ValveEBS011GO
Crankshaft Position Sensor EBS011GP
Refer to EC-1162, "Component Inspection" .
Camshaft Position Sensor EBS011GQ
Refer to EC-1174, "Component Inspection" .
EngineYD22DDTi
Idle speed725 ± 25 rpm
Maximum engine speed 4,900 rpm
Supply voltageBattery voltage (11 - 14V)
Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed up to normal operating temperature.) 1.5 - 2.0V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.2 - 2.7V
Temperature °C (°F)Resistance kΩ
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Supply voltageApproximately 5V
Idle (Engine is warmed up to normal operating temperature.) 1.7 - 2.0V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.0 - 2.3V
Resistance [at 25°C (77°F)] Ω Approximately 0.8
Resistance [at 25°C (77°F)] Ω13 - 17

PREPARATION
EC-1359
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

PREPARATIONPFP:00002
Special Service ToolsEBS011WV
Commercial Service ToolsEBS011WW
Tool number
Tool nameDescription
EG17650301
Radiator cap tester
adapterAdapting radiator cap tester to radiator cap and
radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV109E0010
Break-out boxMeasuring the ECM signals with a circuit tester
KV109E0080
Y-cable adapterMeasuring the ECM signals with a circuit tester
S-NT564
S-NT825
S-NT826
Tool name Description
Socket wrench Removing and installing engine coolant
temperature sensor
S-NT705

EC-1362
[YD (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM

System ChartEBS011WZ
*1: The input signal is sent to the ECM through CAN communication line.
*2: The output signal is sent from the ECM through CAN communication line.
Fuel Injection Control SystemEBS011X0
SYSTEM DESCRIPTION
Three types of fuel injection control are provided to accommodate engine operating conditions; normal control,
idle control and start control. The ECM determines the appropriate fuel injection control. Under each control,
the amount of fuel injected is adjusted to improve engine performance.
Pulse signals are sent to fuel injectors according to the input signals to adjust the amount of fuel injected to
preset value.
START CONTROL
Input/Output Signal Chart
When the ECM receives a start signal from the ignition switch, the
ECM adapts the fuel injection system for the start control. The
amount of fuel injected at engine starting is a preset program value
in the ECM. The program is determined by the engine speed, engine
coolant temperature and fuel rail pressure.
For better startability under cool engine conditions, the lower the
coolant temperature becomes, the greater the amount of fuel
injected. The ECM ends the start control when the engine speed
reaches the specific value, and shifts the control to the normal or idle
control.
Input (Sensor) ECM Function Output (Actuator)

Accelerator pedal position sensor

Fuel rail pressure sensor

Fuel pump temperature sensor

Engine coolant temperature sensor

Mass air flow sensor

Intake air temperature sensor

Crankshaft position sensor

Camshaft position sensor

Turbocharger boost sensor

Vehicle speed sensor*1

ESP/TCS/ABS control unit*1

Ignition switch

Stop lamp switch

Air conditioner switch*1

Park/neutral position switch

Battery voltage

Fuel level switch

Power steering pressure switch Fuel injection control Fuel injector and Fuel pump
Fuel injection timing control Fuel injector and Fuel pump
Fuel cut control Fuel injector and Fuel pump
Glow control system
Glow relay and glow indicator lamp*
2
On board diagnostic system
Malfunction indicator (MI)*2
EGR volume control EGR volume control valve
Cooling fan control Cooling fan relay
Turbocharger boost controlTurbocharger boost control solenoid
valve
Fuel transport pump control Fuel transport pump relay
Air conditioning cut control Air conditioner relay
Sensor Input Signal to ECM ECM Function Actuator
Engine coolant temperature sensor Engine coolant temperature
Fuel injection
control (start
control)Fuel injector
Fuel pump Crankshaft position sensor Engine speed
Camshaft position sensor Piston position
Ignition switch Start signal
Fuel rail pressure sensor Fuel rail pressure
SEF648S

ENGINE CONTROL SYSTEM
EC-1363
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

IDLE CONTROL
Input/Output Signal Chart
*: The input signal is sent to the ECM through CAN communication line.
When the ECM determines that the engine speed is at idle, the fuel injection system is adapted for the idle
control. The ECM regulates the amount of fuel injected corresponding to changes in load applied to the engine
to keep engine speed constant. The ECM also provides the system with a fast idle control in response to the
engine coolant temperature signal.
NORMAL CONTROL
Input/Output Signal Chart
The amount of fuel injected under normal driving conditions is deter-
mined according to sensor signals. The crankshaft position sensor
detects engine speed, the accelerator pedal position sensor detects
accelerator pedal position and fuel rail pressure sensor detects fuel
rail pressure. These sensors send signals to the ECM.
The fuel injection data, predetermined by correlation between vari-
ous engine speeds, accelerator pedal positions and fuel rail pres-
sure are stored in the ECM memory, forming a map. The ECM
determines the optimal amount of fuel to be injected using the sen-
sor signals in comparison with the map.
MAXIMUM AMOUNT CONTROL
Input/Output Signal Chart
The maximum injection amount is controlled to an optimum by the engine speed, intake air amount, engine
coolant temperature, and accelerator opening in accordance with the driving conditions.
This prevents the oversupply of the injection amount caused by decreased air density at a high altitude or dur-
ing a system failure.
Sensor Input Signal to ECM ECM Function Actuator
Engine coolant temperature sensor Engine coolant temperature
Fuel injection
control (Idle
control)Fuel injector
Fuel pump Crankshaft position sensor Engine speed
Battery Battery voltage
Accelerator pedal position sensor Accelerator pedal position
Fuel rail pressure sensor Fuel rail pressure
Vehicle speed sensor* Vehicle speed
Air conditioner switch* Air conditioner signal
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor Engine speed
Fuel injection
control (Nor-
mal control)Fuel injector
Fuel pump Accelerator pedal position sensor Accelerator position
Fuel rail pressure sensor Fuel rail pressure
SEF649S
Sensor Input Signal to ECM ECM Function Actuator
Mass air flow sensor Amount of intake air
Fuel injection
control (Maxi-
mum amount
control)Fuel Injector Engine coolant temperature sensor Engine coolant temperature
Crankshaft position sensor Engine speed
Accelerator pedal position sensor Accelerator pedal position

EC-1364
[YD (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM

DECELERATION CONTROL
Input/Output Signal Chart
The ECM sends a fuel cut signal to the fuel injectors and fuel pump during deceleration for better fuel effi-
ciency. The ECM determines the time of deceleration according to signals from the accelerator pedal position
sensor and crankshaft position sensor.
Fuel Injection Timing Control SystemEBS011X1
DESCRIPTION
The target fuel injection timing in accordance with the engine speed and the fuel injection amount are recorded
as a map in the ECM beforehand. The ECM determines the optimum injection timing using sensor signals
accordance with the map.
Air Conditioning Cut ControlEBS011X2
INPUT / OUTPUT SIGNAL CHART
*: The input signal is sent to the ECM through CAN communication line.
SYSTEM DESCRIPTION
This system improves acceleration when the air conditioner is used.
When the accelerator pedal is fully depressed, the air conditioner is turned off for a few seconds.
When engine coolant temperature becomes excessively high, the air conditioner is turned off. This continues
until the engine coolant temperature returns to normal.
Fuel Cut Control (At No Load & High Engine Speed)EBS011X3
INPUT/OUTPUT SIGNAL CHART
*: The input signal is sent to the ECM through CAN communication line.
If the engine speed is above 2,800 rpm under no load (for example, the shift position is neutral and engine
speed is over 2,800 rpm) fuel will be cut off after some time. The exact time when the fuel is cut off varies
based on engine speed. Fuel cut will be operated until the engine speed reaches 1,500 rpm, then fuel cut will
be cancelled.
NOTE:
This function is different from deceleration control listed under EC-1362, "
Fuel Injection Control Sys-
tem" .
Sensor Input Signal to ECM ECM Function Actuator
Accelerator pedal position sensor Accelerator pedal position Fuel injection
control (Decel-
eration control)Fuel injector
Fuel pump
Crankshaft position sensor Engine speed
Sensor Input Signal to ECM ECM Function Actuator
Air conditioner switch* Air conditioner ON signal
Air conditioner
cut controlAir conditioner relay Accelerator pedal position sensor Accelerator pedal opening angle
Vehicle speed sensor* Vehicle speed
Engine coolant temperature sensor Engine coolant temperature
Sensor Input Signal to ECM ECM Function Actuator
Vehicle speed sensor* Vehicle speed
Fuel cut control Fuel injector Accelerator pedal position sensor Accelerator pedal position
Crankshaft position sensor Engine speed

EC-1366
[YD (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM

×: Applicable
4WD Models Without ESP

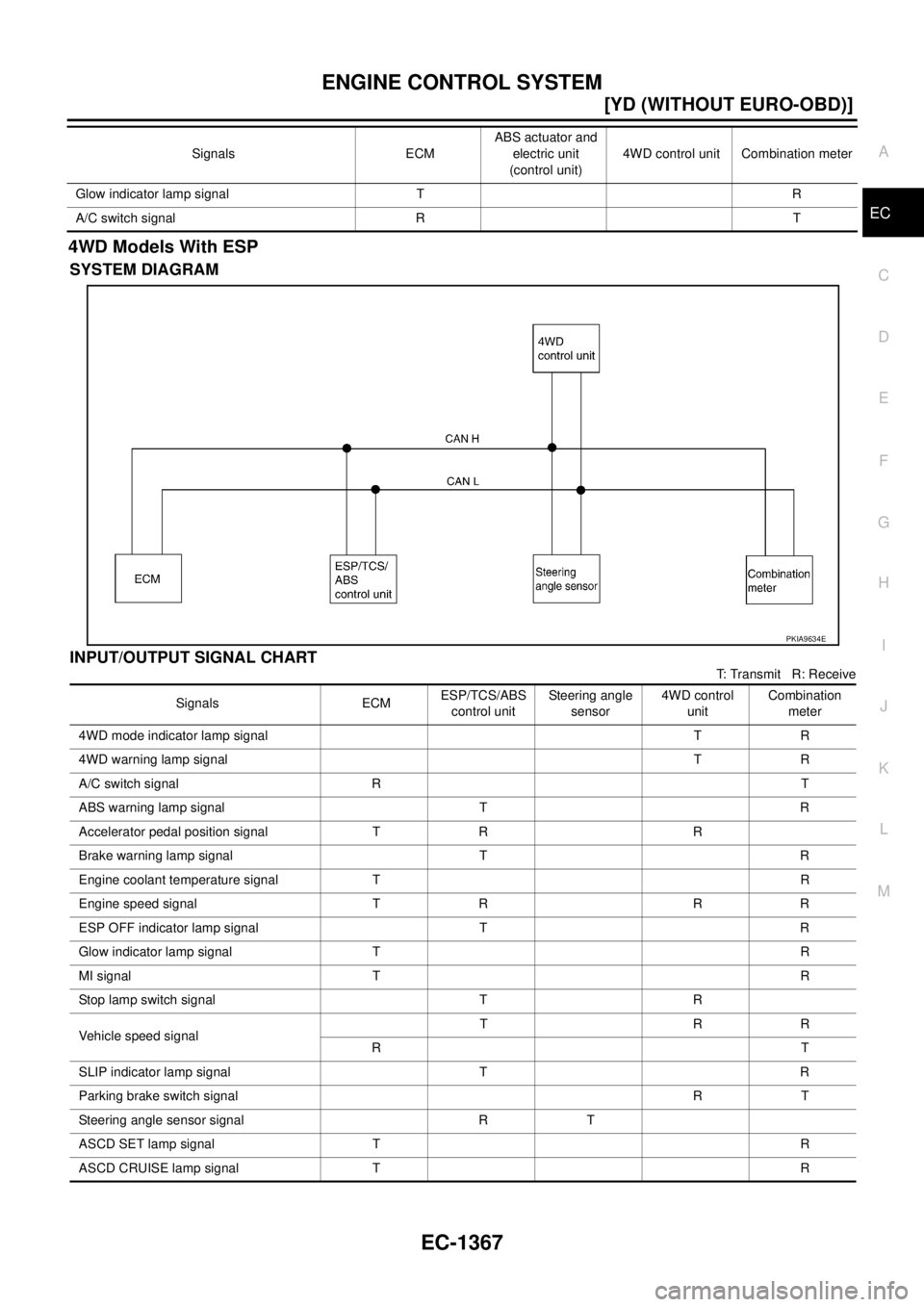

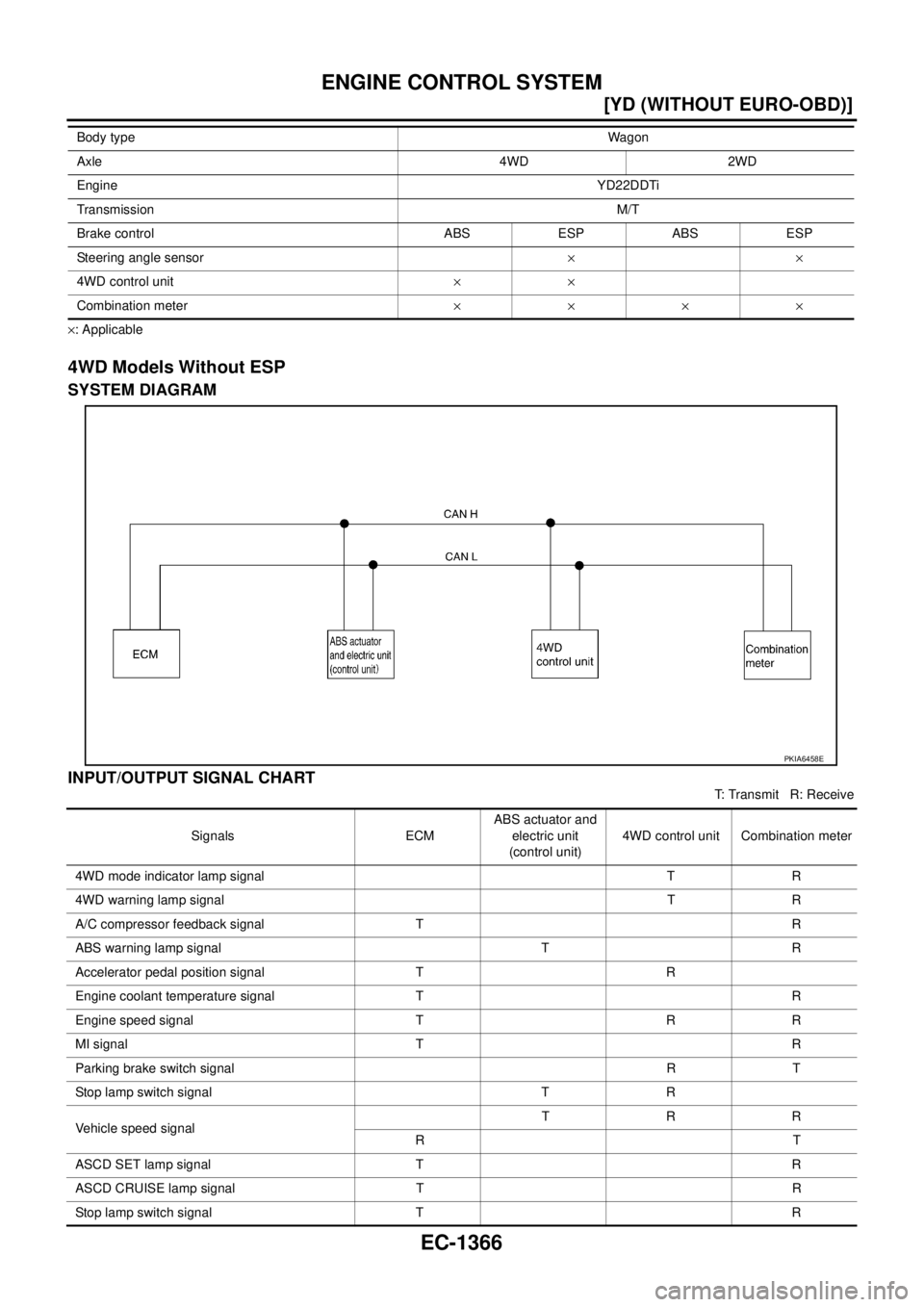

SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive Steering angle sensor××
4WD control unit××
Combination meter×××× Body typeWagon
Axle 4WD 2WD
EngineYD22DDTi
TransmissionM/T
Brake control ABS ESP ABS ESP
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR
A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R

ENGINE CONTROL SYSTEM
EC-1367
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4WD Models With ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive Glow indicator lamp signal T R
A/C switch signal R TSignals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR
PKIA9634E
