2005 NISSAN X-TRAIL sensor

AT-356
[ALL]
SHIFT SOLENOID VALVE B

SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004TW
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II Reference ValueECS00CSN
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSM
DTC Confirmation ProcedureECS00CSO
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine.
3. Drive vehicle in D position and allow the transaxle to shift 1 → 2
→ 3 (“GEAR”).
4. If the check result is NG, go to AT- 3 5 9 , "
Diagnostic Procedure" .
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V B (ON/OFF)When shift solenoid valve B operates.
(When driving in “D
1 ” or “D2 ”.)ON
When shift solenoid valve B does not operate.
(When driving in “D
3 ” or “D4 ”.)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VB
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

Shift solenoid valve B
: 5th judgement flicker
SAT014K

AT-362
[ALL]
OVERRUN CLUTCH SOLENOID VALVE

OVERRUN CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U0
The overrun clutch solenoid valve is activated by the TCM in
response to signals sent from the inhibitor switch, overdrive control
switch, vehicle speed and throttle position sensors. The overrun
clutch operation will then be controlled.
CONSULT-II Reference ValueECS00CSR
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSS
Possible CauseECS00CST

Harness or connector
(The solenoid circuit is open or shorted.)

Overrun clutch solenoid valve
DTC Confirmation ProcedureECS00CSU
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine.
3. Accelerate vehicle to a speed of more than 10 km/h (6 MPH)
with selector lever in D position.
4. Release accelerator pedal completely with selector lever in 3rd
position.
5. If the check result is NG, go to AT- 3 6 5 , "
Diagnostic Procedure" .
SCIA0718E
Monitor item Condition Display value
OVERRUN/C S/V (ON/OFF)When overrun clutch solenoid valve operates. ON
When overrun clutch solenoid valve does not oper-
ate.OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: OVERRUN CLUTCH S/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

Overrun clutch solenoid valve
: 6th judgement flicker
SAT014K

AT-368
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE

TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U4
The torque converter clutch solenoid valve is activated, with the gear
in “D
4 ”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II Reference ValueECS00CSV
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSW
Possible CauseECS00CW8
Check the following items.

Torque converter clutch solenoid valve.

Harness or connector.
(The solenoid circuit is open or shorted.)
DTC Confirmation ProcedureECS00CSX
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II and
wait at least 1 second.
3. Start engine and maintain the following condition for at least 5
consecutive seconds.
VHCL SPEED SE: 80 km/h (50 MPH) or more
THROTTLE POSI: 0.5/8 - 1.0/8
SLCT LVR POSI: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
4. If the check result is NG, go to AT- 3 7 1 , "
Diagnostic Procedure" .
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up OFF
↓
Lock-up ONApproximately 4%
↓
Approximately 94%
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: T/C CLUTCH SOL/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

T/C clutch solenoid valve
: 7th judgement flicker
SAT014K

AT-374
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)
PFP:31940
DescriptionECS004U8
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II Reference ValueECS00CSY
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSZ
Possible CauseECS00CT0
Check the following items.

Harness or connector
(The sensor circuit is open or shorted.)

A/T fluid temperature sensor
SCIA0735E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5V
↓
0.5V2.5 kΩ
↓
0.3 kΩ
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: BATT/FLUID TEMP SEN
TCM receives an excessively low or high
voltage from the sensor.

Harness or connectors
(The sensor circuit is open or shorted.)

A/T fluid temperature sensor
: 8th judgement flicker

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-375
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC Confirmation ProcedureECS00CT1
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle under the following conditions.
SLCT LVR POSI: D position
VHCL SPEED SE: higher than 20 km/h (12 MPH)
4. If the check result is NG, go to AT- 3 7 7 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions.
Selector lever position: D position
Vehicle speed: higher than 20 km/h (12 MPH)
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 3 7 7 , "
Diagnostic Procedure" .
SAT014K
SCIA5358E
SCIA5598E

AT-376
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

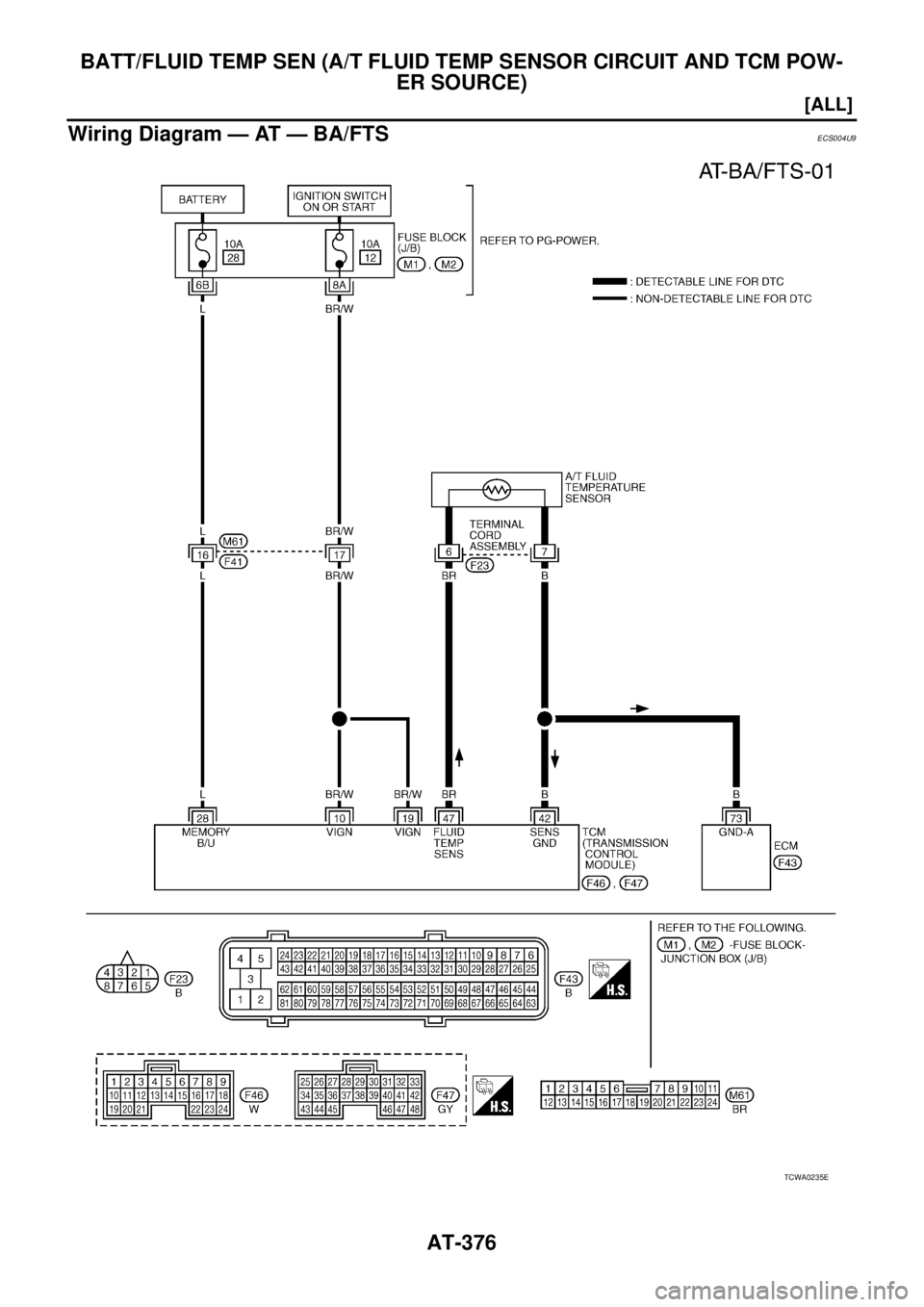

Wiring Diagram — AT — BA/FTSECS004U9
TCWA0235E

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-377
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004UA
1. CHECK TCM POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector and ground.
3. Turn ignition switch OFF.
4. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/W Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/W Power source Same as No. 10
28 LPower source
(Memory back-up)Always Battery voltage
42 B Sensor ground Always 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
Name Connec-
tor No. Terminal
No. (Wire
color)Judgement standard (Approx.)
Power source F4610 (BR/W) Battery voltage
19 (BR/W) Battery voltage
Power source
(Memory back-up)F47 28 (L) Battery voltage
SCIA2656E
Name Connec-
tor No. Terminal
No. (Wire
color)Judgement standard (Approx.)
Power source F4610 (BR/W) 0V
19 (BR/W) 0V
Power source
(Memory back-up)F47 28 (L) Battery voltage
SCIA2657E

AT-378
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

2. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between ignition switch and TCM terminal 10, 19

Harness for short or open between battery and TCM terminal 28

Fuse

Ignition switch. Refer to PG-2, "POWER SUPPLY ROUTING" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
3. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
Without CONSULT-II
1. Start engine.
2. Check voltage TCM connector while warming up A/T.
OK or NG
OK >> GO TO 9.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between TCM, ECM and terminal cord assembly

Ground circuit for ECM
Refer to PG-2, "
POWER SUPPLY ROUTING" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
Monitor item Condition Display value
FLUID TEMP
SEWhen ATF temperature is 20°C (68°F). 1.5V
When ATF temperature is 80°C (176°F). 0.5V
LCIA0090E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
ment stan-
dard
(Approx.)
A/T fluid
temperature
sensor F47 47 (BR) -
42 (B)When ATF temperature
is 20°C (68°F).1.5V
When ATF temperature
is 80°C (176°F).0.5V
SCIA2658E
