VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-335
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

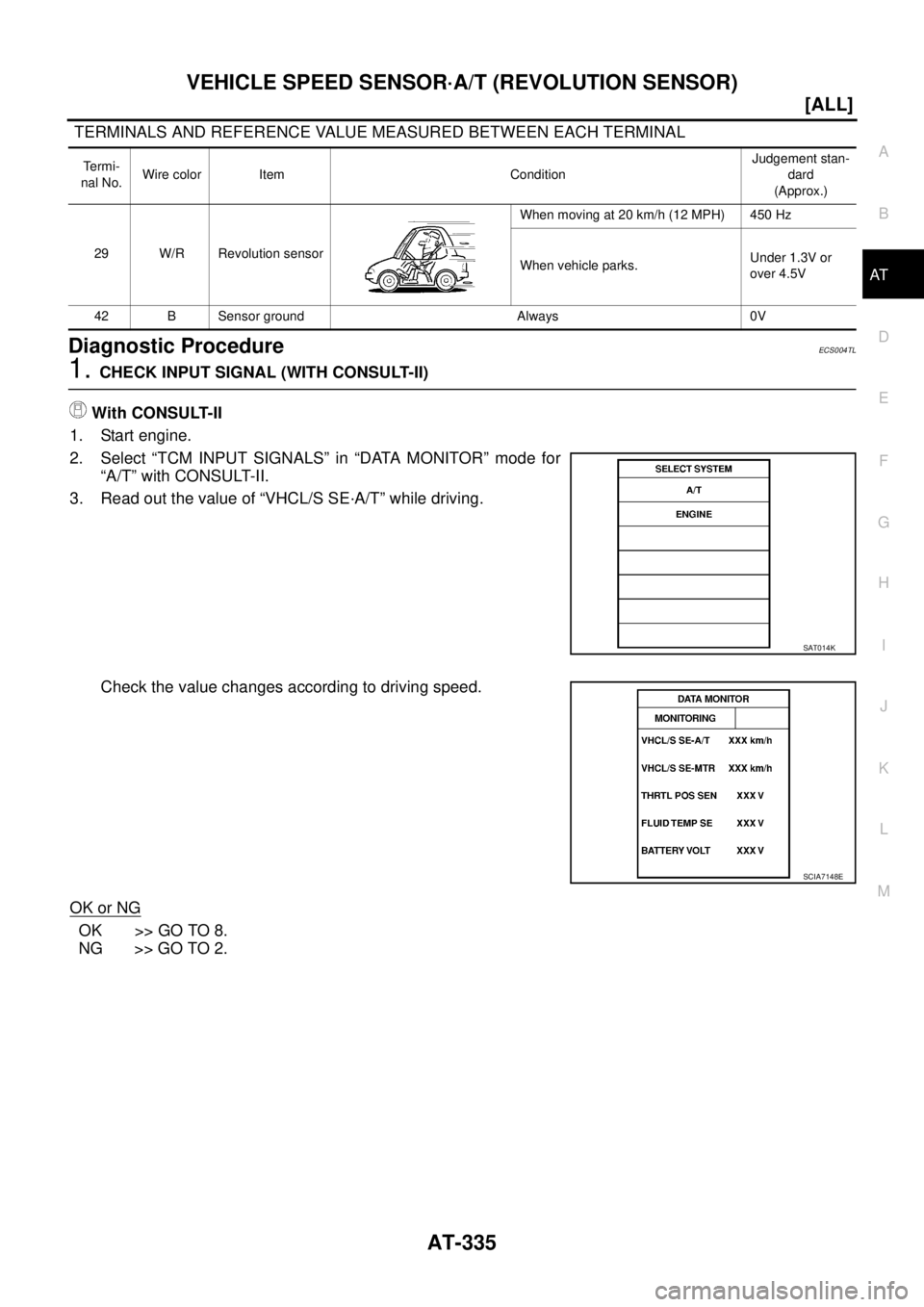

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TL
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
29 W/R Revolution sensorWhen moving at 20 km/h (12 MPH) 450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
42 B Sensor ground Always 0V
SAT014K
SCIA7148E

AT-336
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

2. CHECK REVOLUTION SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to revolution sensor by voltage between TCM connector terminals. Refer to AT- 3 9 5 ,
"Wiring Diagram — AT — MAIN" and AT- 3 3 4 , "Wiring Diagram — AT — VSSA/T" .
3. If OK check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Item Connector
No. Terminal No. (Wire color) Data (Approx.)
TCM F46, F47 10 (BR/W) - 42 (B)
Battery voltage
19 (BR/W) - 42 (B)
Name Condition
Revolution sensorWhen moving at 20 km/h (12 MPH), use the CONSULT-II
pulse frequency measuring function.
CAUTION:
Connect the diagnosis data link cable to the data link
connector.
Item Connector
No. Te r m i n a l
No. (Wire
color) Name Data
(Approx.)
TCM F47 29 (W/R) Revolution sensor 450 Hz
SCIA2344E

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-337
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

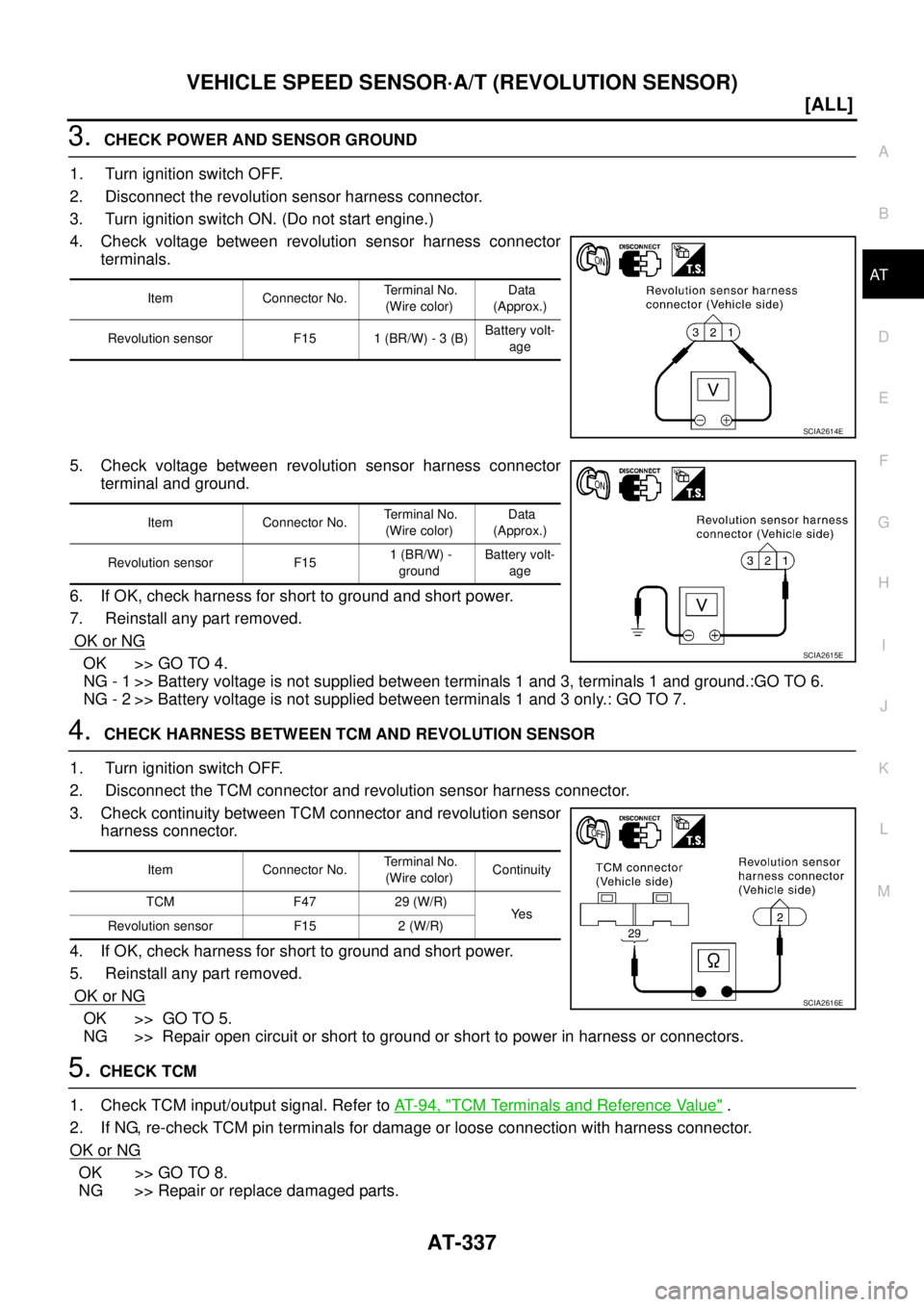

3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the revolution sensor harness connector.
3. Turn ignition switch ON. (Do not start engine.)
4. Check voltage between revolution sensor harness connector
terminals.
5. Check voltage between revolution sensor harness connector
terminal and ground.
6. If OK, check harness for short to ground and short power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.:GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector and revolution sensor
harness connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
Item Connector No. Terminal No.
(Wire color) Data
(Approx.)
Revolution sensor F15 1 (BR/W) - 3 (B)Battery volt-
age
SCIA2614E
Item Connector No. Terminal No.
(Wire color) Data
(Approx.)
Revolution sensor F15 1 (BR/W) -
groundBattery volt-
age
SCIA2615E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F47 29 (W/R)
Ye s
Revolution sensor F15 2 (W/R)
SCIA2616E

AT-338
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector and revolution sensor
harness connector. Refer to AT- 2 1 , "
Circuit Diagram" and AT-
395, "Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> Fuse or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector and revolution sensor
harness connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK DTC
Perform AT- 3 3 2 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F46 10 (BR/W)
Ye s
Revolution sensor F15 1 (Y)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F46 19 (BR/W)
Ye s
Revolution sensor F15 1 (Y)
SCIA2617E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F47 42 (B)
Ye s
Revolution sensor F15 3 (B)
SCIA2618E

DTC VEHICLE SPEED SENSOR MTR
AT-339
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionECS004TM
The vehicle speed sensor·MTR is built into the speedometer assem-
bly. The sensor functions as an auxiliary device to the revolution sen-
sor when it is malfunctioning. The TCM will then use a signal sent
from the vehicle speed sensor·MTR.
CONSULT-II Reference ValueECS00CSH
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSA
Possible CauseECS00CSB
Check the following items.

Harness or connector
(The sensor circuit is open or shorted.)

Vehicle speed sensor
DTC Confirmation ProcedureECS00CSC
After the repair, perform the following procedure to confirm the malfunction is eliminated.
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
SCIA0716E
Monitor item Condition Display value
VHCL/S SE·MTR (km/h) During driving Approximately matches the speedometer
reading.
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·MTR
TCM does not receive the proper voltage
signal from the sensor.

Harness or connectors
(The sensor circuit is open or shorted.)

Combination meter

4WD/ABS control unit : 2nd judgement flicker
SAT014K

AT-340
[ALL]
DTC VEHICLE SPEED SENSOR MTR

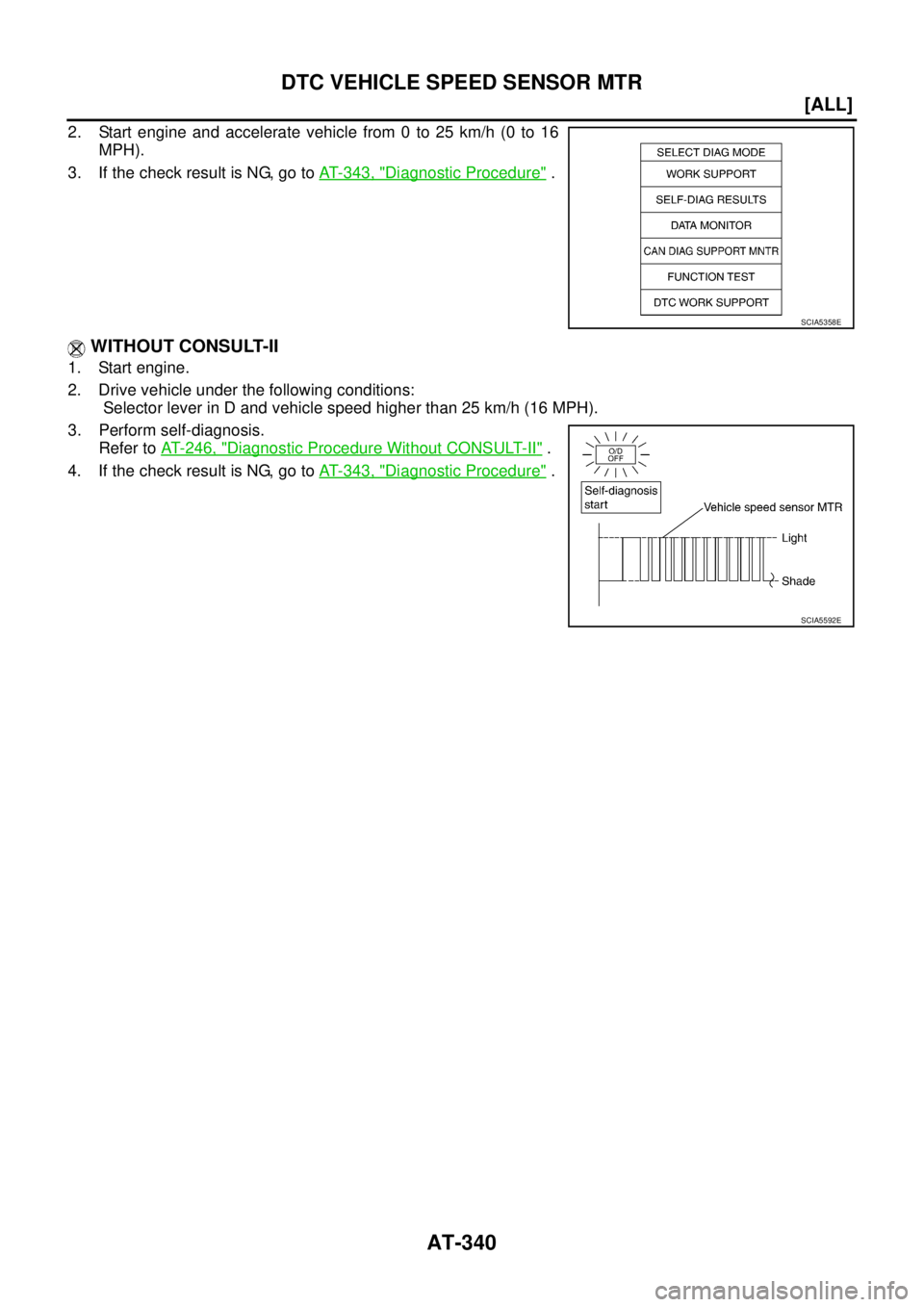

2. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16
MPH).
3. If the check result is NG, go to AT- 3 4 3 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in D and vehicle speed higher than 25 km/h (16 MPH).
3. Perform self-diagnosis.
Refer to AT- 2 4 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 3 4 3 , "
Diagnostic Procedure" .
SCIA5358E
SCIA5592E

DTC VEHICLE SPEED SENSOR MTR
AT-341
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

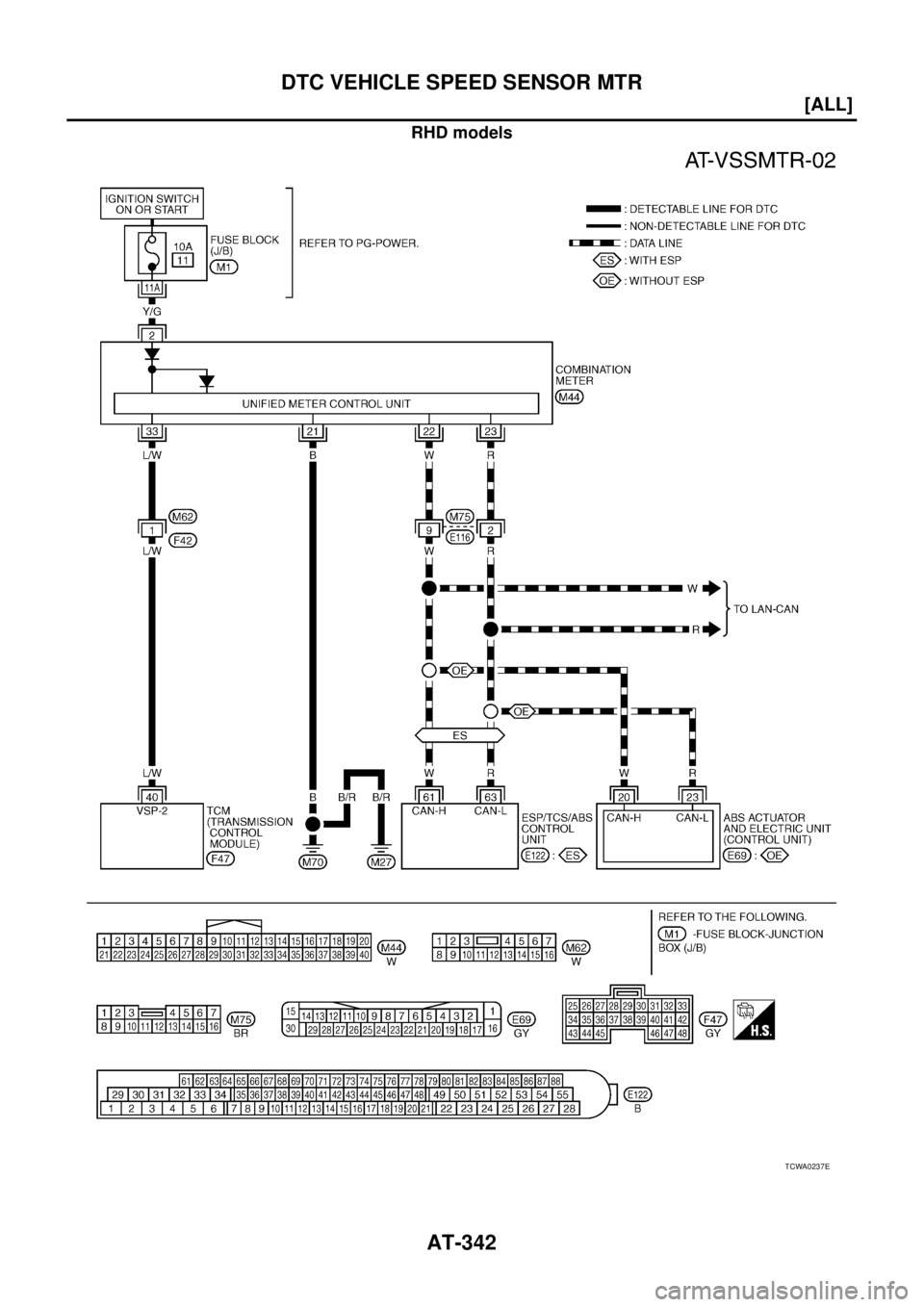

Wiring Diagram — AT — VSSMTRECS004TN
LHD models
TCWA0236E

AT-342
[ALL]
DTC VEHICLE SPEED SENSOR MTR

RHD models
TCWA0237E
