2005 NISSAN X-TRAIL Starting

AT-206
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

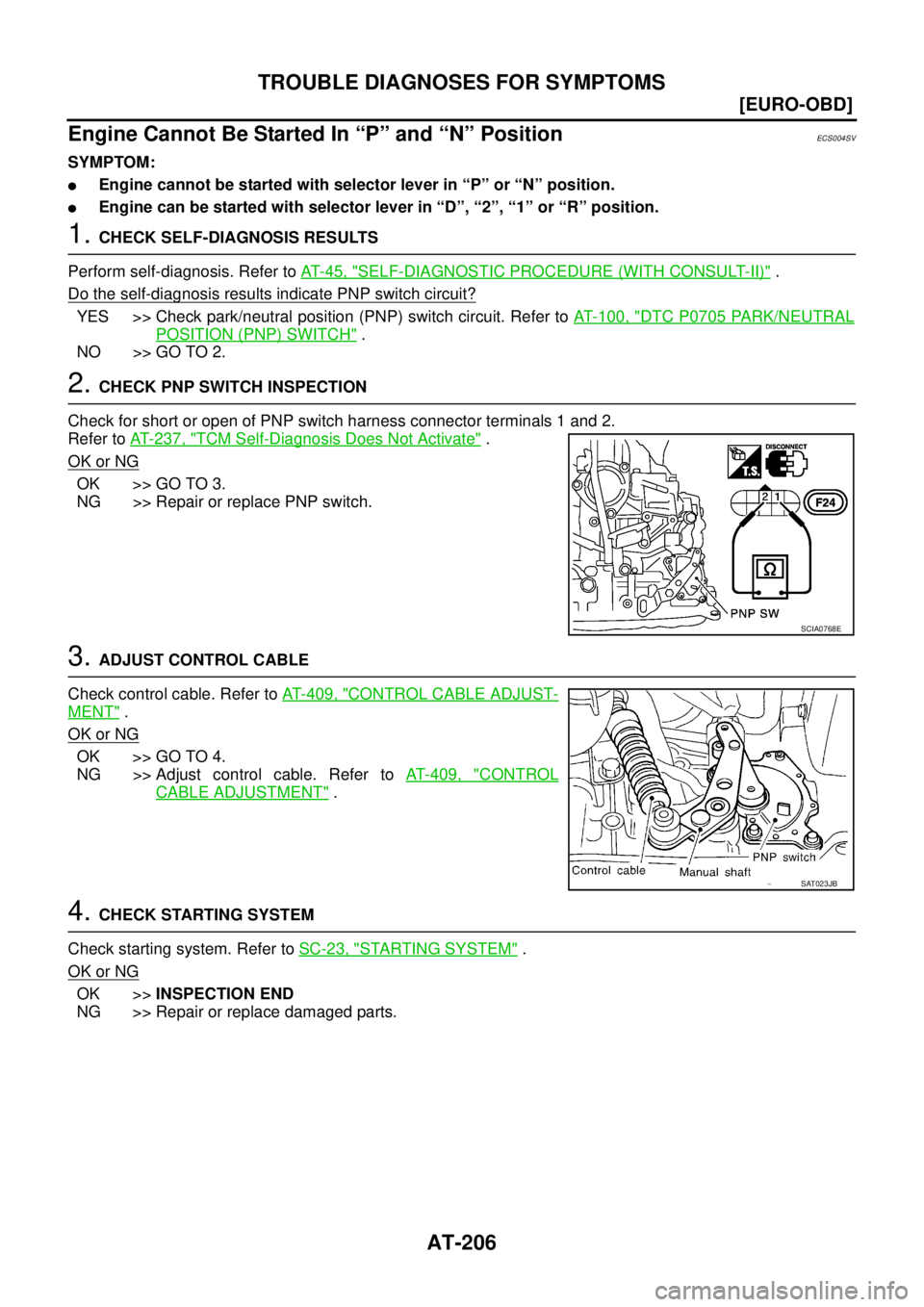

Engine Cannot Be Started In “P” and “N” PositionECS004SV
SYMPTOM:

Engine cannot be started with selector lever in “P” or “N” position.

Engine can be started with selector lever in “D”, “2”, “1” or “R” position.
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 4 5 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" .
Do the self-diagnosis results indicate PNP switch circuit?
YES >> Check park/neutral position (PNP) switch circuit. Refer to AT- 1 0 0 , "DTC P0705 PARK/NEUTRAL
POSITION (PNP) SWITCH" .
NO >> GO TO 2.
2. CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to AT- 2 3 7 , "
TCM Self-Diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace PNP switch.
3. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
CONTROL CABLE ADJUST-
MENT" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
CONTROL
CABLE ADJUSTMENT" .
4. CHECK STARTING SYSTEM
Check starting system. Refer to SC-23, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SCIA0768E
SAT023JB

AT-270
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

Cruise Test — Part 1
1. CHECK STARTING GEAR (D1 ) POSITION
1. Drive vehicle for approximately 10 minutes to warm engine oil and ATF up to operating temperature.
2. Park vehicle on flat surface.
3. Set overdrive control switch to ON position.
4. Move selector lever to P position.
5. Start engine.
6. Move selector lever to D position.
7. Accelerate vehicle by constantly depressing accelerator pedal
halfway.
Read gear position. Refer to AT- 2 4 4 , "
DATA MONITOR
MODE (A/T)" .
Does vehicle start from D
1 ?
YES >> GO TO 2.
NO >>

Mark the box on the DIAGNOSTIC WORKSHEET.

GO TO AT- 3 0 1 , "Vehicle Cannot Be Started From D1"
.

Continue “Road Test”. ATF operating temperature: 50 - 80°C (122 - 176°F)
SAT774B
SAT775B
SAT495G

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-273
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Cruise Test — Part 2
1. CHECK STARTING GEAR (D1 ) POSITION
1. Confirm selector lever is in D.
2. Accelerate vehicle by half throttle again.
Read gear position. Refer to AT- 2 4 4 , "
DATA MONITOR MODE
(A/T)" .
Does vehicle start from D
1 ?
YES >> GO TO 2.
NO >>

Mark the box on the DIAGNOSTIC WORKSHEET.

GO TO AT- 3 1 7 , "Vehicle Does Not Start From D1" .

Continue “Road Test”.
2. CHECK SHIFT UP AND SHIFT DOWN (D3 TO D4 TO D2 )
1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
Read gear position and throttle position. Refer to AT- 2 4 4 ,
"DATA MONITOR MODE (A/T)" .
Does A/T shift from D
4 to D2 as soon as accelerator pedal is
depressed fully?
YES >> GO TO 3.
NO >>

Mark the box on the DIAGNOSTIC WORKSHEET.

GO TO AT- 3 0 4 , "A/T Does Not Shift: D1 → D2 Or
Does Not Kickdown: D4 → D2" .

Continue “Road Test”.
3. CHECK SHIFT UP (D2 TO D3 )
Check shift-up (D
2 to D3 )
Specified speed when shifting from D
2 to D3 . Refer to AT- 5 3 0 , "VEHICLE SPEED WHEN SHIFTING GEARS
AND THROTTLE POSITION" .
Read gear position, throttle opening and vehicle speed.
Refer to AT- 2 4 4 , "
DATA MONITOR MODE (A/T)" .
Does A/T shift from D
2 to D3 at the specified speed?
YES >> GO TO 4.
NO >>

Mark the box on the DIAGNOSTIC WORKSHEET.

GO TO AT- 3 0 7 , "A/T Does Not Shift: D2 → D3" .

Continue “Road Test”.
SAT495G
SAT404H
SAT960I

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-277
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONPFP:00000
Symptom ChartECS004VV
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Symptom Condition Diagnostic Item Reference Page
Engine cannot start in “P” and “N”
positions.
AT- 2 9 3
ON vehicle1. Ignition switch and starterPG-2
,
SC-23

2. Control cable adjustmentAT- 4 0 9
3. PNP switchAT- 3 2 4
Engine starts in position other than
“N” and “P” positions.
AT- 2 9 3
ON vehicle1. Control cable adjustmentAT- 4 0 92. PNP switchAT- 3 2 4
Transaxle noise in “P” and “N” posi-
tions.ON vehicle1. Fluid levelAT- 2 5 6
2. Line pressure testAT- 2 6 0
3. Accelerator pedal position (APP) sensorAT- 3 4 5
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 3 3 2,
AT- 3 3 9
OFF vehicle5. Oil pumpAT- 4 4 36. Torque converterAT- 4 2 3
Vehicle moves when changing into “P”
position, or parking gear does not dis-
engage when shifted out of “P” posi-
tion.
AT- 2 9 4ON vehicle 1. Control cable adjustmentAT- 4 0 9
OFF vehicle 2. Parking componentsAT- 4 1 6,
AT- 4 4 0
Vehicle runs in “N” position.
AT- 2 9 5
ON vehicle 1. Control cable adjustmentAT- 4 0 9
OFF vehicle2. Forward clutchAT- 4 7 53. Reverse clutchAT- 4 6 4
4. Overrun clutchAT- 4 7 5
Vehicle will not run in “R” position (but
runs in “D”, “2” and “1” positions).
Clutch slips.
Very poor acceleration.
AT- 2 9 7
ON vehicle1. Control cable adjustmentAT- 4 0 9
2. Stall testAT- 2 5 7
3. Line pressure testAT- 2 6 0
4. Line pressure solenoid valveAT- 3 8 7
5. Control valve assemblyAT- 4 0 4
Vehicle will not run in “R” position (but
runs in “D”, “2” and “1” positions).
Clutch slips.
Very poor acceleration.
AT- 2 9 7
OFF vehicle6. Reverse clutchAT- 4 6 4
7. High clutchAT- 4 6 9
8. Forward clutchAT- 4 7 5
9. Overrun clutchAT- 4 7 5
10. Low & reverse brakeAT- 4 8 3
Vehicle braked when shifting into “R”
position.ON vehicle1. Fluid levelAT- 2 5 6
2. Line pressure testAT- 2 6 0
3. Line pressure solenoid valveAT- 3 8 7
4. Control valve assemblyAT- 4 0 4
OFF vehicle5. High clutchAT- 4 6 96. Brake bandAT- 4 9 7
7. Forward clutchAT- 4 7 5
8. Overrun clutchAT- 4 7 5

AT-278
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

Sharp shock in shifting from “N” to “D”
position.ON vehicle1. Engine idling rpmEC-558
2. Accelerator pedal position (APP) sensorAT-345
3. Line pressure testAT-260
4. A/T fluid temp sen circ and TCM pow
sourAT-374
5. Engine speed signalAT-382
6. Line pressure solenoid valveAT-387
7. Control valve assemblyAT-404
8. Accumulator N-DAT-404
OFF vehicle 9. Forward clutchAT-475
Vehicle will not run in “D” and “2” posi-
tions (but runs in “1” and “R” posi-
tions).ON vehicle 1. Control cable adjustmentAT-409
OFF vehicle 2. Low one-way clutchAT-416,
AT-423
Vehicle will not run in “D”, “1”, “2” posi-
tions (but runs in “R” position). Clutch
slips. Very poor acceleration.
AT- 2 9 9
ON vehicle1. Fluid levelAT-256
2. Stall testAT-257
3. Line pressure testAT-260
4. Line pressure solenoid valveAT-387
5. Control valve assemblyAT-404
6. Accumulator N-DAT-404
Vehicle will not run in “D”, “1”, “2” posi-
tions (but runs in “R” position). Clutch
slips. Very poor acceleration.
AT- 2 9 9
OFF vehicle7. Reverse clutch AT-464
8. High clutchAT-469
9. Forward clutchAT-475
10. Forward one-way clutchAT-416
11. Low one-way clutchAT-416,
AT-423
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT-256
2. Control cable adjustmentAT-409
3. Accelerator pedal position (APP) sensorAT-345
4. Line pressure testAT-260
5. Line pressure solenoid valveAT-387
6. Control valve assemblyAT-404
7. Accumulator N-DAT-404
8. Shift solenoid valve AAT-350
9. Shift solenoid valve BAT-356
10. Overrun clutch solenoid valveAT-362
11. Torque converter clutch solenoid valveAT-368
OFF vehicle12. Forward clutchAT-475
13. Reverse clutchAT-464
14. Low & reverse brakeAT-483
15. Oil pumpAT-443
16. Torque converterAT-423
Excessive creep. ON vehicle 1. Engine idling rpmEC-558
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-293
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

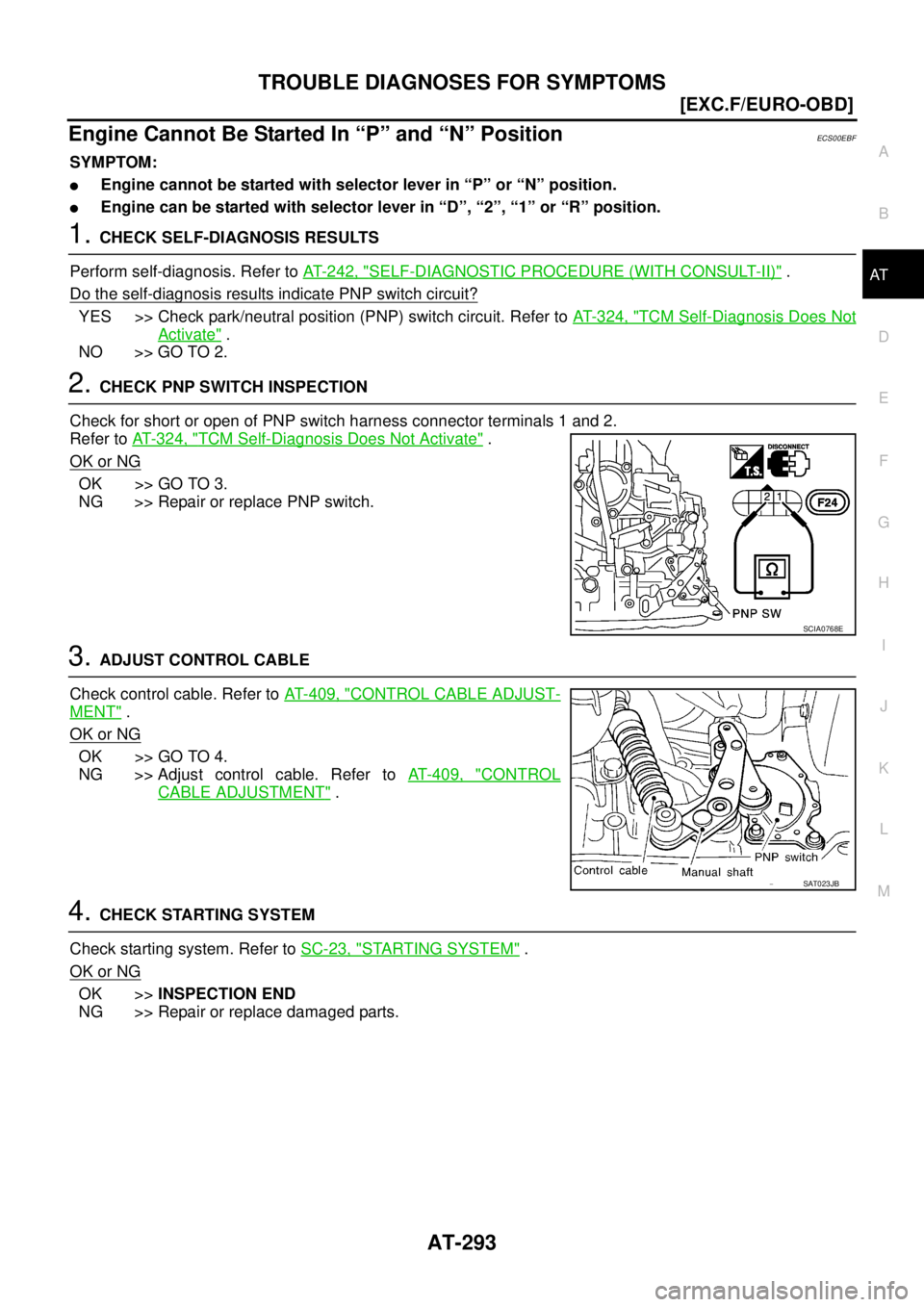

Engine Cannot Be Started In “P” and “N” PositionECS00EBF
SYMPTOM:

Engine cannot be started with selector lever in “P” or “N” position.

Engine can be started with selector lever in “D”, “2”, “1” or “R” position.
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" .
Do the self-diagnosis results indicate PNP switch circuit?
YES >> Check park/neutral position (PNP) switch circuit. Refer to AT- 3 2 4 , "TCM Self-Diagnosis Does Not
Activate" .
NO >> GO TO 2.
2. CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to AT- 3 2 4 , "
TCM Self-Diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace PNP switch.
3. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
CONTROL CABLE ADJUST-
MENT" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
CONTROL
CABLE ADJUSTMENT" .
4. CHECK STARTING SYSTEM
Check starting system. Refer to SC-23, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SCIA0768E
SAT023JB

PRECAUTIONS
BR-3
C
D
E
G
H
I
J
K
L
MA
B
BR

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EFS002F9
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemEFS000BZ

Clean dust on brake pads, shoes, drums, and back plates with a vacuum dust collector. Do not blow with
compressed air.

Recommended fluid is brake fluid “DOT 3” or “DOT 4”.

Never reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as the body. If brake fluid is splashed or spilled
on painted areas, wipe it off and flush the area with water immediately.

Use only clean brake fluid when cleaning master cylinder and disc brake components.

Never use mineral oils such as gasoline or kerosene to clean. They will ruin the rubber parts and cause
improper operation.

Always use a flare nut torque wrench to securely tighten brake
tube flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the related parts. If damage,
deformation or excessive wear is detected, replace affected
parts with new ones.

Before starting operation, be sure to turn the ignition switch OFF
and disconnect the ABS actuator and control module connector
or battery cables.

When installing brake piping, be sure to check torque.SBR820BA

BRC-4
[ABS]
PRECAUTIONS

[ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EFS005X6
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemEFS004GX

Recommended fluid is brake fluid “DOT 3” or “DOT 4”.

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Using a flare nut torque wrench, securely tighten brake tube
flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect har-
ness connectors of ABS actuator and electric unit (control unit)
or battery cable from negative terminal.

When installing brake piping, be sure to check torque.
Precautions for Brake ControlEFS004FV

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating noise may
be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an malfunction is indicated by ABS or another warning lamp, collect all necessary information from
customer (what symptoms are present under what conditions) and check for simple causes before start-
ing diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level,
and oil leaks.

If tyre size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, ABS function
may have a malfunction.

If aftermarket parts (car stereo, CD player, etc.) Have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.
SBR820BA
