5. Tighten oil pump mounting bolts to the specified torque. Refer to
AT- 2 5 1 , "
Components".
CAUTION:
Apply ATF to oil pump bushing.
6. Install O-ring to input clutch assembly.

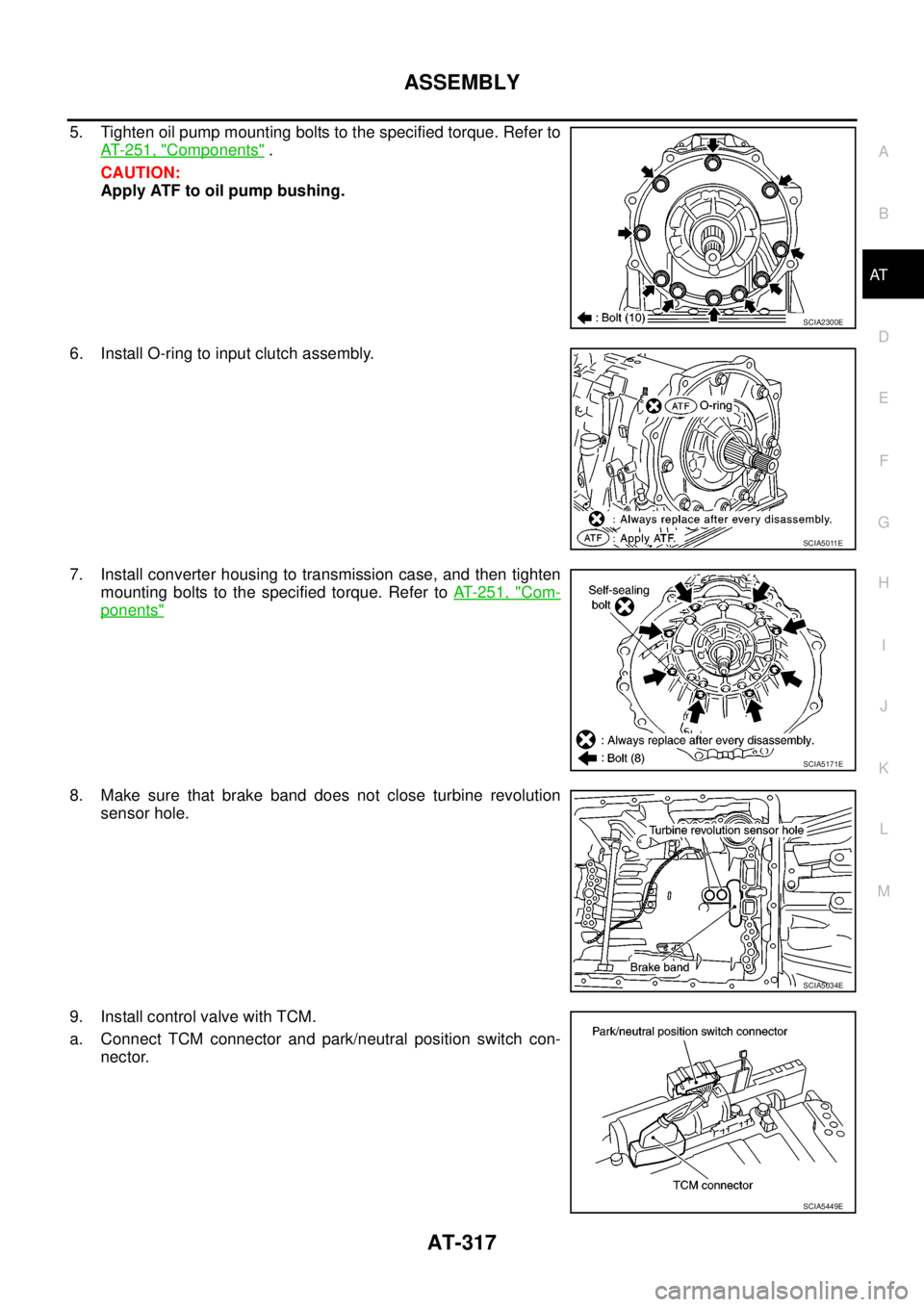

7. Install converter housing to transmission case, and then tighten
mounting bolts to the specified torque. Refer toAT- 2 5 1 , "
Com-
ponents"
8. Make sure that brake band does not close turbine revolution
sensor hole.
9. Install control valve with TCM.
a. Connect TCM connector and park/neutral position switch con-
nector.
SCIA2300E
SCIA5011E
SCIA5171E
SCIA5034E
SCIA5449E

AT-318
ASSEMBLY

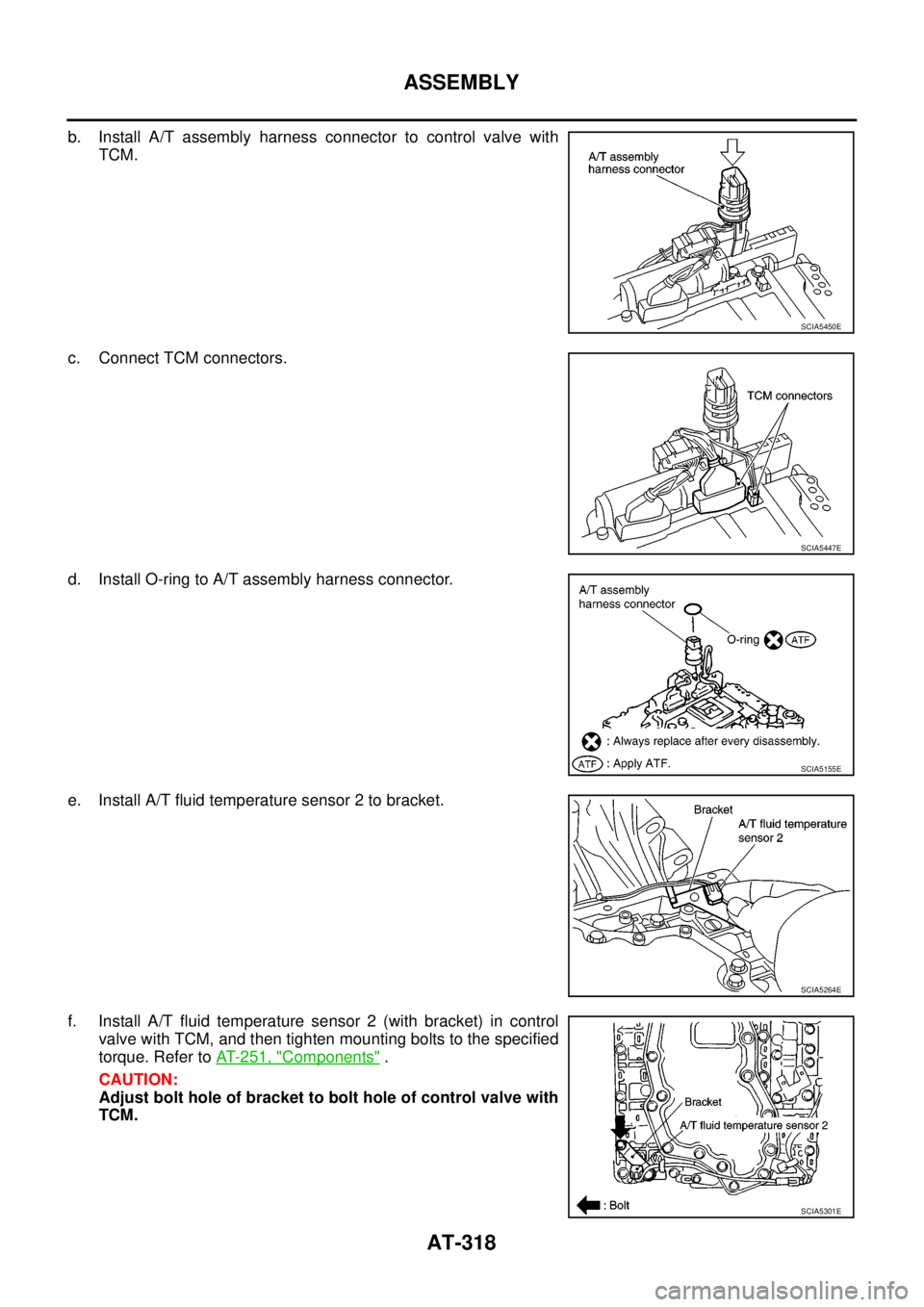

b. Install A/T assembly harness connector to control valve with
TCM.
c. Connect TCM connectors.
d. Install O-ring to A/T assembly harness connector.
e. Install A/T fluid temperature sensor 2 to bracket.
f. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM, and then tighten mounting bolts to the specified
torque. Refer toAT- 2 5 1 , "
Components".
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.
SCIA5450E
SCIA5447E
SCIA5155E
SCIA5264E
SCIA5301E

ASSEMBLY
AT-319
D
E
F
G
H
I
J
K
L
MA
B
AT

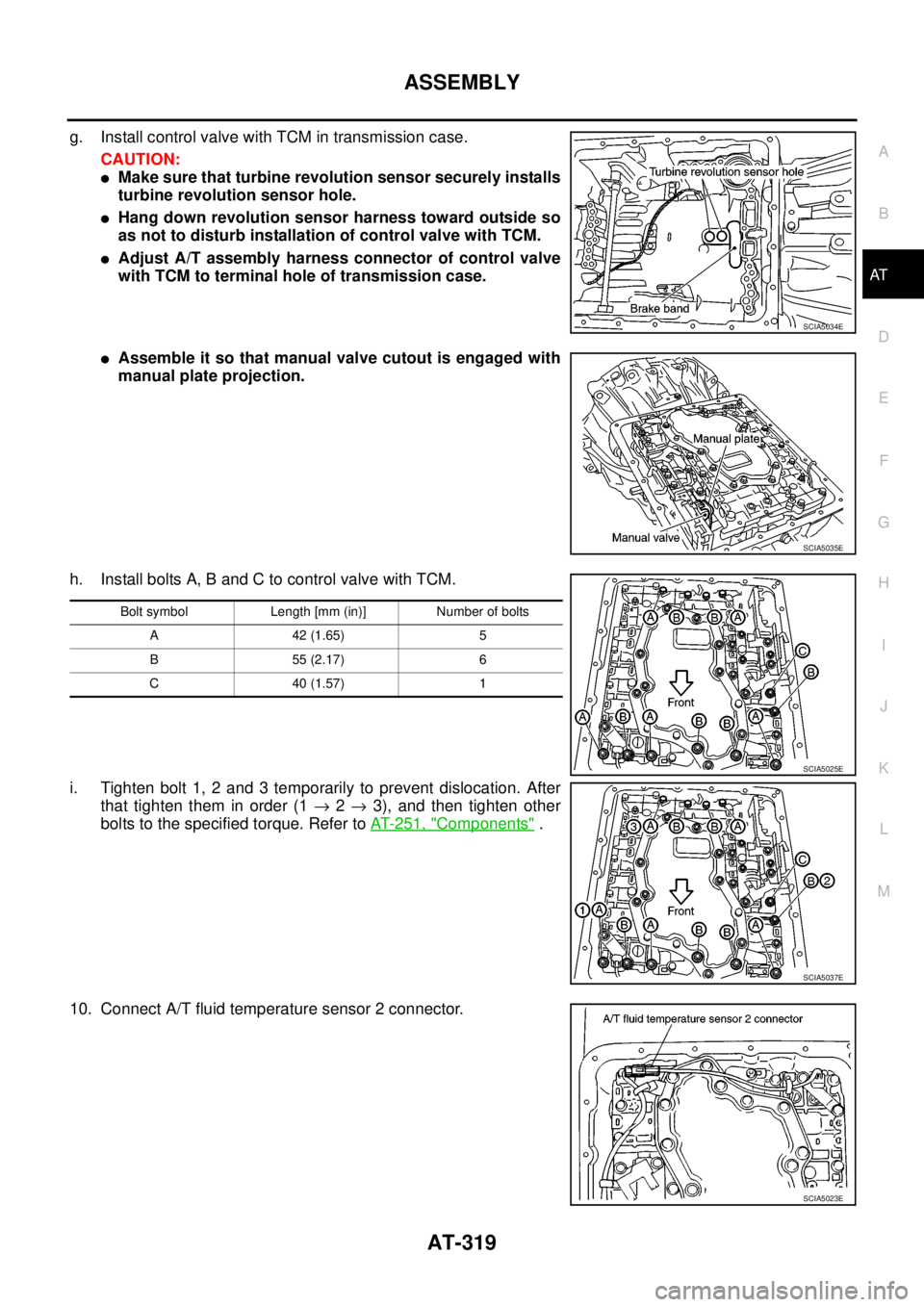

g. Install control valve with TCM in transmission case.
CAUTION:
lMake sure that turbine revolution sensor securely installs
turbine revolution sensor hole.
lHang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.
lAdjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.
lAssemble it so that manual valve cutout is engaged with
manual plate projection.
h. Install bolts A, B and C to control valve with TCM.
i. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1®2®3), and then tighten other
bolts to the specified torque. Refer toAT- 2 5 1 , "
Components".
10. Connect A/T fluid temperature sensor 2 connector.
SCIA5034E
SCIA5035E
Bolt symbol Length [mm (in)] Number of bolts
A42(1.65) 5
B55(2.17) 6
C40(1.57) 1
SCIA5025E
SCIA5037E
SCIA5023E

AT-320
ASSEMBLY

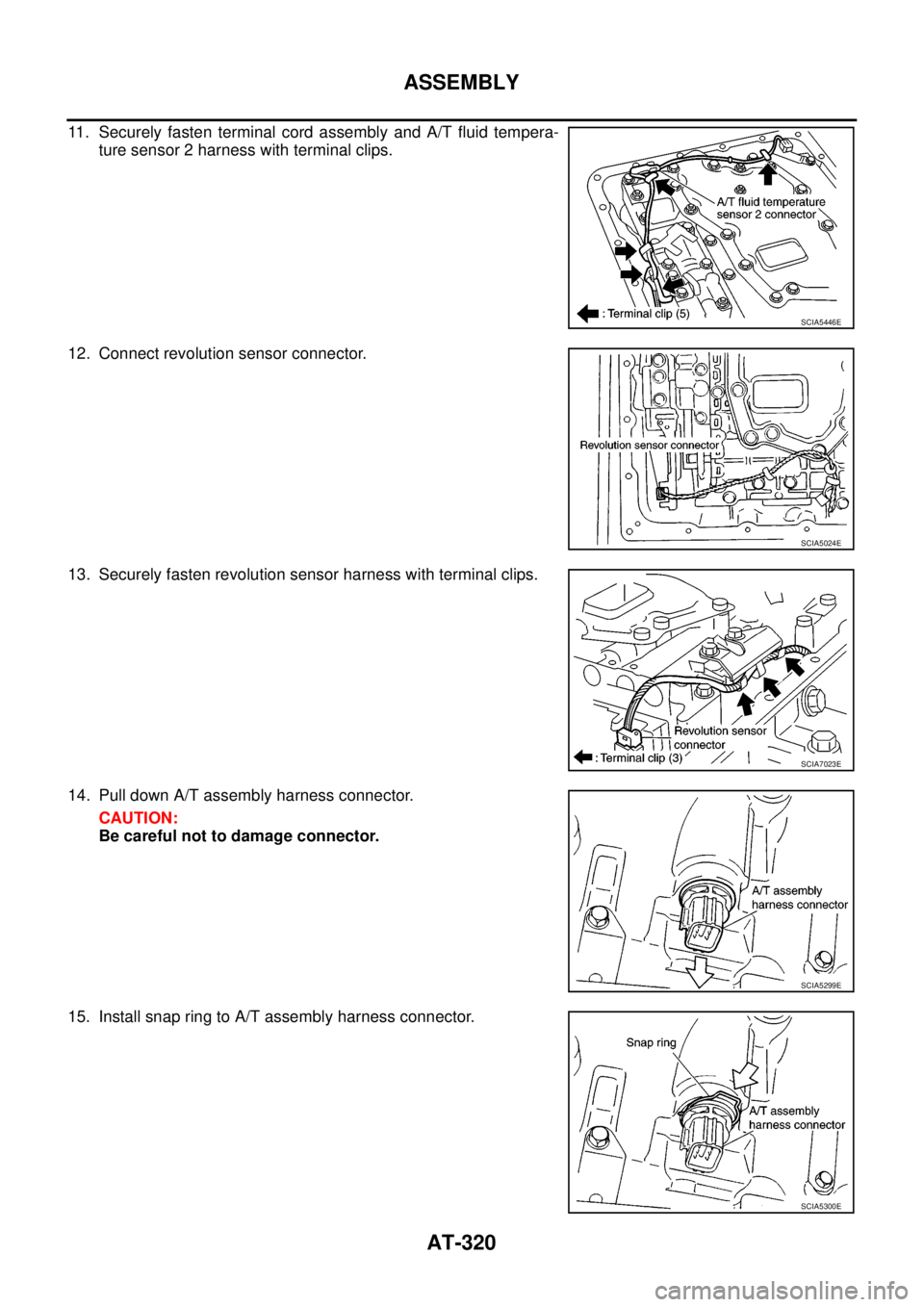

11. Securely fasten terminal cord assembly and A/T fluid tempera-
ture sensor 2 harness with terminal clips.
12. Connect revolution sensor connector.
13. Securely fasten revolution sensor harness with terminal clips.
14. Pull down A/T assembly harness connector.
CAUTION:
Be careful not to damage connector.
15. Install snap ring to A/T assembly harness connector.
SCIA5446E
SCIA5024E
SCIA7023E
SCIA5299E
SCIA5300E

AT-324
SERVICE DATA AND SPECIFICATIONS (SDS)
Vehicle Speed at Which Gear Shifting Occurs
ECS00H8W
2WD MODELS
lAt half throttle, the accelerator opening is 4/8 of the full opening.
4WD MODELS
lAt half throttle, the accelerator opening is 4/8 of the full opening.
Vehicle Speed at Which Lock-Up Occurs/ReleasesECS00H8X
2WD MODELS
lAt closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
lAt half throttle, the accelerator opening is 4/8 of the full opening.
4WD MODELS
lAt closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
lAt half throttle, the accelerator opening is 4/8 of the full opening.
A/T Fluid Temperature SensorECS00G3T
Tire sizeThrottle
positionVehicle speed [km/h (MPH)]
D1®D2D2®D3D3®D4D4®D5D5®D4D4®D3D3®D2D2®D1
255/65 R17
255/70 R16Full
throttle41 - 45
(25 - 28)66 - 72
(41 - 45)103 - 113
(64 - 70)148 - 164
(92 - 102)144 - 160
(89 - 99)92 - 102
(57 - 63)53 - 59
(33 - 37)23 - 24
(14 - 15)
Half
throttle34 - 38
(21 - 24)55 - 61
(34 - 38)86 - 96
(53 - 60)118 - 130
(73 - 81)88 - 98
(55 - 61)60 - 66
(37 - 41)39 - 43
(24 - 27)10 - 11
(6 - 7)
Tire sizeThrottle
positionVehiclespeed [km/h(MPH)]
D1®D2D2®D3D3®D4D4®D5D5®D4D4®D3D3®D2D2®D1
255/65 R17
255/70 R16Full
throttle38 - 42
(24 - 26)62 - 68
(39 - 42)97 - 107
(60 - 66)141 - 155
(88 - 96)137 - 151
(85 - 94)87 - 97
(54 - 60)50 - 56
(31 - 35)22 - 24
(14 - 15)
Half
throttle32 - 36
(20 - 22)52 - 58
(32 - 36)82 - 90
(51 - 56)117 - 129
(73 - 80)83 - 91
(52 - 57)57 - 63
(35 - 39)37 - 41
(23 - 25)10 - 11
(6 - 7)
265/70 R16LTFull
throttle40 - 44
(25 - 27)65 - 71
(40 - 44)101 - 111
(63 - 69)145 - 161
(90 - 100)142 - 156
(88 - 97)90 - 100
(56 - 62)52 - 58
(32 - 36)23 - 25
(14 - 16)
Half
throttle33 - 37
(21 - 23)54 - 60
(34 - 37)85 - 93
(53 - 58)121 - 133
(75 - 83)85 - 95
(53 - 59)59 - 65
(37 - 40)38 - 42
(24 - 26)10 - 11
(6 - 7)
Tire size Throttle positionVehicle speed [km/h (MPH)]
Lock-up ON Lock-up OFF
255/65 R17
255/70 R16Closed throttle 73 - 81 (45 - 50) 70 - 78 (44 - 48)
Half throttle 141 - 155 (88 - 96) 130 - 144 (81 - 89)
Tire size Throttle positionVehicle speed [km/h (MPH)]
Lock-up ON Lock-up OFF
255/65 R17
255/70 R16Closed throttle 69 - 77 (43 - 48) 66 - 74 (41 - 46)
Half throttle 134 - 148 (83 - 92) 123 - 137 (76 - 85)
265/70 R16LTClosed throttle 72 - 80 (45 - 50) 69 - 77 (43 - 48)
Half throttle 139 - 153 (86 - 95) 128 - 142 (80 - 88)
Name Condition CONSULT-II “DATA MONITOR” (Approx.) Resistance (Approx.)
ATFTEMPSE10°C(32°F) 3.3 V 15 kW
20°C(68°F) 2.7 V 6.5 kW
80°C(176°F) 0.9 V 0.9 kW
ATFTEMPSE20°C(32°F) 3.3 V 10 kW
20°C(68°F) 2.5V 4kW
80°C(176°F) 0.7 V 0.5 kW

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-325
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Speed Sensor A/T (Revolution Sensor)ECS00G3V
Turbine Revolution SensorECS00G3U
Reverse BrakeECS00G3W
*: Always check with the Parts Department for the latest parts information.
To ta l E n d P l a yECS00G3X
Name Condition Data (Approx.)
Revolution sensor When moving at 20 km/h (12 MPH). 185 Hz
Name ConditionData
(Approx.)
Turbine revolution
sensor 1When running at 50 km/h (31 MPH) in 4th gear with the closed throttle position signal “OFF”.
1.3 kHz
Turbine revolution
sensor 2When running at 20 km/h (12 MPH) in 1st gear with the closed throttle position signal “OFF”.
Number of drive plates7
Number of driven plates7
Clearance mm (in) Standard 0.7 - 1.1 (0.028 - 0.043)
Total end play [mm (in)] 0.25 - 0.55 (0.0098 - 0.0217)
