2005 MERCEDES-BENZ C COUPE Owner's Manual

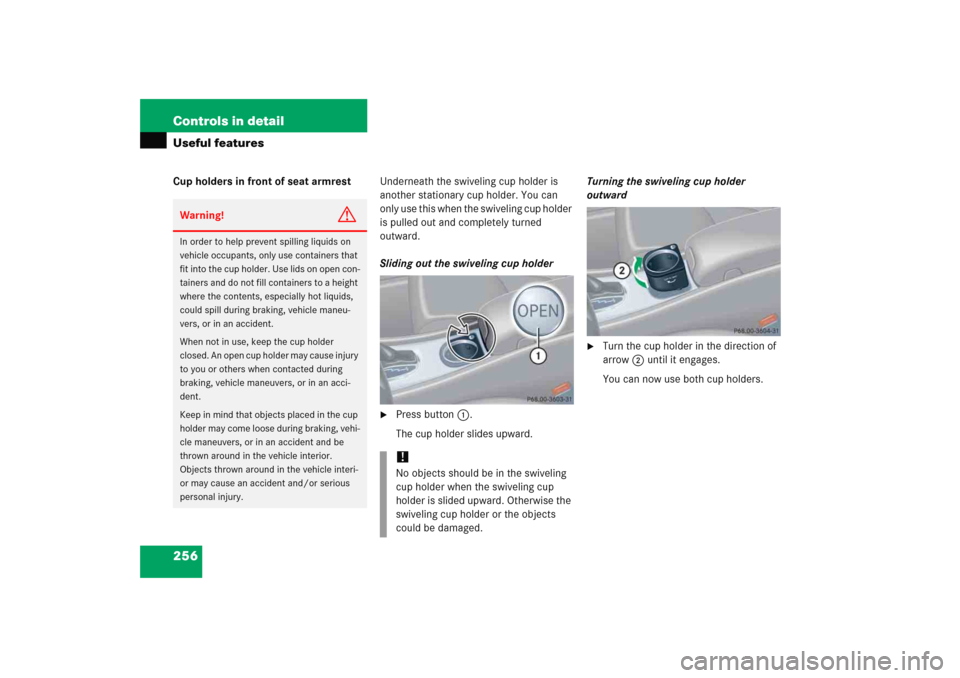

256 Controls in detailUseful featuresCup holders in front of seat armrestUnderneath the swiveling cup holder is
another stationary cup holder. You can
only use this when the swiveling cup holder
is pulled out and completely turned
outward.
Sliding out the swiveling cup holder

Press button1.
The cup holder slides upward.Turning the swiveling cup holder
outward

Turn the cup holder in the direction of
arrow2 until it engages.
You can now use both cup holders.
Warning!
G
In order to help prevent spilling liquids on
vehicle occupants, only use containers that
fit into the cup holder. Use lids on open con-
tainers and do not fill containers to a height
where the contents, especially hot liquids,
could spill during braking, vehicle maneu-
vers, or in an accident.
When not in use, keep the cup holder
closed. An open cup holder may cause injury
to you or others when contacted during
braking, vehicle maneuvers, or in an acci-
dent.
Keep in mind that objects placed in the cup
holder may come loose during braking, vehi-
cle maneuvers, or in an accident and be
thrown around in the vehicle interior.
Objects thrown around in the vehicle interi-
or may cause an accident and/or serious
personal injury.
!No objects should be in the swiveling
cup holder when the swiveling cup
holder is slided upward. Otherwise the
swiveling cup holder or the objects
could be damaged.

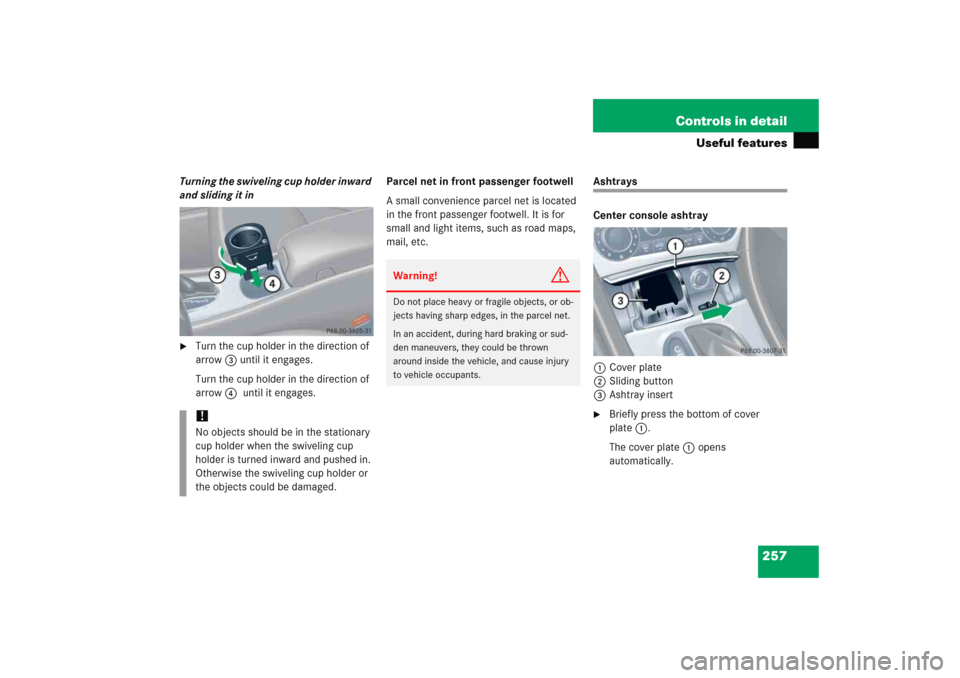

257 Controls in detail
Useful features
Turning the swiveling cup holder inward
and sliding it in
Turn the cup holder in the direction of
arrow3 until it engages.
Turn the cup holder in the direction of
arrow4 until it engages.Parcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.
Ashtrays
Center console ashtray
1Cover plate
2Sliding button
3Ashtray insert
Briefly press the bottom of cover
plate1.
The cover plate1 opens
automatically.
!No objects should be in the stationary
cup holder when the swiveling cup
holder is turned inward and pushed in.
Otherwise the swiveling cup holder or
the objects could be damaged.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.

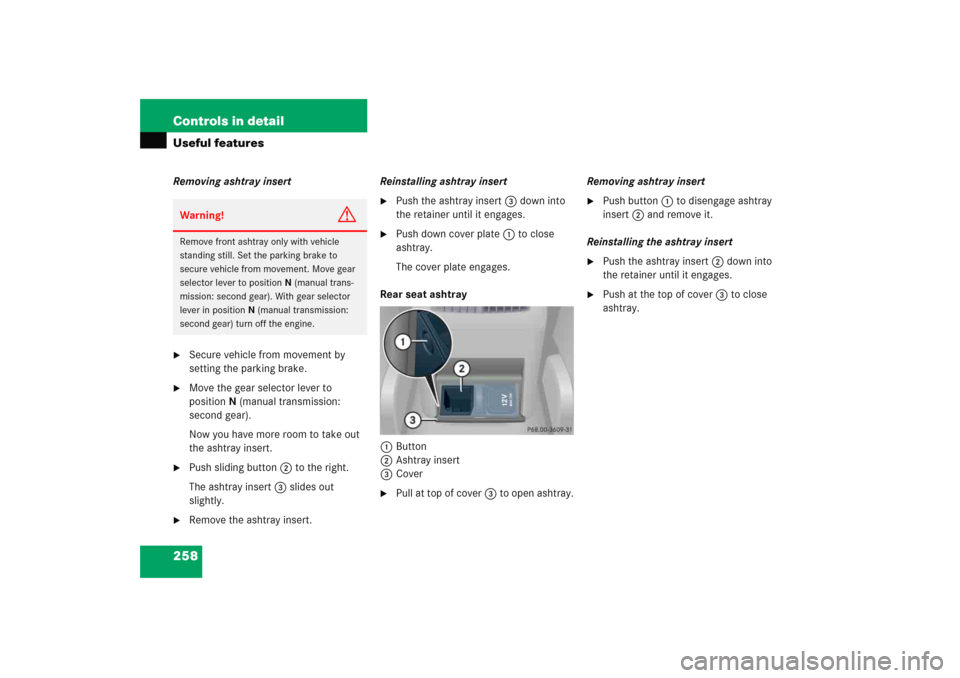

258 Controls in detailUseful featuresRemoving ashtray insert
Secure vehicle from movement by
setting the parking brake.

Move the gear selector lever to
positionN (manual transmission:
second gear).
Now you have more room to take out
the ashtray insert.

Push sliding button2 to the right.
The ashtray insert3 slides out
slightly.

Remove the ashtray insert.Reinstalling ashtray insert

Push the ashtray insert3 down into
the retainer until it engages.

Push down cover plate1 to close
ashtray.
The cover plate engages.
Rear seat ashtray
1Button
2Ashtray insert
3Cover

Pull at top of cover3 to open ashtray.Removing ashtray insert

Push button1 to disengage ashtray
insert2 and remove it.
Reinstalling the ashtray insert

Push the ashtray insert2 down into
the retainer until it engages.

Push at the top of cover3 to close
ashtray.
Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to
secure vehicle from movement. Move gear
selector lever to positionN (manual trans-
mission: second gear). With gear selector
lever in positionN (manual transmission:
second gear) turn off the engine.

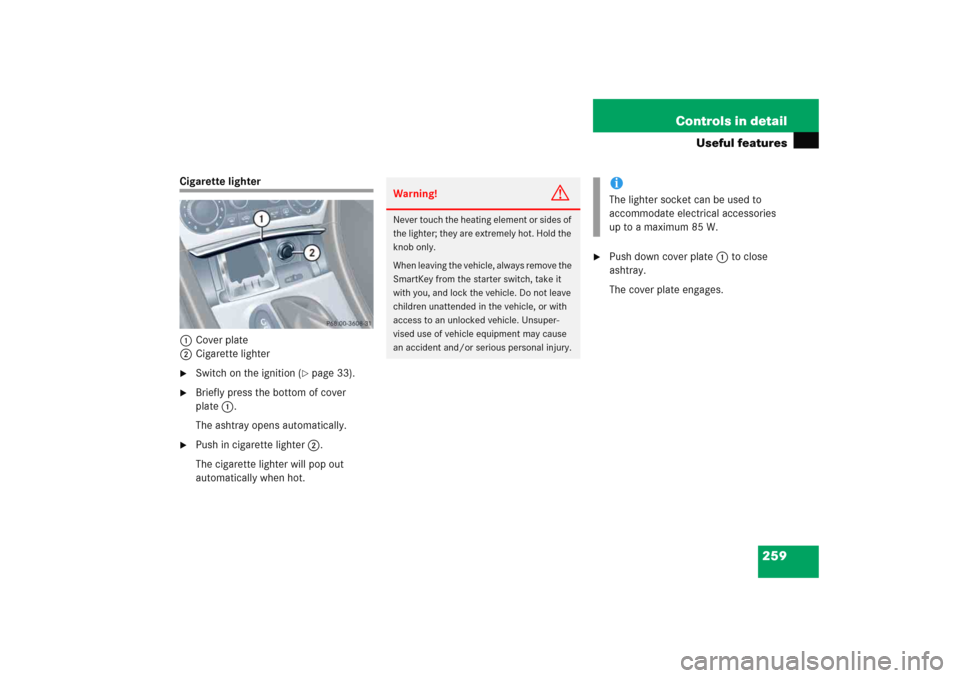

259 Controls in detail
Useful features
Cigarette lighter
1Cover plate
2Cigarette lighter
Switch on the ignition (
page 33).

Briefly press the bottom of cover
plate1.
The ashtray opens automatically.

Push in cigarette lighter2.
The cigarette lighter will pop out
automatically when hot.

Push down cover plate1 to close
ashtray.
The cover plate engages.
Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
iThe lighter socket can be used to
accommodate electrical accessories
up to a maximum 85 W.

260 Controls in detailUseful featuresElectrical outlet
Socket in the rear passenger
compartment
1Cover
2Electrical outlet cover

Switch on the ignition (
page 33).

Pull at top of cover1 to open ashtray.

Flip electrical outlet cover2 to the left
and insert electrical plug (cigarette
lighter type).
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.
iThe electrical outlet can be used to
accommodate electrical consumers
(e.g. air pump, auxiliary lamps) up to a
maximum of 180 W.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.

261 Controls in detail
Useful features
You can take and place telephone calls us-
ing thes andt buttons on the
steering wheel. To carry out other tele-
phone functions, use the control system
(page 153).
See separate operating manual for instruc-
tions on how to use the telephone.
Tele Aid*
Warning!
G
Please do not forget that your primary
responsibility is to drive the vehicle. A
driver’s attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe loca-
tion and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Only operate the COMAND* (Cockpit Man-
agement and Data System) and audio sys-
tem if road, weather and traffic conditions
permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
1Observe all legal requirements.
!The initial activation of the Tele Aid
system may only be performed by
completing the subscriber agreement
and placing an acquaintance call using
the¡ button. Failure to complete
either of these steps will result in a
system that is not activated.
If you have any questions regarding ac-
tivation, please call the Response Cen-
ter at 1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).

262 Controls in detailUseful featuresThe Tele Aid system
(Telematic A
larm I
dentification on D
e-
mand)
The Tele Aid system consists of three
types of response:


automatic and manual emergency


roadside assistance and


information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and
cellular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press buttonæ and to lower,
press buttonç. The volume can also
be adjusted using the volume knob on your
audio system or COMAND* head unit.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than ten seconds or do not come on). The
message
Tele Aid malfunction. Drive
to workshop
appears for approximately
ten seconds in the multifunction display.
iThe SOS button is located above the in-
side rear view mirror.
The Roadside Assistance button•
and the Information button¡ are
located below the center armrest
cover.!The Tele Aid system utilizes the cellular
network for communication and the
GPS (Global Positioning System) satel-
lites for vehicle location. If either of
these signals are unavailable, the
Tele Aid system may not function and if
this occurs, assistance must be sum-
moned by other means.

263 Controls in detail
Useful features
Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or air
bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 264) for instruc-
tions on initiating an emergency call man-
ually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call

appears in the multifunction display and
the audio system is muted. When the con-
nection is established, the message
Call connected
appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the
vehicle (determined by the GPS satellite
location system), vehicle model, identifica-
tion number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon
after the emergency call has been initiat-
ed. The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if:


it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button remain illuminated
constantly in red and/or the message Tele Aid malfunction. Drive to
workshop
is displayed in the multifunction
display after the system self-check, a mal-
function in the system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the
Response Center.
