2005 MERCEDES-BENZ C COUPE Owner's Manual

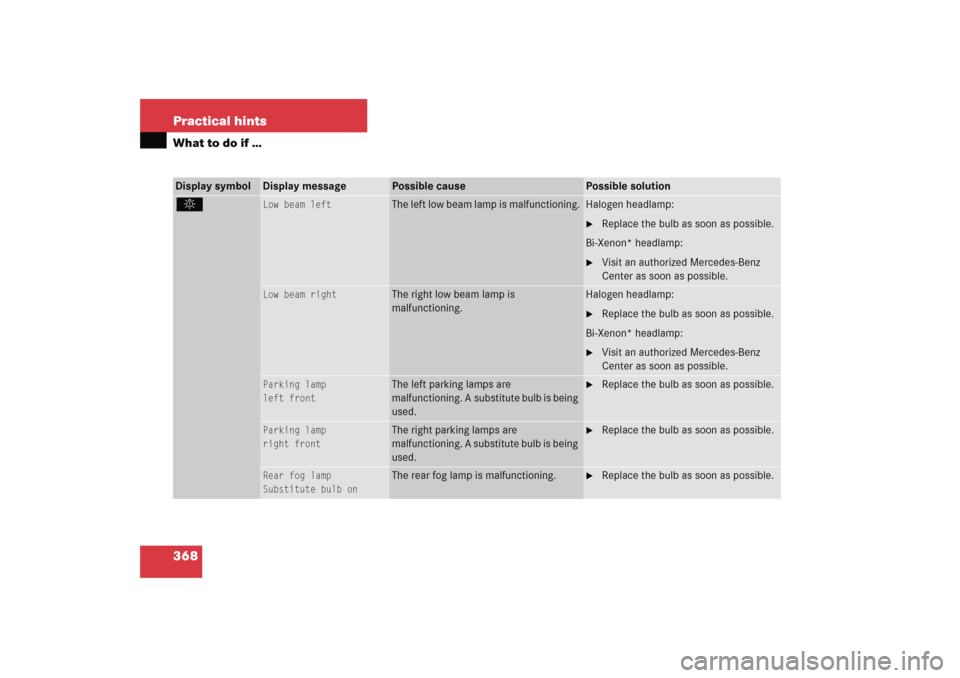

368 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
.
Low beam left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Low beam right
The right low beam lamp is
malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
left front

The left parking lamps are
malfunctioning. A substitute bulb is being
used.

Replace the bulb as soon as possible.
Parking lamp

right front

The right parking lamps are
malfunctioning. A substitute bulb is being
used.

Replace the bulb as soon as possible.
Rear fog lamp
Substitute bulb on
The rear fog lamp is malfunctioning.

Replace the bulb as soon as possible.

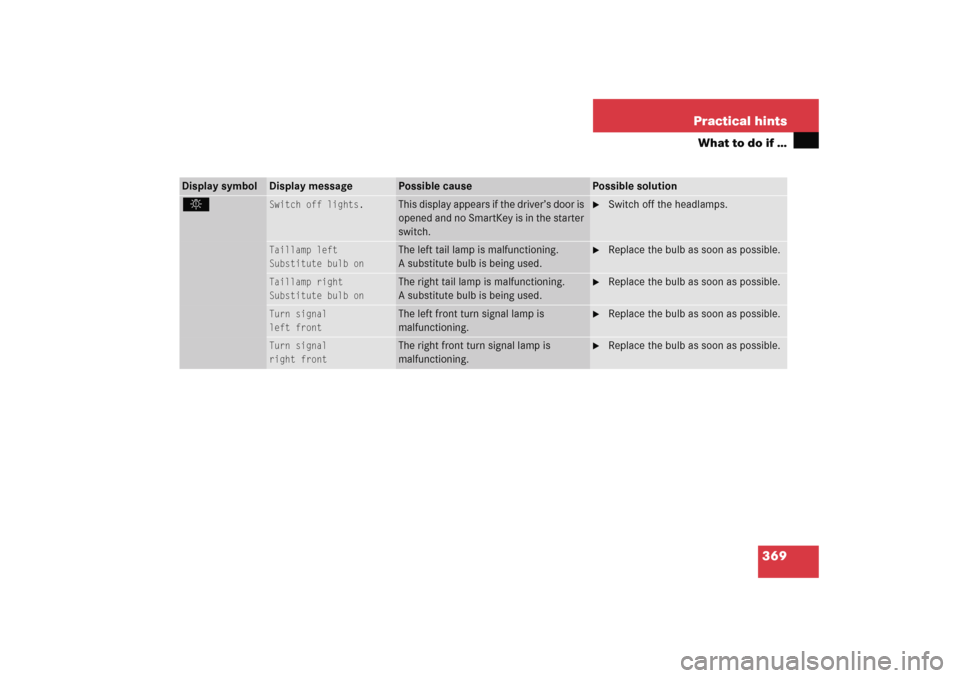

369 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
.
Switch off lights.
This display appears if the driver’s door is
opened and no SmartKey is in the starter
switch.

Switch off the headlamps.
Taillamp left
Substitute bulb on

The left tail lamp is malfunctioning.
A substitute bulb is being used.

Replace the bulb as soon as possible.
Taillamp right
Substitute bulb on

The right tail lamp is malfunctioning.
A substitute bulb is being used.

Replace the bulb as soon as possible.
Turn signal
left front
The left front turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
Turn signal
right front
The right front turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.

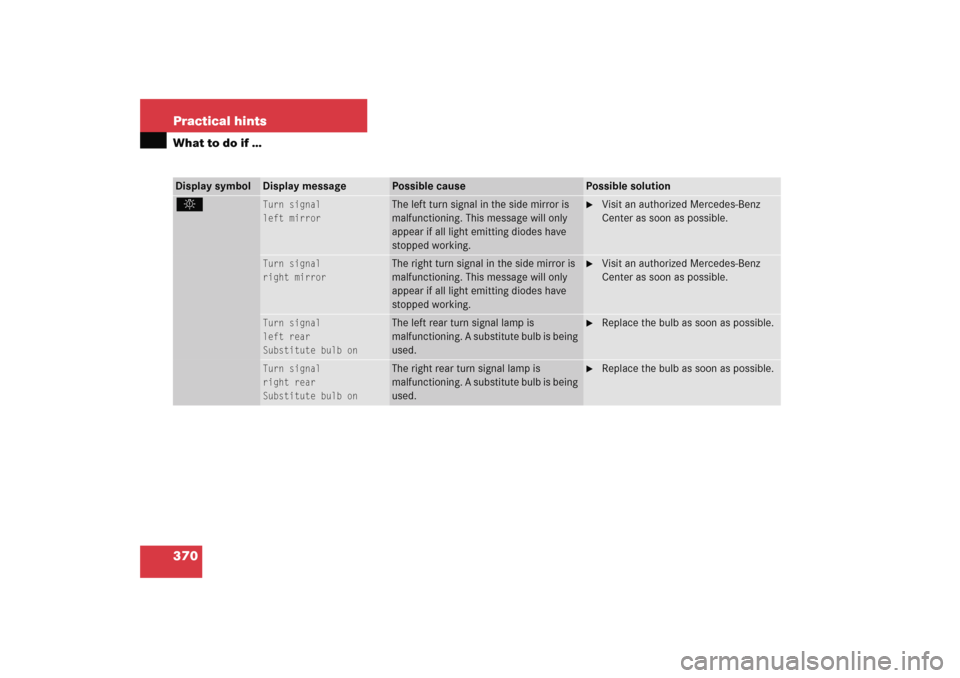

370 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
.
Turn signal
left mirror
The left turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn signal
right mirror
The right turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn signal
left rear
Substitute bulb on

The left rear turn signal lamp is
malfunctioning. A substitute bulb is being
used.

Replace the bulb as soon as possible.
Turn signal
right rear
Substitute bulb on

The right rear turn signal lamp is
malfunctioning. A substitute bulb is being
used.

Replace the bulb as soon as possible.

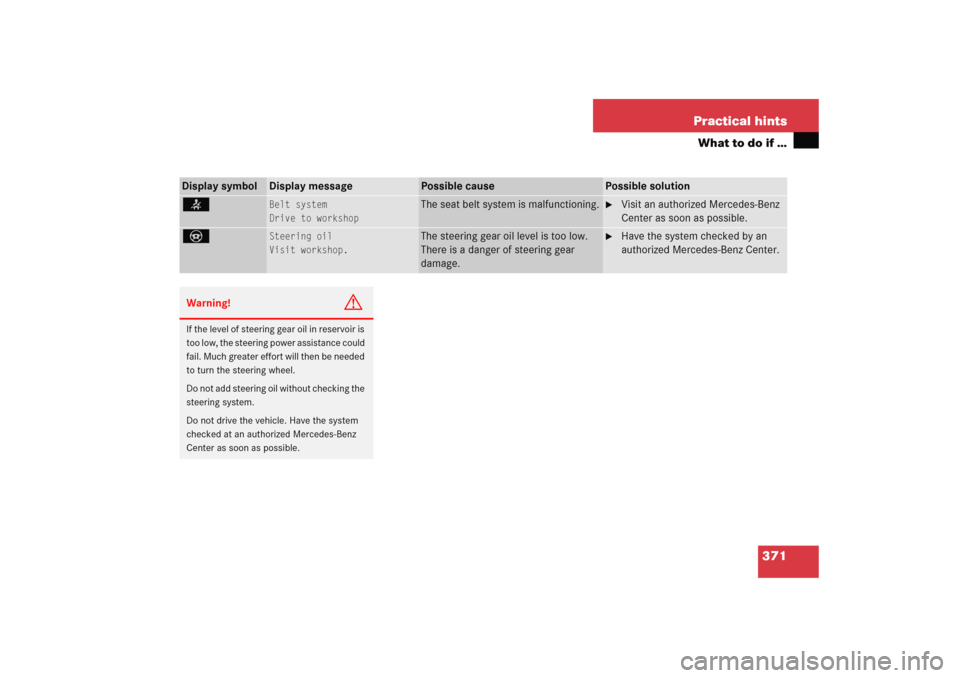

371 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
<
Belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
_
Steering oil
Visit workshop.
The steering gear oil level is too low.
There is a danger of steering gear
damage.

Have the system checked by an
authorized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.

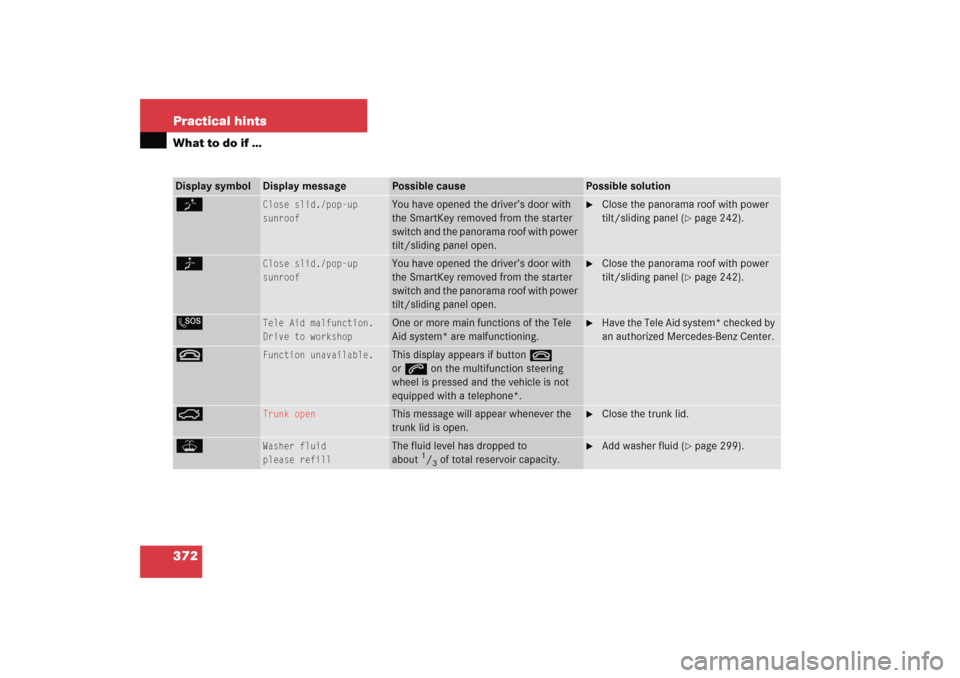

372 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
K
Close slid./pop-up
sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the panorama roof with power
tilt/sliding panel open.

Close the panorama roof with power
tilt/sliding panel (
page 242).
J
Close slid./pop-up
sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the panorama roof with power
tilt/sliding panel open.

Close the panorama roof with power
tilt/sliding panel (
page 242).
L
Tele Aid malfunction.
Drive to workshop
One or more main functions of the Tele
Aid system* are malfunctioning.

Have the Tele Aid system* checked by
an authorized Mercedes-Benz Center.
t
Function unavailable.
This display appears if buttont
ors on the multifunction steering
wheel is pressed and the vehicle is not
equipped with a telephone*.
Ê
Trunk open
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
Washer fluid
please refill
The fluid level has dropped to
about
1/3of total reservoir capacity.

Add washer fluid (
page 299).

373 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is stored in the trunk be-
hind the left trim panel.
1Handles
2Trim panel
Turn handles1 clockwise.

Remove the trim panel2.3First aid kit
4Securing strap
5To loosen securing strap

Loosen5 the securing strap4.

Remove first aid kit3.
Vehicle tool kit
The vehicle tool kit and air pump are stored
in the wheel well below the trunk floor.
1Vehicle jack
2Air pump
3Alignment bolt
4Wheel wrench
5Towing eye bolt
6Collapsible wheel chock
7Wheel bolts (under cover)
8Gloves
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

374 Practical hintsWhere will I find ...?Vehicle jack
Storage position
Remove the vehicle jack from the spare
wheel well under the trunk floor.

Push the crank handle up.

Turn the crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its com-
partment:


It should be fully collapsed.


The handle must be folded in (storage
position).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jack stands before working under the
vehicle.

375 Practical hints
Where will I find ...?
Setting up the collapsible wheel chock
The collapsible wheel chock serves to ad-
ditionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plates upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.
Spare wheel
The spare wheel is located under the trunk
floor.
Removing the spare wheel
Lift trunk floor.
1Spare wheel
2Storage tray with vehicle tool kit
3Mounting screw for spare wheel/cover
for vehicle tools

Turn the mounting screw3 counter-
clockwise.

Remove the spare wheel1.
