2005 MERCEDES-BENZ C COUPE Owner's Manual

56 Getting startedParking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Release handle
2Parking brake
Step firmly on parking brake 2.
When the engine is running, the indica-
tor lamp ; (USA only) or 3
(Canada only) in the instrument cluster
will be illuminated.
Warning!
G
Vehicles with manual transmission:
Wait until the vehicle is stationary before
removing the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP (manual transmission: first or
reverse gear).


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards road curb.


Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.


Take the SmartKey with you and lock
the vehicle when leaving.

57 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch to M
(page 51).
For more information on headlamps, see
“Lighting” (
page 110).
Warning!
G
Getting out of your vehicle with the gear
selector lever not fully engaged in positionP
(manual transmission: first or reverse gear)
is dangerous. Also, when parked on an
incline, positionP (manual transmission:
first or reverse gear) alone may not prevent
your vehicle from moving, possibly hitting
people or objects.
Always set the parking brake in addition to
shifting to positionP (manual transmission:
first or reverse gear).
When parked on an incline, turn front wheels
towards the road curb.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from positionP
(manual transmission: into neutral), either of
which could result in an accident and/or se-
rious injury.

58 Getting startedParking and lockingTurning off the engine
Place the gear selector lever in
positionP (manual transmission: first
or reverse gear).

Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.

Press the seat belt release button
(page 44).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 32).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs in the doors
move down. The anti-theft alarm sys-
tem* is armed.
For more information, see “Locking and
unlocking” (
page 90).
iAlways set the parking brake in addi-
tion to shifting to positionP (manual
transmission: first or reverse gear).
On slopes, turn the front wheels to-
wards the road curb.iVehicles with automatic transmission*:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

59 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems

60 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint system
components of the vehicle.
Restraint system with

Seat belts (
page 66)


Child restraints (
page 77)


Lower anchors and tethers for children
(LATCH) (
page 78)
Supplemental Restraint System (SRS) with


Air bags (
page 61)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD) for
seat belts (
page 69)Air bag system components with


56indicator lamp (
page 76)


Front passenger seat with Occupant
Classification System (OCS)
(page 73)
As independent systems, their protective
functions work in conjunction with each
other. The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The 1indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:


fails to go out after approximately four
seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving.
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 70).

61 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags) or side impacts (side
impact air bags and head protection window
curtain air bags). However, no system avail-
able today can totally eliminate injuries and
fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.

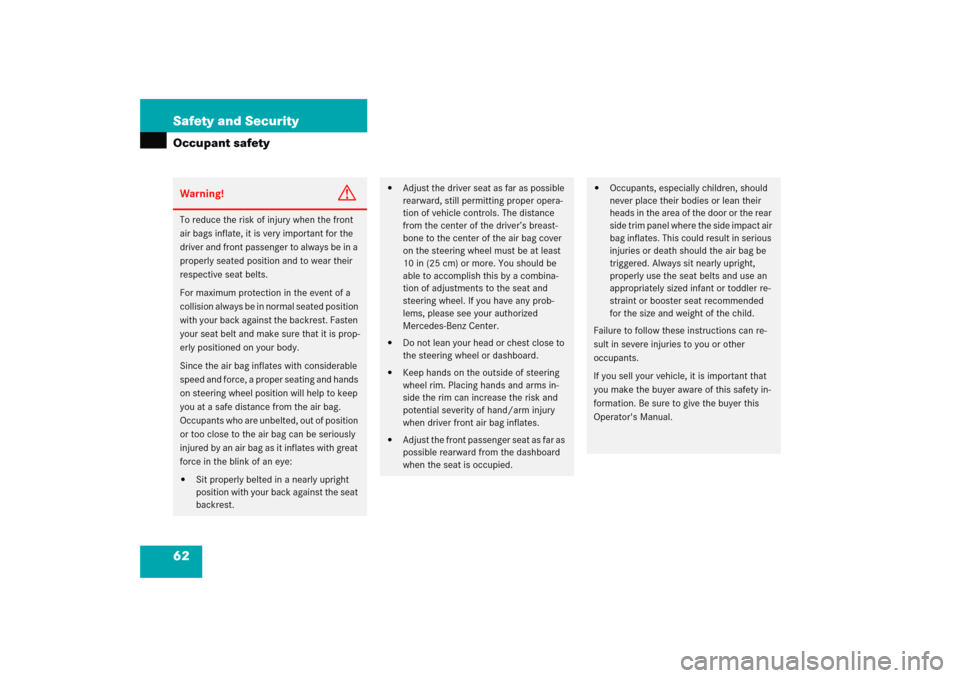

62 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured by an air bag as it inflates with great
force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 in (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the side impact air
bag inflates. This could result in serious
injuries or death should the air bag be
triggered. Always sit nearly upright,
properly use the seat belts and use an
appropriately sized infant or toddler re-
straint or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this
Operator's Manual.

63 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
front and rear side impact air bags there is a
possibility for a side impact air bag related
injury if occupants, especially children, are
not properly seated or restrained when next
to a side impact air bag which needs to de-
ploy rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the side impact air bag be deployed.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags deactivated, then
deactivation can be accomplished upon
your written request to do so at your autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags)
and in side impacts (side impact and
head protection window curtain air
bags) which exceed preset thresholds.
Only during these events will they
provide their supplemental protection.
The driver and passengers should
always wear their seat belts. Otherwise
it is not possible for air bags to provide
their supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, air bags will not deploy. The
driver and passenger will then be
protected to the extent possible by a
properly fastened seat belt. A properly
fastened seat belt is also needed to
provide the best possible protection in
a rollover.
We caution you not to rely on the pres-
ence of the air bags in order to avoid
wearing your seat belt.
