2005 MERCEDES-BENZ C COUPE Owner's Manual

64 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and air
bag It is important to your safety and that of
your passengers that you replace de-
ployed air bags and repair any malfunc-
tioning air bags to make sure that the
vehicle will continue to provide supple-
mental crash protection for occupants.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Air bags and emergency tensioning de-
vices (ETDs) are designed to function on
a one-time-only basis. An air bag or ETD
that is deployed must be replaced.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges etc. over the steering
wheel hub, passenger front air bag cov-
er, door trim panels, or door frame
trims, and installation of additional elec-
trical/electronic equipment on or near
SRS components and wiring. Keep area
between air bags and occupants free
from objects (e.g. packages, purses,
umbrellas, etc.).


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.

65 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver’s air bag
2Passenger front air bag
Driver and front passenger air bags are
deployed:


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the side impact air
bags


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other more significant injuries resulting
from air bag deployment.
iThe front air bags in this vehicle have
been designed to inflate in two stages.
This allows the air bag to have different
rates of inflation that are based on the
rate of relevant vehicle deceleration as
assessed by the air bag control unit.
On the front passenger side, the front
air bag deployment is additionally influ-
enced by the passenger’s weight cate-
gory as identified by the Occupant
Classification System (OCS)
(page 73).
The lighter the front passenger side
occupant, the higher the vehicle decel-
eration rate required for the second
stage inflation of the air bag.

66 Safety and SecurityOccupant safetyThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The passenger front air bag will only be
deployed if:

the system, based on OCS weight sen-
sor readings, senses that the front pas-
senger seat is occupied


the 56 indicator lamp in the
center console is not lit (
page 76)


the impact exceeds a preset deploy-
ment thresholdSide impact air bags, window curtain
air bags
1Window curtain air bag
2Side impact air bags
The side impact air bags and window cur-
tain air bags are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front air bags
The side impact air bags and window cur-
tain air bags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.The front passenger side impact air bag
will only deploy if the system senses that
the front passenger seat is occupied.
Seat belts
When the engine is started, the seat belt
telltale< illuminates to remind you and
your passengers to fasten your seat belts.
If the driver’s seat belt is not fastened
before the engine is started, the seat belt
telltale< illuminates and a warning
chime sounds for approximately six
seconds when the engine is started.
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
For more information, see “Fastening the
seat belt” (
page 44).

67 Safety and Security
Occupant safety
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 70).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are
properly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.

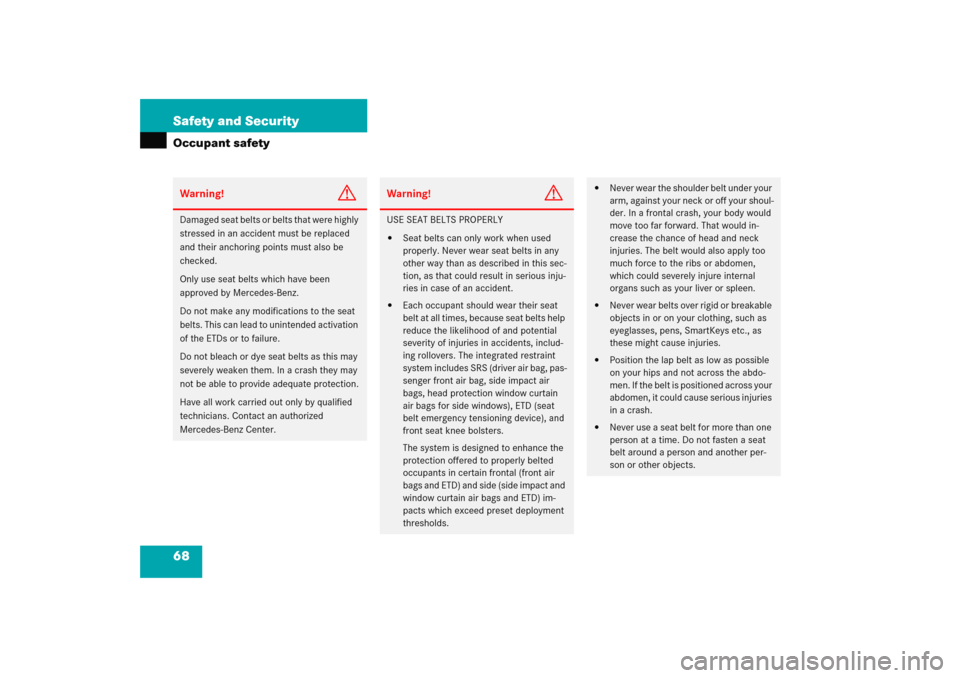

68 Safety and SecurityOccupant safetyWarning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag, pas-
senger front air bag, side impact air
bags, head protection window curtain
air bags for side windows), ETD (seat
belt emergency tensioning device), and
front seat knee bolsters.
The system is designed to enhance the
protection offered to properly belted
occupants in certain frontal (front air
bags and ETD) and side (side impact and
window curtain air bags and ETD) im-
pacts which exceed preset deployment
thresholds.


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck
injuries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal
organs such as your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, SmartKeys etc., as
these might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.

69 Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear seats
are equipped with emergency tensioning
devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impacts exceed-
ing a preset severity level


if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 60)In an impact, emergency tensioning devic-
es remove slack from the belts. Belt force
limiters reduce the force exerted by the
seat belts on occupants during a crash.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in boost-
er seats, always follow the child seat
manufacturer's instructions.
!The ETDs for the front seats will only
activate if the front seat belts are fas-
tened (latch plate properly inserted
into buckle).
The ETDs for the rear seats will activate
with or without the respective seat
belts fastened.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing of the emergency tension-
ing device, our safety instructions must be
followed. These are available at your autho-
rized Mercedes-Benz Center.

70 Safety and SecurityOccupant safetyChildren in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child.


Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.
Infant and child restraint seats and
information on choosing an appropriate
restraint system can be obtained from any
authorized Mercedes-Benz Center.Infant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child
restraint instructions for mounting. Then
pull the shoulder belt out completely and
let it retract. During seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual
manner.
iFor information on child seats with an-
chor fittings for tether anchorages, see
“Installation of infant and child re-
straint systems” (
page 77).
For information on LATCH-type child
seat anchors, see (page 78).
!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S. territories
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system, properly secured by a
lap / shoulder belt or, if so equipped, a
top tether anchorage point and a child
restraint lower anchorage system that
complies with U.S. Federal Motor Vehi-
cle Safety Standards 213 and 225 and
Canadian Motor Vehicle Safety Stan-
dards 213 and 210.2.

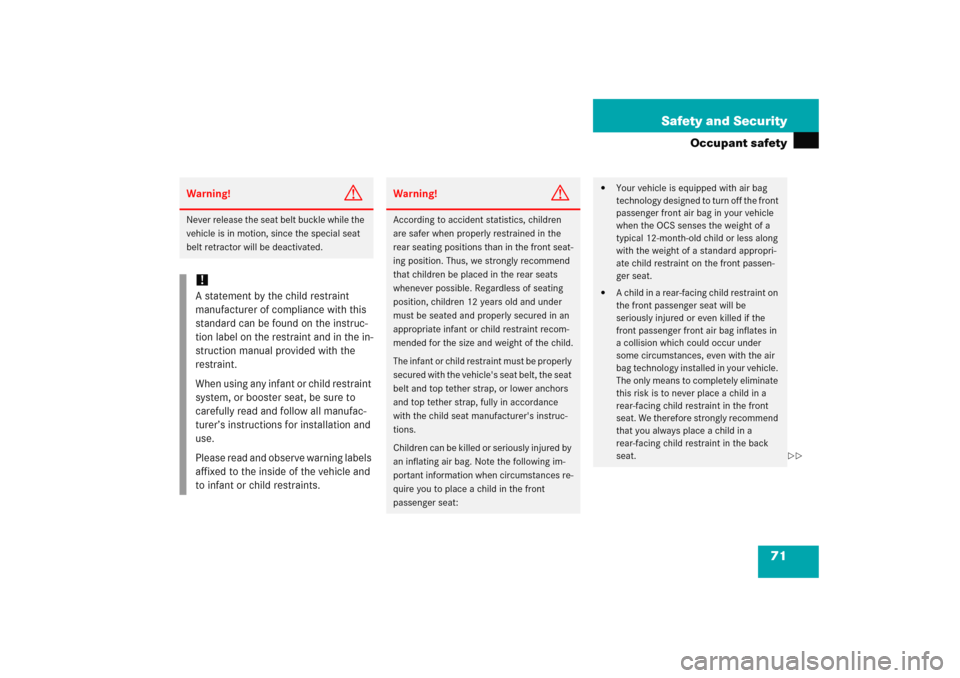

71 Safety and Security
Occupant safety
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!A statement by the child restraint
manufacturer of compliance with this
standard can be found on the instruc-
tion label on the restraint and in the in-
struction manual provided with the
restraint.
When using any infant or child restraint
system, or booster seat, be sure to
carefully read and follow all manufac-
turer’s instructions for installation and
use.
Please read and observe warning labels
affixed to the inside of the vehicle and
to infant or child restraints.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle's seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer's instruc-
tions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:


Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the OCS senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.


A child in a rear-facing child restraint on
the front passenger seat will be
seriously injured or even killed if the
front passenger front air bag inflates in
a collision which could occur under
some circumstances, even with the air
bag technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a
rear-facing child restraint in the back
seat.
