2005 MERCEDES-BENZ C COUPE flat tire

ContentsPanorama roof with power
tilt/sliding panel* .............................. 241
Opening and closing the roller
sunblinds for the panorama roof
with power tilt/sliding panel ........ 241
Opening and closing the panorama
roof with power tilt/sliding panel . 242
Synchronizing the panorama roof
with power tilt/sliding panel and
the roller sunblinds....................... 246
Driving systems ................................. 247
Cruise control............................... 247
Loading .............................................. 250
Roof rack* .................................... 250
Split rear bench seat .................... 250
Luggage cover .............................. 252
Loading instructions ..................... 252
Cargo tie-down rings .................... 253
Useful features .................................. 254
Storage compartments................. 254
Ashtrays ....................................... 257
Cigarette lighter ........................... 259
Electrical outlet ............................ 260
Telephone*................................... 260
Tele Aid* ...................................... 261
Garage door opener* ................... 269
Operation......................................... 275
The first 1000 miles (1500km) .......... 276
Driving instructions............................ 277
Drive sensibly – save fuel ............. 277
Drinking and driving ..................... 277
Pedals .......................................... 277
Power assistance ......................... 277
Brakes .......................................... 278
Driving off .................................... 279
Parking ......................................... 279
Tires ............................................. 280
Hydroplaning ................................ 281
Tire traction.................................. 281
Tire speed rating .......................... 282
Winter driving instructions ........... 283
Standing water ............................. 284
Passenger compartment .............. 284
Driving abroad.............................. 284
Control and operation of radio
transmitter ................................... 284
Catalytic converter ....................... 285
Emission control .......................... 286
Coolant temperature .................... 286At the gas station .............................. 288
Refueling ...................................... 288
Check regularly and before a
long trip ....................................... 290
Engine compartment ......................... 291
Hood ............................................ 291
Engine oil ..................................... 292
Transmission fluid level ................ 296
Coolant level ................................ 296
Battery ......................................... 297
Windshield washer system and
headlamp cleaning system*......... 299
Tires and wheels................................ 300
Important guidelines .................... 300
Tire care and maintenance........... 301
Direction of rotation..................... 303
Loading the vehicle ...................... 303
Recommended tire inflation
pressure ....................................... 309
Checking tire inflation pressure ... 311
Tire labeling ................................. 313
Load identification ....................... 317
DOT, Tire Identification Number
(TIN) ............................................. 318
Maximum tire load ....................... 319
Maximum tire inflation pressure .. 320

Contents
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 320
Tire ply material ........................... 322
Tire and loading terminology ........ 323
Rotating tires ............................... 326
Winter driving .................................... 328
Winter tires .................................. 328
Block heater (Canada only) .......... 329
Snow chains................................. 329
Maintenance...................................... 330
Clearing the maintenance
service indicator........................... 331
Maintenance service term
exceeded ..................................... 331
Calling up the maintenance
service indicator........................... 331
Resetting the maintenance
service indicator........................... 332
Vehicle care ....................................... 333
Cleaning and care of the vehicle .. 333
Practical hints.................................. 339
What to do if … ................................... 340
Lamps in instrument cluster ......... 340
Lamp in center console................. 345
Vehicle status messages in the
multifunction display..................... 347
Where will I find ...? ............................ 373
First aid kit.................................... 373
Vehicle tool kit .............................. 373
Spare wheel .................................. 375
Unlocking/locking in an emergency... 377
Unlocking the vehicle.................... 377
Locking the vehicle ....................... 379
Fuel filler flap ................................ 379
Manually unlocking the gear
selector lever ................................ 380
Opening/closing in an emergency ..... 381
Panorama roof with power
tilt/sliding panel* ......................... 381
Replacing SmartKey batteries ............ 382
SmartKey ...................................... 383
Replacing bulbs .................................. 384
Bulbs ............................................. 384
Replacing bulbs for front lamps .... 386
Replacing bulbs for rear lamps ..... 390Replacing wiper blades ...................... 393
Removing ...................................... 393
Installing ....................................... 393
Flat tire............................................... 394
Preparing the vehicle .................... 394
Mounting the spare wheel ............ 394
Battery ............................................... 401
Disconnecting the battery ............ 402
Removing the battery ................... 402
Charging and reinstalling battery .. 402
Reconnecting the battery ............. 403
Jump starting...................................... 404
Towing the vehicle.............................. 406
Installing towing eye bolt .............. 409
Fuses.................................................. 410
Aids for changing fuses ................ 410
Main fuse box in passenger
compartment ................................ 411
Fuse box in engine compartment . 411
Fuse box in trunk .......................... 412

265 Controls in detail
Useful features
Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.
Press and hold the button (for longer
than two seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
call
will appear in the multifunction
display and the audio system is muted.
When the connection is established, the
message Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for
assistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.
The following is only available in the USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp in the Roadside As-
sistance button• remains illumi-
nated in red for approximately
ten seconds during the system
self-check after switching on ignition
(together with the SOS button and the
Information button¡).
See system self-check (
page 262)
when the indicator lamp does not come
on in red or stays on longer than
approximately ten seconds.
If the indicator lamp in the Roadside
Assistance button• is flashing con-
tinuously and there was no voice con-
nection to the Response Center
established, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
Call failed.
appears in the
multifunction display.

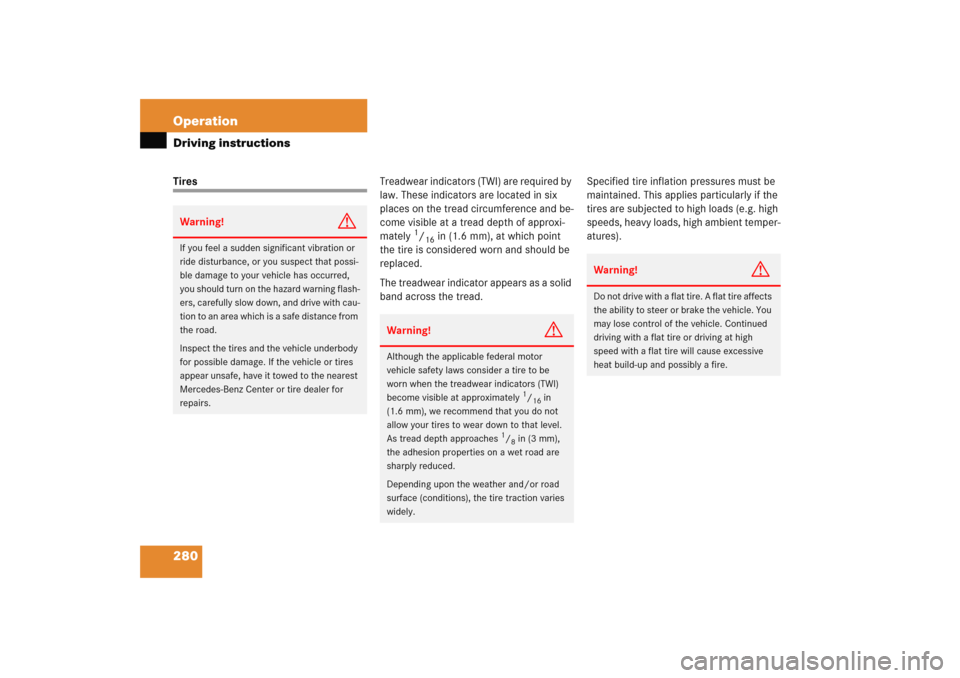

280 OperationDriving instructionsTiresTreadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and be-
come visible at a tread depth of approxi-
mately
1/16
in (1.6 mm), at which point
the tire is considered worn and should be
replaced.
The treadwear indicator appears as a solid
band across the tread.Specified tire inflation pressures must be
maintained. This applies particularly if the
tires are subjected to high loads (e.g. high
speeds, heavy loads, high ambient temper-
atures).
Warning!
G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
tion to an area which is a safe distance from
the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have it towed to the nearest
Mercedes-Benz Center or tire dealer for
repairs.
Warning!
G
Although the applicable federal motor
vehicle safety laws consider a tire to be
worn when the treadwear indicators (TWI)
become visible at approximately
1/16in
(1.6 mm), we recommend that you do not
allow your tires to wear down to that level.
As tread depth approaches
1/8 in (3 mm),
the adhesion properties on a wet road are
sharply reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire or driving at high
speed with a flat tire will cause excessive
heat build-up and possibly a fire.

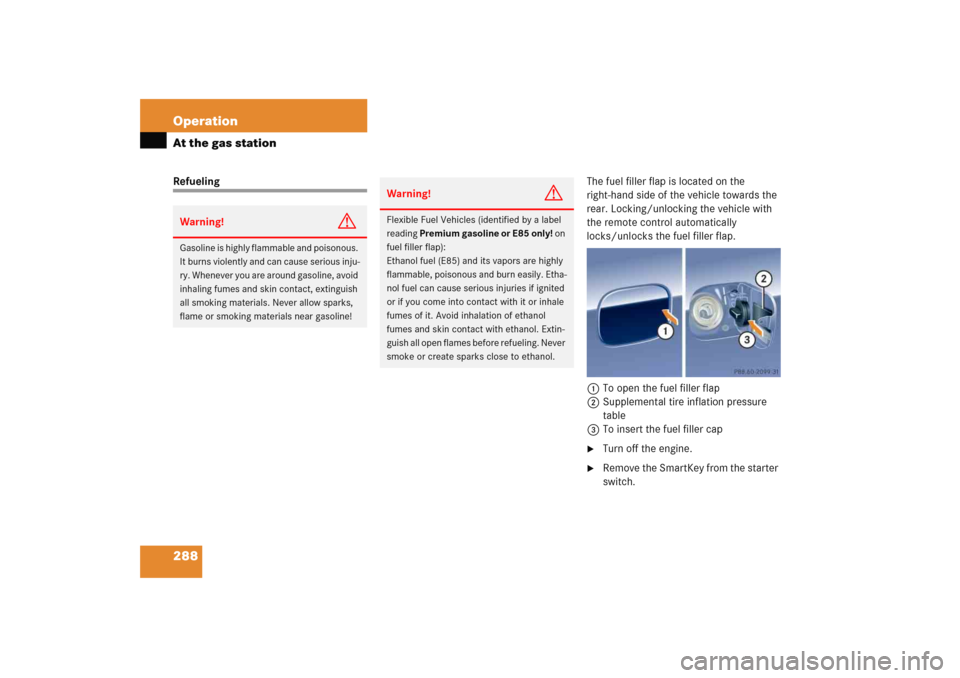

288 OperationAt the gas stationRefuelingThe fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control automatically
locks/unlocks the fuel filler flap.
1To open the fuel filler flap
2Supplemental tire inflation pressure
table
3To insert the fuel filler cap

Turn off the engine.

Remove the SmartKey from the starter
switch.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Warning!
G
Flexible Fuel Vehicles (identified by a label
reading Premium gasoline or E85 only! on
fuel filler flap):
Ethanol fuel (E85) and its vapors are highly
flammable, poisonous and burn easily. Etha-
nol fuel can cause serious injuries if ignited
or if you come into contact with it or inhale
fumes of it. Avoid inhalation of ethanol
fumes and skin contact with ethanol. Extin-
guish all open flames before refueling. Never
smoke or create sparks close to ethanol.

290 OperationAt the gas stationCheck regularly and before a long trip
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*Brake fluid
Remove fuse box cover before checking
brake fluid (
page 410).
Engine oil level
For more information on engine oil, see
“Engine oil” (page 292).
Opening hood, see (
page 291).Coolant
For normal replenishing, use water (pota-
ble water quality). For more information on
coolant, see “Coolant level” (
page 296)
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 384).
Exterior lamp switch, see (
page 110).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 311).
Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(page 299).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately. Noti-
fy an authorized Mercedes-Benz Center
immediately. Do not add brake fluid as
this will not solve the problem. For
more information, see “Practical Hints”
(page 341).

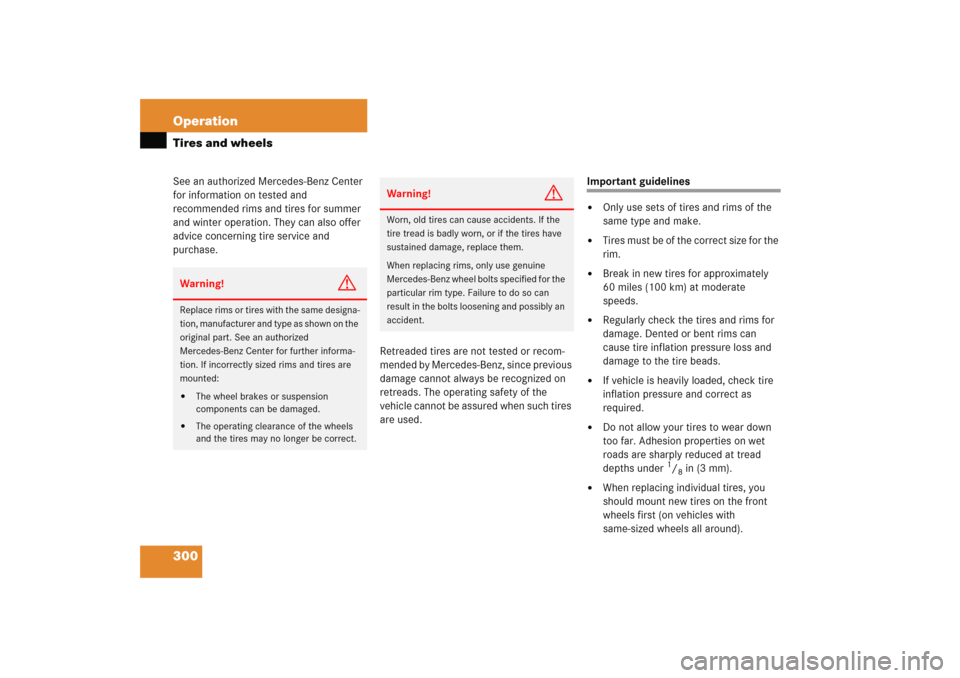

300 OperationTires and wheelsSee an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the
vehicle cannot be assured when such tires
are used.
Important guidelines

Only use sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.


If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension
components can be damaged.


The operating clearance of the wheels
and the tires may no longer be correct.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.

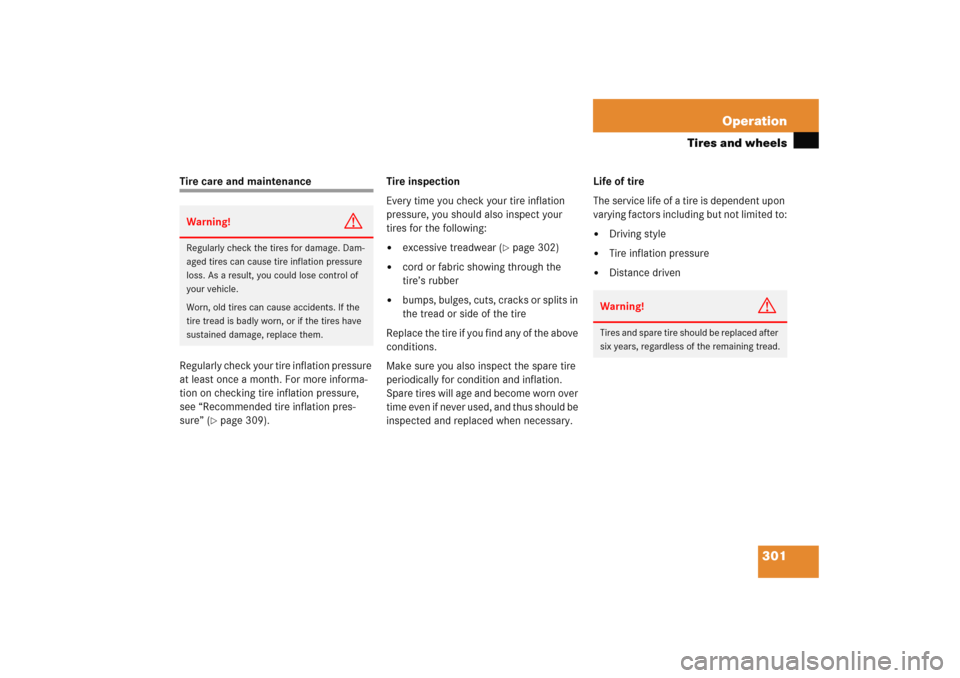

301 Operation
Tires and wheels
Tire care and maintenance
Regularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure,
see “Recommended tire inflation pres-
sure” (
page 309).Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:


excessive treadwear (
page 302)


cord or fabric showing through the
tire’s rubber


bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and become worn over
time even if never used, and thus should be
inspected and replaced when necessary.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:


Driving style


Tire inflation pressure


Distance driven
Warning!
G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!
G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.
