Contents
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 320
Tire ply material ........................... 322
Tire and loading terminology ........ 323
Rotating tires ............................... 326
Winter driving .................................... 328
Winter tires .................................. 328
Block heater (Canada only) .......... 329
Snow chains................................. 329
Maintenance...................................... 330
Clearing the maintenance
service indicator........................... 331
Maintenance service term
exceeded ..................................... 331
Calling up the maintenance
service indicator........................... 331
Resetting the maintenance
service indicator........................... 332
Vehicle care ....................................... 333
Cleaning and care of the vehicle .. 333
Practical hints.................................. 339
What to do if … ................................... 340
Lamps in instrument cluster ......... 340
Lamp in center console................. 345
Vehicle status messages in the
multifunction display..................... 347
Where will I find ...? ............................ 373
First aid kit.................................... 373
Vehicle tool kit .............................. 373
Spare wheel .................................. 375
Unlocking/locking in an emergency... 377
Unlocking the vehicle.................... 377
Locking the vehicle ....................... 379
Fuel filler flap ................................ 379
Manually unlocking the gear
selector lever ................................ 380
Opening/closing in an emergency ..... 381
Panorama roof with power
tilt/sliding panel* ......................... 381
Replacing SmartKey batteries ............ 382
SmartKey ...................................... 383
Replacing bulbs .................................. 384
Bulbs ............................................. 384
Replacing bulbs for front lamps .... 386
Replacing bulbs for rear lamps ..... 390Replacing wiper blades ...................... 393
Removing ...................................... 393
Installing ....................................... 393
Flat tire............................................... 394
Preparing the vehicle .................... 394
Mounting the spare wheel ............ 394
Battery ............................................... 401
Disconnecting the battery ............ 402
Removing the battery ................... 402
Charging and reinstalling battery .. 402
Reconnecting the battery ............. 403
Jump starting...................................... 404
Towing the vehicle.............................. 406
Installing towing eye bolt .............. 409
Fuses.................................................. 410
Aids for changing fuses ................ 410
Main fuse box in passenger
compartment ................................ 411
Fuse box in engine compartment . 411
Fuse box in trunk .......................... 412

290 OperationAt the gas stationCheck regularly and before a long trip
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*Brake fluid
Remove fuse box cover before checking
brake fluid (
page 410).
Engine oil level
For more information on engine oil, see
“Engine oil” (page 292).
Opening hood, see (
page 291).Coolant
For normal replenishing, use water (pota-
ble water quality). For more information on
coolant, see “Coolant level” (
page 296)
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 384).
Exterior lamp switch, see (
page 110).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 311).
Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(page 299).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately. Noti-
fy an authorized Mercedes-Benz Center
immediately. Do not add brake fluid as
this will not solve the problem. For
more information, see “Practical Hints”
(page 341).

339 Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

340 Practical hintsWhat to do if …Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on the
ignition, have the respective bulb checked
and replaced if necessary.Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction
indicator lamp comes on while
driving.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission* may
also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the
display (
page 353).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions
increases the risk of an accident.
The charging voltage has fallen below ten
volts. The ABS has switched off.
The battery might not be charged sufficiently.

Switch off electrical consumers that
are currently not needed, e.g. seat
heating*.

If necessary, have the generator
(alternator) and battery checked.
When the voltage is above this value
again, the ABS is operational again.

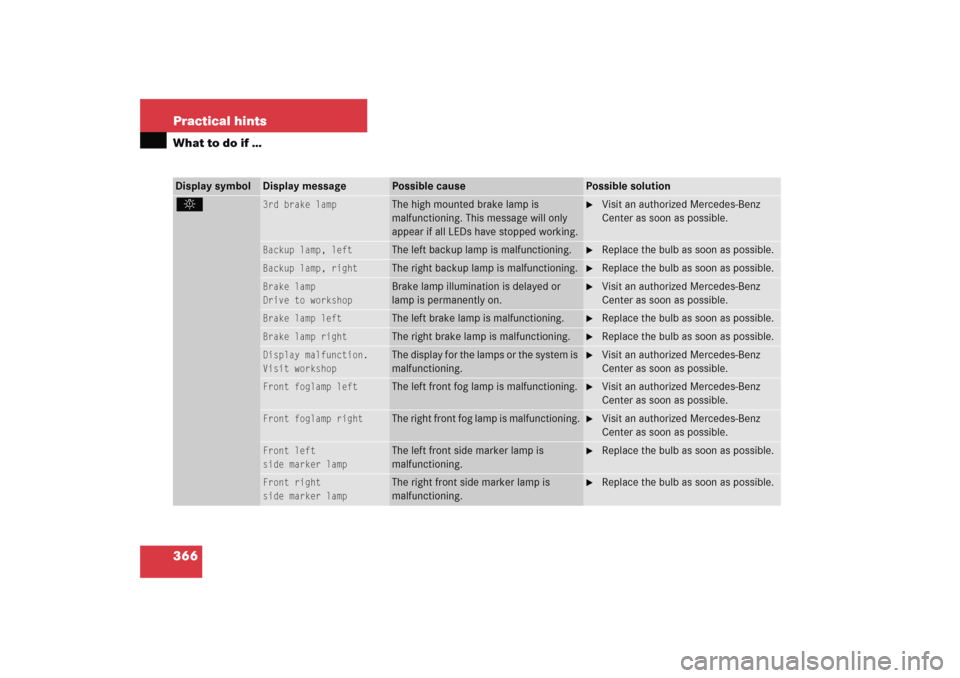

366 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
.
3rd brake lamp
The high mounted brake lamp is
malfunctioning. This message will only
appear if all LEDs have stopped working.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Backup lamp, left
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Backup lamp, right
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Brake lamp
Drive to workshop
Brake lamp illumination is delayed or
lamp is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp left
The left brake lamp is malfunctioning.

Replace the bulb as soon as possible.
Brake lamp right
The right brake lamp is malfunctioning.

Replace the bulb as soon as possible.
Display malfunction.
Visit workshop
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp left
The left front fog lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp right
The right front fog lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front left
side marker lamp
The left front side marker lamp is
malfunctioning.

Replace the bulb as soon as possible.
Front right
side marker lamp
The right front side marker lamp is
malfunctioning.

Replace the bulb as soon as possible.

367 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
.
High beam left
The left high beam lamp is
malfunctioning.

Replace the bulb as soon as possible.
High beam right
The right high beam lamp is
malfunctioning.

Replace the bulb as soon as possible.
License plate lamp,
left
The left license plate lamp is
malfunctioning.

Replace the bulb as soon as possible.
License plate lamp,
right
The right license plate lamp is
malfunctioning.

Replace the bulb as soon as possible.
Light sensor
Drive to workshop
The lamp sensor is malfunctioning.
The headlamps switch on automatically.

In the control system, set lamp
operation to manual (
page 133).

Switch on headlamps using the
exterior lamp switch (
page 51).

Visit an authorized Mercedes-Benz
Center as soon as possible.

368 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
.
Low beam left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Low beam right
The right low beam lamp is
malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
left front

The left parking lamps are
malfunctioning. A substitute bulb is being
used.

Replace the bulb as soon as possible.
Parking lamp

right front

The right parking lamps are
malfunctioning. A substitute bulb is being
used.

Replace the bulb as soon as possible.
Rear fog lamp
Substitute bulb on
The rear fog lamp is malfunctioning.

Replace the bulb as soon as possible.

369 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
.
Switch off lights.
This display appears if the driver’s door is
opened and no SmartKey is in the starter
switch.

Switch off the headlamps.
Taillamp left
Substitute bulb on

The left tail lamp is malfunctioning.
A substitute bulb is being used.

Replace the bulb as soon as possible.
Taillamp right
Substitute bulb on

The right tail lamp is malfunctioning.
A substitute bulb is being used.

Replace the bulb as soon as possible.
Turn signal
left front
The left front turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
Turn signal
right front
The right front turn signal lamp is
malfunctioning.

Replace the bulb as soon as possible.
