2005 MERCEDES-BENZ C COUPE fog light bulb

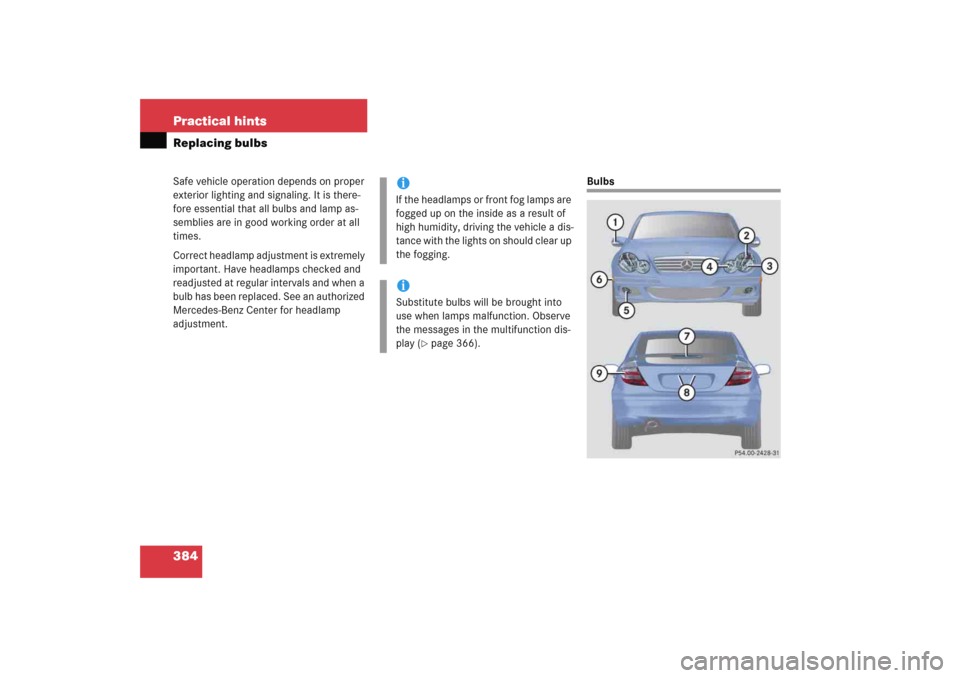

384 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp
adjustment.
Bulbs
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.iSubstitute bulbs will be brought into
use when lamps malfunction. Observe
the messages in the multifunction dis-
play (
page 366).

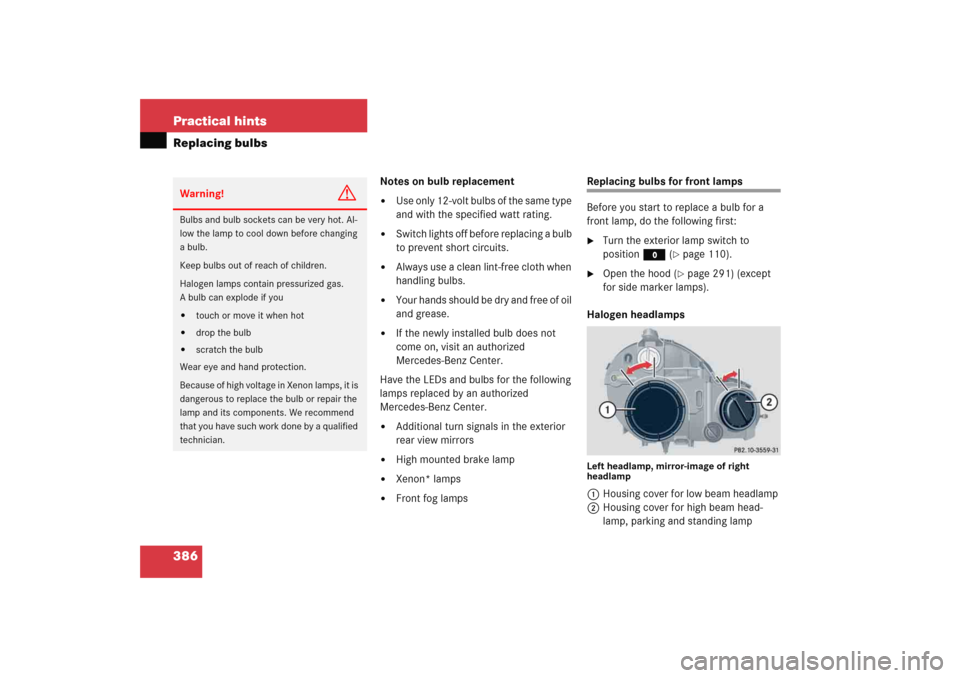

386 Practical hintsReplacing bulbs
Notes on bulb replacement

Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before replacing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.


Additional turn signals in the exterior
rear view mirrors


High mounted brake lamp


Xenon* lamps


Front fog lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 110).

Open the hood (
page 291) (except
for side marker lamps).
Halogen headlamps
Left headlamp, mirror-image of right
headlamp1Housing cover for low beam headlamp
2Housing cover for high beam head-
lamp, parking and standing lamp
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

446 IndexBolts
For spare wheel 376
Brake
Indicator lamp 25
Brake assist system (BAS) 437
Brake fluid 290, 428
Checking 290
Message in display 358
Brake lamp bulbs 385
Brake pads
Message in display 358
Brakes 278
Warning lamp 341
Break-in period 276
Bulbs, replacing 384
Additional turn signals 385
Brake lamps 385
Fog lamps 385
Front lamps 385
High beam 385
High beam flasher 385
License plate lamps 385, 392
Low beam 385
Parking lamps 385, 388, 390
Rear fog lamp 385, 390
Rear lamps 385Side marker lamp 391
Side marker lamps 385, 390
Standing lamps 385, 388, 390
Tail lamp assemblies 385
Tail lamp unit 390
Turn signal lamps 385
Button
Audio system 198
C
CAC (Customer Assistance Center) 437
Calling up
Range (distance to empty) 152
Service indicator 331
CAN system 437
Capacities
Fuels, coolants, lubricants, etc. 426
Cargo compartment
Lighting 118
Tie-down rings 253
Cargo tie-down rings 253
Catalytic converter 285
CD changer* 213
CD changer* operation 215
CD player
Operating 131
CD* operation 213Center console 27
Front passenger front air bag off indica-
tor lamp 27, 76, 345
Lower part 28
Upper part 27
Centigrade
Setting temperature units 137
Central locking
Automatic 97
From inside 98
Switch 98
Switching on/off (control
system) 148
Unlocking from inside 98
Central locking switch 98
Changing
CDs 213
Key setting 148
Charcoal filter 191
Activating 191
Deactivating 192
Charging
Vehicle battery 402
CHECK ENGINE malfunction indicator
lamp 342

455 Index
LATCH child seat anchors 78
Folding back 78, 79
Layout of poly-V-belt drive 417
Leather upholstery
Cleaning 338
License plate lamps
Messages in display 367
Replacing bulbs 385, 392
Light alloy wheels
Cleaning 336
Technical data 420
Light sensor 367
Lighter see Cigarette lighter
Lighting 110
Automatic headlamp mode 111
Combination switch 114
Daytime running lamp mode 112
Exterior lamp switch 110
Front fog lamps 113
High beams 114
Instrument cluster illumination 119
Instruments 119
Interior 117
Interior delayed shut-off (Control
system) 147
Locator lighting 112Low beam 110
Low beam, indicator lamp 25
Manual headlamp mode 111
Night security illumination 112
Parking lamps 110
Rear fog lamp 113
Settings (control system) 144
Limiting the gear range 161
Limp Home Mode 166
Loading 250
Cargo tie-down rings 253
Instructions 252
Roof rack* 250
Split rear bench seat 250
Loading terminology 323
Loading the vehicle 303
Locator lighting 112
Setting 145
Lock buttons 439
Locking 56, 90
Automatic while driving 97
Centrally from inside 98
Fuel filler flap 288
Global, SmartKey 92
Vehicle in an emergency 379
Loss of keys 94Loss of Service and Warranty Information
Booklet 415
Low beam headlamps
Messages in display 368
Replacing bulbs 385, 387
Lowering
Vehicle 400
Lubricants
Technical data 426
Luggage compartment
Closing 95
Closing the lid 95
Opening from inside vehicle 95
Trunk lid emergency release 96
Luggage cover 252

464 IndexStoring tires 302
Submenus
Convenience 148
For settings 125
In control system 127
Instrument cluster 137, 139
Lighting 144
Resetting functions in Control
system 135
Selecting 134
Settings menu 134
Time/Date 139
Vehicle 148
Sun visors 169
Supplemental Restraint System see SRS
Switching
Fuel (Flexible fuel vehicle) 431
Switching off
Audio system 198
Automatic central locking (control
system) 148
Cornering fog lamps* 115
Delayed (exterior lamps) 146
Engine 58
ESP 84
Hazard warning flasher 116Headlamps 57
Seat heating* 106
Switching on
Audio system 198
Automatic central locking (control
system) 148
Cornering fog lamps* 115
ESP 85
Front fog lamps 113
Hazard warning flasher 116
Headlamps 51
High beams 114
Rear fog lamp 113
Seat heating* 106
Windshield wipers 53
Synchronizing
Panorama roof with power tilt/sliding
panel* 246
Power windows 240
T
Tachometer 25, 121
Displaying gear range 161
Overspeed range 121
Tail lamps
Cleaning 335
Replacing bulbs 385, 390Tar stains 334
Technical data
Air conditioner refrigerant 428
Brake fluid 428
Coolant 426
Coolants 432
Electrical system 423
Engine 418
Engine oil 428
Engine oil additives 428
Flexible fuel vehicles 431
Fuel requirements 429
Fuels 426
Gasoline additives 430
Lubricants 426
Main dimensions 424
Premium unleaded gasoline 429
Rims and tires 419
Weights 425
Windshield and headlamp* washer
system 427, 435
Windshield washer system 427
Tele Aid System* 261, 441
