2005 Lexus IS300 Basic Functions / LEXUS 2005 IS300 OWNER'S MANUAL (OM53489U)

KEYS AND DOORS
8
KEYS
SV11024

Sedan
SV11025

SportCross
1Master keys (black) ± These keys work in every lock.
For your Lexus dealer to make you a new key with a
built±in transponder chip, your dealer will need an
original key to program the new one.
2Valet key (gray) ± The sub key will not open the trunk
and the glove box.
3Key number plate ± Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobilizer system has been
placed in the head of the master and sub keys. These chips are
needed to enable the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect items locked in the trunk or glove box when using
valet parking, leave the valet key with the attendant.
Since the doors and trunk lid can be locked without a key, you
should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.
04 06.30

KEYS AND DOORS
9

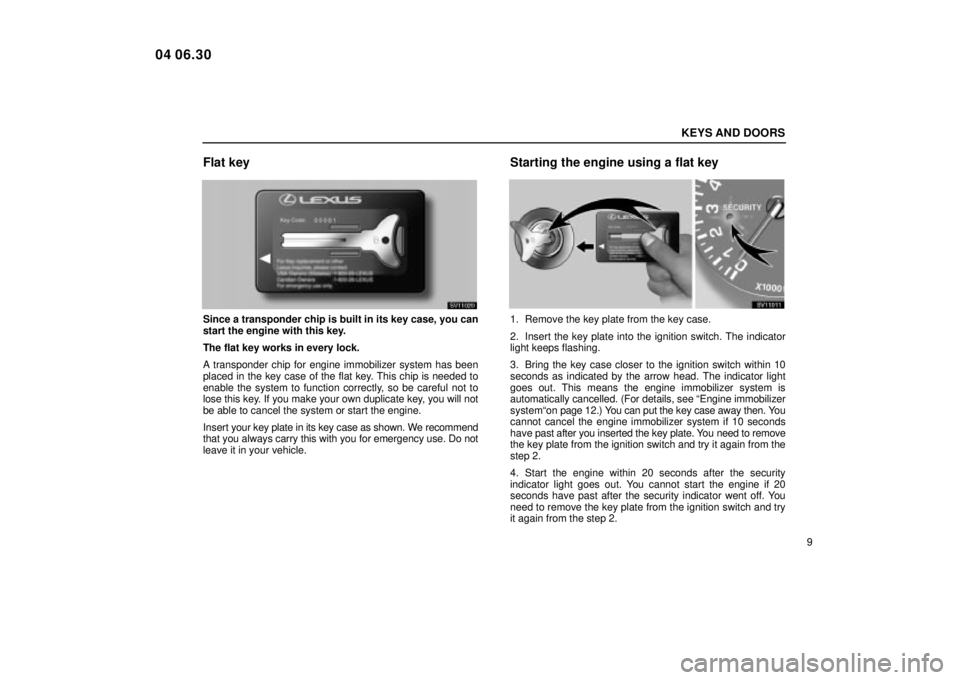

Flat key
SV11020
Since a transponder chip is built in its key case, you can
start the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobilizer system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to
lose this key. If you make your own duplicate key, you will not
be able to cancel the system or start the engine.
Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
SV11011
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically cancelled. (For details, see ªEngine immobilizer
systemªon page 12.) You can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
04 06.30

KEYS AND DOORS
10
NOTICE
Do not let the key case become bent as the key platemay fall out or become bent also.
The flat key is designed for emergency use only. Sodo not use it regularly instead of other master keys.11L021-2
When using a key containing a transponder chip,observe the following precautions:
When starting the engine, do not use the key with akey ring resting on the key grip and do not press thekey ring against the key grip. Otherwise the enginemay not start, or may stop soon after it starts.
04 06.30

KEYS AND DOORS
11
11R055
When starting the engine, do not use the key withother transponder keys around (including the flat key
and keys of other vehicles) and do not press other key plates against the key grip. Otherwise the enginemay not start, or may stop soon after it starts. If thishappens, remove the key once and then insert itagain after removing other transponder keys
(including the flat key and keys of other vehicles)from the ring or while gripping or covering them with
your hand to start the engine.
SV11019
Do not bend the key grip or flat key.
Do not cover the key grip or flat key with any material that cuts off electromagnetic waves.
Do not knock the key or flat key hard against otherobjects.
Do not leave the key or flat key exposed to hightemperature for a long period, such as on the
dashboard and hood under direct sunlight.
Do not put the key or flat key in water or wash it in anultrasonic washer.
Do not use the key or flat key with electromagneticmaterials.
04 06.30

KEYS AND DOORS
12
ENGINE IMMOBILIZER SYSTEM
SV11007
The engine immobilizer system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key's head transmits an electronic
code to the vehicle. The engine will start only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.
The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.
For your Lexus dealer to make you a new key with built±in
transponder chip, your dealer will need your key number and
master key or the flat key. However, there is a limit to the
number of additional keys your Lexus dealer can make for you. The transponder chip of the flat key is in its key case. You can
cancel the engine immobilizer system using the flat key. (For
details, see ªFlat keyº on page 9.)
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZ RI±4ATY
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
04 06.30

KEYS AND DOORS
13
For vehicles sold in Canada
This device complies with RSS±210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
WIRELESS REMOTE CONTROL*
SV11008

Sedan
1Locking the doors and sounding an alarm
2Unlocking the doors
3Indicator light
4Unlocking the trunk lid
04 06.30

KEYS AND DOORS
14
SV11012a

SportCross
1Locking the doors
2Unlocking the doors
3Indicator light
4Sounding an alarm
NOTE: *This feature can be set inoperative as vehicle theftdeterrent measure in case of the loss of the wireless remote control key. Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The ef fective range may vary with
different conditions. To activate the wireless remote control
without fail, do it approximately 1 meter (3 ft.) from your Lexus. In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.

The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see ªReplacing the batteryº
on page 18. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident.
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
 Do not leave the wireless remote control key in places
where the temperature becomes high such as on the dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.
04 06.30

KEYS AND DOORS
15
Locking/Unlocking the doors
When you push the ªLOCKº button on the key briefly, all
the doors will be locked from outside the vehicle.
At this time, one beep sounds* and the emergency flashers
flash once.** However, when you push the ªLOCKº button with
any door not closed securely, the buzzer sounds for 10
seconds.*** To stop the buzzer, close all the doors securely or
push the ªUNLOCKº button. If the key is in the ignition switch,
locking cannot be done.
Make sure all the doors are locked when you leave the vehicle.
Push the ªLOCKº button once again. If they were already
locked, one beep sounds and the emergency flashers will
flash.
NOTE: *The beep sound can be set not to sound. **The emergency flasher can be set not to flash. ***The buzzercan be set not to sound if a door is not closed securely. Ask your Lexus dealer for details.
NOTICE
Sedan only: Do not push the ªLOCKº button any longerthan 2 to 3 seconds. Pushing the button longer activates
an alarm. For details, see page 16.
When you push the ªUNLOCKº button, the driver's door
is unlocked. Pushing that button once again within 3
seconds from the first push, all other doors are also
unlocked.*
NOTE: *The 2±step unlocking function can be changed. Ask your Lexus dealer for details.
At this time, two beeps sound* and the emergency flashers
flash twice.** Together with the activation of unlocking, the
interior light comes on for 15 seconds if the interior light switch
is in ªDOORº position.*** However, this function does not work
when the ignition key is in the ªONº position. For further
information, see ªInterior lightº on page 60.
You have 30 seconds to open a door after using the wireless
remote unlock feature.**** If a door is not opened by then, all
the doors will be automatically locked again.
Even if the ªLOCKº or ªUNLOCKº switch is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again.
NOTE: *The beep sound can be set not to sound. **The emergency flashers can be set not to flash. ***The interiorlight can be set not to come on or the duration of lighting can
be changed. ****The time before automatic re±locking can be changed. Ask your Lexus dealer for details.
04 06.30
