Knowing your vehicle6 3
1
2
3
4
5
6
7
8
9
This system is designed to provide
protection from unauthorized entry
into the car. This system is operated
in three stages: the first is the
"Armed" stage, the second is the
"Alarm" stage, and the third is the
"Disarmed" stage. If triggered, the
system provides an audible alarm
with blinking of the hazard warning
lights.
Armed stagePark the car and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the
ignition switch.
2. Make sure that the engine hood
and rear hatch/window are closed
and latched.
3. Lock the doors using the transmit-
ter of the keyless entry system.
After completion of the steps above,
the hazard warning lights will blink
once to indicate that the system is
armed.
✽ ✽
NOTICE• If any door, rear hatch/window or
engine hood remains open, the sys-
tem will not be armed.
• If this happens, rearm the system
as described previous.
THEFT-ALARM SYSTEM (IF EQUIPPED)
HMR.082
CAUTION
Do not arm the system until all
passengers have left the vehi-
cle. If the system is armed while
a passenger(s) remains in the
vehicle, the alarm may be acti-
vated when the remaining pas-
senger(s) leaves the vehicle.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 6

37
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Alarm stageThe alarm will be activated if any of
the following occurs while the system
is armed.
 A front or rear door is opened with-
out using the ignition key or trans-
mitter.
 The rear hatch/window is opened
without using the ignition key or
transmitter.
 The engine hood is opened.
The siren will sound and the hazard
warning lights will blink continuously
for 27 seconds, and repeat the alarm
3 times unless the system is dis-
armed. To turn off the system, unlock
the doors with the ignition key or
transmitter.✽ ✽
NOTICEAvoid trying to start the engine
while the alarm is activated. The
vehicle starting motor is disabled
during the alarm stage.
Disarmed stageThe system will be disarmed when
the doors are unlocked by depress-
ing the unlock button on the transmit-
ter or unlocked with the ignition key.
After depressing unlock button, the
hazard warning lights will blink twice
to indicate that the system is dis-
armed.
After depressing unlock button, if any
door is not opened within 30 sec-
onds, the system will be rearmed.
If the system is not disarmed with the
ignition key or transmitter, insert the
key in the ignition switch, turn the key
to the ON position and wait for 30
seconds. Then the system will be dis-
armed.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 7

Knowing your vehicle8 3
1
2
3
4
5
6
7
8
9
Your vehicle is equipped with an
electronic engine immobilizer system
to reduce the risk of unauthorized
vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
ignition key, and antenna coil in the
key cylinder and Immobilizer Control
Unit (or Smartra Unit).
With this system, whenever you
insert your ignition key into the igni-
tion switch and turn it to ON, the
antenna coil in the ignition switch
receives a signal from the transpon-
der in the ignition key and then sends
the signal to the ECU (Engine
Control Unit).
The ECU checks the signal whether
the ignition key is valid.
If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.To deactivate the immobilizer sys-
tem:
Insert the ignition key into the key
cylinder and turn it to the ON posi-
tion.
To activate the immobilizer sys-
tem:
Turn the ignition key to the OFF posi-
tion. The immobilizer system acti-
vates automatically. Without a valid
ignition key for your vehicle, the
engine will not start.
Limp home (override) proce-
dureWhen you turn the ignition key to the
ON position, if the IMMO indicator
goes off after blinking 5 times, your
transponder equipped in the ignition
key is out of order. You cannot start
the engine without the lime home pro-
cedure. To start the engine, you have
to input your password by using the
ignition switch.
The following procedure is how to
input your password of “2345” as an
example.
1. Turn the ignition key to the ON posi-
tion. The IMMO indicator ( ) will
blink 5 times and go off indicating
the beginning of the limp home pro-
cedure.
2. Turn the ignition key to the ACC
position.
3. To enter the first digit (in this
example “2”), turn the ignition key
to the ON and ACC position twice.
Perform the same procedure for
the next digits between 3 seconds
and 10 seconds (for example, for
“3”, turn the ignition ON and ACC
3 times).
IMMOBILIZER SYSTEM (IF EQUIPPED)
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 8

39
Knowing your vehicle
4. If all of the digits have been input
successfully, you have to start the
engine within 30 seconds. If you
attempt to start the engine after 30
seconds, the engine will not start
and you will have to input your
password again.
After performing the limp home pro-
cedure, you have to see an author-
ized Kia dealer immediately to
inspect and repair your ignition key
or immobilizer system.This device complies with
Industry Canada Standard RSS-
210.Operation is subject to the fol-
lowing two conditions:
1. This device may not cause inter-
ference, and
2. This device must accept any inter-
ference, including interference that
may cause undesired operation of
the device.
1
2
3
4
5
6
7
8
9

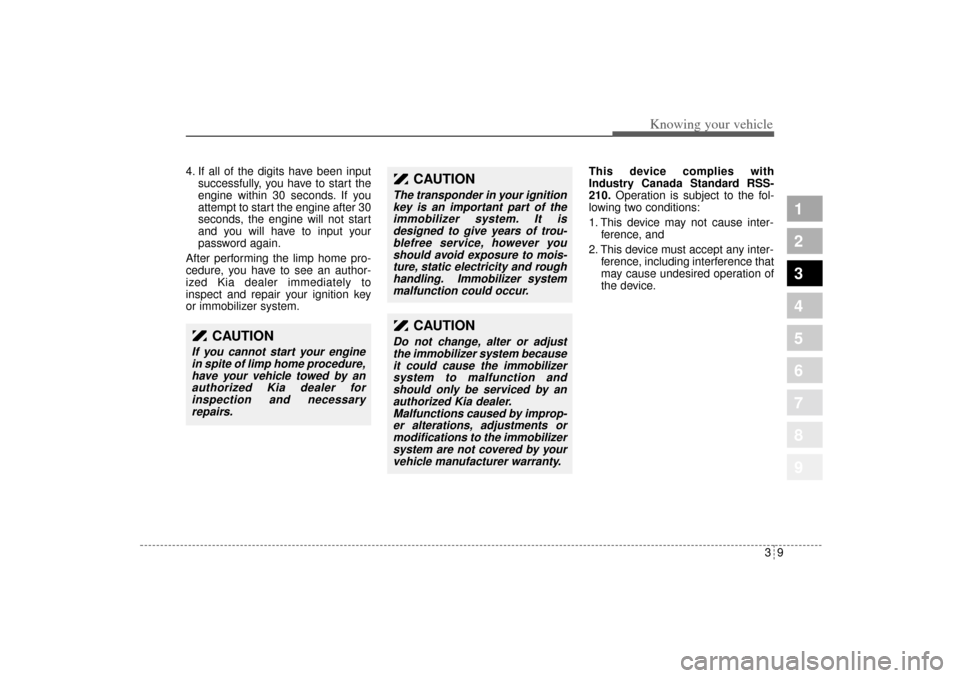

CAUTION
The transponder in your ignition
key is an important part of the
immobilizer system. It is
designed to give years of trou-
blefree service, however you
should avoid exposure to mois-
ture, static electricity and rough
handling. Immobilizer system
malfunction could occur.
CAUTION
Do not change, alter or adjust
the immobilizer system because
it could cause the immobilizer
system to malfunction and
should only be serviced by an
authorized Kia dealer.
Malfunctions caused by improp-
er alterations, adjustments or
modifications to the immobilizer
system are not covered by your
vehicle manufacturer warranty.
CAUTION
If you cannot start your engine
in spite of limp home procedure,
have your vehicle towed by an
authorized Kia dealer for
inspection and necessary
repairs.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 9

Knowing your vehicle10 3
1
2
3
4
5
6
7
8
9
Operating door locks from
outside the vehicle  Turn the key toward rear of vehicle
to unlock and toward front of vehi-
cle to lock.
 Turn the key toward front of vehicle
to lock all doors.
 Turn the key to the right once to
unlock the driver’s door and to the
right twice within 4 seconds to
unlock all doors. (if equipped)
 Turn the key to the left once to
unlock the passenger’s door and to
the left twice within 4 seconds to
unlock all doors. (if equipped) Doors can also be locked and
unlocked with the transmitter key (if
equipped).
 Once the doors are unlocked, it
may be opened by pulling the door
handle.
 When closing the door, push the
door by the hand. Make sure that
doors are closed securely.
To lock a door without the key, push
the inside door lock button (
➀) or
door lock switch (
➁, if equipped) to
the “Lock” position and close the
door (
➂).
✽ ✽
NOTICEAlways remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
1KMA2004
Lock
Unlock
1KMB2005
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 10

311
Knowing your vehicle
1
2
3
4
5
6
7
8
9
✽ ✽
NOTICEIf the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
Operating door locks from
inside the vehicleWith the door lock button To unlock a door, pull the door lock
button to the “Unlock” position (the
red part (
➁) of the button becomes
visible).
 To lock a door, push the door lock
button (
➀) to the “Lock” position. If
the door is locked (red part (
➁) of
the knob becomes invisible).
 To open a door, pull the door han-
dle (
➂) outward. If the inner door handle of driver’s
side door is pulled when the door
lock button is in lock position, the
button is unlocked and door opens.
 Front doors cannot be locked if the
ignition key is in the ignition switch
and door is open.
 If you lock the front door with door
lock button, all vehicle doors will
lock automatically.
1KMA2006
Lock
Unlock
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 11

Knowing your vehicle12 3
1
2
3
4
5
6
7
8
9

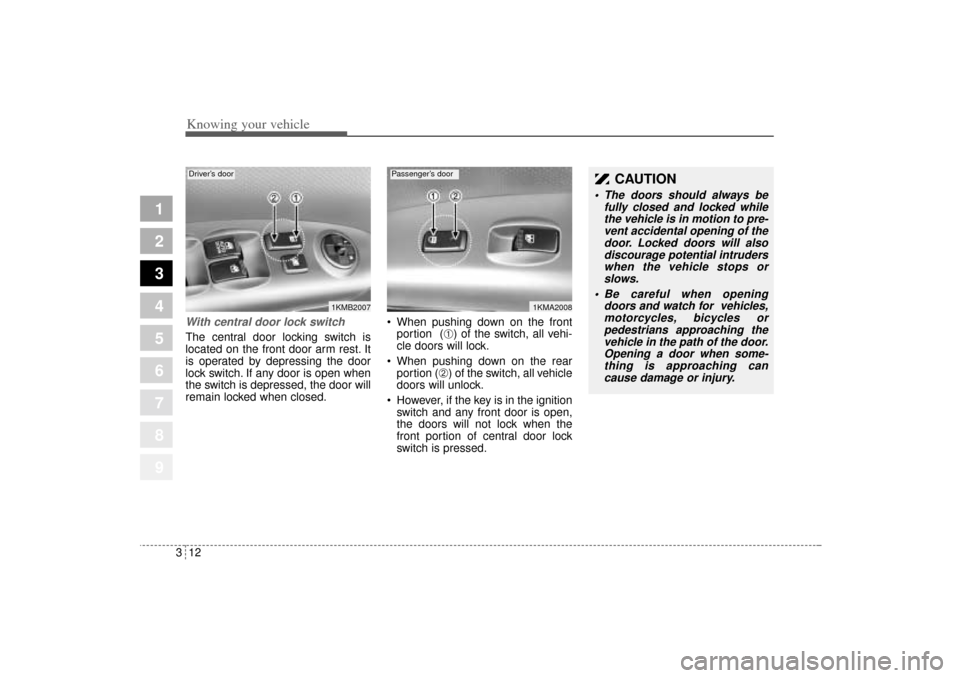

With central door lock switchThe central door locking switch is
located on the front door arm rest. It
is operated by depressing the door
lock switch. If any door is open when
the switch is depressed, the door will
remain locked when closed. When pushing down on the front
portion (
➀) of the switch, all vehi-
cle doors will lock.
 When pushing down on the rear
portion (
➁) of the switch, all vehicle
doors will unlock.
 However, if the key is in the ignition
switch and any front door is open,
the doors will not lock when the
front portion of central door lock
switch is pressed.
CAUTION
• The doors should always be
fully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
 Be careful when opening
doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.
Opening a door when some-
thing is approaching can
cause damage or injury.
1KMB2007
1KMA2008
Driver’s door
Passenger’s door
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 12

313
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Impact sensing door unlock
system (if equipped)All doors will be automatically
unlocked when the Supplemental
Restraint System (SRS) detects a
collision while the ignition switch is
ON.
However, the doors may not be
unlocked when malfunctions exist in
mechanical door lock system or if
electrical power in the vehicle should
fail.
WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 13
