2005 KIA Sportage Owner's Manual

Knowing your vehicle22 3
1
2
3
4
5
6
7
8
9
Front seat adjustmentAdjusting the seat forward and
backwardTo move the seat forward or back-
ward:
1. Pull the seat slide adjustment
lever under the front edge of the
seat cushion up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
Adjusting the seatback reclinerTo recline the seatback:
1. Lean forward slightly and lift up on
the seatback recline lever located
on the outside of the seat, at the
rear.
2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
1KMA2035
1KMA2037
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 22

323
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Adjusting the height of seat cush-
ion (for driver’s seat)To change the height of the seat
cushion, rotate the knob located on
the outside of the seat cushion.
 To adjust the front height of the
seat cushion, rotate the knob (
➀).
 To adjust the rear height of the seat
cushion, rotate the knob (
➁).
Warming the front seats
(if equipped)The front seats can be electrically
heated individually when the ignition
switch is ON. When you depress the
seat warmer switch, a thermostat
regulates seat temperature. To deac-
tivate the heating system, depress
the switch once again.
WARNING
Driving or riding in a vehicle
with a front seatback reclined
could lead to serious or fatal
injury in an accident. If a front
seat is reclined during an acci-
dent, the occupant’s hips may
slide under the lap portion of
the safety belt applying great
force to the unprotected
abdomen or neck. Serious or
fatal internal injuries could
result. Keep the seatbacks in a
comfortably upright position
whenever the vehicle is in
motion.
1KMA2036
1KMA2039
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 23

Knowing your vehicle24 3
1
2
3
4
5
6
7
8
9
✽ ✽

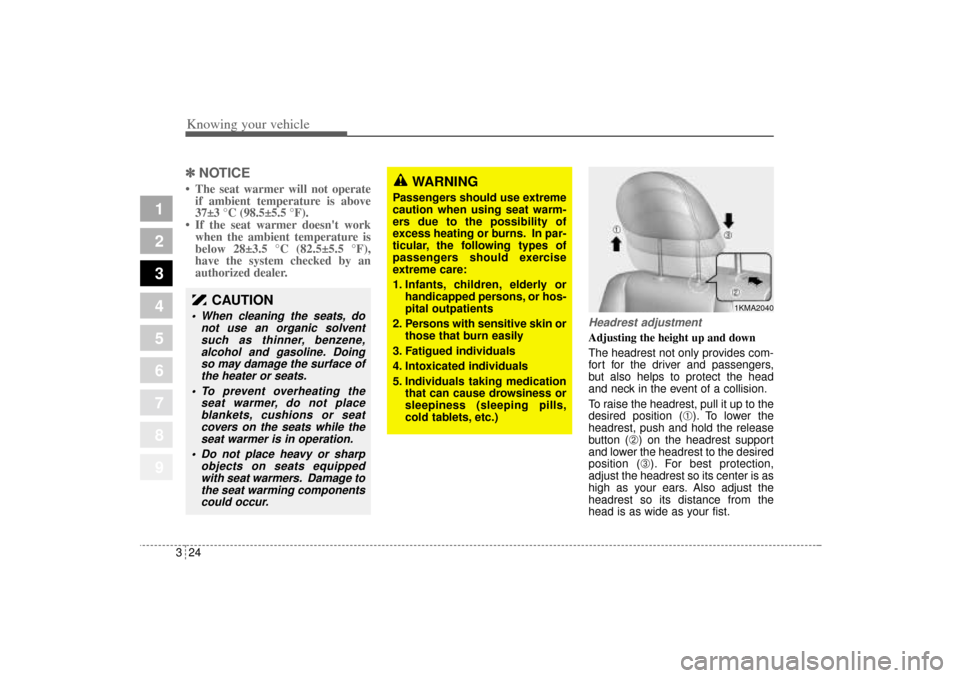

NOTICE• The seat warmer will not operate
if ambient temperature is above
37±3 °C (98.5±5.5 °F).
• If the seat warmer doesn't work
when the ambient temperature is
below 28±3.5 °C (82.5±5.5 °F),
have the system checked by an
authorized dealer.
Headrest adjustmentAdjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
➀). To lower the
headrest, push and hold the release
button (
➁) on the headrest support
and lower the headrest to the desired
position (➂). For best protection,
adjust the headrest so its center is as
high as your ears. Also adjust the
headrest so its distance from the
head is as wide as your fist.
WARNING
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. In par-
ticular, the following types of
passengers should exercise
extreme care:
1. Infants, children, elderly or
handicapped persons, or hos-
pital outpatients
2. Persons with sensitive skin or
those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication
that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
1KMA2040
CAUTION
 When cleaning the seats, do
not use an organic solvent
such as thinner, benzene,
alcohol and gasoline. Doing
so may damage the surface of
the heater or seats.
 To prevent overheating the
seat warmer, do not place
blankets, cushions or seat
covers on the seats while the
seat warmer is in operation.
 Do not place heavy or sharp
objects on seats equipped
with seat warmers. Damage to
the seat warming components
could occur.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 24

325
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Removal
To remove the headrest, raise it as
far as it can go then press the
release lever (
➀) while pulling
upward (
➁).
Full flat seatTo allow the rear seat passenger to
support their legs while the front seat
is in a reclined position, the front
seatback can be reclined nearly flat.
1. Remove the headrest.
2. Move the front seat to the farthest
forward position.
3. Recline the seatback as far as it
can go to allow the rear seat pas-
senger to support their legs in the
reclined position.
1KMA2041
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-
tioned.
Do not adjust the driver’s head-
rest while driving.
1KMA2045
WARNING
 Do not allow a rear seat pas-
senger to use the full flat seat
feature and recline while the
vehicle is in motion. Severe
injury or death could occur.
 When you return the seatback
to its upright position, hold
the seatback and return it
slowly. If the seatback is
returned without holding it,
the back of the seat could
spring forward resulting in
accidental injury from being
struck by the seatback.
 When returning the seatback
to the upright position, ensure
the seatback is completely
locked into place.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 25

Knowing your vehicle26 3
1
2
3
4
5
6
7
8
9
Seatback tableYou can turn the front passenger
seat into seatback table by folding
the passenger seatback all the way
forward.To operate seatback table
1. Lower the headrest.
2. With the recliner control lever
pulled up, fold the seatback for-
ward to the flat position.
3. When returning the seatback to
the upright position, ensure the
seatback is completely locked into
place.
1KMA2044
1KMA2191
WARNING
 Do not sit on the seatback
table.
 Do not use the seatback table
when the vehicle is in motion.
 Do not leave items on the
seatback table when the vehi-
cle is in motion.
 When returning the seatback
to the upright position, ensure
the seatback is completely
locked into place.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 26

327
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Seatback pocketA seatback pocket is provided on the
back of the front passenger and driv-
ers seatbacks.
Rear seat adjustmentAdjusting the seatback To recline the seatback:
1. Pull the lock release lever located
on the top of the seatback.
2. Recline the seatback to the
desired position.
3. Release the lever and make sure
the seatback is locked in place.
Split folding rear seat The rear seatbacks fold forward to
provide additional cargo space and
to provide access to the cargo area.
 To fold the rear seatback(s) down,
pull the lock release lever, then fold
the seatback forward and down.
 To raise the seatback, lift and push
it firmly until it clicks into place.
 When you return the seatback to
its upright position, reposition the
rear safety belts so that they can
be used by rear seat passengers.
1KMA2042
WARNING
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and injure
vehicle occupants.
1KMA2049
CAUTION
When reclining the seatback,
you should adjust the lock
release lever while standing and
holding the seatback.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 27

Knowing your vehicle28 3
1
2
3
4
5
6
7
8
9
To fold the rear seat;
1. Lower the headrest to the lowest
position.
2. Pull the lock release lever located
on the top of the seatback.
3. Fold the seatback forward and
down firmly until it clicks into
place.
✽ ✽
NOTICEWhen you fold the rear seatback or
put luggage on the rear seat cushion,
insert the buckle in the pocket
between the rear seatback and cush-
ion. Doing so can prevent the buckle
from being damaged by the rear
seatback or luggage.
✽ ✽
NOTICEWhen returning the rear seatbacks
to the upright position, remember to
return the rear shoulder belts to
their proper position. Routing the
safety belt webbing through the rear
safety belt guides will help keep the
belts from being trapped behind or
under the seats.
1KMA2052
1KMA2054
1KMA2054A
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 28

329
Knowing your vehicle
1
2
3
4
5
6
7
8
9
To unfold the rear seat;
1. Pull the lock release lever located
on the top of the seatback.
2. Lift and push the seatback back-
ward firmly until it clicks into place.
Make sure the seatback is locked
in place.
3. Return the rear safety belt to the
proper position.
WARNING
- Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants.
CAUTION
 Make sure the engine is off,
the transaxle is in P and the
parking brake is applied
whenever loading or unload-
ing cargo. Vehicle may move if
shift lever is inadvertently
moved to another position.
 When cargo is loaded through
the rear passenger seats,
ensure the cargo is properly
secured to prevent it from
moving while driving.
Unsecured cargo in the pas-
senger compartment can
cause damage to the vehicle
or injury to it’s occupants.
CAUTION
 When returning the rear seat-
backs to the upright position,
remember to return the rear
shoulder belts to their proper
position.
 Do not remove the floor carpet
in your vehicle. Emission con-
trol system components
cause high exhaust tempera-
tures under the floor.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 29
