2005 KIA Sportage Owner's Manual

85
1
2
3
4
5
6
7
8
9

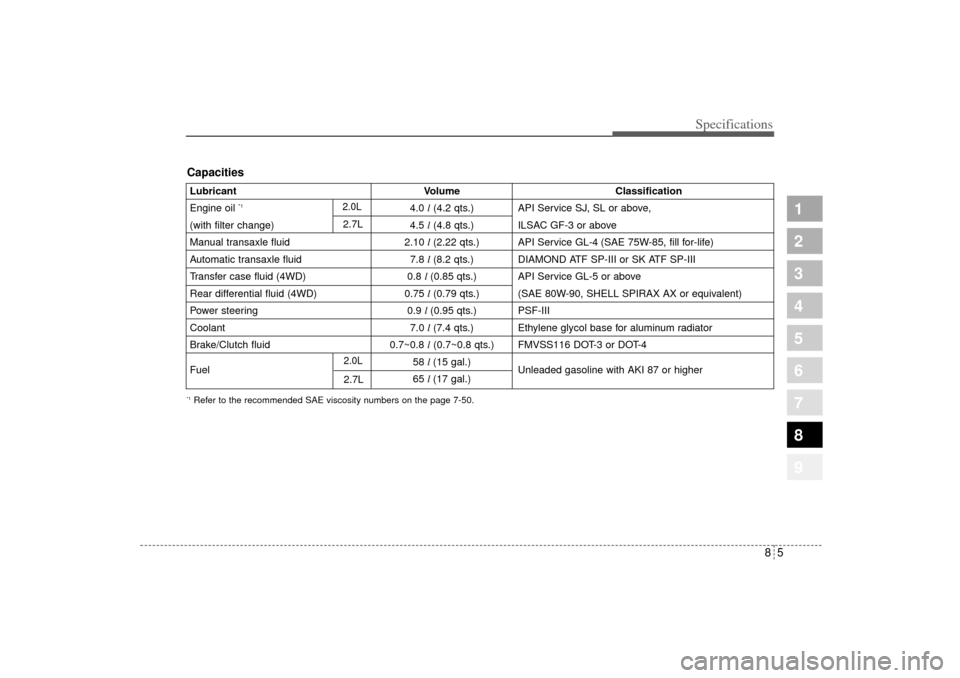

Specifications
*1Refer to the recommended SAE viscosity numbers on the page 7-50.Lubricant Volume Classification
Engine oil
*1
4.0 l(4.2 qts.) API Service SJ, SL or above,
(with filter change) 4.5 l(4.8 qts.) ILSAC GF-3 or above
Manual transaxle fluid 2.10 l (2.22 qts.) API Service GL-4 (SAE 75W-85, fill for-life)
Automatic transaxle fluid 7.8 l (8.2 qts.) DIAMOND ATF SP-III or SK ATF SP-III
Transfer case fluid (4WD) 0.8 l (0.85 qts.) API Service GL-5 or above
Rear differential fluid (4WD) 0.75 l (0.79 qts.) (SAE 80W-90, SHELL SPIRAX AX or equivalent)
Power steering 0.9 l (0.95 qts.) PSF-III
Coolant 7.0 l (7.4 qts.) Ethylene glycol base for aluminum radiator
Brake/Clutch fluid 0.7~0.8 l(0.7~0.8 qts.) FMVSS116 DOT-3 or DOT-4
Fuel58 l (15 gal.)
Unleaded gasoline with AKI 87 or higher
65 l (17 gal.)
2.0L2.7L2.0L2.7L
Capacities
KM CAN (ENG) 8.qxd 9/13/2004 4:04 PM Page 5

Specifications6 8
1
2
3
4
5
6
7
8
9
Light Bulb Wattage
Headlights (Low/High) 55/60
Front turn signal lights 27
Position lights 5
Front fog lights (if equipped) 35
Stop and tail lights 28/8
Rear turn signal lights 27
Back-up lights 17
Rear side mark light 5
High mounted stop light LED
*1
License plate lights 5
Front map lamp 10
Center dome lamp 10
Rear dome lamp 10
Door courtesy lamps (if equipped) 5
Cargo area lamp 5
Glove box lamp 5Light bulbs*1LED : Light-emitting diode
KM CAN (ENG) 8.qxd 9/13/2004 4:04 PM Page 6
