FEATURES OF YOUR HYUNDAI
49
B240B03L
Upon deployment, tear seams molded directly into the pad covers will sepa-rate under pressure from the expan- sion of the airbags. Further opening of the covers then allows full inflation ofthe airbags.
B240B02L
The SRS service reminder indicator(SRI) on the instrument panel will illu-minate for about 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out. The airbag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags.
A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forwardmotion, thus reducing the risk of head or chest injury. After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility.
B240B01NF-GAT SRS Components and Functions
The SRS consists of the following com- ponents:
- Driver's Front Airbag Module
- Passenger's Front Airbag Module
- Knee bolster
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" todetermine if a frontal or near-frontal impact is severe enough to require airbag deployment. B240B01L

1FEATURES OF YOUR HYUNDAI
50
!
However, the fine dust generated during airbag deployment may cause skin irritation. Wash all exposed skin areas thoroughlywith lukewarm water and a mild soap after an accident in which the airbags were deployed.
o The SRS can function only when the ignition key is in the "ON"position.If the SRS is not working prop- erly,
(1)The SRS SRI does not come on when the ignition key isturned to the "ON" position or after the engine is started.
(2)The SRS SRI blinks for a sec- ond and remains on after illu-minating for about 6 secondswhen the ignition key is turned to the "ON" position or after he engine is started.
(3)The SRS SRI illuminates while driving.
If this occurs, have your vehicleimmediately inspected by your Hyundai dealer.

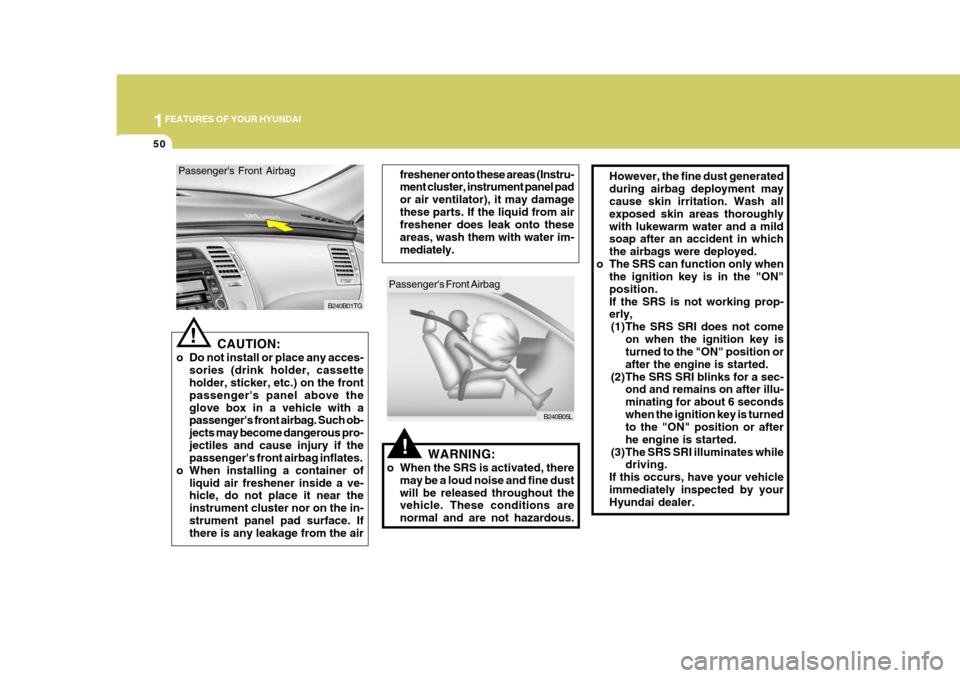

Passenger's Front Airbag
B240B05L
freshener onto these areas (Instru-ment cluster, instrument panel pad or air ventilator), it may damagethese parts. If the liquid from air freshener does leak onto these areas, wash them with water im-mediately.
WARNING:
o When the SRS is activated, there may be a loud noise and fine dustwill be released throughout the vehicle. These conditions are normal and are not hazardous.
CAUTION:
o Do not install or place any acces- sories (drink holder, cassette holder, sticker, etc.) on the front passenger's panel above theglove box in a vehicle with a passenger's front airbag. Such ob- jects may become dangerous pro-jectiles and cause injury if the passenger's front airbag inflates.
o When installing a container of
liquid air freshener inside a ve-hicle, do not place it near the instrument cluster nor on the in-strument panel pad surface. If there is any leakage from the air B240B01TG
Passenger's Front Airbag!

1
FEATURES OF YOUR HYUNDAI
51

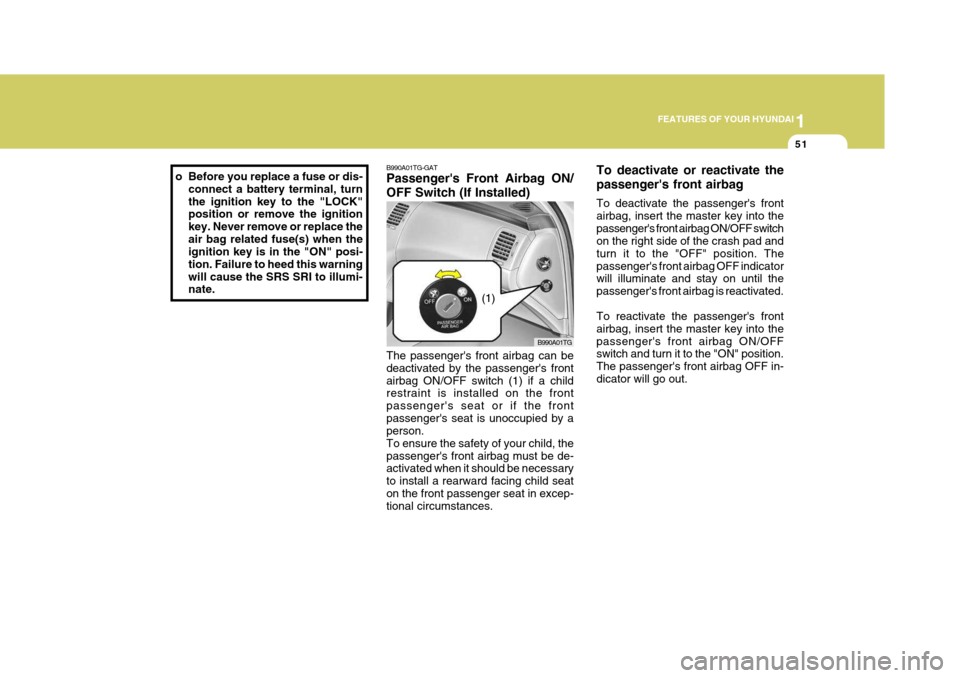

B990A01TG-GAT Passenger's Front Airbag ON/ OFF Switch (If Installed)
B990A01TG
The passenger's front airbag can be deactivated by the passenger's frontairbag ON/OFF switch (1) if a child restraint is installed on the front passenger's seat or if the frontpassenger's seat is unoccupied by a person. To ensure the safety of your child, thepassenger's front airbag must be de- activated when it should be necessary to install a rearward facing child seaton the front passenger seat in excep- tional circumstances. To deactivate or reactivate the passenger's front airbag To deactivate the passenger's front airbag, insert the master key into thepassenger's front airbag ON/OFF switch on the right side of the crash pad and
turn it to the "OFF" position. Thepassenger's front airbag OFF indicator will illuminate and stay on until the passenger's front airbag is reactivated. To reactivate the passenger's front airbag, insert the master key into thepassenger's front airbag ON/OFF switch and turn it to the "ON" position. The passenger's front airbag OFF in-dicator will go out.
(1)o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.

1FEATURES OF YOUR HYUNDAI
52
!WARNING:
o The driver is responsible for the proper position of the passenger's front airbag ON/OFF switch.
o Deactivate the front passenger's airbag only when the ignitionswitch is switched off, or the mal- function may occur in the SRSCM(SRS Control Module). And there may be a danger that the driver's and/or passenger's front and/orside and curtain airbag may fail to trigger, or not trigger correctly during a collision.
o Never install a rearward facing child seat on the frontpassenger's seat. The infant orchild could be severely injured or killed by an airbag deploy- ment in case of an accident.
o If the SRS airbag warning light
does not illuminate when the ig-nition key is turned to the "ON" position, or if it illuminates while the vehicle is being driven, havean authorized Hyundai dealer in- spect the passenger's front airbag ON/OFF switch, pre-tensioner seat belt and the SRS airbag system as soon as pos- sible.! CAUTION:
o If the passenger's front airbag ON/OFF switch is not working properly, the SRS warning light on the instrument panel will illu-minate. And, the passenger's front airbag OFF indicator will not illuminate,the SRSCM(SRS Control Module) reactivate the passenger's front airbag and the passenger's frontairbag will inflate in frontal im- pact crashes even if the passenger's front airbag ON/OFFswitch is set to "OFF" position. If this occurs, have an authorized Hyundai dealer inspect thepassenger's front airbag ON/OFF switch, the pre-tensioner seat belt system and the SRS airbag sys-tem as soon as possible.

1FEATURES OF YOUR HYUNDAI
54
B990C01JM-GAT Curtain Airbag (If Installed)
Curtain airbags are located along both sides of the roof rails above the front and rear doors.They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants incertain side impact collisions. The curtain airbags are designed to deploy only during certain side impact collisions, depending on the crash se- verity, angle, speed and impact. Thecurtain airbags are not designed to deploy in all side impact situations, collisions from the front or rear of thevehicle or in most rollover situations. HLZ2051
Curtain Airbag
o Do not place any objects (an um-
brella, bag, etc.) between the frontdoor and the front seat. Such ob-jects may become dangerous pro- jectiles and cause injury if the supplemental side impact air baginflates.
o To prevent unexpected deploy-
ment of the side impact air bagthat may result in personal injury, avoid impact to the side airbag sensor when the ignition key ison.The airbags deploy only in certain side impact conditions severe enough to cause significant injuryto the vehicle occupants.
o For best protection from the side
airbag system and to avoid beinginjured by the deploying side im- pact airbag, each seat occupants should sit in an upright positionwith the seat belt properly fas- tened. The driver's hands should be placed on the steering wheel atthe 9:00 and 3:00 positions. The passenger's arms and hands should be placed on their laps.
o Do not use any accessory seat covers.
o Use of seat covers could reduce
or prevent the effectiveness of the system.
o Do not install any accessories on
the side or near the side impactairbag.
o Do not use excessive force on the
side of the seat.
o Do not place any objects over the
airbag or between the airbag and yourself.

1FEATURES OF YOUR HYUNDAI
62
B260F01A-AAT High Beam Indicator Light
The high beam indicator light comes on whenever the headlights areswitched to the high beam or flash position.
If your vehicle is equipped with the supervision type cluster, the warning text is double informed on the dot ma-trix display. The warning text comes on for about 20 seconds. If you push the RESET button behind the steeringwheel, the warning text will go out.
CAUTION:
If the low oil pressure warning lightstays on while the engine is running, serious engine damage may result. The low oil pressure warning lightcomes on whenever there is insuffi- cient oil pressure. In normal opera- tion, it should come on when the ignition switch is turned on, then go out when the engine is started. If thelow oil pressure warning light stays on while the engine is running, there is a serious malfunction.If this happens, stop the car as soon as it is safe to do so, turn off the engine and check the oil level. If theoil level is low, fill engine oil to the proper level and start the engine again. If the light stays on with theengine running, turn the engine off immediately. In any instance where the oil light stays on when the engineis running, the engine should be checked by an authorized Hyundai dealer before the car is driven again.
!
B260G01TG
WARNING AND INDICATOR LIGHTS
B260D01A-AAT Turn Signal Indicator
Lights
The blinking green arrows on the in- strument panel show the direction indi-cated by the turn signals. If the arrow comes on but does not blink, blinks more rapidly than normal, or does notilluminate at all, a malfunction in the turn signal system is indicated. Your dealer should be consulted for repairs.
B260G01TG-AAT Low Oil Pressure Warn-
ing Light

1
FEATURES OF YOUR HYUNDAI
63
!
Your Hyundai is equipped with dual- diagonal braking systems. This meansyou still have braking on two wheels even if one of the dual systems should fail. With only one of the dual systemsworking, more than normal pedal travel and greater pedal pressure are re- quired to stop the car. Also, the car willnot stop in as short a distance with only half of the brake system working. If the brakes fail while you are driving, shiftto a lower gear for additional engine braking and stop the car as soon as it is safe to do so.
B260H02A-GAT
Parking Brake/Low Brake
Fluid Level Warning Light
WARNING:
If you suspect brake trouble, haveyour brakes checked by a Hyundai dealer as soon as possible. Driving your car with a problem in either thebrake electrical system or brake hydraulic system is dangerous, and could result in a serious injury or death.Warning Light Operation The parking brake/low brake fluid level warning light should come on when theparking brake is applied and the igni- tion switch is turned to "ON" or "START". After the engine is started,the light should go out when the park- ing brake is released. If the parking brake is not applied, thewarning light should come on when the ignition switch is turned to "ON" or "START", then go out when the enginestarts. If the light comes on at any other time, you should slow the vehicle and bring it to a complete stop in a safelocation off the roadway. The brake fluid level warning light indi- cates that the brake fluid level in thebrake master cylinder is low and hy- draulic brake fluid conforming to DOT 3 or DOT 4 specifications should beadded. After adding fluid, if no other trouble is found, the car should be immediately and carefully driven to aHyundai dealer for inspection. If fur- ther trouble is experienced, the vehicle should not be driven at all but taken toa dealer by a professional towing ser- vice or some other safe method.

1FEATURES OF YOUR HYUNDAI
64
B260L01TG-GATDoor Ajar Warning Light
The door ajar warning light warns you that a door is not completely closed.
B260L01TG
If your vehicle is equipped with the supervision type cluster, the warning text is double informed on the dot ma-trix display. The warning text comes on for about 20 seconds. If you push the RESET button behind the steeringwheel, the warning text will go out.
B260J01TG
If your vehicle is equipped with the supervision type cluster, the warning text is double informed on the dot ma-trix display. The warning text comes on for about 20 seconds. If you push the RESET but-ton behind the steering wheel, the warn- ing text will go out.
B260J01TG-GAT
Charging System Warn-
ing Light
The charging system warning light should come on when the ignition isturned on, then go out when the engine is running. If the light stays on while the engine is running, there is a malfunctionin the electrical charging system. If the light comes on while you are driving, stop, turn off the engine and checkunder the hood. First, make certain the generator drive belt is in place. If it is, check the tension of the belt.
