1FEATURES OF YOUR HYUNDAI
66
B260E01TG-GAT Seat Belt Warning Light
(Except E.C)
The seat belt warning light blinks for about 6 seconds when the ignition keyis turned from the "OFF" position to the "ON". NOTE: You can find the front passenger's seat belt warning light on the center fascia panel.
*1) When the ignition key is turned from "OFF" position to "ON" within 1 minute.
*2) If the vehicle speed exceeds 9km/ h, the seat belt chime also soundsfor about 1~2 minutes.If the vehicle speed is below 9km/h, 1 minute later the seat belt chime also sounds for about 1~2 minutes.
The seat belt warning light and chimewill activate to the following table.
B265E01TG-GAT
Seat Belt Warning Light
and Chime (E.C only)
User (Driver+Front Passenger) Condition Sat Belt WarningLight
Seat Belt Ignition Switch
Unbuckled ON Stay on until buckled up
Buckled ON Come on for 6 seconds
Unbuckled ON * 1
Blink until buckled up
ON Blink until buckled up* 2
Buckled



Unbuckled NOTE:
o You can find the front passenger's
seat belt warning light on the cen- ter fascia panel.
o If the driver's seat belt is operated in this order "unbuckled

buck-
led

unbuckled" within 9 sec-
onds after the seat belt is buckled, the seat belt warning light and chime will not activate.
o Although the front passenger seat is not occupied, the seat belt warn-ing light will illuminate for 6 sec-onds.
o The seat belt warning light can be
operated when luggage is placedon the front passenger seat.

1
FEATURES OF YOUR HYUNDAI
67
B260N01TG B260B01JM-AAT
SRS (Airbag) Service Reminder Indicator (SRI)
The SRS service reminder indicator (SRI) comes on for about 6 secondsafter the key is turned to the "ON" position or after the engine is started, after which it will go out. This light also comes on when the SRS is not working properly. If the SRI doesnot come on, or continuously remains on after operating for about 6 seconds when you turned the ignition key to the"ON" position or started the engine, or if it comes on while driving, have the SRS inspected by an authorizedHyundai dealer.
If your vehicle is equipped with the supervision type cluster, the warningtext is double informed on the dot ma- trix display. The warning text comes on for about 20 seconds. If you push theRESET button behind the steering wheel, the warning text will go out.
B260A01Y-GAT Front Fog Indicator Light
This fog indicator light comes on when the ignition key is turned to the "ON"position and the front fog light switch is on. B260N01TG-AAT Malfunction Indicator Light (MIL)
This light illuminates when there is a malfunction of an exhaust gas related component, and the system is notfunctioning properly so that the ex- haust gas regulation values are not satisfied. This light will also illuminatewhen the ignition key is turned to the "ON" position, and then it will go out in a few seconds after the engine isstarted. If it illuminates while driving, or does not illuminate when the ignition key is turned to the "ON" position, takeyour car to your nearest authorized Hyundai dealer and have the system checked.

1FEATURES OF YOUR HYUNDAI
68
!
B260P01TG-GAT
ABS Service Reminder
Indicator (SRI)
When the key is turned to the "ON" position, the Anti-Lock Brake SystemSRI will come on and then go off in a few seconds. If the ABS SRI remains on, comes on while driving, or does notcome on when the key is turned to the "ON" position, this indicates that there may be a problem with the ABS.If this occurs, have your vehicle checked by your Hyundai dealer as soon as possible. The normal brakingsystem will still be operational, but without the assistance of the anti-lock brake system.
WARNING:
If the both ABS SRI and Parking Brake/Low Brake fluid level warn- ing lights remain "ON" or come on while driving, there may be a prob-lem with E.B.D. (Electronic brake force distribution). If this occurs, avoid sudden stopsand have your vehicle checked by your Hyundai dealer as soon as pos- sible.
CAUTION:
If there is a malfunction of the passenger's front airbag ON/OFF switch, the passenger's front airbagOFF indicator will not illuminate and the passenger's front airbag will inflate in frontal impact crasheseven if the passenger's front airbag ON/OFF switch is set to the "OFF" position.If the passenger's front airbag OFF indicator will not illuminate when the passenger's front airbag ON/OFF switch is set to the "OFF" po- sition, have an authorized Hyundai dealer inspect the passenger's frontairbag ON/OFF switch and the SRS airbag system as soon as possible.
!
B230T02NF-GAT
Passenger's Front Airbag
OFF Indicator Light
(If Installed)
The passenger's front airbag OFF in- dicator illuminates for about 4 seconds after the ignition key is turned to the"ON" position or after the engine is started, and then it will go off in 3 seconds.The passenger's front airbag OFF in- dicator also comes on when the passenger's front airbag ON/OFFswitch is set to "OFF" position and turns off when the passenger's front airbag ON/OFF switch is set to "ON"position.

1
FEATURES OF YOUR HYUNDAI
69
B265C01NF-GAT
Electronic Stability Program Indicator Lights(If Installed)
The electronic stability program indi- cators change operation according to the ignition switch position and whetherthe system is in operation or not. They will illuminate when the ignition key is turned to the "ON" position, butshould go out after three seconds. If the ESP or ESP-OFF indicator stays on, take your car to your authorizedHyundai dealer and have the system checked. See section 2 for more infor- mation about the ESP.B260Q01NF-GAT CRUISE Indicator Light (If Installed)
The cruise indicator light in the instru- ment cluster is illuminated when thecruise control ON/OFF switch on the steering wheel is pushed. The indicator light does not illuminatewhen the cruise control ON/OFF switch is pushed again. Information about the use of cruise control begins on page 1-109.
B260R01NF-GAT Cruise SET Indicator
Light (If Installed)
The Cruise SET indicator light in the instrument cluster is illuminated when the cruise control "COAST/SET" or"RES/ACCEL" switch is pushed. The Cruise SET indicator light does not illuminate when the cruise control"CANCEL" switch is pushed or the system is disengaged. To disengage the cruise control system, refer to "Tocancel the cruise speed" on page 1- 110.
If your vehicle is equipped with the supervision type cluster, the warning text is double informed on the dot ma- trix display. The warning text comes on for about 20 seconds. If you push the RESET button behind the steeringwheel, the warning text will go out.
B260P01TG

1FEATURES OF YOUR HYUNDAI
70INSTRUMENT CLUSTER
B270A01A-AAT BRAKE PAD WEAR WARNING SOUND The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noise when new pads are needed. The sound may come and go or be heard all thetime when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Exces-sive rotor damage will result if the worn pads are not replaced. See your Hyundai dealer immediately. B280A01TG-GAT FUEL GAUGE
The needle on the gauge indicates the approximate fuel level in the fuel tank. The fuel capacity is given is section 9. NOTE: The "
" symbol means the fuel
filler lid is placed on the left side of the vehicle. B280A01TG
Conventional Type Supervision Type
B260U01TB-GAT
Immobilizer Warning Light (If Installed)
This indicator light comes on for some seconds after the ignition key is turnedto the "ON" position. At this time, you can start the engine. The light goes out after the engine is running. In case thislight goes out before you start the en- gine, you must turn to the "LOCK" position and restart the engine. In casethis light blinks for five seconds when the ignition key is turned to "ON" posi- tion, this indicates that the immobilizersystem is out of order. At this time, refer to the explanation of the Limp home procedure(See page 1-8) or con-sult to the Hyundai dealer.

1
FEATURES OF YOUR HYUNDAI
73
NOTE:
o If your vehicle is equipped with the conventional type cluster, the unit is displayed only in the aver-age speed and the average fuel consumption.
o Each unit can be displayed by the unit "MILE" according to region.
TRIPMETER
DISTANCE TO EMPTY AVERAGE SPEED DRIVE TIME
AVERAGE FUEL CONSUMPTION
Pushing in the MODE switch when the ignition switch is in "ON" position changes the display as follows; B400B02TG
MODE SWITCH
TRIP COMPUTER

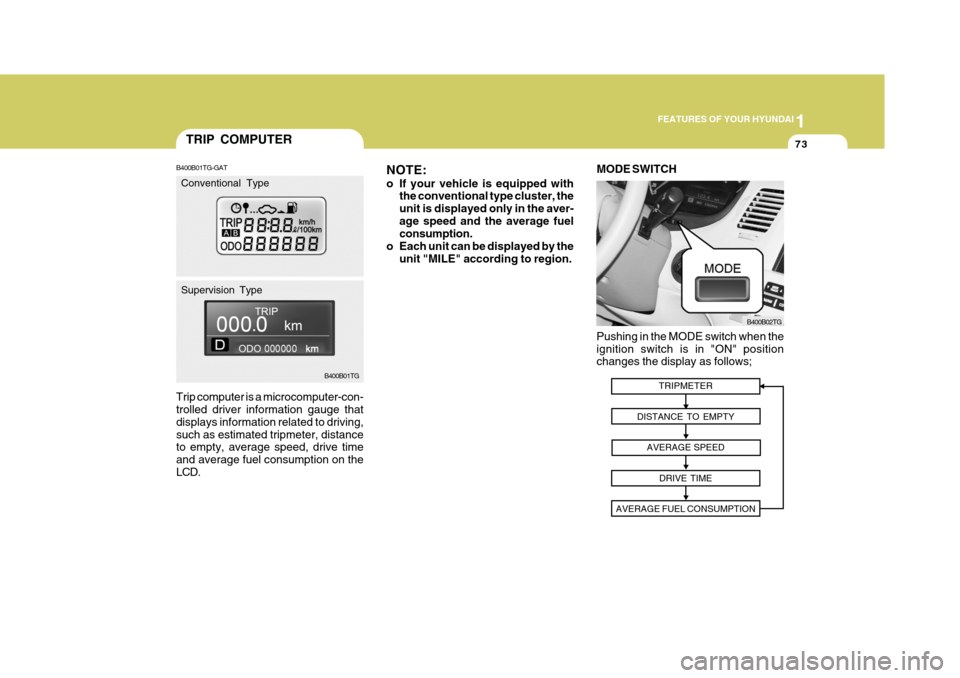

B400B01TG-GAT Trip computer is a microcomputer-con- trolled driver information gauge that displays information related to driving,such as estimated tripmeter, distance to empty, average speed, drive time and average fuel consumption on theLCD. B400B01TG
Conventional Type Supervision Type

1
FEATURES OF YOUR HYUNDAI
75
o When the distance to empty is less than 50 km (30 miles), the distance to empty digits (----) will blink untilmore fuel is added.
NOTE:
o The distance to empty can differ from the actual tripmeter accord- ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehicle speed.
B400B07TG
Conventional TypeB400B08TG
3. Average Speed
o This mode indicates the average
speed from the starting of the engine to the ignition key "OFF".
o Average speed is reset to zero if the battery is disconnected.
o To reset the average speed to zero (-
--), press the RESET switch for more than 1 second.
o When you drive 0.5 km (0.5 mile)
and less after resetting, the averagespeed will be displayed to '---'.
Conventional Type Supervision Type
Supervision Type
2. Distance to Empty
o This mode indicates the estimated
distance to empty from the current fuel level in the fuel tank.
o The trip computer may not register additional fuel if less than 6 liters(1.36 gallons) of fuel are added to thevehicle.
o When the battery has been rein-
stalled after being discharged or dis-connected, drive more than 64km (40 miles) for an accurate distance to empty.B400B06TG
Conventional Type Supervision Type

1FEATURES OF YOUR HYUNDAI
76
o To reset the average fuel consump-tion to zero (--), press the RESET switch for more than 1 second.
o When you drive 0.5 km (0.5 mile) and
less after resetting, the average fuelconsumption will be displayed to '--'.
5. Average Fuel Consumption
B400B10TG
o This mode calculates the average fuel consumption from the total fuel used and the distance since the last average consumption reset.
o The total fuel used is calculated from the fuel consumption input.
o Average fuel consumption is reset to
zero (--) if the battery is discon- nected.
Conventional Type Supervision Type
B400B09TG

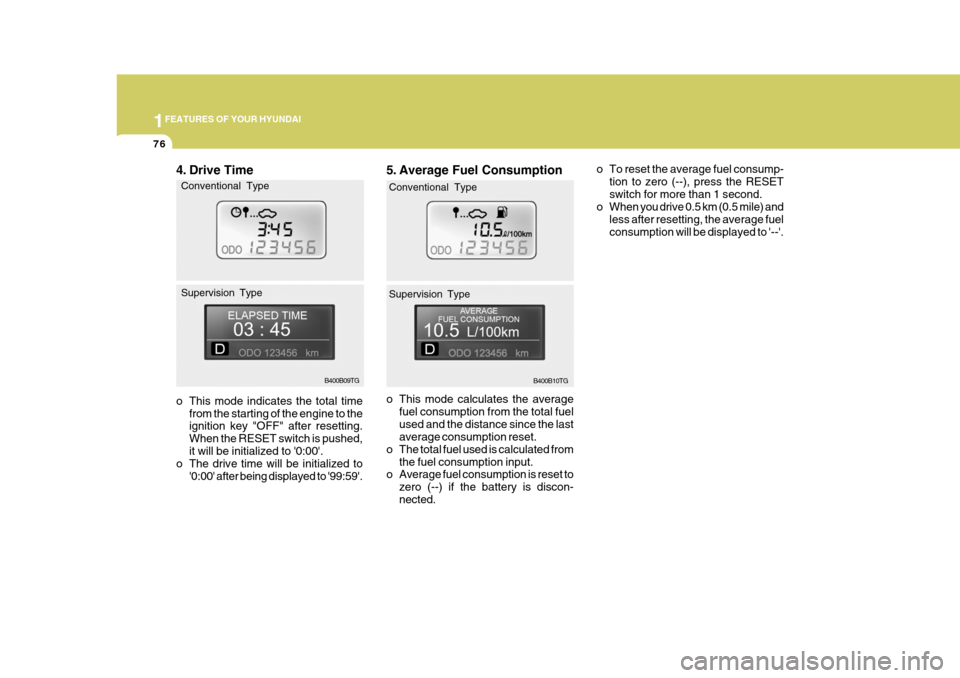

4. Drive Time
o This mode indicates the total time
from the starting of the engine to the ignition key "OFF" after resetting. When the RESET switch is pushed,it will be initialized to '0:00'.
o The drive time will be initialized to
'0:00' after being displayed to '99:59'.
Conventional Type Supervision Type
