2004 VOLVO XC90 Owners Manual

2004 VOLVO XC90
4. Lift out the lamp housing.
CAUTION
- Do not touch the glass on the halogen bulbs with your fingers. Grease,\
oil, or any other impurities
can be carbonized onto the bulb and cause damage to the reflector.
- Be sure to use bulbs of the correct type and voltage.
Location of the bulbs in the headlight housing
1. Low beam headlight/Bi-Xenon headlight (option)
2. High beam headlight
3. Turn signal
4. Parking light
5. Side marker light
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (7 of 23)12/30/200\
6 4:35:28 PM

2004 VOLVO XC90
pg. 137 Maintenance
Replacing the low beam bulb
1. Remove the plastic cover over the bulb (1) by turning it counterclo\
ckwise.
2. Pull the connector from the lamp housing (2).
3. Loosen the bulb's retaining spring by first moving it to the right an\
d then moving it out of the way.
4. Pull out the bulb from the holder.
5. Insert the new bulb (without touching the glass) in the holder.
6. Move the retaining spring up and push it slightly to the left until i\
t seats properly.
7. Press the bulb holder into place on the headlight housing.
8. Reinstall the plastic cap. The letters "HAUT" on the cap must be upwa\
rd.
Replacing the high beam bulb
1. Remove the rubber cover over the bulb (1) by pulling it off.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (8 of 23)12/30/200\
6 4:35:28 PM

2004 VOLVO XC90
2. Pull the connector from the lamp housing (2).
3. Loosen the bulb's retaining spring by first moving it to the right an\
d then moving it out of the way.
4. Pull out the bulb from the holder.
5. Insert the new bulb (without touching the glass) in the holder.
6. Move the retaining spring up and push it slightly to the left until i\
t seats properly.
7. Press the bulb holder into place on the headlight housing.
8. Press the rubber cover into place.
Replacing the parking light/side marker light bulbs
1. Turn the lamp holder approximately 1/4 turn counterclockwise and pull\
it out of the headlight housing.
2. Pull the bulb straight out.
3. Align the guide lugs on the side of the base of the new bulb in the g\
rooves in the holder and press it
into place.
4. Press the lamp holder into the place in the headlight housing and tur\
n it approximately 1/4 turn
clockwise.
pg. 138 Maintenance
Bulbs (contd)
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (9 of 23)12/30/200\
6 4:35:28 PM

2004 VOLVO XC90
Replacing the turn signal bulb
1. Turn the lamp holder approximately 1/4 turn counterclockwise and pull\
it out of the headlight housing.
2. Press in the bulb slightly and pull it out of the holder.
3. Align the guide lugs on the side of the base of the new bulb in the g\
rooves in the holder. Press it in
and turn it slightly clockwise.
4. Press the lamp holder into the place in the headlight housing and tur\
n it approximately 1/4 turn
clockwise.
Replacing the side turn signal bulb
1. Switch off the ignition.
2. Pry out the lens by inserting a small screw driver under the lower ed\
ge.
3. Turn the lamp holder 1/4 turn counterclockwise and pull it straight o\
ut.
4. Pull the bulb straight out of the holder.
5. Press the new bulb into the holder.
6. Reinsert the bulb holder in the lens and turn 1/4 turn clockwise.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (10 of 23)12/30/20\
06 4:35:28 PM

2004 VOLVO XC90
Front fog lights
Avoid touching the glass on the bulb with your fingers.
1. Switch off the ignition.
2. Turn the bulb holder slightly counterclockwise to release it.
3. Replace the bulb. The shape of the foot of the bulb corresponds to th\
e shape of the bulb holder.
4. Reinstall the bulb holder by turning it slightly clockwise. The side \
of the holder marked "TOP" should
face upward.
pg. 139 Maintenance
Location of tail light bulbs A - Turn signal PY 21 W (amber)
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (11 of 23)12/30/20\
06 4:35:28 PM

2004 VOLVO XC90
B - Brake light 21W BA 15
C - Back-up
light 21 W BA 15
D - Parking
light P21 4W

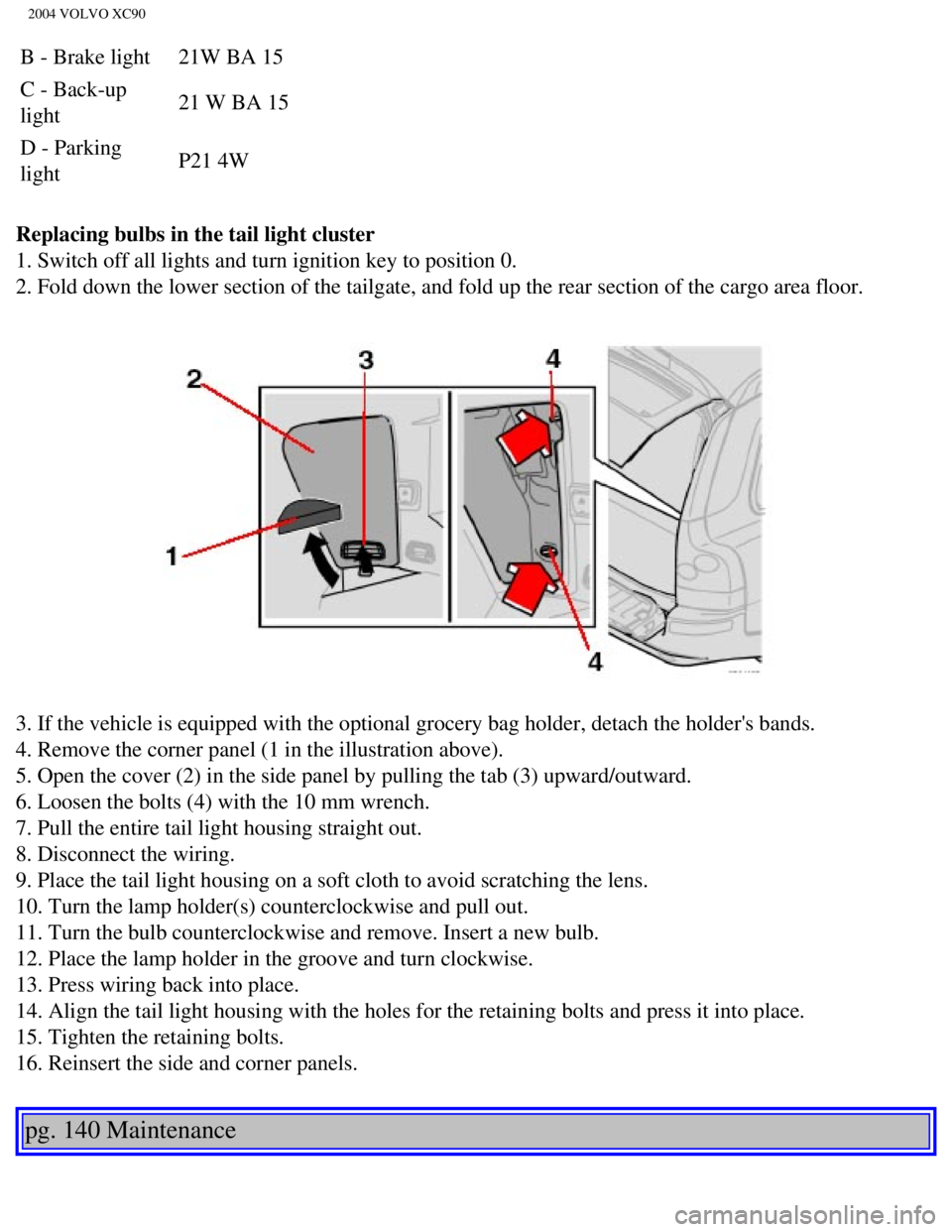

Replacing bulbs in the tail light cluster
1. Switch off all lights and turn ignition key to position 0.
2. Fold down the lower section of the tailgate, and fold up the rear sec\
tion of the cargo area floor.
3. If the vehicle is equipped with the optional grocery bag holder, deta\
ch the holder's bands.
4. Remove the corner panel (1 in the illustration above).
5. Open the cover (2) in the side panel by pulling the tab (3) upwar\
d/outward.
6. Loosen the bolts (4) with the 10 mm wrench.
7. Pull the entire tail light housing straight out.
8. Disconnect the wiring.
9. Place the tail light housing on a soft cloth to avoid scratching the \
lens.
10. Turn the lamp holder(s) counterclockwise and pull out.
11. Turn the bulb counterclockwise and remove. Insert a new bulb.
12. Place the lamp holder in the groove and turn clockwise.
13. Press wiring back into place.
14. Align the tail light housing with the holes for the retaining bolts \
and press it into place.
15. Tighten the retaining bolts.
16. Reinsert the side and corner panels.
pg. 140 Maintenance
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (12 of 23)12/30/20\
06 4:35:28 PM

2004 VOLVO XC90
Bulbs (contd)

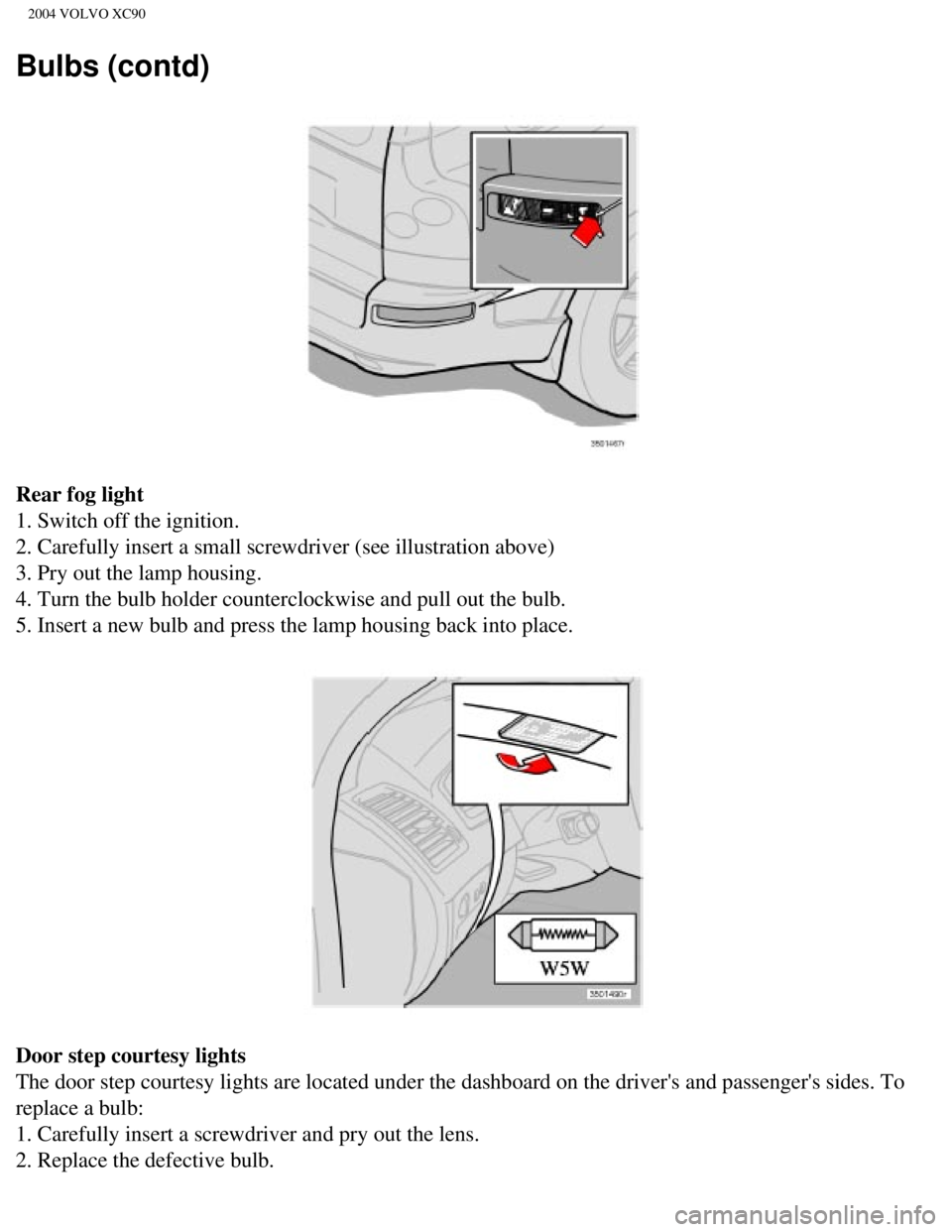

Rear fog light
1. Switch off the ignition.
2. Carefully insert a small screwdriver (see illustration above)
3. Pry out the lamp housing.
4. Turn the bulb holder counterclockwise and pull out the bulb.
5. Insert a new bulb and press the lamp housing back into place.
Door step courtesy lights
The door step courtesy lights are located under the dashboard on the dri\
ver's and passenger's sides. To
replace a bulb:
1. Carefully insert a screwdriver and pry out the lens.
2. Replace the defective bulb.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (13 of 23)12/30/20\
06 4:35:28 PM

2004 VOLVO XC90
3. Reinstall the lens.
Cargo compartment light
1. Carefully insert a screwdriver and pry out the lens.
2. Pry out the bulb and replace it.
3. Press the lens back into place.
pg. 141 Maintenance
Front courtesy lights
These bulbs may be difficult for you to replace yourself. We recommend t\
hat you let an authorized
Volvo retailer replace these bulbs if necessary.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_09b.htm (14 of 23)12/30/20\
06 4:35:28 PM
