l Keep your engine properly tuned. Certain engine malfunctions, particular\
ly involving the electrical,
fuel or distributor ignition systems, may cause unusually high three-way\
catalytic converter
temperatures. Do not continue to operate your vehicle if you detect engi\
ne misfire, noticeable loss of
power or other unusual operating conditions, such as engine overheating \
or backfiring. A properly tuned
engine will help avoid malfunctions that could damage the three-way cata\
lytic converter.
l Do not park your vehicle over combustible materials, such as grass or le\
aves, which can come into
contact with the hot exhaust system and cause such materials to ignite u\
nder certain wind and weather
conditions.
l Excessive starter cranking (in excess of one minute), or an intermitte\
ntly firing or flooded engine can
cause three-way catalytic converter or exhaust system overheating.
l Remember that tampering or unauthorized modifications to the engine, the\
Electronic Control
Module, or the vehicle may be illegal and can cause three-way catalytic \
converter or exhaust system
overheating. This includes:
- Altering fuel injection setting or components.
- Altering emission system components or location or removing components\
.
- Repeated use of leaded fuel.
NOTE: Unleaded fuel is required for vehicles with three-way catalytic converte\
rs.
pg. 154 Specifications
Electrical system

12-volt system with voltage controlled generator. Single wire system in \
which the chassis and engine
block are used as conductors, grounded on the chassis.
Battery 2.5TT6
Voltage 12 V12 V
Cold start capacity
(CCA) 520 A
600 A
Reserve capacity (RC) 90
min 115 min
If you must replace your battery, be sure to replace it with a battery o\
f the same cold start capacity and
reserve capacity as the original (See the decal on the battery). Generator max. current 140 A*160 A
Starter motor, power 1.4 kW 1.7 kW
Spark plugs P/N272313-8 or equivalent
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (8 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
Gap 0.028-0.032 in.0.7-0.8
mm
Tightening torque 22 ft. lbs. (30 Nm)
Firing order 1-2-4-5-3 1-5-3-6-2-4
* Models equipped with the optional rear A/C unit have 160 A generators.\

pg. 155 Specifications
Bulbs
Bulbs OutputSocket
Low beam 55 W H7
High beam 55 W H7
Bi-Xenon headlights
(option) 35 W
D2R
Fog lights, front 55 W H 1
Parking lights, front 5W5 W2.1x9.5d
Turn signals, front 21 W PY (amber)
Turn signals, rear 21 W PY (amber)
Parking lights, rear 5 W BA15
Brake light 21 W BA15
Back up lights 21 W BA15
Fog light, left rear 5 W BA15
License plate lighting 5 W W 2.1x9.5 d
Courtesy lighting, front 5 W SV 8.5
Cargo compartment lighting 5 W SV 8.5
Glove compartment lighting 3 W BA 9
Vanity mirror 1.2 W SV 5.5
pg. 156 Specifications
Engine specifications, Transmission
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (9 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
B5254T2 B6294T
Output (kW/rps) 154/83 200/85
- (hp/rpm) 208/5000 268/5100
Torque (Nm/rps) 320/25-75 380/30-83
- (ft. lbs./rpm) 236/1500-4500 280/1800-5000
No. of cylinders 5 6
Bore (mm) 83 83
Stroke (mm) 93.2 90
Cylinder displacement,
liters 2.52 (153.8 cu
in)
2.92 (178.3 cu in)
Compression ratio 9.0:1 8.5:1
Charge air cooler (Intercooler)
Turbocharged engines employ a turbo-compressor to force air into the eng\
ine inlet manifold and a
charge air cooler to cool the compressed inlet air. The resulting increa\
se in air flow raises pressure in the
intake manifold and increases engine power over that developed by the no\
rmally-aspirated engine. The
charge air cooler (which resembles a radiator) is located between the \
turbo-compressor and inlet
manifold.
Fuel system
The engine is equipped with a multiport fuel injection system.
pg. 157 Specifications
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Addit\
ional information,
features, and benefits are described in a separate information package i\
n your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-638-6586 (1-800-63-VOLVO)
In Canada:
1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by t\
he National Institute for
Automotive Excellence (A.S.E.). Certified technicians have demonstrate\
d a high degree of competence
in specific areas. Besides passing exams, each technician must also have\
worked in the field for two or
more years before a certificate is issued. These professional technician\
s are best able to analyze vehicle
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (10 of 11)12/30/200\
6 4:35:29 PM

2004 VOLVO XC90
problems and perform the necessary maintenance procedures to keep your V\
olvo at peak operating
condition.
pg. 158 Specifications
This page intentionally left blank



Contents | Top of Page
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (11 of 11)12/30/200\
6 4:35:29 PM

2004 VOLVO XC90
2 0 0 4
VOLVO XC90
Audio

pg. 159 Audio
Audio system160
Audio system controls161
Audio functions164
Radio functions168
Menu settings and selections174
CD player175
CD changer (option)177
CD player179
HomeLink® Universal Transceiver180
pg. 160 Audio
Audio system
file:///K|/ownersdocs/2004/2004_XC90/04xc90_11a.htm (1 of 17)12/30/200\
6 4:35:31 PM

2004 VOLVO XC90
1. On/Off
2. Volume
3. CD player
4. AM/FM - for switching between FM1, FM2 and AM
5. Display
6. ENTER - select in the menu or activate a selection
7. MY KEY - programmable key for your favorite function
8. SELECTOR - select sound source
9. SOUND - make sound settings
10. EXIT/CLEAR - step back in the menu or cancel a selection
11. Menu selections
12. CD eject
13. CD slot, CD changer (option)
14. Storage compartment
15. MY KEY - programmable keys for your favorite functions from the menu\

16. Station preset buttons/CD changer discs (1-6)
17. Infrared (IR) port - for the optional audio/navigation system remo\
te control
18. Seek/change tracks or stations
pg. 161 Audio
Audio system controls
file:///K|/ownersdocs/2004/2004_XC90/04xc90_11a.htm (2 of 17)12/30/200\
6 4:35:31 PM

2004 VOLVO XC90

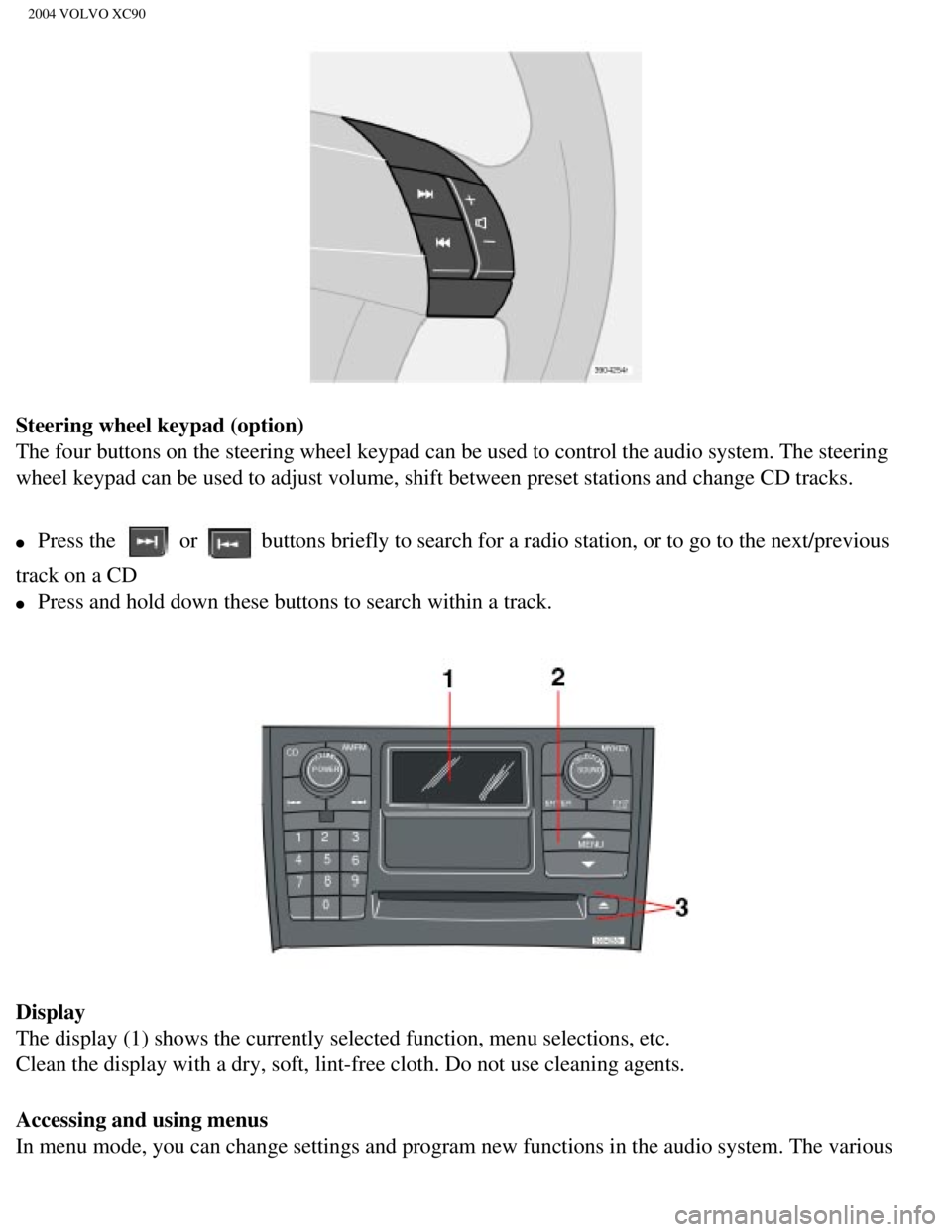

Steering wheel keypad (option)
The four buttons on the steering wheel keypad can be used to control the\
audio system. The steering
wheel keypad can be used to adjust volume, shift between preset stations\
and change CD tracks.
l Press the or buttons briefly to search for a radio station, or to go to the next/pre\
vious
track on a CD
l Press and hold down these buttons to search within a track.
Display
The display (1) shows the currently selected function, menu selections\
, etc.
Clean the display with a dry, soft, lint-free cloth. Do not use cleaning\
agents.
Accessing and using menus
In menu mode, you can change settings and program new functions in the a\
udio system. The various
file:///K|/ownersdocs/2004/2004_XC90/04xc90_11a.htm (3 of 17)12/30/200\
6 4:35:31 PM

2004 VOLVO XC90
menu alternatives are shown in the display.
Press the menu button (2) to enter menu mode. Use the menus as follows\
:
l Use the menu keys (3) to navigate up or down in the menus. Dots in the\
display indicated that there
are more menu selections from which to choose.
l One long press on EXIT/CLEAR exits menu mode.
l A short press on the EXIT/CLEAR enables you to cancel, undo, or answer n\
o to a menu selection, or
to go back in the menu structure.
l Pressing ENTER confirms a menu selection, or takes you to the next subme\
nu.
pg. 162 Audio
Audio system controls (contd)

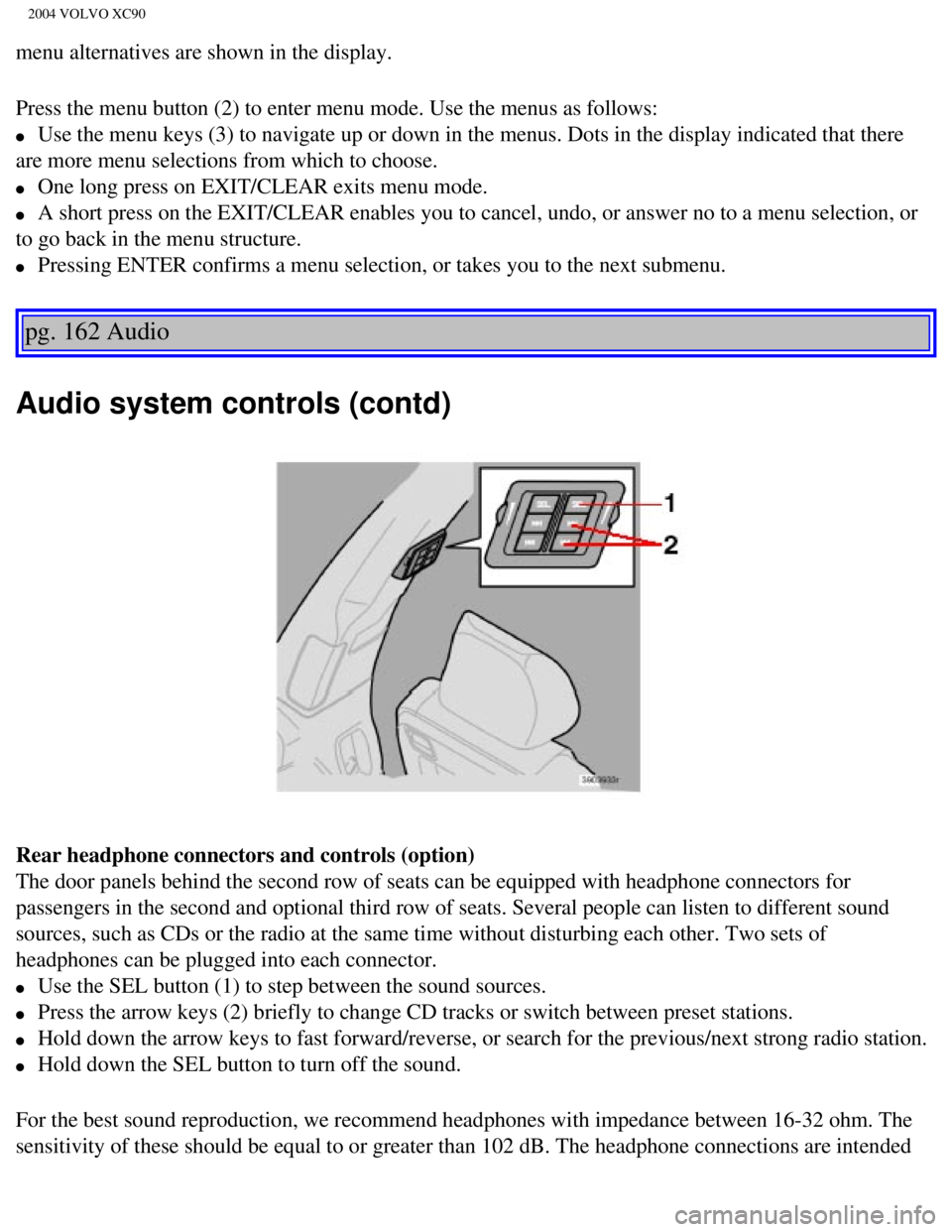

Rear headphone connectors and controls (option)
The door panels behind the second row of seats can be equipped with head\
phone connectors for
passengers in the second and optional third row of seats. Several people\
can listen to different sound
sources, such as CDs or the radio at the same time without disturbing ea\
ch other. Two sets of
headphones can be plugged into each connector.
l Use the SEL button (1) to step between the sound sources.
l Press the arrow keys (2) briefly to change CD tracks or switch between\
preset stations.
l Hold down the arrow keys to fast forward/reverse, or search for the prev\
ious/next strong radio station.
l Hold down the SEL button to turn off the sound.
For the best sound reproduction, we recommend headphones with impedance \
between 16-32 ohm. The
sensitivity of these should be equal to or greater than 102 dB. The head\
phone connections are intended
file:///K|/ownersdocs/2004/2004_XC90/04xc90_11a.htm (4 of 17)12/30/200\
