2004 VOLVO XC90 Owners Manual

2004 VOLVO XC90
Sliding center seat - second row (seven-seat models only)
The center seat in the second row can be moved farther forward than the \
outboard seats. This makes it
possible for a child seated in this position to sit closer to the people\
in the front seats.
pg. 59 Interior
Head restraint - second row, center position
The head restraint in the center position can be adjusted to 4 different\
heights.
To raise - pull the restraint up until it clicks into one of the four heights po\
sitions.
To lower - press the button at the base of the support (see illustration above)\
and press the head restraint
down.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04a.htm (7 of 11)12/30/200\
6 4:35:19 PM

2004 VOLVO XC90
WARNING!
- Please note that the lowest head restraint position is only intended f\
or use when the backrest is to be
folded down, or when the seat is not occupied.
- The head restraint is intended to help protect the head/neck in a coll\
ision. Ensure that it is properly
adjusted for the occupant of the seat.
pg. 60 Interior
Rear seats (contd)
Folding the backrests - second row of seats
1. Move the seat(s) to their rearmost position (seven-seat models onl\
y).
2. Pull the loop (A) to fold down an outboard head restraint. Press do\
wn the center head restraint if
necessary (see
page 59).
3. Pull the handle (B) outward to release the backrest. The backrests \
are designed to lock at a 45 degree
angle. Pull the handle again to continue pressing it down until it locks\
in the horizontal position.
To return the backrests to the upright position, pull handle B and pull \
the backrest up.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04a.htm (8 of 11)12/30/200\
6 4:35:19 PM

2004 VOLVO XC90
Folding the backrests - third row of seats (option)
Folding down the backrest
If necessary, fold in the load anchorage eyelets before folding down the\
backrests.
1. Move the seats in the second row forward, see
page 58.
2. Pull up the handle in illustration 1 above.
3. Push the seat cushion firmly rearward, under the backrest.
4. Fold down the backrests* (the head restraints fold down automaticall\
y) to the horizontal position.
Returning the backrest to the upright position
l Fold up the backrest to the upright position.
l Grasp the strap (see illustration 3 above) and pull the seat cushion o\
ut until it locks in place. This also
locks the backrest in the upright position.
* Please note that the head restraints in this row cannot be vertically \
adjusted.
pg. 61 Interior
Interior lighting
Courtesy light/front reading lights
The courtesy/reading lights can be turned on or off by pressing the resp\
ective buttons.
The courtesy light has a timer function which turns the light on for 30 \
seconds if:
l You unlock the vehicle from the outside with the key or remote control. \
l You switch off the ignition (turn the key to position 0).
The courtesy light stays on for 10 minutes if one of the doors is left o\
pen after the vehicle is unlocked.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04a.htm (9 of 11)12/30/200\
6 4:35:19 PM

2004 VOLVO XC90
The courtesy light switches off if:
l The engine is started.
l The vehicle is locked from the outside with the key or remote control.
The courtesy light can be switched off or on in all situations by briefl\
y pressing the button.
When you switch the light on, it remains lit for 10 minutes.
You can disconnect the automatic function by pressing the courtesy light\
button for more than 3
seconds. Briefly pressing the courtesy light button again automatically \
reconnects the function.
The courtesy light timer periods can be changed. Contact your Volvo reta\
iler.
Rear reading lights
l The reading lights can be switched on or off by pressing the respective \
buttons.
l Seven-seat models: Both reading lights for the third row of seats will switch on if one of \
the buttons
is pressed.
l The reading lights switch off automatically after 10 minutes if the engi\
ne is not running.
l The lights can be switched off at any time by pressing the button.
pg. 62 Interior
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04a.htm (10 of 11)12/30/20\
06 4:35:19 PM

2004 VOLVO XC90
Vanity mirror
The light comes on when you open the cover.
Floor Mats
Volvo offers floor mats specially manufactured for your vehicle. They mu\
st be properly placed and
secured in the mat clips.
WARNING!
An extra mat on the driver's floor can cause the accelerator pedal to ca\
tch. Check that the movement
of the accelerator pedal is not impeded. No more than one protective flo\
or covering may be used at
one time.




Contents | Top of Page
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04a.htm (11 of 11)12/30/20\
06 4:35:19 PM

2004 VOLVO XC90

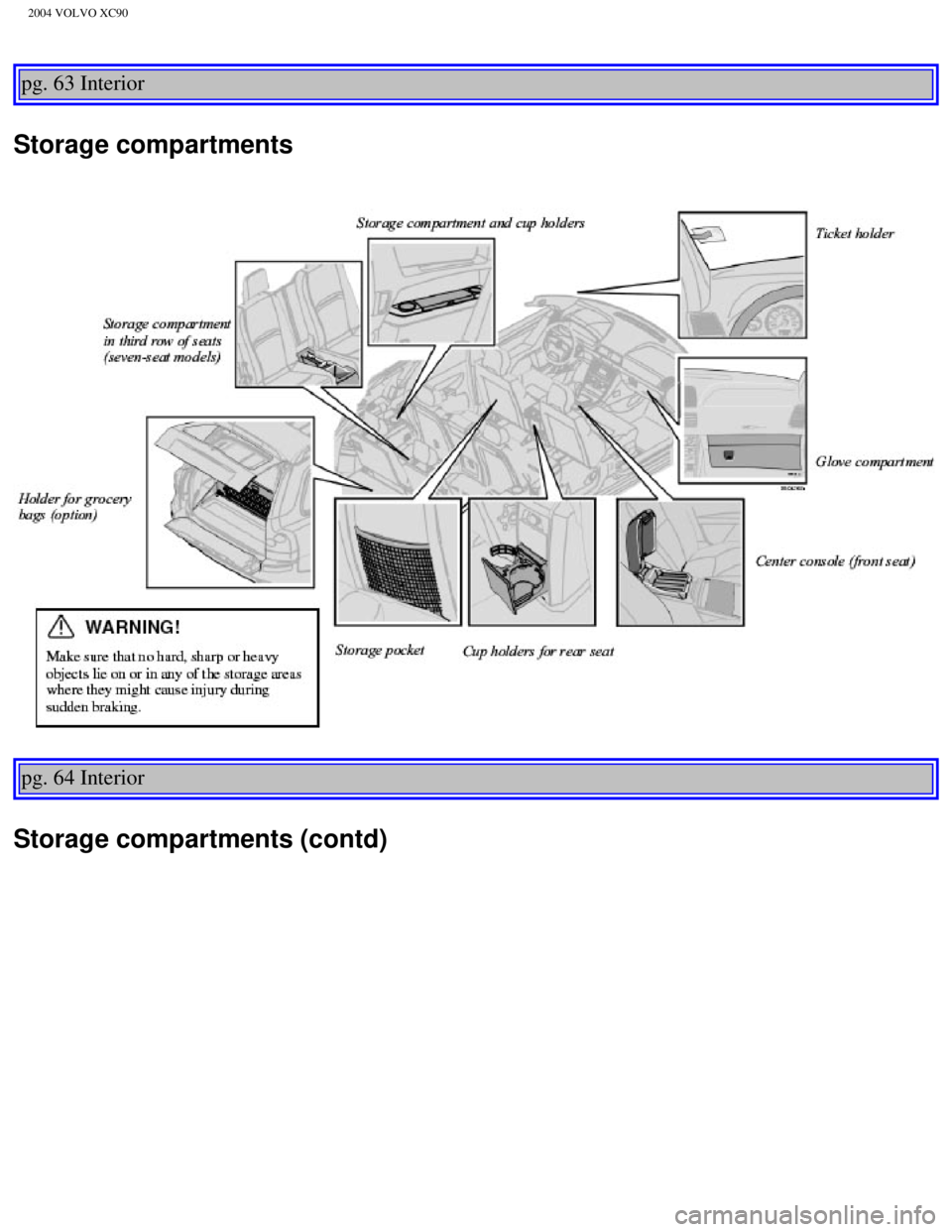

pg. 63 Interior
Storage compartments
pg. 64 Interior
Storage compartments (contd)
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (1 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90

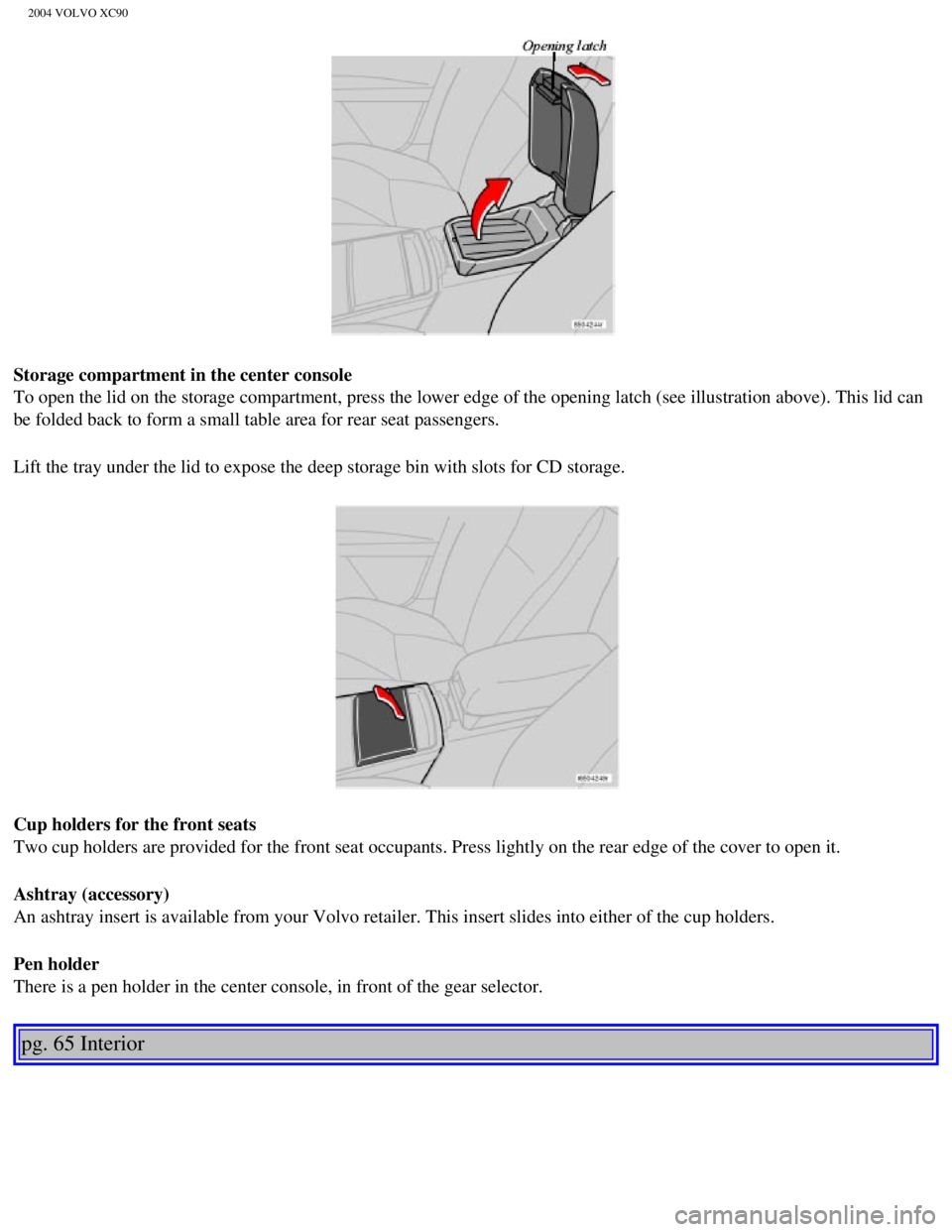

Storage compartment in the center console
To open the lid on the storage compartment, press the lower edge of the \
opening latch (see illustration above). This lid can
be folded back to form a small table area for rear seat passengers.
Lift the tray under the lid to expose the deep storage bin with slots fo\
r CD storage.
Cup holders for the front seats
Two cup holders are provided for the front seat occupants. Press lightly\
on the rear edge of the cover to open it.
Ashtray (accessory)
An ashtray insert is available from your Volvo retailer. This insert sli\
des into either of the cup holders.
Pen holder
There is a pen holder in the center console, in front of the gear select\
or.
pg. 65 Interior
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (2 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90

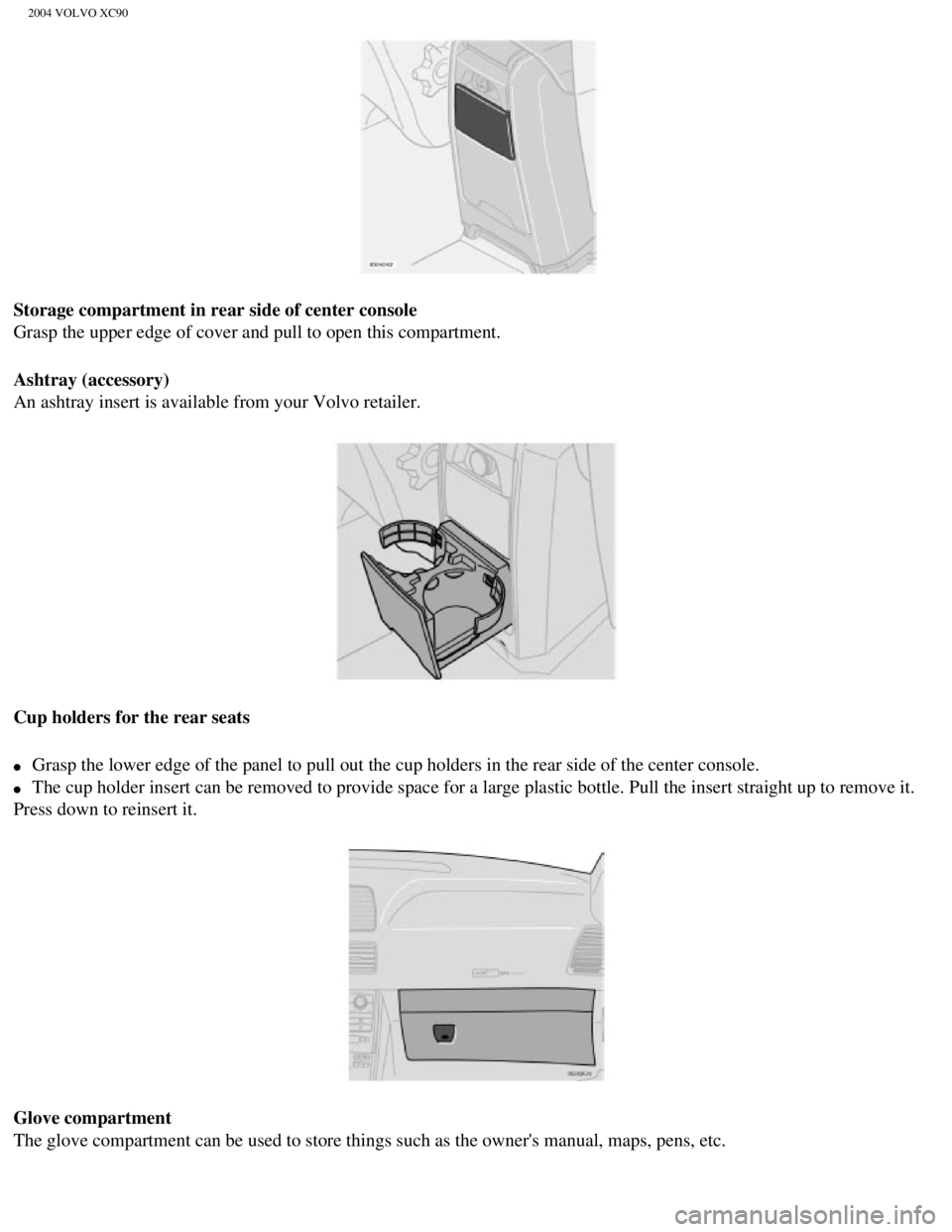

Storage compartment in rear side of center console
Grasp the upper edge of cover and pull to open this compartment.
Ashtray (accessory)
An ashtray insert is available from your Volvo retailer.
Cup holders for the rear seats
l Grasp the lower edge of the panel to pull out the cup holders in the rea\
r side of the center console.
l The cup holder insert can be removed to provide space for a large plasti\
c bottle. Pull the insert straight up to remove it.
Press down to reinsert it.
Glove compartment
The glove compartment can be used to store things such as the owner's ma\
nual, maps, pens, etc.
