2004 VOLVO XC90 Owners Manual

2004 VOLVO XC90
A. Tilt position
B. Sliding moonroof
A. Tilt position
Open: With the moonroof closed, push up the rear edge of the switch (positio\
n 5 in the illustration
below).
Close: Pull down and hold the rear edge of the switch (position 6 in the illu\
stration below) until the
moonroof has closed completely.
B. Sliding moonroof
Manual open: Pull the switch rearward to position 3 and hold it until the moonroof h\
as opened to the
position of your choice.
Auto open: Pull the switch as far back as possible (position 4) and release it t\
o automatically slide open
the moonroof to the "comfort"* position. Pull the switch rearward again \
to open the moonroof
completely.
Manual close: Push the switch to position 2 and hold it until the moonroof has closed\
completely or to
the position of your choice.
Auto close: Push the switch forward as far as possible (position 1) and release i\
t to automatically close
the moonroof. CAUTION
l Remove ice and snow before opening the
moonroof.
l Do not operate the moonroof if it is frozen closed.
l Never place heavy objects on the moonroof.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_02b.htm (14 of 16)12/30/20\
06 4:35:15 PM

2004 VOLVO XC90
WARNING!
l Never open/close the moonroof if it is obstructed in any way when in ope\
ration.
l Never allow a child to operate the moonroof.
l Never extend any object or body part though the open moonroof, even if t\
he vehicle's ignition is
completely switched off.
l Never leave a child alone in a vehicle.
* A position where the moonroof is not quite fully open, which helps all\
eviate "rumbling" wind noise.
pg. 44 Instruments and controls
Power moonroof (option) (contd)
If the moonroof is obstructed during auto-close operation, it will autom\
atically reverse direction and
return to its starting position. If the moonroof is repeatedly obstructe\
d during auto-close operation, an
overload circuit breaker will temporarily halt moonroof function. The mo\
onroof will return to normal
function after a brief cool-down period.

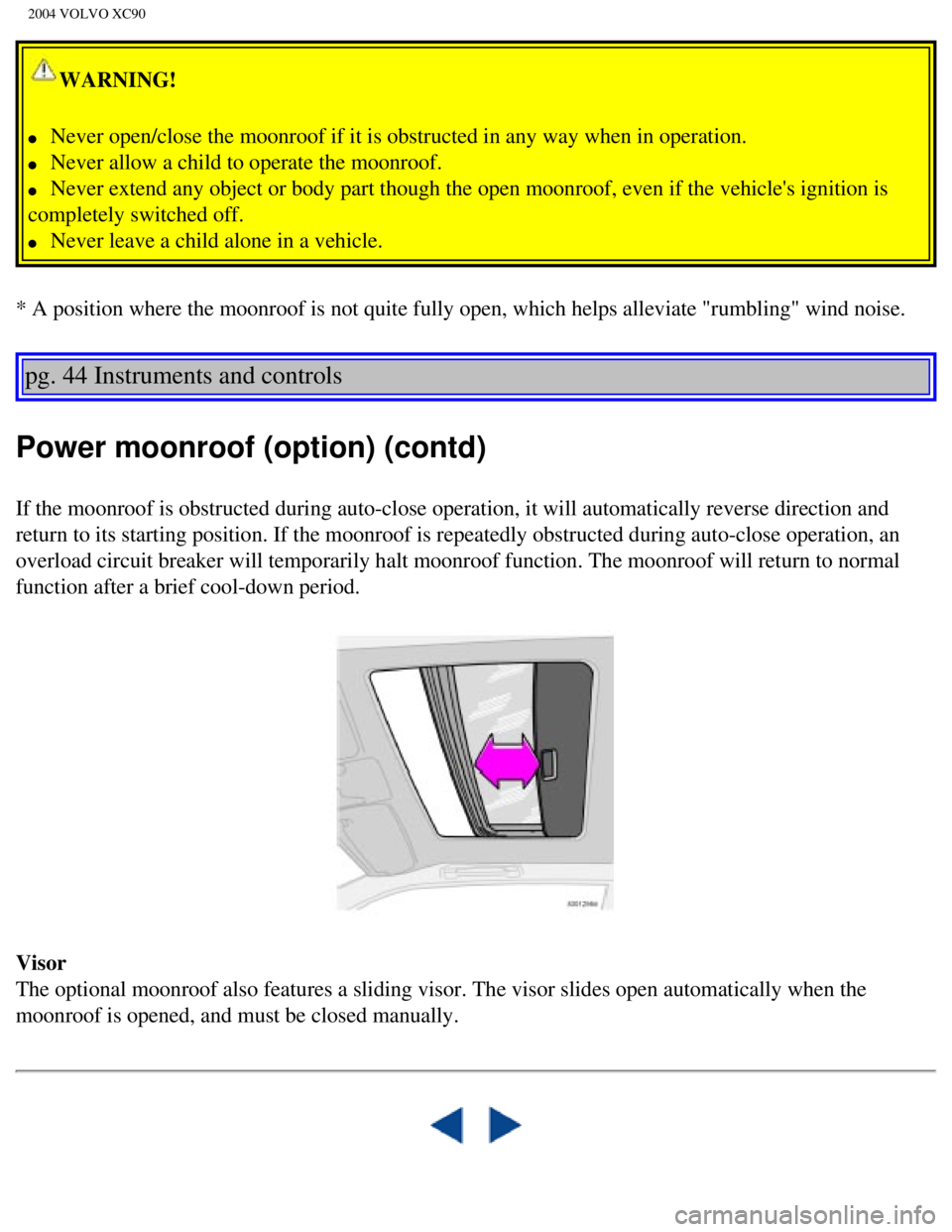

Visor
The optional moonroof also features a sliding visor. The visor slides op\
en automatically when the
moonroof is opened, and must be closed manually.



file:///K|/ownersdocs/2004/2004_XC90/04xc90_02b.htm (15 of 16)12/30/20\
06 4:35:15 PM

2004 VOLVO XC90
Contents | Top of Page
file:///K|/ownersdocs/2004/2004_XC90/04xc90_02b.htm (16 of 16)12/30/20\
06 4:35:15 PM

2004 VOLVO XC90
2 0 0 4
VOLVO XC90
Climate control

pg. 45 Climate control
Climate control system-general information46
Air distribution47
Electronic Climate Control (ECC)48
pg. 46 Climate control
Climate control system-general information
Condensation on the inside of the windows
Keeping the insides of the windows clean will help reduce the amount of \
condensation that forms on the windows. Use a
commercial window cleaning agent to clean the windows.
Ice and snow
Always keep the air intake grille at the base of the windshield free of \
snow.
Cabin air filter
Replace the cabin air filter with a new one at the recommended intervals\
. Please refer to your Warranty and Service
Records Information booklet, or consult your Volvo retailer for these in\
tervals. The filter should be replaced more often
when driving under dirty and dusty conditions. The filter cannot be clea\
ned and therefore should always be replaced with a
new one.
Sensors
The sunlight sensor on the dashboard and passenger compartment temperatu\
re sensor in the ECC control panel should not
be covered in any way as this could cause incorrect information to be se\
nt to the ECC system.
Parking the vehicle in warm weather
If your vehicle has been parked in the sun in warm weather, opening the \
windows and moonroof (option) for several
minutes before driving will help release the warm air from the passenger\
compartment. When the engine is running, close
the windows and moonroof and use the recirculation function for several \
minutes to enable the air conditioning to cool the
compartment as quickly as possible.
Windows and optional moonroof
The ECC system will function best if the windows and optional moonroof a\
re closed. If you drive with the moonroof open,
we recommend that you manually adjust the temperature and blower control\
(the LED in the AUTO switch should be off).
file:///K|/ownersdocs/2004/2004_XC90/04xc90_03.htm (1 of 7)12/30/2006 \
4:35:16 PM

2004 VOLVO XC90
Acceleration
The air conditioning is momentarily disengaged during full-throttle acce\
leration.
Climate control maintenance
All maintenance on the climate control systems should be carried out by \
an authorized Volvo service technician only.
Refrigerant
Volvo cares about the environment. The air conditioning system in your v\
ehicle contains a CFC-free refrigerant - R134a.
This substance will not deplete the ozone layer. The system contains 2.2\
lbs (1000 g) R134a and uses PAG oil.
Passenger compartment blower
Approximately 50 minutes after the ignition is turned off, the blower ma\
y come on automatically, and run for seven
minutes, to remove condensation in the A/C evaporator.
Blower function to reduce battery drain
The climate system's blower functions normally while the engine is runni\
ng.
However, when the engine is switched off (even if the ignition is switc\
hed to positions I or II), the blower control will be
automatically switched off to avoid unnecessary battery drain. The follo\
wing points pertain if the ignition key is on but the
engine is not running:
l To restart the blower, turn the control knob to the setting of your choi\
ce.
l After approximately 2 minutes, the blower speed will be reduced to avoid\
battery drain.
You can reset the blower speed at any time. Please be aware that the sys\
tem has been designed to reduce the blower's speed
again after 2 minutes, until the engine is started. If the battery becom\
es drained:
l LOW BATTERY, FAN IS REDUCED will be displayed in the text window in the \
instrument panel.
l The yellow warning light in the instrument panel (see page 25) will also light up.
pg. 47 Climate control
Air distribution
Air distribution
The incoming air is distributed through the ventilation points in the pa\
ssenger compartment shown above.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_03.htm (2 of 7)12/30/2006 \
4:35:16 PM

2004 VOLVO XC90
Air vents in the dash
A Open
B Closed
C Horizontal air flow
D Vertical air flow
l Direct the outer air vents toward the side windows to defrost.
l In cold weather, close the air vents in the center of the dashboard to d\
irect as much air as possible toward the windows.
Air vents in the door pillars
A Open
B Closed
C Horizontal air flow
D Vertical air flow
l Direct the outer air vents toward the side windows to defrost.
pg. 48 Climate control
Electronic Climate Control (ECC)
file:///K|/ownersdocs/2004/2004_XC90/04xc90_03.htm (3 of 7)12/30/2006 \
4:35:16 PM

2004 VOLVO XC90
pg. 49 Climate control
AUTO
This function automatically regulates the Electronic Climate Control sys\
tem so that the selected temperatures are
maintained. The blower, heating, air distribution (air flow) and air c\
onditioning are controlled.
If you prefer to manually set any of these functions, the remaining func\
tions will still be controlled automatically. Pressing
the AUTO button overrides any settings that were previously made manuall\
y.
Rear window and sideview mirror defrosters
This function defrosts/de-ices the rear window and sideview mirrors. The\
LED in the switch will light up to indicate that
the heating function is engaged. See
page 35 for additional information on this function.
Never use ice scrapers made of metal as the can easily scratch the mirro\
r surface.
Temperature
These controls are used to individually set the temperature for both sid\
es of the passenger compartment. Please note that the
compartment will not be heated or cooled faster by setting the temperatu\
re higher or lower than necessary.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_03.htm (4 of 7)12/30/2006 \
4:35:16 PM

2004 VOLVO XC90
Set the control to the temperature you prefer.
Defroster
This function defrosts/de-ices the windshield and front side windows. Th\
e LED in the switch will light up to indicate that
the defrost function is engaged. Blower speed increases automatically an\
d the air in the passenger compartment is
dehumidified. Recirculation will not function while defrost is engaged. \
Blower control*
Turn the control clockwise to increase or counterclockwise to decrease t\
he blower speed. Pressing the AUTO switch will
automatically regulate blower speed and override manual adjustment.
NOTE: Turning the blower control counterclockwise until an orange LED comes on\
will turn both the blower and the air
conditioning off.
* See also
page 46.
pg. 50 Climate control
Electronic Climate Control (ECC) (contd)
Air distribution

Press AUTO to automatically regulate air flow or press any combination of the cont\
rols shown in the illustration to
manually adjust air flow. An LED in the switch will light up if an air f\
low control has been pressed.
Heated front seats (option)
l Press the switch once for maximum seat heating. Both LEDs in the switch \
will be lit.
l Press the switch a second time for comfort heating. One LED in the switc\
h will be lit.
l Press the switch a third time to turn the heating off completely. The LE\
D will go off.
The seat heating for the passenger seat should be switched off when the \
seat is not occupied.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_03.htm (5 of 7)12/30/2006 \
4:35:16 PM
