Specifications

pg. 147 Specifications
Label information148
Dimensions and weights149
Capacities151
Lubricants152
Cooling system152
Suspension152
Electrical system154
Bulbs155
Engine specifications, Transmission156
All specifications are subject to change without prior notice.
pg. 148 Specifications
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (1 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90

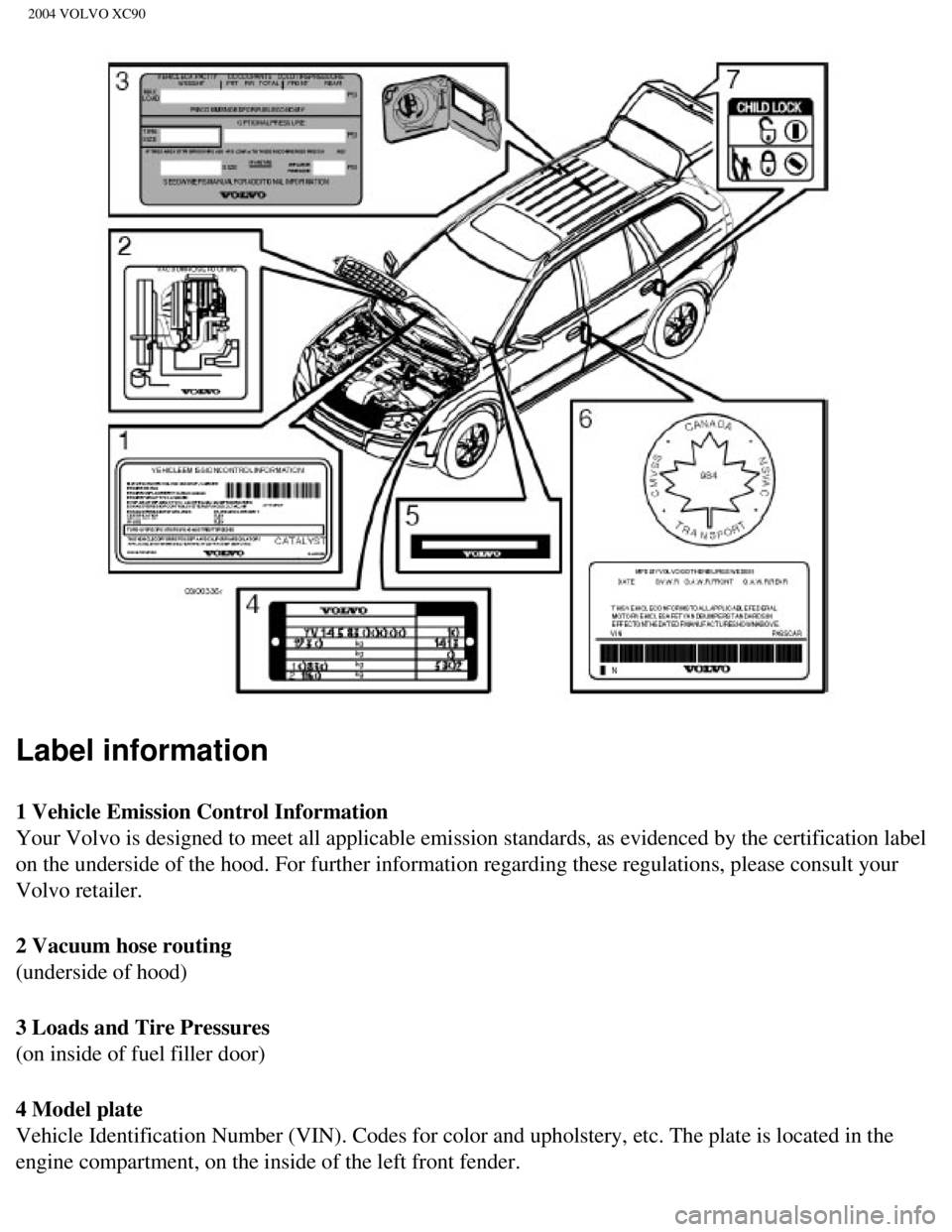

Label information
1 Vehicle Emission Control Information
Your Volvo is designed to meet all applicable emission standards, as evi\
denced by the certification label
on the underside of the hood. For further information regarding these re\
gulations, please consult your
Volvo retailer.
2 Vacuum hose routing
(underside of hood)
3 Loads and Tire Pressures
(on inside of fuel filler door)
4 Model plate
Vehicle Identification Number (VIN). Codes for color and upholstery, e\
tc. The plate is located in the
engine compartment, on the inside of the left front fender.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (2 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
5 Vehicle Identification Number (VIN) *
The VIN plate is located on the top left surface of the dashboard. The V\
IN is also stamped on the right
hand door pillar.
6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA)\
and Ministry of
Transport (CMVSS) standards (Canada)
Your Volvo is designed to meet all applicable safety standards, as evide\
nced by the certification label on
the facing side of the driverÕs door. For further information regardi\
ng these regulations, please consult
your Volvo retailer.
7 Child safety latch label
*The Vehicle Identification Number (VIN) should always be quoted in al\
l correspondence concerning
your vehicle with the retailer and when ordering parts.
pg. 149 Specifications
Dimensions and weights
Dimensions Length 188.9 in (479.8 cm)
Width 74.7 in (189.8 cm)
Height 70.2 in (178.4 cm)
Wheelbase 112.5 in (285.7 cm)
Front track 64.3 in (163.4 cm)
Rear track 63.9 (162.4 cm)
Turning
circle 39-40 ft. (11.9-12.3 m)
Cargo capacity
With optional 3rd row of seats folded down:
5-seat: 41.6 cu ft (1178 litres)
7-seat: 43.3 cu ft (1225 litres)
Behind 1st row of seats, with 2nd (and optional 3rd) row of seats fold\
ed down:
5-seat: 84.9 cu ft (2403 litres)
7-seat: 85.1 cu ft (2410 litres)
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (3 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
Behind 1st row of seats, with front passenger seat, 2nd row (and option\
al 3rd row) of seats folded
down:
5-seat: 92.0 cu ft (2606 litres)
7-seat: 93.2 cu ft (2640 litres)
pg. 150 Specifications
Weights
Gross vehicle weight*USACanada
5-seat, 5-cyl, FWD 5640
lbs -
5-seat, 5-cyl, AWD 5790
lbs 2630 kg
5-seat, 6-cyl, AWD 5900
lbs 2680 kg
7-seat, 5-cyl, FWD 5840
lbs -
7-seat, 5-cyl, AWD 6005
lbs 2720 kg
7-seat, 6-cyl, AWD 6080
lbs 2760 kg
Capacity weight
5-seat models 1160
lbs 525 kg
7-seat models 1210
lbs 550 kg
Permissible axle weight, front*
5-seat, 5-cyl, FWD 2680
lbs -
5-seat, 5-cyl, AWD 2730
lbs 1240 kg
5-seat, 6-cyl, AWD 2860
lbs 1300 kg
7-seat, 5-cyl, FWD 2710
lbs -
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (4 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
7-seat, 5-cyl, AWD 2820
lbs 1280 kg
7-seat, 6-cyl, AWD 2880
lbs 1310 kg
FWD = Front Wheel Drive
AWD = All Wheel Drive
* Permissible axle weight or gross vehicle weight must never be exceeded\
. Permissible axle weight, rear* USA Canada
5-seat, 5-cyl, FWD 3060 lbs -
5-seat, 5-cyl, AWD 3150 lbs 1430 kg
5-seat, 6-cyl, AWD 3150 lbs 1430 kg
7-seat, 5-cyl, FWD 3170 lbs -
7-seat, 5-cyl, AWD 3240 lbs 1470 kg
7-seat, 6-cyl, AWD 3240 lbs 1470 kg
Curb weight
5-seat, FWD 4300-4330
lbs -
5-seat, AWD 4445-4625
lbs 2030-2100 kg
7-seat, FWD 4495-4525
lbs -
7-seat, AWD 4595-4775
lbs 2090-2160 kg
Max. roof load 220 lbs 100 kg
Trailer weight, w/o brakes 1650 lbs 750 kg
Trailer weight, with brakes
FWD 3970 lbs -
AWD 4960 lbs 2250 kg
Max. tongue weight 198 lbs 90 kg
pg. 151 Specifications

Capacities
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (5 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
Fuel tank 19 US gals. (72 liters), minimum octane requirement - AKI 87 (RON
91) - unleaded fuel (See also page 82)
Engine oil
B5254T2 6.1 US qts. (5.8 liters)
B6294T 7.1 US qts. (6.7 liters)
Transmission oil
Automatic (AW 55-50 5- speed) 7.9 US qts. (7.5 liters)
Automatic (GM 4-speed) 7.9 US qts. (7.5 liters)
Miscellaneous
Power steering 0.9 US qts. (0.9 liters)
Windshield washer reservoir 6.9 US qts. (6.5 liters)
Brake fluid 0.63 US qts. (0.6 liters)
Air conditioning system Front - 2.2 lb. (1 kg), Rear (option) 2.9 lb. (1.3 kg) R 134a
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehi\
cle, the total capacity
weight must not be exceeded.
pg. 152 Specifications
Lubricants
Engine oil
Meeting minimum ILSAC specification GF-2, including ACEA A1, API SJ, SJ/\
CF and SJ/ Energy
Conserving.
Oil additives must not be used.
Transmission
Oil grade:
4-speed automatic (on models with 6-cylinder turbo engines):
Dexron III G (Volvo P/N 1161521).
5-speed automatic (on models with 5-cylinder turbo engines):
Volvo synthetic transmission oil Volvo P/N 1161540.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_10.htm (6 of 11)12/30/2006\
4:35:29 PM

2004 VOLVO XC90
Different types of oil should never be mixed.
Power steering
Grade: ATF
Brake fluid
Fluid type: DOT 4+ boiling point >536°F (280°C), P/N 9437433
Cooling system
Type Positive pressure, closed system.
Coolant Volvo original coolant/antifreeze
Volume 5-cyl. turbo 9.3 US qts. (8.8 liters)
6-cyl. turbo 11.2 US qts (10.6 liters)
The thermostat begins to open at 194°F (90°C).
Suspension
Rear suspension
Individual rear wheel suspension with longitudinal support arms, double \
link arms and track rods.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms\
linked to the support frame.
Power-assisted rack and pinion steering. Safety type steering column.
pg. 153 Specifications
Three-way catalytic converter cautions
