2004 SUBARU FORESTER sensor

EN(H4DOTC 2.5)-196
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BE:DTC P1089 TUMBLE GENERATED VALVE POSITION SENSOR 1 CIRCUIT
HIGH
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Erroneous idling
 Engine stalls.
 Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-02372
E54
123
B22
125678
131415169101112
34
17181920
B136
B122
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
ECM TUMBLE GENERATOR VALVE
POSITION SENSOR RH
E3
B22
1
32
B136
16
35 27
20
189
1 2
B122
E54
12345678

EN(H4DOTC 2.5)-197
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of tumble generator valve
position sensor signal using Subaru Select
Monitor or OBD-II general scan tool.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to “READ
CURRENT DATA SHOWN ON DISPLAY FOR
ENGINE”. aru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage more than 4.9 V? Go to step 2.Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time. A tempo-
rary poor contact
of the connector
may be the cause.
N
OTE:
In this case repair
the following:
 Poor contact in
tumble generator
valve position sen-
sor connector
 Poor contact in
ECM connector.
 Poor contact in
coupling connector
2 CHECK HARNESS BETWEEN TUMBLE
GENERATOR VALVE POSITION SENSOR
AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from throttle
position sensor.
3) Measure the resistance of harness
between tumble generator valve position sen-
sor connector and engine ground.
Connector & terminal
(E54) No. 2 — Engine ground:Is the resistance less than 5
Ω?Go to step 3.Repair the harness
and connector.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
tumble generator
valve position sen-
sor and ECM con-
nector
 Poor contact in
coupling connector
 Poor contact in
joint connector
3 CHECK HARNESS BETWEEN TUMBLE
GENERATOR VALVE POSITION SENSOR
AND ECM CONNECTOR.
1) Turn the ignition switch to ON.
2) Measure the voltage between throttle posi-
tion sensor connector and engine ground.
Connector & terminal
(E54) No. 3 (+) — Engine ground (
−):Is the voltage more than 4.9 V? Repair battery
short circuit in har-
ness between tum-
ble generator valve
position sensor
and ECM connec-
tor. After repair,
replace the ECM.
FU(H4DOTC 2.5)-
41, Engine Con-
trol Module
(ECM).>Replace the tum-
ble generator valve
assembly. FU(H4DOTC 2.5)-
33, Tumble Gener-
ator Valve Assem-
bly.>

EN(H4DOTC 2.5)-209
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BN:DTC P1110 ATMOSPHERIC PRESSURE SENSOR CIRCUIT MALFUNCTION
(LOW INPUT)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
BO:DTC P1111 ATMOSPHERIC PRESSURE SENSOR CIRCUIT MALFUNCTION
(HIGH INPUT)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
BP:DTC P1160 RETURN SPRING FAILURE
NOTE:
For diagnostic procedure, refer to DTC P2101. TUATOR CONTROL MOTOR CIRCUIT RANGE/PERFORMANCE, Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Does the Subaru Select Moni-
tor or OBD-II general scan tool
indicate DTC P1110?Replace the ECM.
FU(H4DOTC 2.5)-
41, Engine Con-
trol Module
(ECM).>
N
OTE:
Atmospheric pres-
sure sensor is built
in ECM.Temporary poor
contact occurs.
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Does the Subaru Select Moni-
tor or OBD-II general scan tool
indicate DTC P1111?Replace the ECM.
FU(H4DOTC 2.5)-
41, Engine Con-
trol Module
(ECM).>
N
OTE:
Atmospheric pres-
sure sensor is built
in ECM.Temporary poor
contact occurs.

EN(H4DOTC 2.5)-212
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BR:DTC P1544 EXHAUST GAS TEMPERATURE TOO HIGH
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Erroneous idling
 Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.

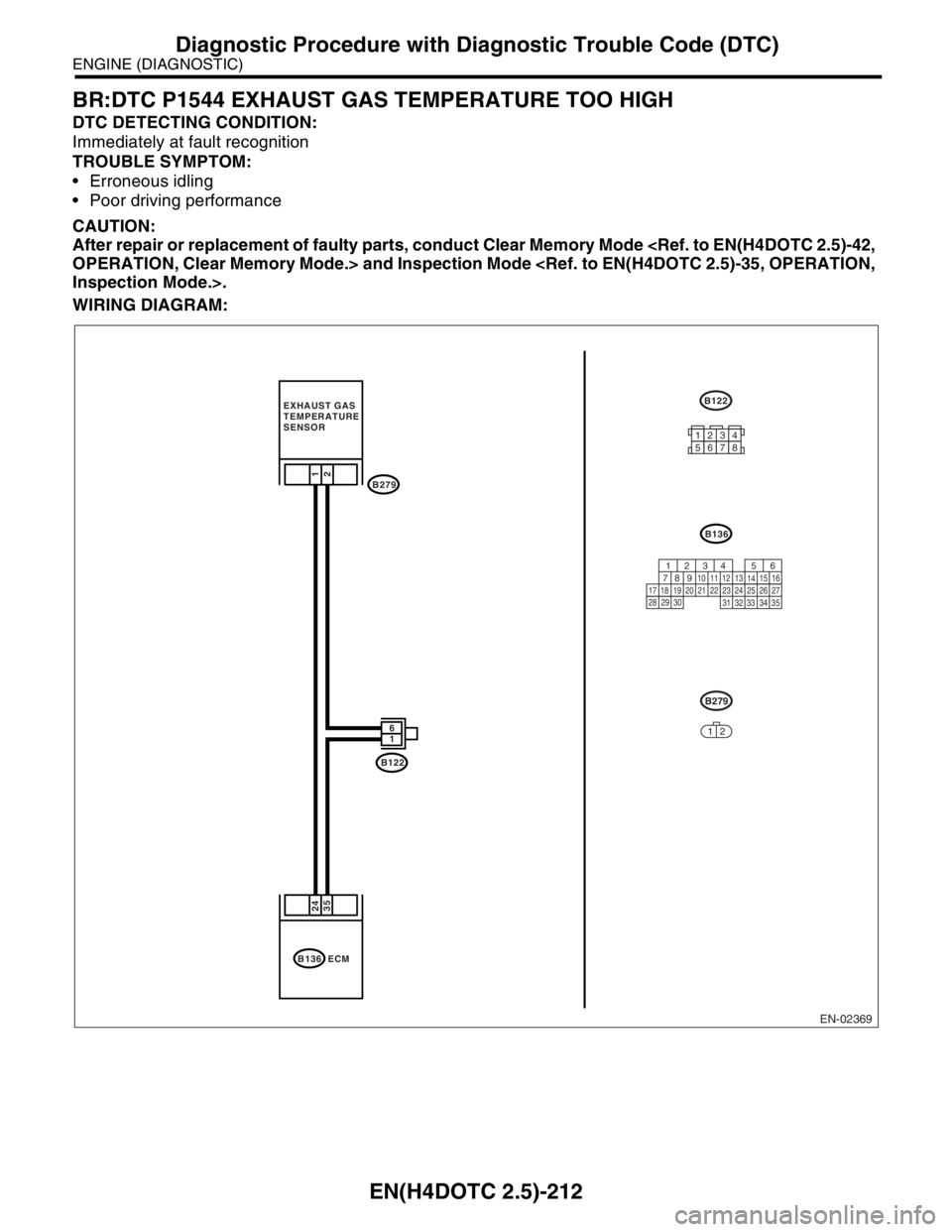

WIRING DIAGRAM:
EN-02369
B1226
B136 ECM
35 24
B2791
2
B279
112
B122
B136
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
EXHAUST GAS
TEMPERATURE
SENSOR
12345678

EN(H4DOTC 2.5)-226
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ELECTRONIC THROTTLE CON-
TROL RELAY.
1) Turn the ignition switch to OFF.
2) Remove the electronic throttle control relay.
3) Connect the battery to electronic throttle
control relay terminals No. 1 and No. 3.
4) Measure the resistance between electronic
throttle control relay terminals.
Te r m i n a l s
No. 2 — No. 4:Is the resistance less than 1
Ω?Go to step 2.Replace the elec-
tronic throttle con-
trol relay.
2 CHECK POWER SUPPLY OF ELECTRONIC
THROTTLE CONTROL RELAY.
Measure the voltage between electronic throt-
tle control relay connector and engine ground.
Connector & terminal
(B309) No. 1 (+) — Engine ground (
−):
(B309) No. 2 (+) — Engine ground (
−):Is the voltage more than 5 V? Go to step 3.Repair open or
ground short cir-
cuit of power sup-
ply circuit.
3 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL RE-
LAY.
1) Disconnect the connector from ECM.
2) Turn the ignition switch to ON.
3) Measure the voltage between electronic
throttle control relay connector and engine
ground.
Connector & terminal
(B309) No. 3 (+) — Engine ground (
−):Is the voltage less than 5 V? Go to step 4.Repair power sup-
ply short circuit in
harness between
ECM and electronic
throttle control.
4 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL RE-
LAY.
1) Turn the ignition switch to OFF.
2) Measure the resistance between electronic
throttle control relay connector and chassis
ground.
Connector & terminal
(B309) No. 3 — Engine ground:
(B309) No. 4 — Engine ground:Is the resistance more than 1
MΩ?Go to step 5.Repair ground
short circuit in har-
ness between
ECM and elec-
tronic throttle con-
trol relay.
5 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL RE-
LAY.
Measure the resistance between ECM connector
and electronic throttle control relay connector.
Connector & terminal
(B135) No. 35 — (B309) No. 3:
(B137) No. 6 — (B309) No. 4:Is the resistance less than 1
Ω?Go to step 6.Repair open circuit
in harness
between ECM and
electronic throttle
control relay.
6 CHECK SENSOR OUTPUT.
1) Connect all the connectors.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM con-
nector terminals.
Connector & terminal
(B136) No. 18 (+) — (B136) No. 35 (
−):
4) Check the voltage change by shaking the
harness and connector of ECM, engine har-
ness connector and electronic throttle control
connector.Is the voltage more than 0.4 V? Go to step 7.Go to step 9.

EN(H4DOTC 2.5)-227
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
7 CHECK SENSOR OUTPUT.
1) Connect all the connectors.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM con-
nector terminals.
Connector & terminal
(B136) No. 29 (+) — (B136) No. 35 (
−):
4) Check the voltage change by shaking the har-
ness and connector of ECM, engine harness con-
nector and electronic throttle control connector.Is the voltage more than 0.8 V? Go to step 8.Go to step 9.
8 CHECK POOR CONTACT.
Check the poor contact in connector between
ECM and electronic throttle control.Is there poor contact? Repair the poor
contact.Go to step 13.
9 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from the elec-
tronic throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.
Connector & terminal
(B136) No. 16 — (E57) No. 5:Is the resistance less than 1
Ω?Go to step 10.Repair the open
circuit of harness
connector.
10 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
Measure the resistance between ECM connec-
tor and chassis ground.
Connector & terminal
(B136) No. 16 — Chassis ground:
(B136) No. 18 — Chassis ground:
(B136) No. 29 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 11.Repair the ground
short circuit of har-
ness.
11 CHECK SENSOR POWER SUPPLY.
1) Connect the ECM connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 5 (+) — Engine ground (
−):
4) Check the voltage change by shaking the
harness and connector of ECM and engine
harness connector while monitoring the value
with voltage meter.Is the voltage 4.5 — 5.5 V? Go to step 12.Repair the poor
contact in ECM
connector. Replace
the ECM if defec-
tive. FU(H4DOTC 2.5)-
41, Engine Con-
trol Module
(ECM).>
12 CHECK SHORT CIRCUIT IN ECM.
1) Turn the ignition switch to OFF.
2) Measure the resistance between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 4 — Engine ground:
(E57) No. 6 — Engine ground:Is the resistance more than 10
Ω?Go to step 13.Repair the poor
contact in ECM
connector.
Replace the ECM
if defective.
13 CHECK SENSOR OUTPUT.
1) Connect all the connectors.
2) Turn the ignition switch to ON.
3) Read the data of main throttle sensor signal
using Subaru Select Monitor.
4) Check the voltage change by shaking the
harness and connector of ECM, engine har-
ness connector and electronic throttle control
connector.Is the voltage 4.63 V? Go to step 14.Go to step 16. Step Check Yes No

EN(H4DOTC 2.5)-228
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
14 CHECK SENSOR OUTPUT.
1) Read the data of sub throttle sensor signal
using Subaru Select Monitor.
2) Check the voltage change by shaking the
harness and connector of ECM, engine har-
ness connector and electronic throttle control
connector.Is the voltage 4.73 V? Go to step 15.Go to step 16.
15 CHECK POOR CONTACT.
Check the poor contact in connector between
ECM and electronic throttle control.Is there poor contact? Repair the poor
contact.Go to step 21.
16 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from the elec-
tronic throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.
Connector & terminal
(B136) No. 18 — (E57) No. 6:
(B136) No. 29 — (E57) No. 4:
(B136) No. 35 — (E57) No. 3:Is the resistance less than 1
Ω?Go to step 17.Repair the open
circuit of harness
connector.
17 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Connect the ECM connector.
2) Measure the resistance between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 3 — Engine ground:Is the resistance less than 5
Ω?Go to step 18.Repair the poor
contact in ECM
connector.
Replace the ECM
if defective.
18 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to ON.
2) Measure the voltage between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 5 (+) — Engine ground (
−):
3) Check the voltage change by shaking the
harness and connector of ECM and engine
harness connector while monitoring the value
with voltage meter.Is the voltage more than 10 V? Go to step 19.Repair battery
short circuit in har-
ness between ECM
connector and elec-
tronic throttle con-
trol connector.
19 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Measure the voltage between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 4 (+) — Engine ground (
−):
(E57) No. 6 (+) — Engine ground (
−):
2) Check the voltage change by shaking the
harness and connector of ECM and engine
harness connector while monitoring the value
with voltage meter.Is the voltage less than 10 V? Go to step 20.Repair short circuit
in harness
between ECM
connector and
electronic throttle
control connector. Step Check Yes No

EN(H4DOTC 2.5)-229
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
20 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Remove the ECM.
3) Measure the resistance between ECM con-
nectors.
Connector & terminal
(B136) No. 18 — (B136) No. 35:
(B136) No. 29 — (B136) No. 35:Is the resistance more than 1
MΩ?Go to step 21.Repair short circuit
to sensor power
supply.
21 CHECK SENSOR OUTPUT.
1) Turn the ignition switch to OFF.
2) Connect the connectors except of the elec-
tric control throttle relay.
3) Turn the ignition switch to ON.
4) Read the data of main throttle sensor signal
using Subaru Select Monitor.Is the voltage 0.81 — 0.87 V? Go to step 22.Repair poor contact
of electronic throt-
tle control connec-
tor. Replace the
electronic throttle
control if defective.
22 CHECK SENSOR OUTPUT.
Read the data of sub throttle sensor signal
using Subaru Select Monitor.Is the voltage 1.64 — 1.70 V? Go to step 23.Repair the poor
contact in ECM con-
nector. Replace the
electronic throttle
control if defective.
23 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL MO-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from the elec-
tronic throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.
Connector & terminal
(B137) No. 4 — (E57) No. 1:
(B137) No. 5 — (E57) No. 2:Is the resistance less than 1
Ω?Go to step 24.Repair the open
circuit of harness
connector.
24 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL MO-
TOR.
1) Connect the connector to ECM.
2) Turn the ignition switch to ON.
3) Measure the voltage between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 1 (+) — Engine ground (
−):
(E57) No. 2 (+) — Engine ground (
−):Is the voltage less than 5 V? Go to step 25.Repair power sup-
ply short circuit in
harness between
ECM and electronic
throttle control.
25 CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL MO-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance between electronic
throttle control connector and engine ground.
Connector & terminal
(E57) No. 1 — Engine ground:
(E57) No. 2 — Engine ground:Is the resistance more than 1
MΩ?Go to step 26.Repair the short
circuit of harness.
26 CHECK ELECTRONIC THROTTLE CON-
TROL MOTOR HARNESS.
Measure the resistance between electronic
throttle control connector terminals.
Connector & terminal
(E57) No. 2 — (E57) No. 1:Is the resistance more than 1
MΩ?Go to step 27.Repair the short
circuit of harness. Step Check Yes No
