EN(H4DOTC 2.5)-13
ENGINE (DIAGNOSTIC)
Electrical Component Location

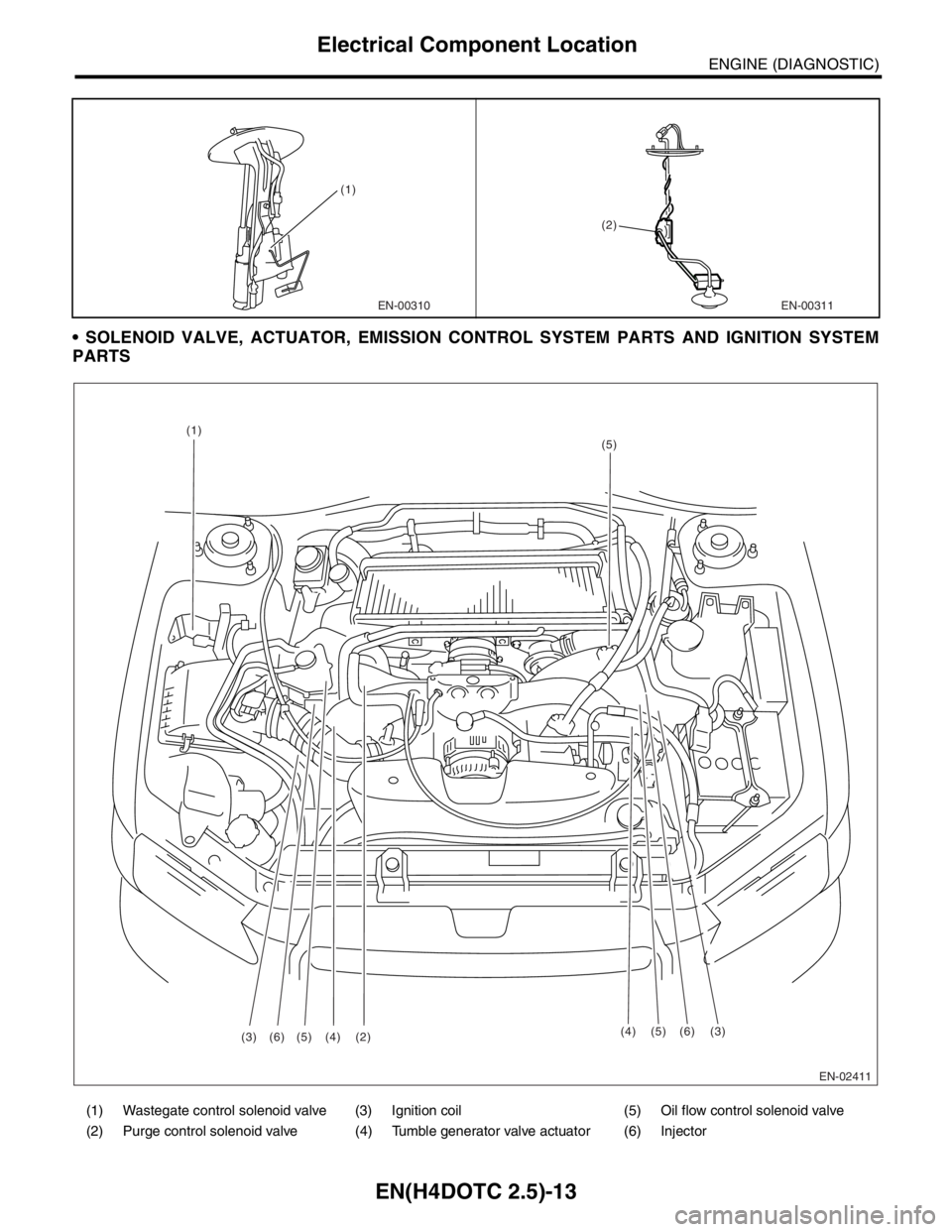

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM
PARTS
(1) Wastegate control solenoid valve (3) Ignition coil (5) Oil flow control solenoid valve
(4) Tumble generator valve actuator (2) Purge control solenoid valve (6) Injector
EN-00310 (1)EN-00311 (2)
EN-02411
(4)(4) (1)
(5)(5)(3)(6)(2)(3)(5)(6)
Page 2038 of 2870
EN(H4DOTC 2.5)-14
ENGINE (DIAGNOSTIC)
Electrical Component Location
EN-00313(1)EN-01804
(2)
EN-01805(3)EN-01806
(4)
EN-02011
(5)
FU-02412(6)
Page 2039 of 2870
EN(H4DOTC 2.5)-15
ENGINE (DIAGNOSTIC)
Electrical Component Location
(1) Fuel pump (4) Fuel pump controller (7) Fan mode relay
(2) Main relay (5) Radiator main fan relay (8) Starter
(3) Fuel pump relay (6) Radiator sub fan relay
EN-00099
(4)
(3)
(8)(1)
(7)(6)(5)(3)(2)
(2)(4)
(1)
EN-00100
(2)
EN-01268
FU-00130(3)
(4)
EN-00101
Page 2040 of 2870
EN(H4DOTC 2.5)-16
ENGINE (DIAGNOSTIC)
Electrical Component Location
2. TRANSMISSION
SOLENOID VALVE & SWITCH (MT MODEL)
(1) Neutral Position Switch
EN-00102
(6)
(7)
(5)
EN-00103
(8)
EN-00192 (1)
Page 2041 of 2870
EN(H4DOTC 2.5)-17
ENGINE (DIAGNOSTIC)
Engine Control Module (ECM) I/O Signal
5. Engine Control Module (ECM) I/O Signal
A: ELECTRICAL SPECIFICATION
DESCRIPTION Connector No. Terminal No.Signal (V)
NOTE
Ignition SW ON
(engine OFF)Engine ON
(Idling)
Crank-
shaft posi-
tion sensorSignal (+) B135 10 0−7 — +7 Waveform
Signal (−) B135 22 0 0 —
Shield B135 31 0 0 —
Rear oxy-
gen sensorSignal B137 25 0 0 — 0.9 —
Shield B137 31 0 0 —
GND
(sensors)B136 35 0 0 —
Fr o nt ox y-
gen (A/F)
sensor
heaterSignal 1 B134 3 0 — 1.0 — Waveform
Signal 2 B134 2 0 — 1.0 — Waveform
Rear oxygen sensor
heater signalB135 2 0 — 1.0 — Waveform
Engine
coolant
tempera-
ture sen-
sorSignal B136 14 1.0 — 1.4 1.0 — 1.4 After engine is warmed-up.
GND
(sensors)B136 35 0 0 After engine is warmed-up.
Vehicle speed signal B135 26 0 or 5 0 or 5“5” and “0” are repeatedly dis-
played when vehicle is driven.
Air flow
sensorSignal B136 23 — 0.3 — 4.5 —
Shield B136 32 0 0 —
GND B136 31 0 0 —
Intake air temperature
sensor signalB136 13 0.3 — 4.6 0.3 — 4.6 —
Exhaust
gas tem-
perature
sensorSignal B136 24 — — —
GND
(sensors)B136 35 0 0 —
EN-01812
B134
5 6 7
8 21
9 43
10
24 2223 2511 12 13 14 15
26 27
28 16 17
18 19 20 21
33 34 29
32 3031
B136
5 6
7 8 21
9 43
10
24 2223 2511 12 13
14 15
26 27
28 16
17 18 19 20 21
33 3429
3230
31 35
B135
5 6 7
8 21
9 43
10
24 2223 2511 12 13 14 15
26 27
28 16 17 18 19
20 21
29 30 31 32 33 34 35
B137
5 6 7
8 21
9 43
10
22 2311 12 13 14 15
24 25
26 16 17
18 19 20 21
27 28 29 30 31
To
To To
To
