Chassis number........................................................ 10-2
Engine number ......................................................... 10-2
Vehicle information code plate ............................... 10-3
Single cab
Dimensions ............................................................. 10-5
Performance ........................................................... 10-5
Weights ................................................................... 10-6
Engine ..................................................................... 10-7
Transmission .......................................................... 10-7
Electrical system .................................................... 10-8
Tyres and wheels ................................................... 10-8
Other specifications............................................... 10-9
Club cab
Dimensions ............................................................. 10-11
Performance ........................................................... 10-11
Weights ................................................................... 10-12
Engine ..................................................................... 10-13
Transmission .......................................................... 10-13
Electrical system .................................................... 10-14
Tyres and wheels ................................................... 10-14
Other specifications............................................... 10-15
Double cab
Dimensions ............................................................. 10-17
Performance ........................................................... 10-18
Weights ................................................................... 10-19
Engine ..................................................................... 10-20
Transmission .......................................................... 10-21
Electrical system .................................................... 10-22
Tyres and wheels ................................................... 10-22
Other specifications............................................... 10-23
Notes regarding diesel fuel ..................................... 10-24
Capacities.................................................................. 10-25
Specifications
10
10engL2_240082_4 22-01-2004 13:14 Page 10-1

SPECIFICATIONS
Chassis numberEB02A-D
The chassis number is stamped as shown
in the illustration.
Engine numberEB02B-A
The engine number is stamped on the en-
gine cylinder block as shown in the illus-
tration.
10-2
B02A006B02B013
2500 model
B02B012
2400 model
10engL2_240082_4 22-01-2004 13:14 Page 10-2

SPECIFICATIONS
Vehicle information code
plate
EB02C-O
The vehicle information code plate is riv-
eted as illustrated.
The plate shows model code, engine
model, transmission model and body
colour code, etc.
Please use this number when ordering re-
placement parts.1 - Model code
2 - Engine model code
3 - Transmission model code
4 - Body colour code
5 - Interior code
6 - Option code
10-3
B02C027B02C112
12
34 5 6
10engL2_240082_4 22-01-2004 13:14 Page 10-3

SPECIFICATIONS
P01A038
7
911
10
12
5 4
6 3 2
8
1
10-4
Single cab
10engL2_240082_4 22-01-2004 13:14 Page 10-4

Dimensions EP01BPO
PerformanceEP01CPO
SPECIFICATIONS
10-5
Item2WD4WD
1Front track1,450 mm1,420 mm
2Overall width1,695 mm
3Front overhang850 mm840 mm
4Wheel base2,950 mm2,960 mm
5Rear overhang1,210 mm
6Overall length5,010 mm
7Ground clearance (unladen)190 mm215 mm
8Overall height (unladen)1,585 mm1,750 mm
9Rear track1,435 mm
10Cargo area length2,245 mm
11Cargo area width1,470 mm
12Cargo bed height680 mm860 mm
Item2WD4WDWith turbochargerWithout turbocharger
Maximum speed147 km/h142 km/h152 km/h
Minimum turning radiusBody6.0 m
Wheel5.8 m
Maximum climbing ability (in 1st gear)20°16°34°
6.4 m
6.6 m
10engL2_240082_4 22-01-2004 13:14 Page 10-5

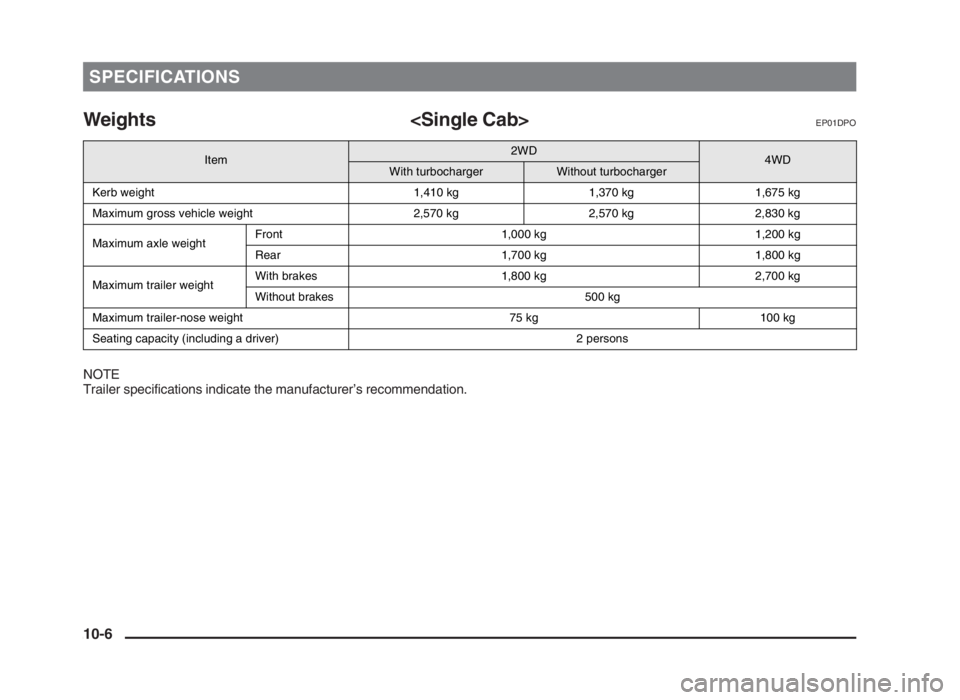

Weights EP01DPO
NOTE
Trailer specifications indicate the manufacturer’s recommendation.
SPECIFICATIONS
10-6

Item
2WD4WDWith turbochargerWithout turbocharger
Kerb weight 1,410 kg 1,370 kg 1,675 kg
Maximum gross vehicle weight 2,570 kg 2,570 kg 2,830 kg
Maximum axle weightFront 1,000 kg 1,200 kg
Rear 1,700 kg 1,800 kg
Maximum trailer weightWith brakes 1,800 kg 2,700 kg
Without brakes 500 kg
Maximum trailer-nose weight 75 kg 100 kg
Seating capacity (including a driver) 2 persons
10engL2_240082_4 22-01-2004 13:14 Page 10-6

Engine EP01EPO
TransmissionEP01FZL
SPECIFICATIONS
Item2WD4WD
With turbochargerWithout turbocharger
Engine typeFour-cylinder, in line, water
cooled, four-cycle, overhead
camshaft with turbochargerFour-cylinder, in line,
water cooled, four-cycle,
overhead camshaftFour-cylinder, in line, water
cooled, four-cycle, overhead
camshaft with turbo charger
Engine model
Total displacement
Bore
Stroke
Compression ratio4D56
2,477 cc
91.1 mm
95.0 mm
21.0 : 1
Valve clearanceIntake 0.25 mm
Exhaust 0.25 mm
Firing order—
Maximum output 66 kW @ 4,000 r/min 57 kW @ 4,000 r/min 85 kW @ 4,000 r/min
Maximum torque 196 Nm @ 2,000 r/min 158 Nm @ 2,500 r/min 240 Nm @ 2,000 r/min
Item2WD4WDWith turbochargerWithout turbocharger
Gear ratio1st 3.967 4.330 3.918
2nd 2.136 2.355 2.261
3rd 1.360 1.509 1.395
4th 1.000 1.000 1.000
5th 0.856 0.833 0.829
Reverse 3.578 4.142 3.925
10-7
10engL2_240082_4 22-01-2004 13:14 Page 10-7

Electrical system EP01GPO
*: Optional equipment
Tyres and wheelsEP01HPO
*: Optional equipment
SPECIFICATIONS
10-8

Voltage12 V
Battery type 95D31R (622CCA/159RC), 80D26R* x 2 (582CCA/133RC)
Alternator capacity 65A, 75A*, 80A*
Item2WD
4WDWith turbochargerWithout turbocharger
Tyre Size
185R14C 8PR 102/100R185R14C 8PR 102/100Q
185R14C 8PR 102/100R*205/80R16 104S
WheelSize
14 x 6 JJ (St), 14 x 6 JJ (Al)* 16 x 6 J (St)
Offset
33 mm
