Dimensions EP01BPS
SPECIFICATIONS
10-17
Item2WD4WD
1Front track1,450 mm1,420 mm
2Overall width1,695 mm
3Front overhang850 mm840 mm
4Wheel base2,950 mm2,960 mm
5Rear overhang1,210 mm
6Overall length5,010 mm
7Ground clearance (unladen)190 mm215 mm
8Overall height (unladen)1,610 mm1,780 mm
9Rear track1,435 mm
10Cargo area length1,500 mm
11Cargo area width1,470 mm
12Cargo bed height680 mm860 mm
GL, GLX
1,465 mm
1,775 mm
235 mm
1,800 mm
1,480 mm
880 mm
GLS
10engL2_240082_4 22-01-2004 13:14 Page 10-17

Performance EP01CPS
SPECIFICATIONS
10-18

Item
2WD4WD
With turbochargerWithout
turbo-
chargerWithout catalytic converterWith catalytic converter
GLGLSGL, GLSGLXA/TM/TA/TM/TA/TM/T
Maximum speed 148 km/h 147 km/h 140 km/h 139 km/h 140 km/h 139 km/h 150 km/h 152 km/h 150 km/h
Maximum climbing ability (in 1st gear) 20° 16° 34°
Minimum turning radiusBody 6.0 m 6.6 m
Wheel 5.8 m 6.4 m
10engL2_240082_4 22-01-2004 13:14 Page 10-18

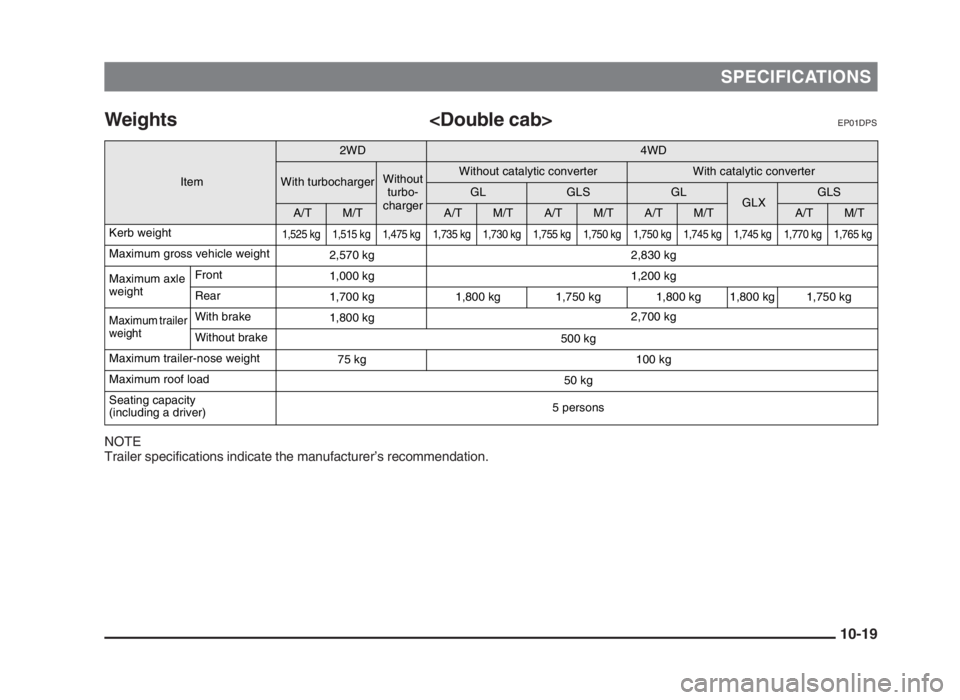

SPECIFICATIONS
Weights EP01DPS
NOTE
Trailer specifications indicate the manufacturer’s recommendation.
10-19

Item
2WD4WD
With turbochargerWithout
turbo-
chargerWithout catalytic converterWith catalytic converter
GLGLSGLGLXGLS
A/TM/TA/TM/TA/TM/TA/TM/TA/TM/T
Kerb weight

1,525 kg 1,515 kg 1,475 kg 1,735 kg 1,730 kg 1,755 kg 1,750 kg 1,750 kg 1,745 kg 1,745 kg 1,770 kg 1,765 kg

Maximum gross vehicle weight
2,570 kg 2,830 kg
Maximum axle
weightFront
1,000 kg 1,200 kg
Rear
1,700 kg 1,800 kg 1,750 kg 1,800 kg 1,800 kg 1,750 kg
Maximum trailer
weightWith brake
1,800 kg2,700 kg
Without brake
500 kg
Maximum trailer-nose weight
75 kg 100 kg
Maximum roof load
50 kg
Seating capacity
(including a driver)5 persons
10engL2_240082_4 22-01-2004 13:14 Page 10-19

SPECIFICATIONS
Engine EP01EPS
2WD
10-20

Item
With turbochargerWithout turbocharger
Engine typeFour-cylinder, in line, water cooled, four-cycle,
overhead camshaft with turbochargerFour-cylinder, in line, water cooled,
four-cycle, overhead camshaft
Engine model
Total displacement
Bore
Stroke
Compression ratio4D56
2,477 cc
91.0 mm
95.0 mm
21.0 : 1
Valve clearanceIntake 0.25 mm
Exhaust 0.25 mm
Firing order—
Maximum output 66 kW @ 4,000 r/min 57 kW @ 4,000 r/min
Maximum torque 196 Nm @ 2,000 r/min 158 Nm @ 2,500 r/min
10engL2_240082_4 22-01-2004 13:14 Page 10-20

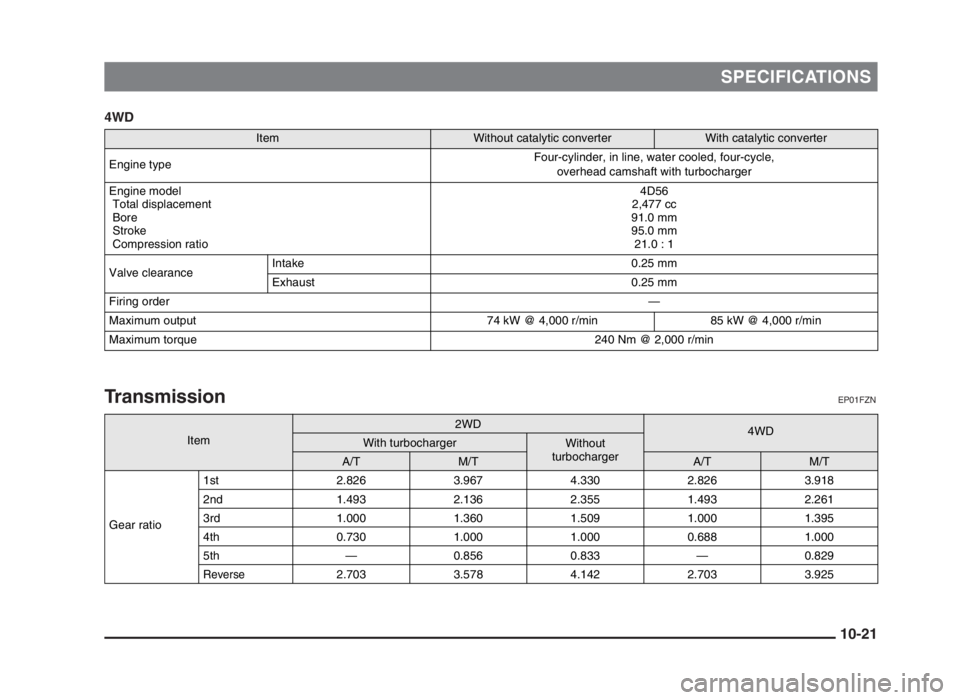

SPECIFICATIONS
4WD
TransmissionEP01FZN
10-21

Item
Without catalytic converterWith catalytic converter
Engine typeFour-cylinder, in line, water cooled, four-cycle,
overhead camshaft with turbocharger
Engine model
Total displacement
Bore
Stroke
Compression ratio4D56
2,477 cc
91.0 mm
95.0 mm
21.0 : 1
Valve clearanceIntake 0.25 mm
Exhaust 0.25 mm
Firing order—
Maximum output 74 kW @ 4,000 r/min 85 kW @ 4,000 r/min
Maximum torque240 Nm @ 2,000 r/min
Item
2WD4WDWith turbochargerWithout
turbocharger
A/TM/TA/TM/T
Gear ratio1st 2.826 3.967 4.330 2.826 3.918
2nd 1.493 2.136 2.355 1.493 2.261
3rd 1.000 1.360 1.509 1.000 1.395
4th 0.730 1.000 1.000 0.688 1.000
5th — 0.856 0.833 — 0.829
Reverse2.703 3.578 4.142 2.703 3.925
10engL2_240082_4 22-01-2004 13:14 Page 10-21

SPECIFICATIONS
Electrical system EP01GZL
*: Optional equipment
Tyres and wheelsEP01HPS
*: Optional equipment
10-22

Item
GL, GLXGLS
Voltage
12 V
Battery type95D31R (622CCA/159RC)
80D26R* x 2 (582CCA/133RC)
Alternator capacity
65A, 75A*, 80A* 65A*, 75A, 80A*
Spark plug type
—
Item2WD4WD
With turbochargerWithout turbochargerGL, GLXGLS
Tyre Size185R14C 8PR 102/100R185R14C 8PR 102/100Q
185R14C 8PR 102/100R*205/80R16 104S 265/70R16 112S
WheelSize14 x 6 JJ (St), 14 x 6 JJ (AI)* 16 x 6 J (St) 16 x 7 JJ (AI)
Offset33 mm 10 mm
10engL2_240082_4 22-01-2004 13:14 Page 10-22

SPECIFICATIONS
Other specifications EP01IPS
*: Optional equipment
10-23

Item
2WD4WD
With turbochargerWithout turbochargerWith catalytic converterWithout catalytic converter
Combustion type Indirect injection
Fuel injection pumpElectronically
controlledMechanicalElectronically
controlledMechanical
Clutch Dry single disc clutch with diaphragm spring, hydraulic action
Steering system Recirculating ball type, power assisted* Recirculating ball type, power assisted
SuspensionFront Independent type, wishbone, coil spring Independent type, wishbone, torsion bar
Rear Rigid type, leaf spring
Service brakesType Hydraulic, front and rear splitted double circuit system with power assistance, anti-lock brake*
Front Ventilated disc brakes
Rear Drum brakes
Parking brake Parking brake acts mechanically on rear wheels
10engL2_240082_4 22-01-2004 13:14 Page 10-23

SPECIFICATIONS
Notes regarding diesel fuel
EPO2A-F
Due to paraffin separation, the fluidity of
diesel fuel decreases remarkably as the
temperature decreases. For this reason,
diesel fuel is divided into two types, “sum-
mer” and “winter”.
The effective limit of “winter” diesel fuel
during cold-weather periods is rated at
-15°C. In extremely cold weather, it is
recommended that regular petrol (not
premium or “high-test” petrol) be mixed
with the diesel fuel up to a maximum con-
centration of 30%. In order to minimize the
reduction in performance, be sure to mix
in only as much regular petrol as is ab-
solutely necessary.When travelling in a foreign country, be
sure to obtain information regarding the
diesel fuel in general use in that locality.
Use of a “flow improver”, which can be ob-
tained at most petrol stations, is recom-
mended.
CAUTION(1) Because the fuel is highly flam-
mable, mix the diesel fuel and
regular petrol only inside the ve-
hicle’s fuel tank.
(2) If possible, put the regular petrol
into the fuel tank before putting
in the diesel fuel.
Temperature“Summer”
diesel fuel“Winter”
diesel fuel
0°C – -15°CMAX 30%—
-15°C – -25°C—MAX 30%
10-24
