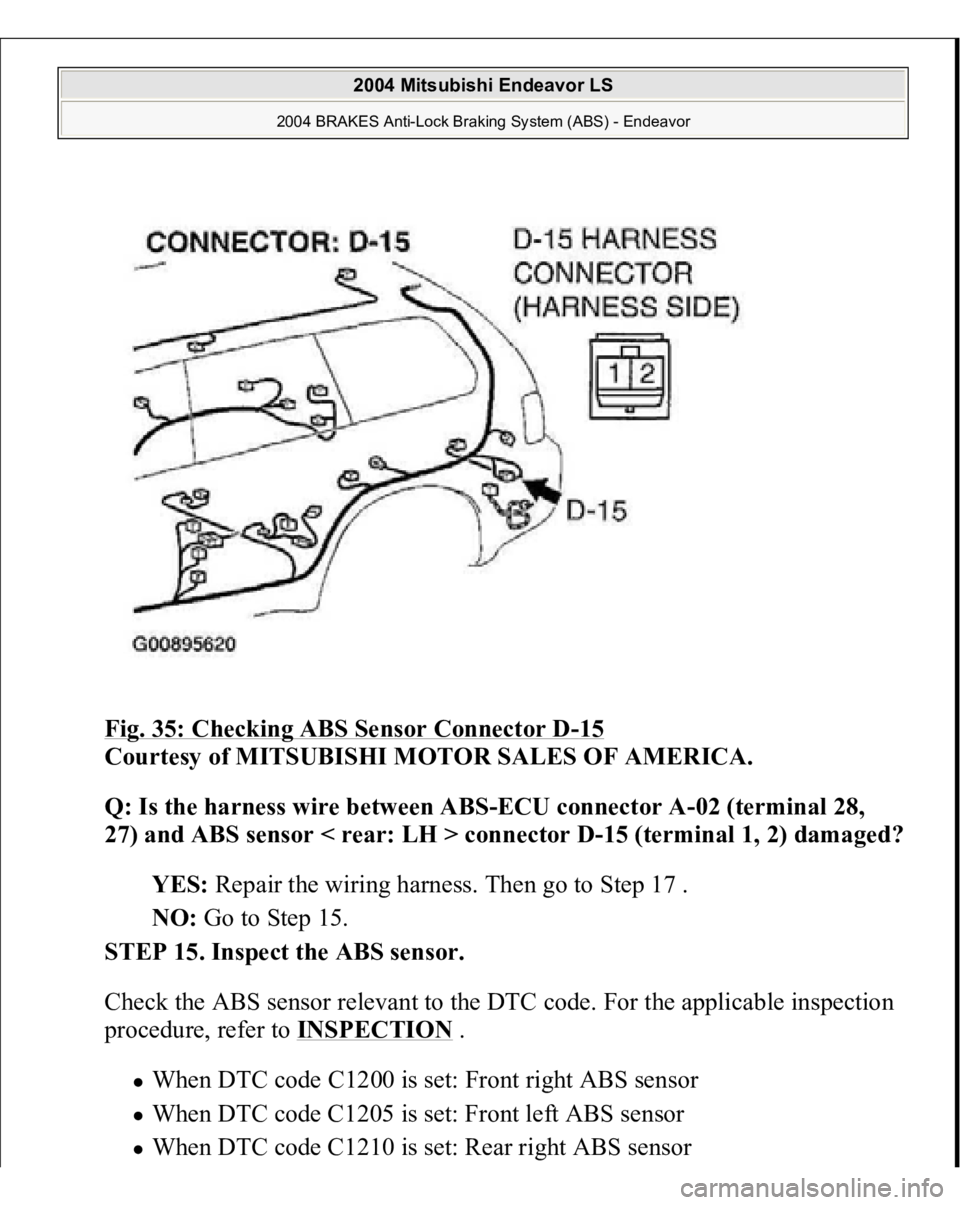

Fig. 35: Checking ABS Sensor Connector D
-15
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between ABS-ECU connector A-02 (terminal 28,
27) and ABS sensor < rear: LH > connector D-15 (terminal 1, 2) damaged?
YES: Repair the wiring harness. Then go to Step 17 .
NO: Go to Step 15.
STEP 15. Inspect the ABS sensor.
Check the ABS sensor relevant to the DTC code. For the applicable inspection
procedure, refer to INSPECTION
.
When DTC code C1200 is set: Front right ABS sensor When DTC code C1205 is set: Front left ABS sensor When DTC code C1210 is set: Rear ri
ght ABS sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 53 of 3870

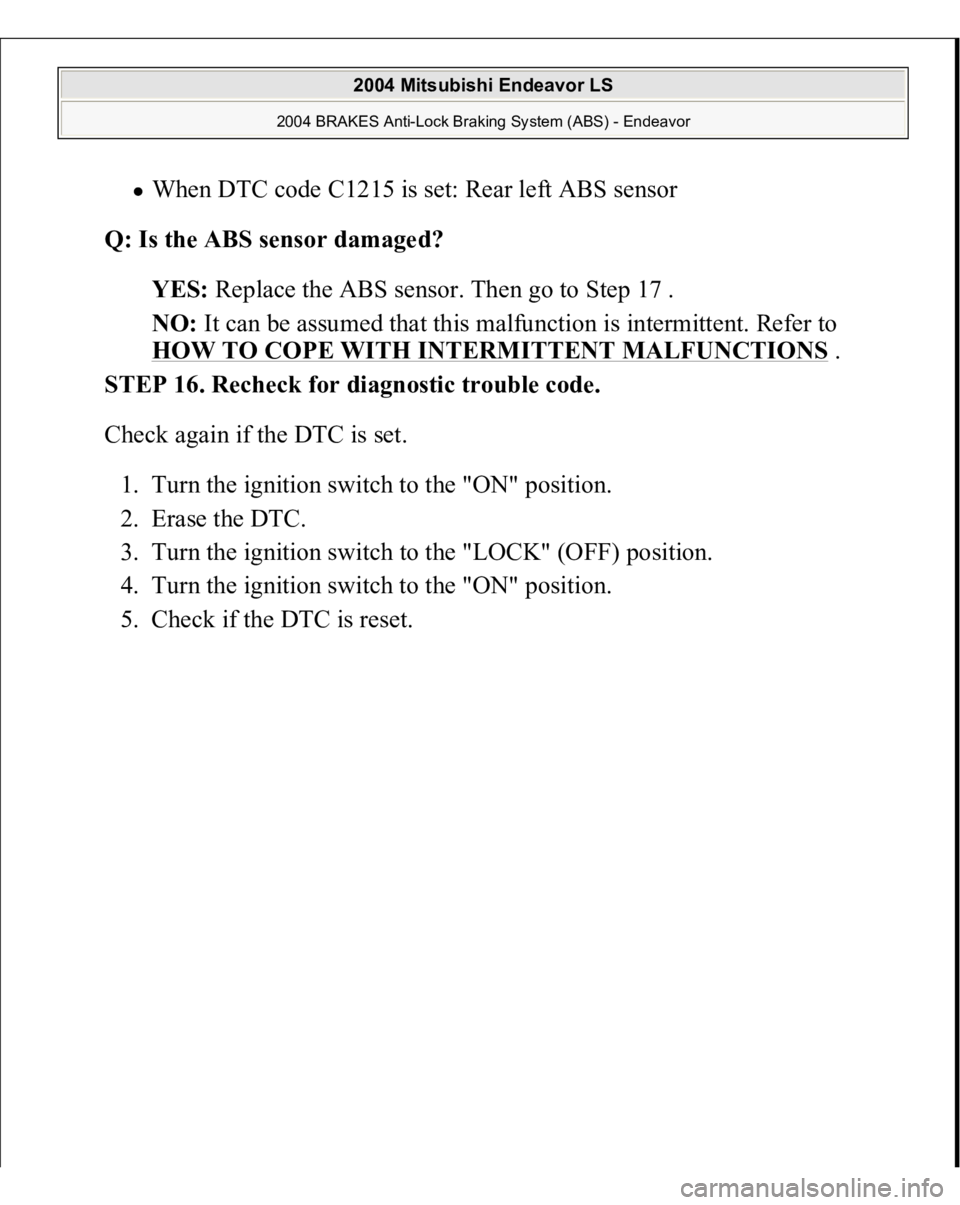

When DTC code C1215 is set: Rear left ABS sensor
Q: Is the ABS sensor damaged?
YES: Replace the ABS sensor. Then go to Step 17 .
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 16. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is reset.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 57 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1200, C1205, C1210 or C1215 set?
YES: Repeat the troubleshooting from Step 1 .
NO: The procedure is complete.

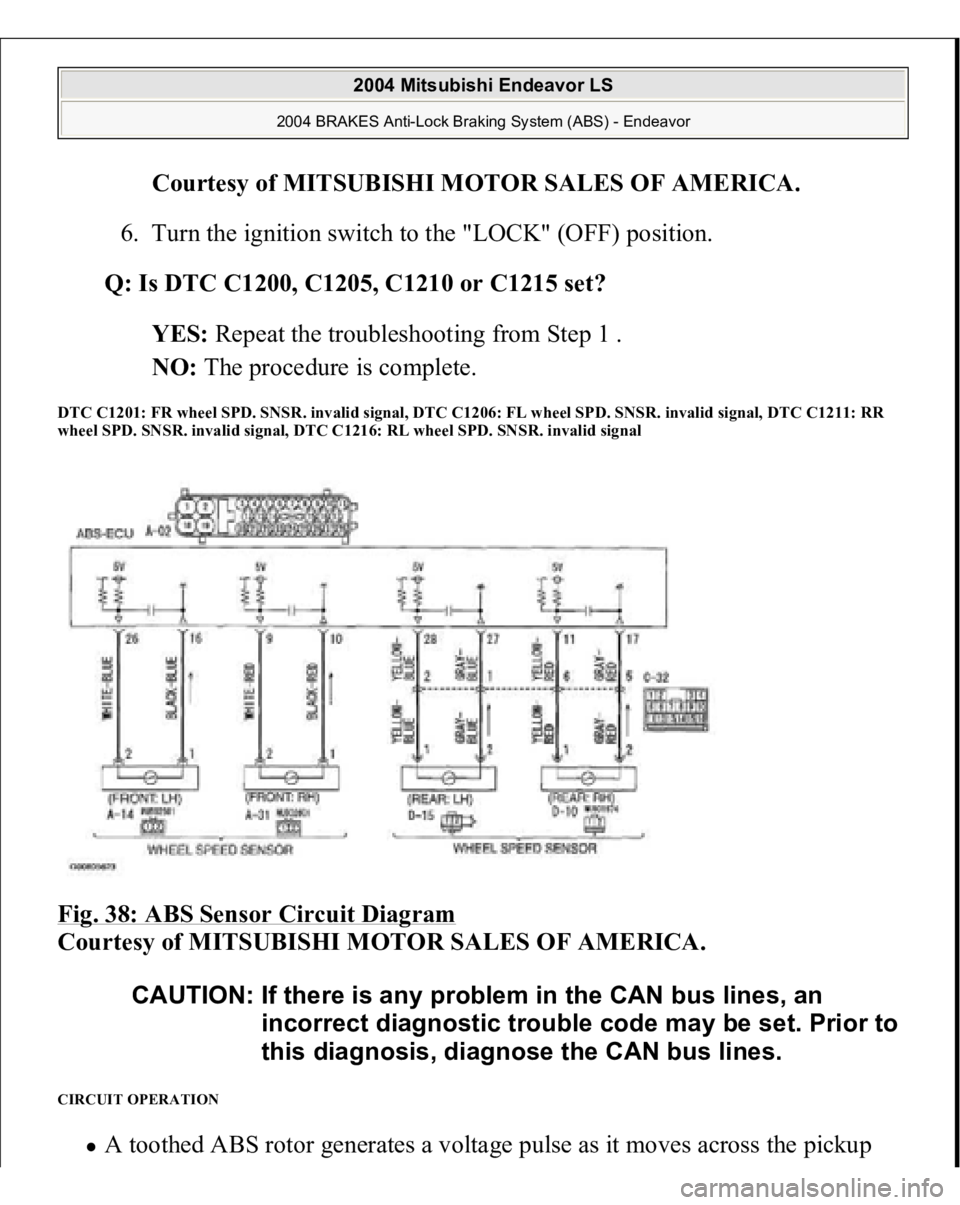

DTC C1201: FR wheel SPD. SNSR. invalid signal, DTC C1206: FL wheel SPD. SNSR. invalid signal, DTC C1211: RR
wheel SPD. SNSR. invalid signal, DTC C1216: RL wheel SPD. SNSR. invalid signal Fig. 38: ABS Sensor Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
A toothed ABS rotor
generates a volta
ge pulse as i
t moves across the
picku
p
CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 58 of 3870

field of each ABS sensor. The amount of voltage generated at each wheel is determined by the clearance
between the ABS rotor teeth and the ABS sensor, and by the speed of rotation. Sends alternating current signals at frequencies which are proportional to the
rotation speeds of each wheel to the ABS electronic control unit (ABS-ECU). The ABS hydraulic unit modulates the amount of braking force individually
applied to each wheel cylinder.
ABS DTC SET CONDITIONS The ABS-ECU monitors the signals from each ABS sensor while the vehicle is
being driven. If any faults below are found in these sensor signals, the ECU will set
the relevant diagnostic trouble code.
Missing sensor signal Sensor signal, which will not be created under normal operation Significant difference among the ABS sensor signals
TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:)
Current trouble
Malfunction of the ABS sensor or ABS rotor Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with ABS-ECU)
Past trouble
Carry out diagnosis with particular emphasis o connector(s) or wiring harness
in ABS sensor circuit. For diagnosis procedures, refer to (Refer to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVIC
).
PAST TROUBLE For diagnosis procedures, refer to "HOW TO TREAT PAST TROUBLE
" (Refer
to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVIC
).
DIAGNOSIS
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 65 of 3870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

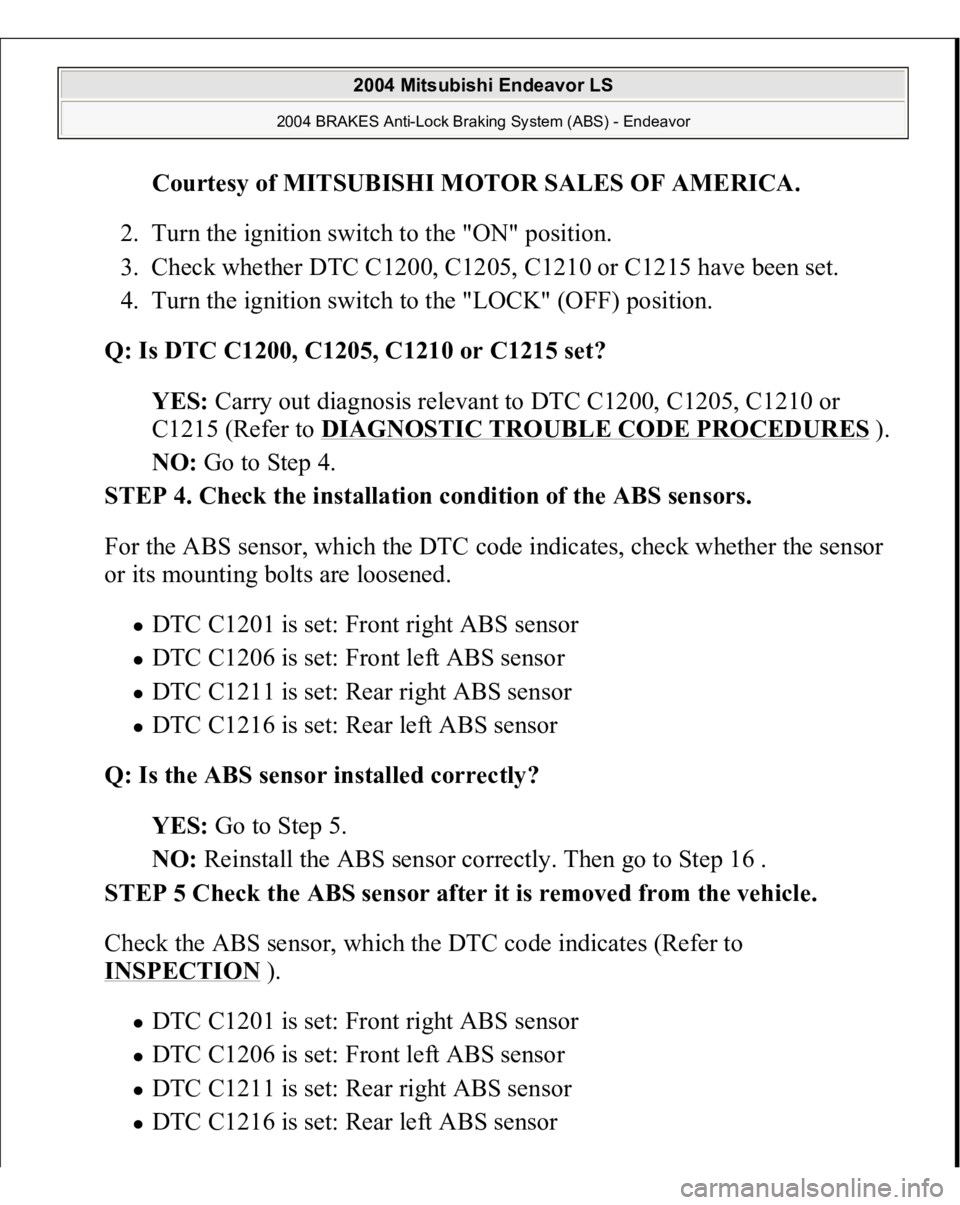

2. Turn the ignition switch to the "ON" position.
3. Check whether DTC C1200, C1205, C1210 or C1215 have been set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1200, C1205, C1210 or C1215 set?
YES: Carry out diagnosis relevant to DTC C1200, C1205, C1210 or
C1215 (Refer to DIAGNOSTIC TROUBLE CODE PROCEDURES
).
NO: Go to Step 4.
STEP 4. Check the installation condition of the ABS sensors.
For the ABS sensor, which the DTC code indicates, check whether the sensor
or its mounting bolts are loosened.
DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor DTC C1211 is set: Rear right ABS sensor DTC C1216 is set: Rear left ABS sensor
Q: Is the ABS sensor installed correctly?
YES: Go to Step 5.
NO: Reinstall the ABS sensor correctly. Then go to Step 16 .
STEP 5 Check the ABS sensor after it is removed from the vehicle.
Check the ABS sensor, which the DTC code indicates (Refer to
INSPECTION
).
DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor DTC C1211 is set: Rear right ABS sensor DTC C1216 is set: Rear left ABS sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 66 of 3870

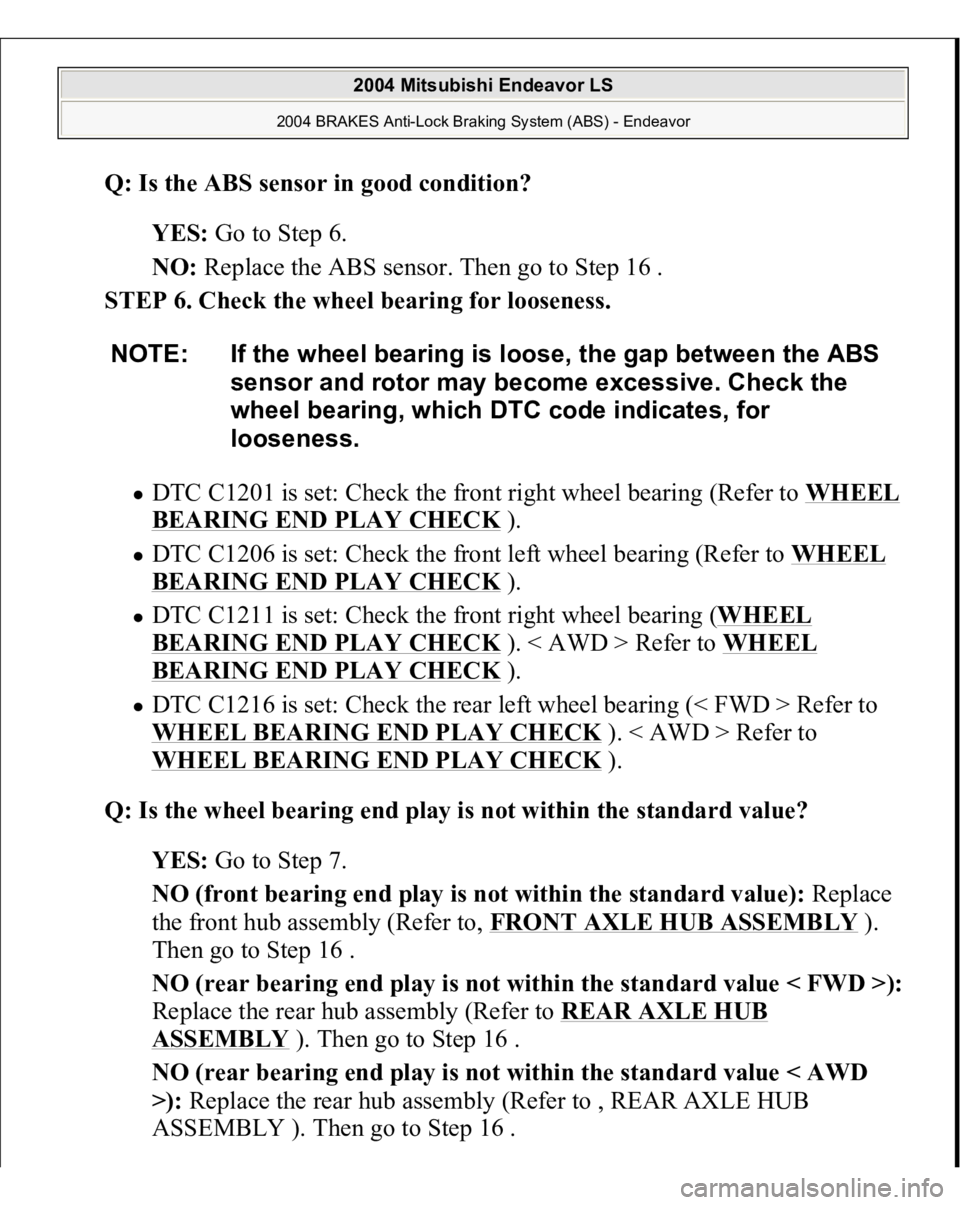

Q: Is the ABS sensor in good condition?
YES: Go to Step 6.
NO: Replace the ABS sensor. Then go to Step 16 .
STEP 6. Check the wheel bearing for looseness.
DTC C1201 is set: Check the front right wheel bearing (Refer to WHEEL BEARING END PLAY CHECK
).
DTC C1206 is set: Check the front left wheel bearing (Refer to WHEEL BEARING END PLAY CHECK
).
DTC C1211 is set: Check the front right wheel bearing (WHEEL BEARING END PLAY CHECK
). < AWD > Refer to WHEEL
BEARING END PLAY CHECK
).
DTC C1216 is set: Check the rear left wheel bearing (< FWD > Refer to
WHEEL BEARING END PLAY CHECK
). < AWD > Refer to
WHEEL BEARING END PLAY CHECK ).
Q: Is the wheel bearing end play is not within the standard value?
YES: Go to Step 7.
NO (front bearing end play is not within the standard value): Replace
the front hub assembly (Refer to, FRONT AXLE HUB ASSEMBLY
).
Then go to Step 16 .
NO (rear bearing end play is not within the standard value < FWD >):
Replace the rear hub assembly (Refer to REAR AXLE HUB
ASSEMBLY
). Then go to Step 16 .
NO (rear bearing end play is not within the standard value < AWD
>): Replace the rear hub assembly (Refer to , REAR AXLE HUB
ASSEMBLY ). Then
go to Ste
p 16. NOTE: If the wheel bearing is loose, the gap between the ABS
sensor and rotor may become excessive. Check the
wheel bearing, which DTC code indicates, for
looseness.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 67 of 3870

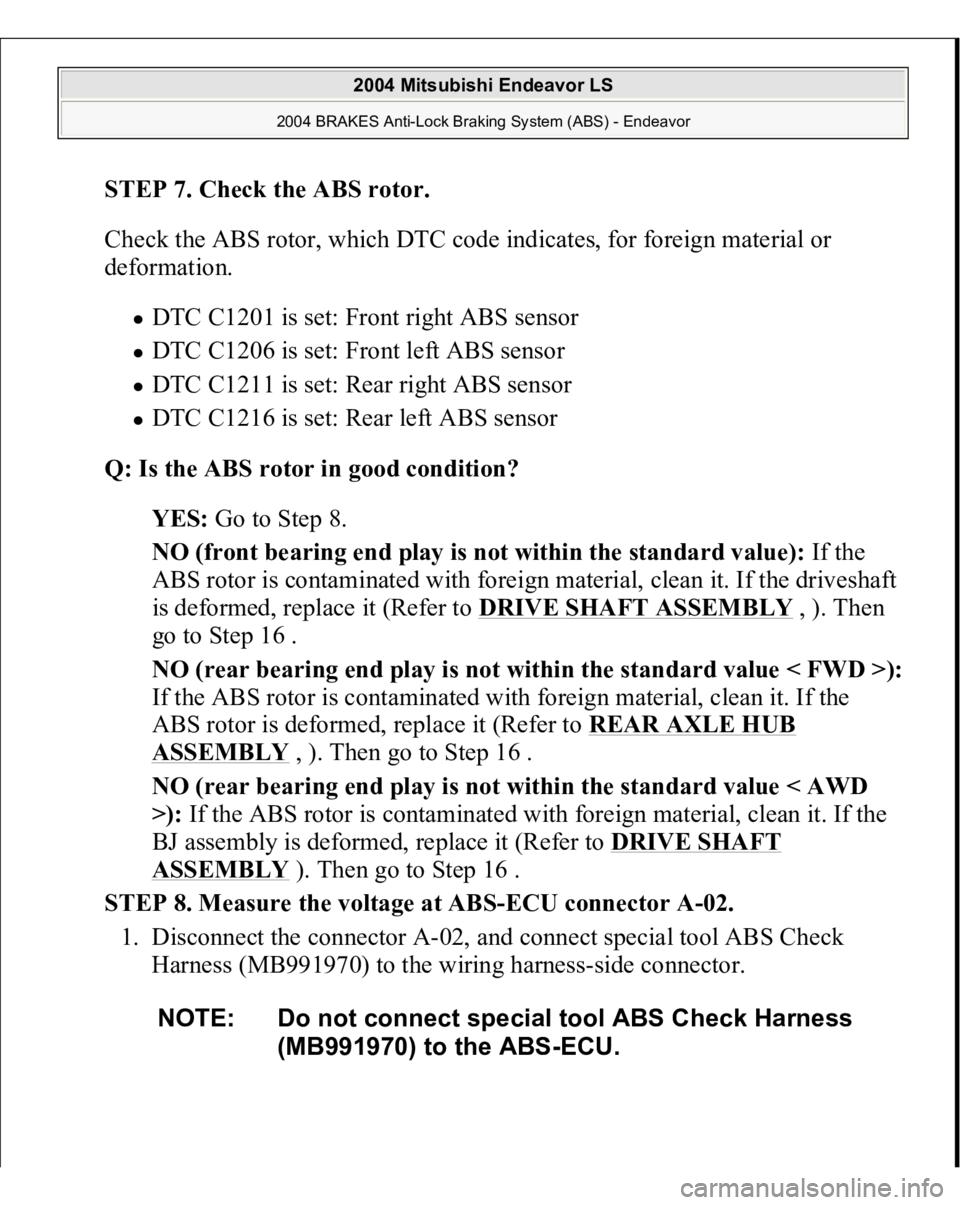

STEP 7. Check the ABS rotor.
Check the ABS rotor, which DTC code indicates, for foreign material or
deformation.
DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor DTC C1211 is set: Rear right ABS sensor DTC C1216 is set: Rear left ABS sensor
Q: Is the ABS rotor in good condition?
YES: Go to Step 8.
NO (front bearing end play is not within the standard value): If the
ABS rotor is contaminated with foreign material, clean it. If the driveshaft
is deformed, replace it (Refer to DRIVE SHAFT ASSEMBLY
, ). Then
go to Step 16 .
NO (rear bearing end play is not within the standard value < FWD >):
If the ABS rotor is contaminated with foreign material, clean it. If the
ABS rotor is deformed, replace it (Refer to REAR AXLE HUB
ASSEMBLY
, ). Then go to Step 16 .
NO (rear bearing end play is not within the standard value < AWD
>): If the ABS rotor is contaminated with foreign material, clean it. If the
BJ assembly is deformed, replace it (Refer to DRIVE SHAFT
ASSEMBLY
). Then go to Step 16 .
STEP 8. Measure the voltage at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
Page 69 of 3870

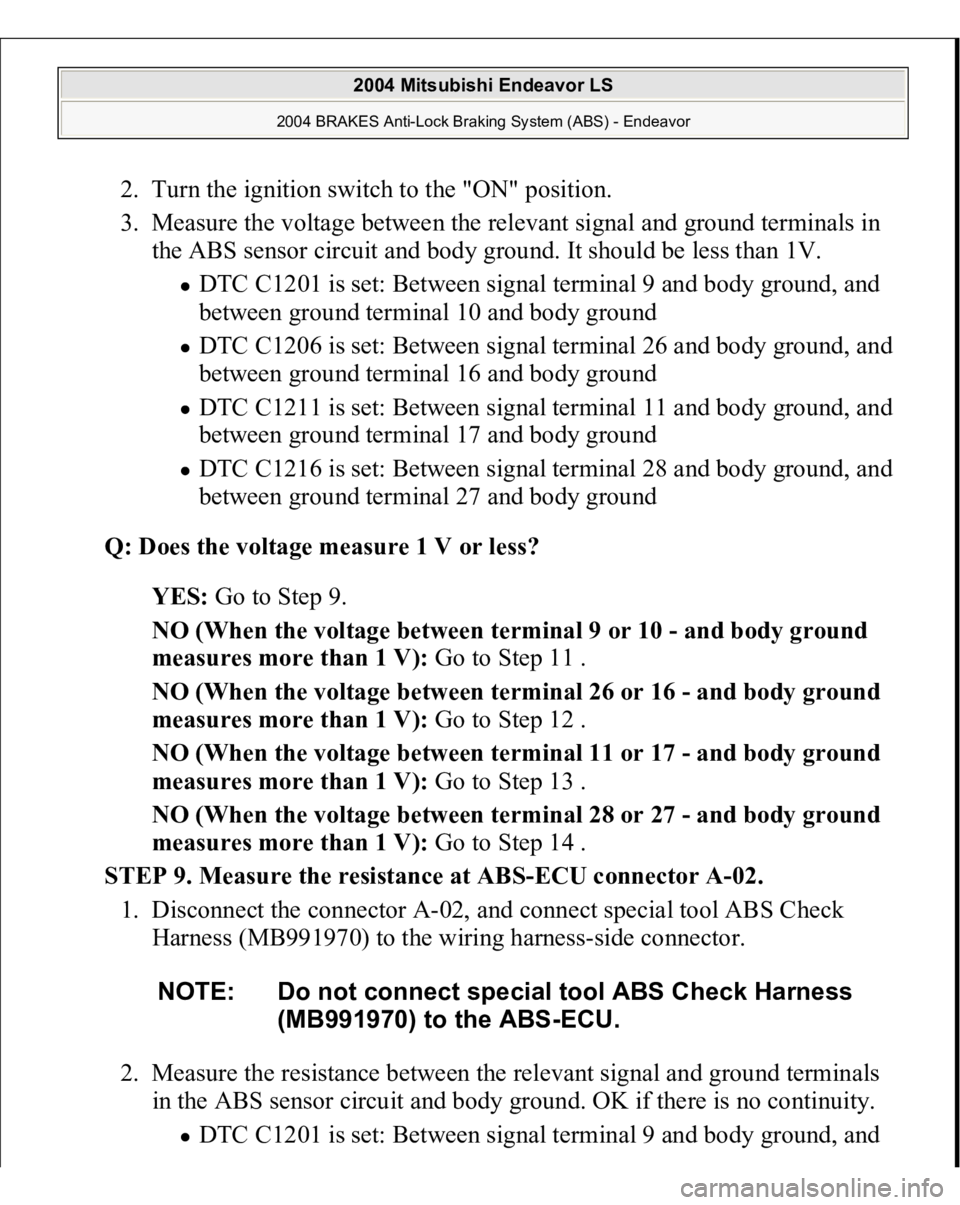

2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between the relevant signal and ground terminals in
the ABS sensor circuit and body ground. It should be less than 1V.
DTC C1201 is set: Between signal terminal 9 and body ground, and
between ground terminal 10 and body ground DTC C1206 is set: Between signal terminal 26 and body ground, and
between ground terminal 16 and body ground DTC C1211 is set: Between signal terminal 11 and body ground, and
between ground terminal 17 and body ground DTC C1216 is set: Between signal terminal 28 and body ground, and
between ground terminal 27 and body ground
Q: Does the voltage measure 1 V or less?
YES: Go to Step 9.
NO (When the voltage between terminal 9 or 10 - and body ground
measures more than 1 V): Go to Step 11 .
NO (When the voltage between terminal 26 or 16 - and body ground
measures more than 1 V): Go to Step 12 .
NO (When the voltage between terminal 11 or 17 - and body ground
measures more than 1 V): Go to Step 13 .
NO (When the voltage between terminal 28 or 27 - and body ground
measures more than 1 V): Go to Step 14 .
STEP 9. Measure the resistance at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between the relevant signal and ground terminals
in the ABS sensor circuit and body ground. OK if there is no continuity. DTC C1201 is set: Between signal terminal 9 and bo
dy ground, and NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.
2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
