2004 MITSUBISHI ENDEAVOR steering

Fig. 69: Installing Pressure Tube Assembly/Pressure Hose (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>B<< RETURN TUBE (R) INSTALLATION Install the return tube (R) so that the marking is positioned as shown in the
illustration.
2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

Fig. 70: Identifying Return Hose (R) & Return Tube (R)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>C<< RETURN TUBE ASSEMBLY INSTALLATION 1. Install the return tube assembly so that the marking is positioned as shown in
the illustration.
2. Ali
gn the markin
gs as shown in the illustration an
d tighten the nut.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

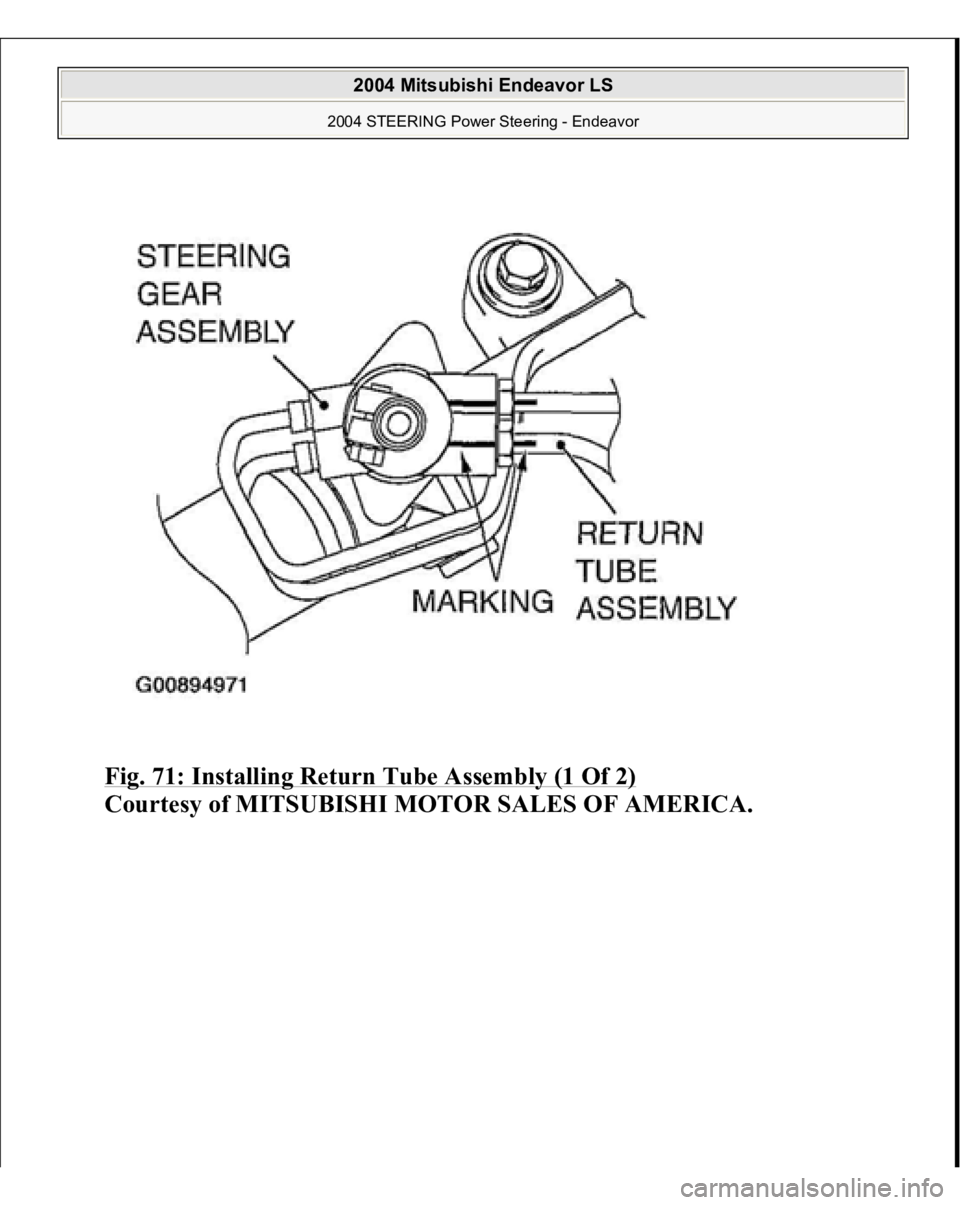

Fig. 71: Installing Return Tube Assembly (1 Of 2)

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

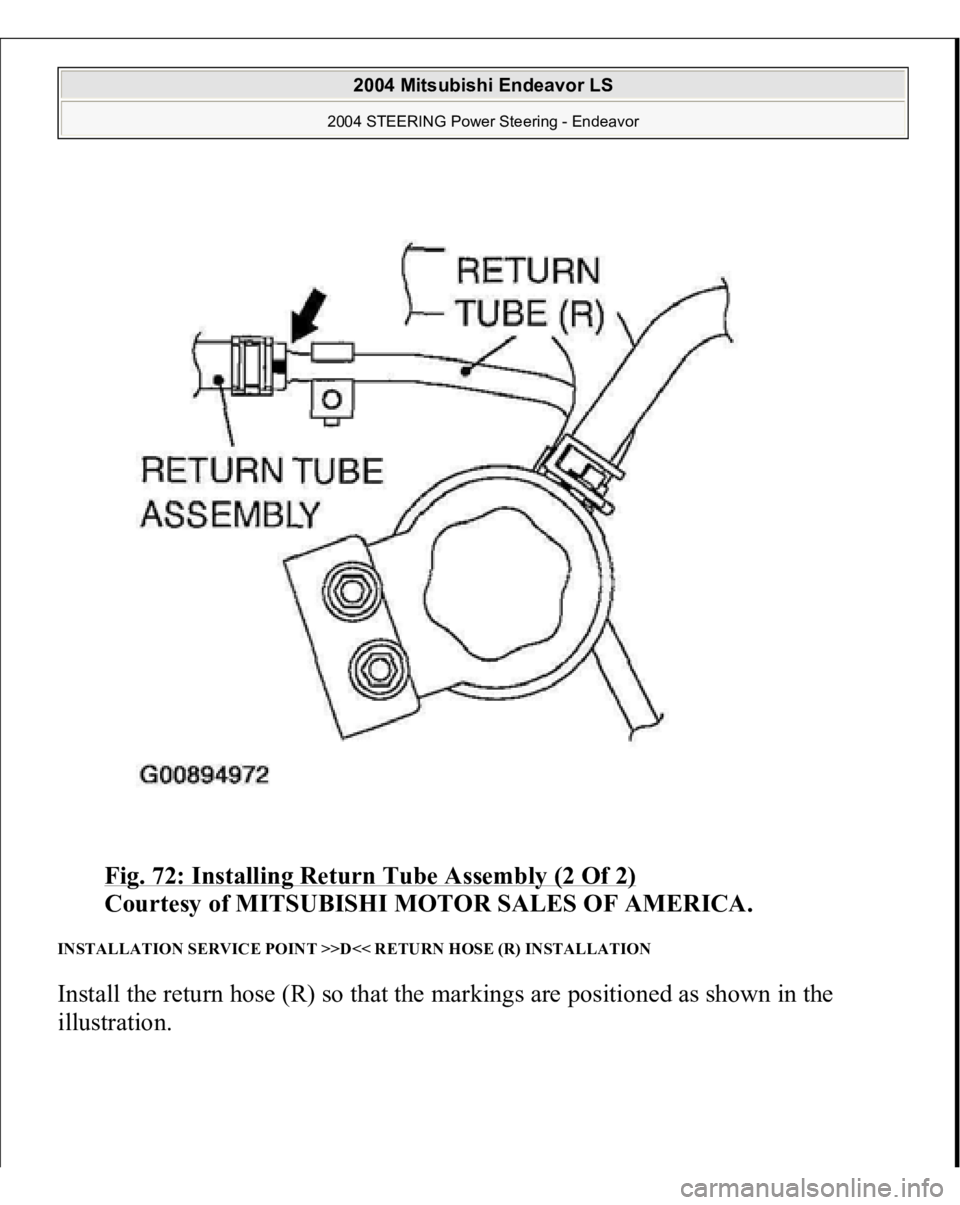

Fig. 72: Installing Return Tube Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>D<< RETURN HOSE (R) INSTALLATION Install the return hose (R) so that the markings are positioned as shown in the
illustration.
2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

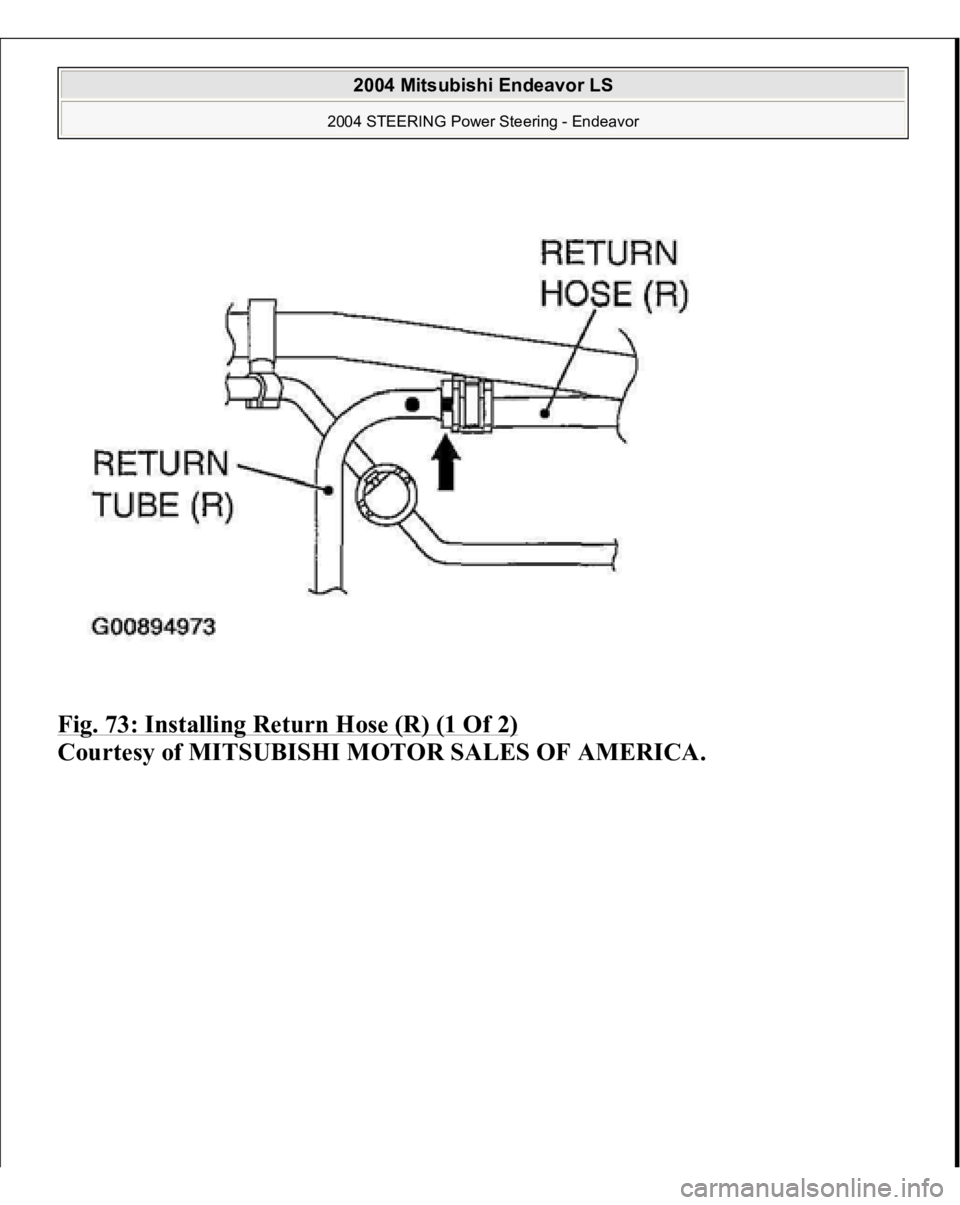

Fig. 73: Installing Return Hose (R) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

Fig. 74: Installing Return Hose (R) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>E<< RETURN HOSE (M) INSTALLATION Install the return hose (M) so that the markings are positioned as shown in the
illustration.
2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

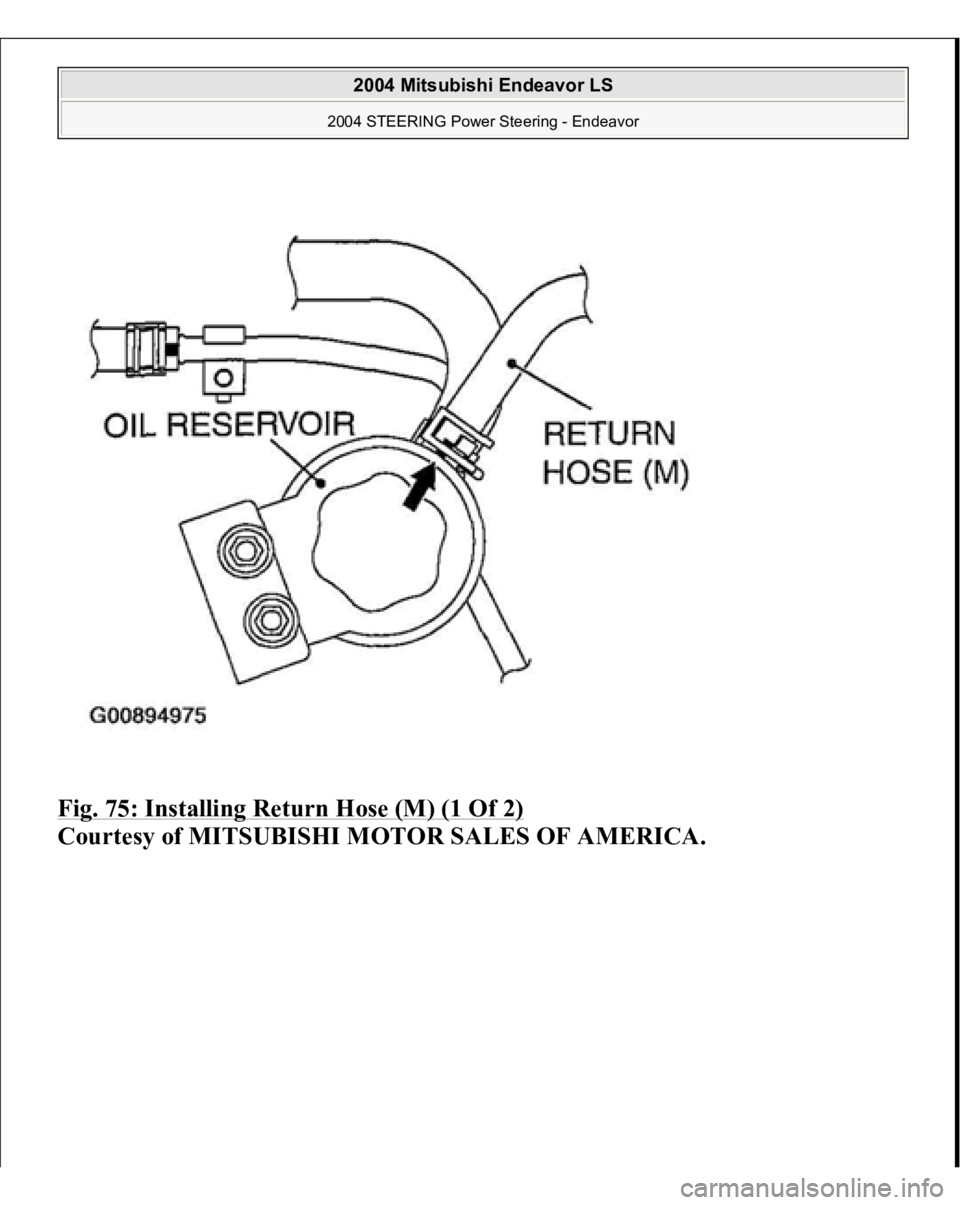

Fig. 75: Installing Return Hose (M) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

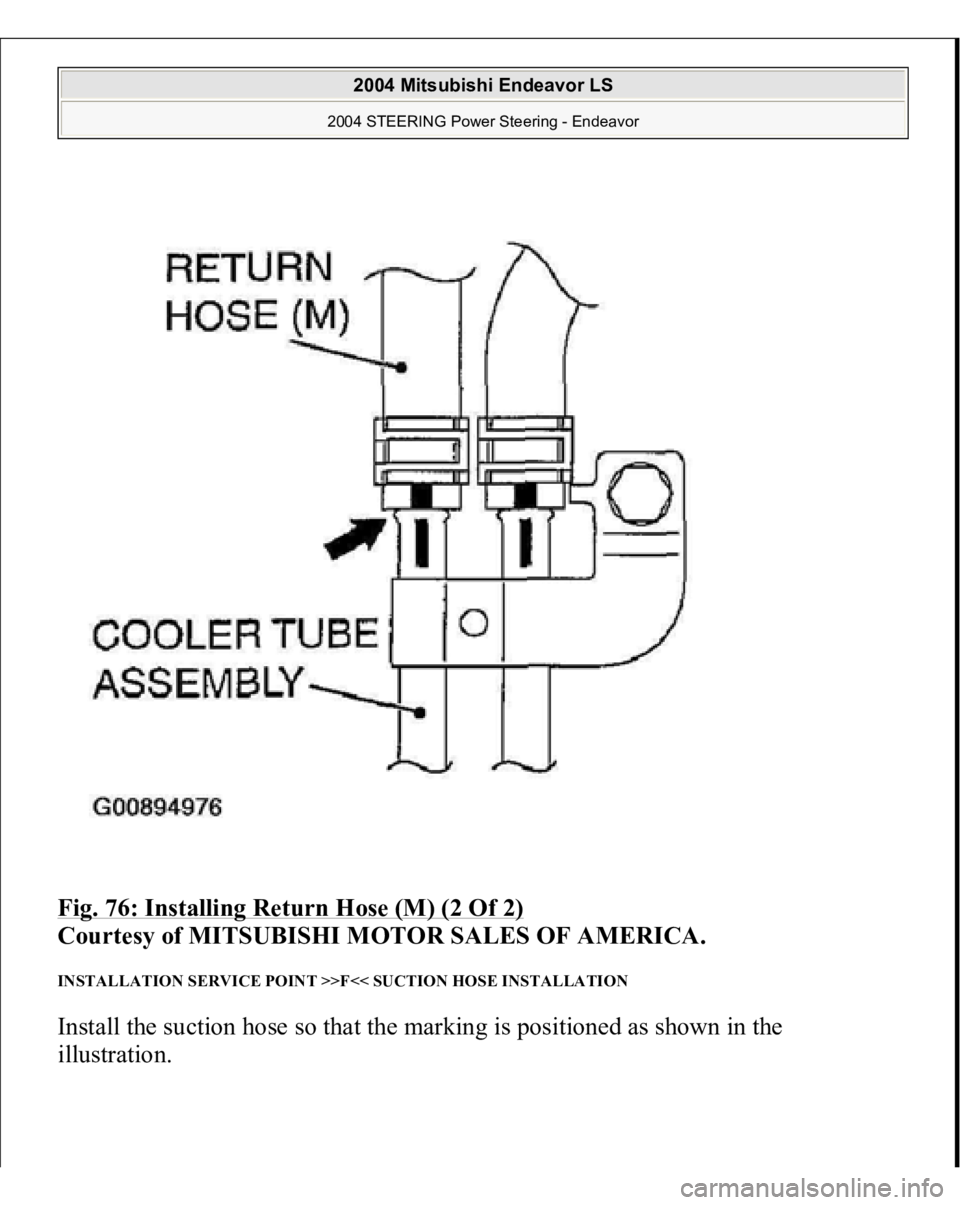

Fig. 76: Installing Return Hose (M) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>F<< SUCTION HOSE INSTALLATION Install the suction hose so that the marking is positioned as shown in the
illustration.
