2004 MITSUBISHI ENDEAVOR CD player

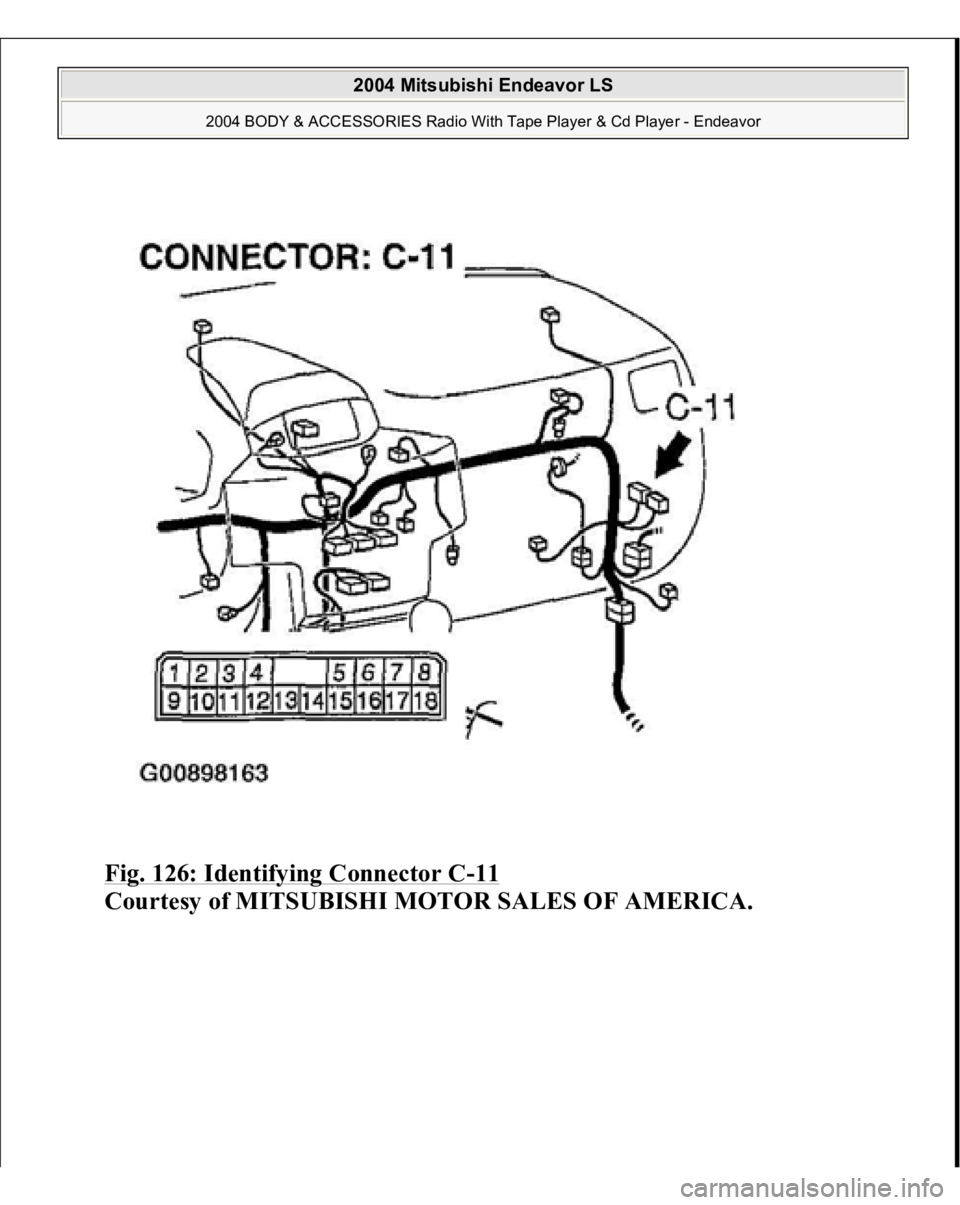

Fig. 126: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

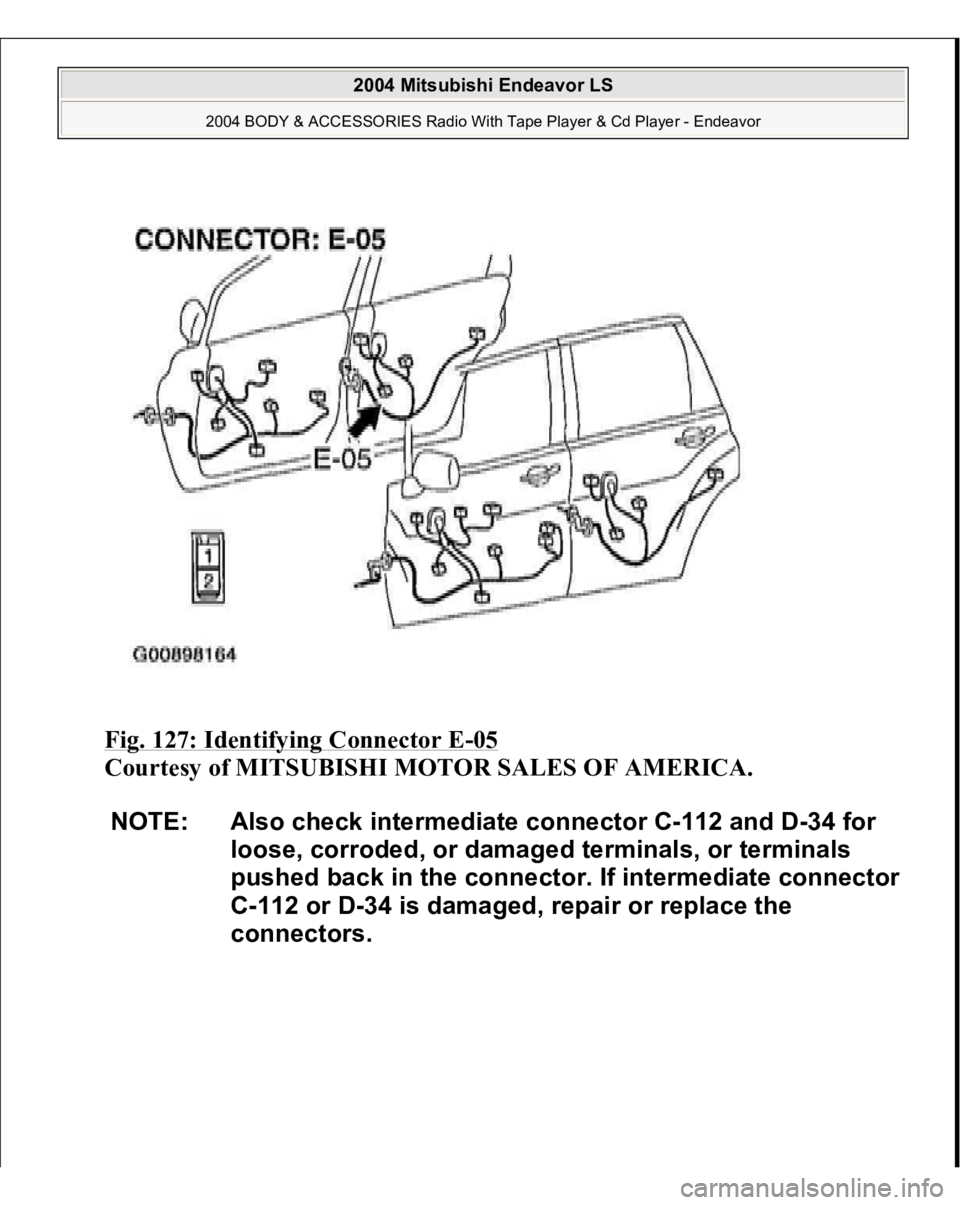

Fig. 127: Identifying Connector E
-05
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-112 and D-34 for
loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector
C-112 or D-34 is damaged, repair or replace the
connectors.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

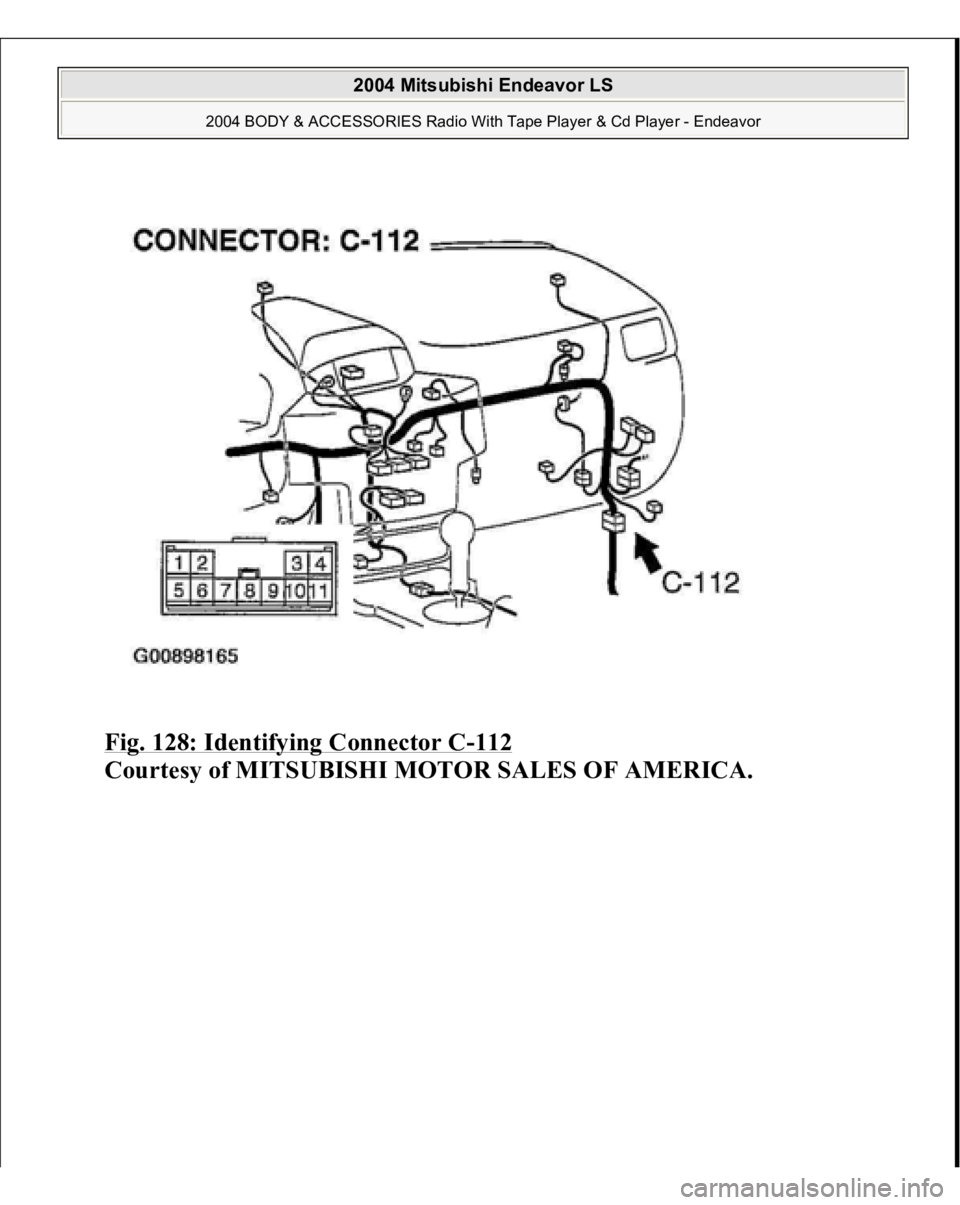

Fig. 128: Identifying Connector C
-112

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

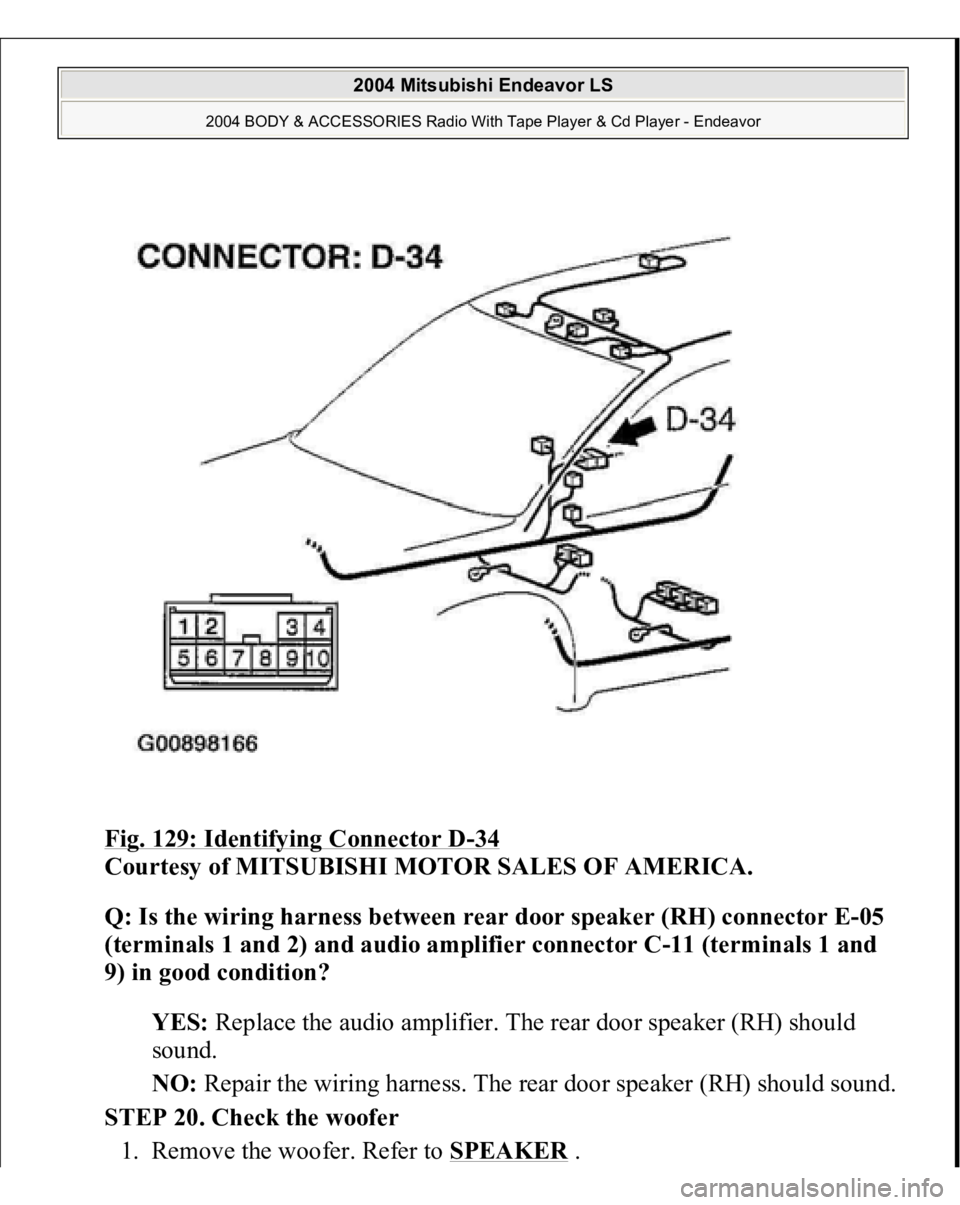

Fig. 129: Identifying Connector D
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between rear door speaker (RH) connector E-05
(terminals 1 and 2) and audio amplifier connector C-11 (terminals 1 and
9) in good condition?
YES: Replace the audio amplifier. The rear door speaker (RH) should
sound.
NO: Repair the wiring harness. The rear door speaker (RH) should sound.
STEP 20. Check the woofer
1. Remove the woofer. Refer to SPEAKER
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

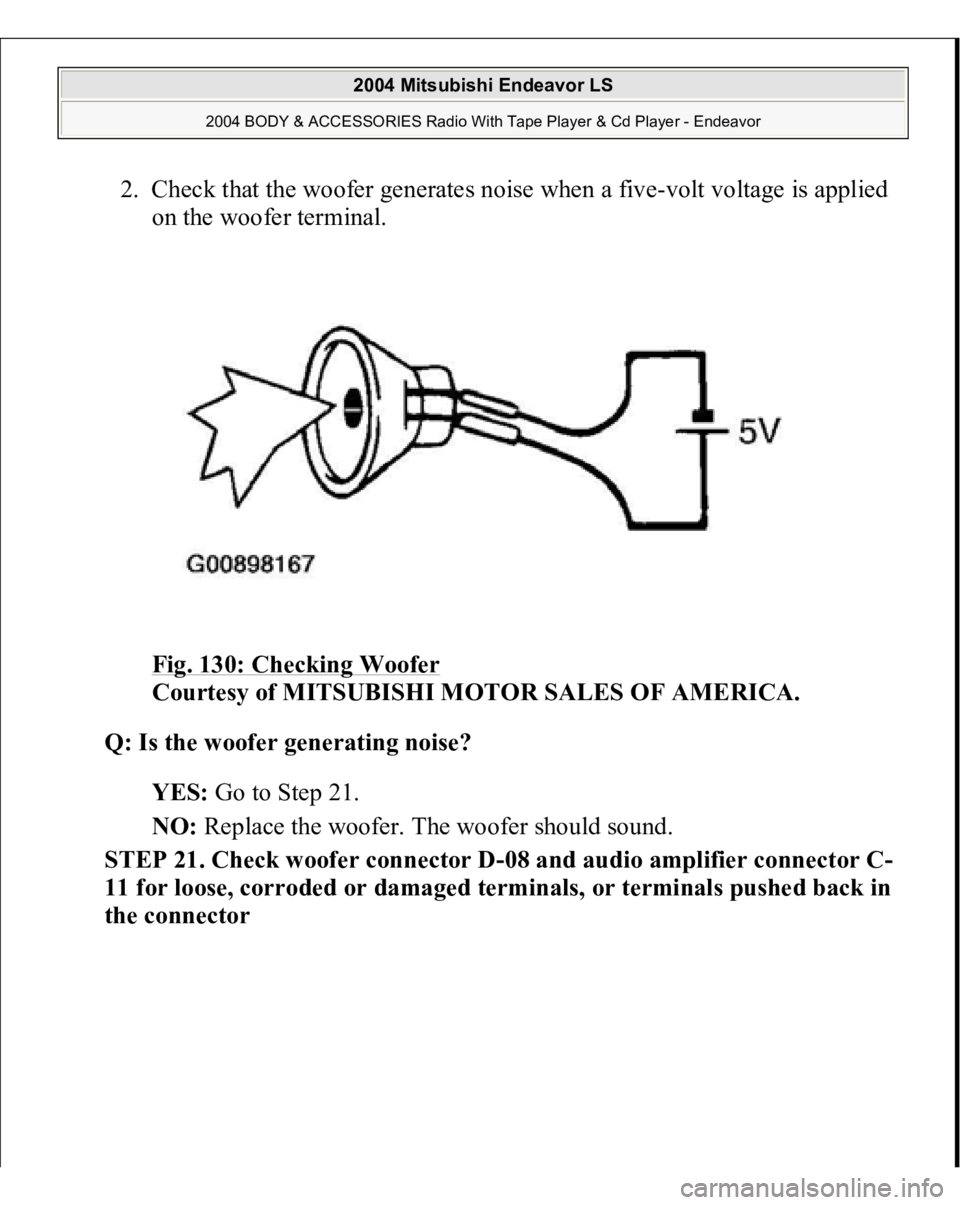

2. Check that the woofer generates noise when a five-volt voltage is applied
on the woofer terminal.
Fig. 130: Checking Woofer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the woofer generating noise?
YES: Go to Step 21.
NO: Replace the woofer. The woofer should sound.
STEP 21. Check woofer connector D-08 and audio amplifier connector C-
11 for loose, corroded or damaged terminals, or terminals pushed back in
the connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

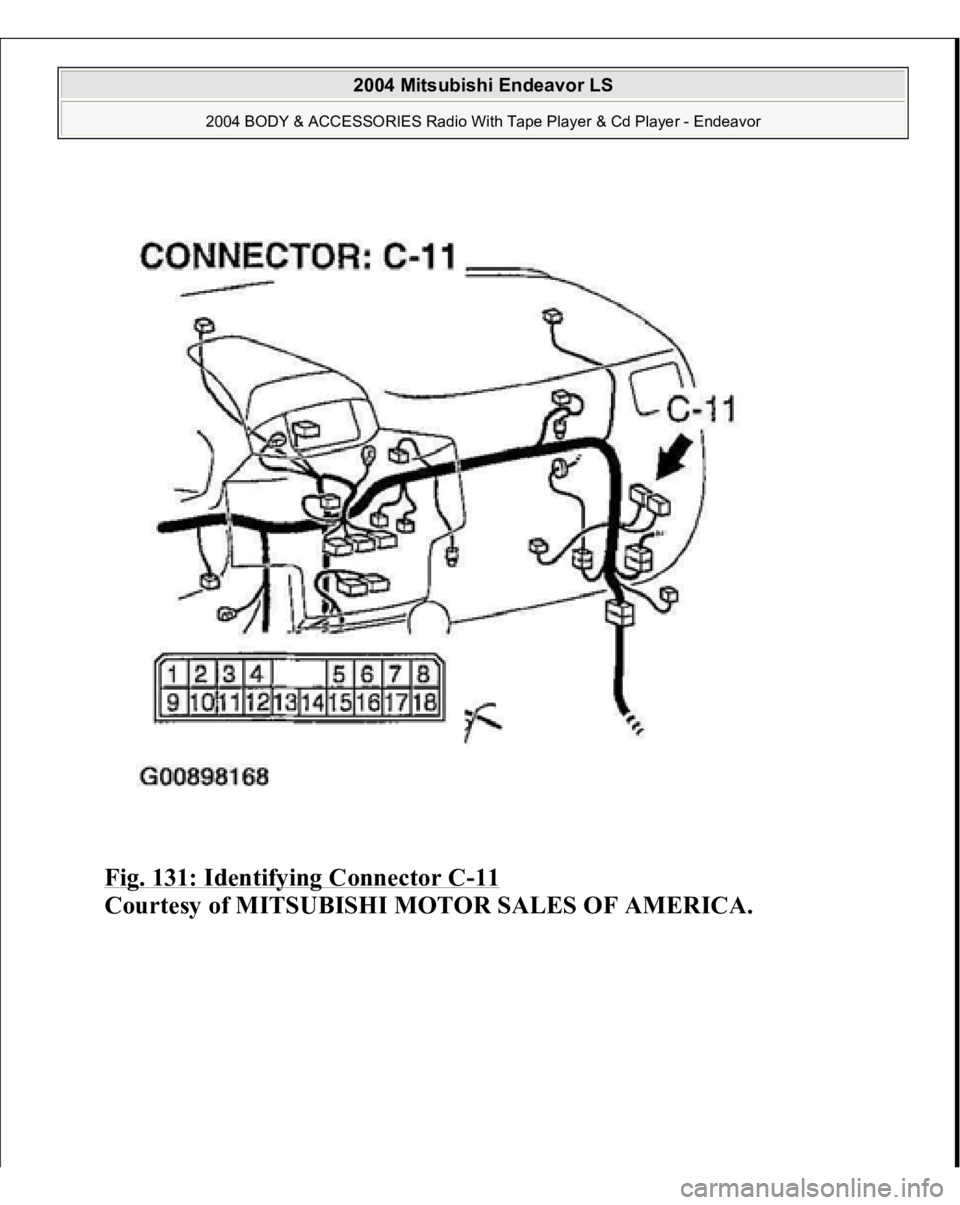

Fig. 131: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

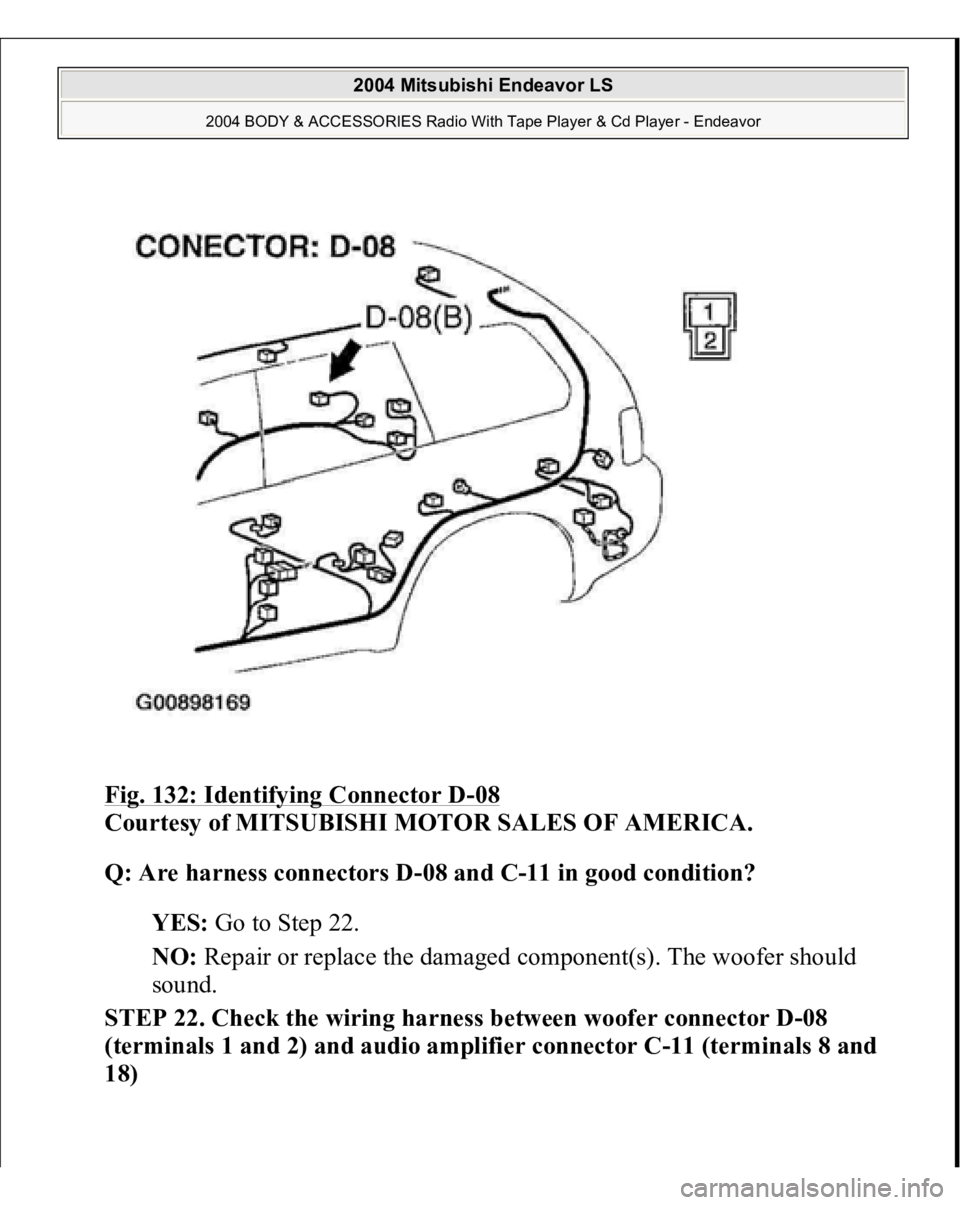

Fig. 132: Identifying Connector D
-08
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are harness connectors D-08 and C-11 in good condition?
YES: Go to Step 22.
NO: Repair or replace the damaged component(s). The woofer should
sound.
STEP 22. Check the wiring harness between woofer connector D-08
(terminals 1 and 2) and audio amplifier connector C-11 (terminals 8 and
18)

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 133: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
