Page 1448 of 3870

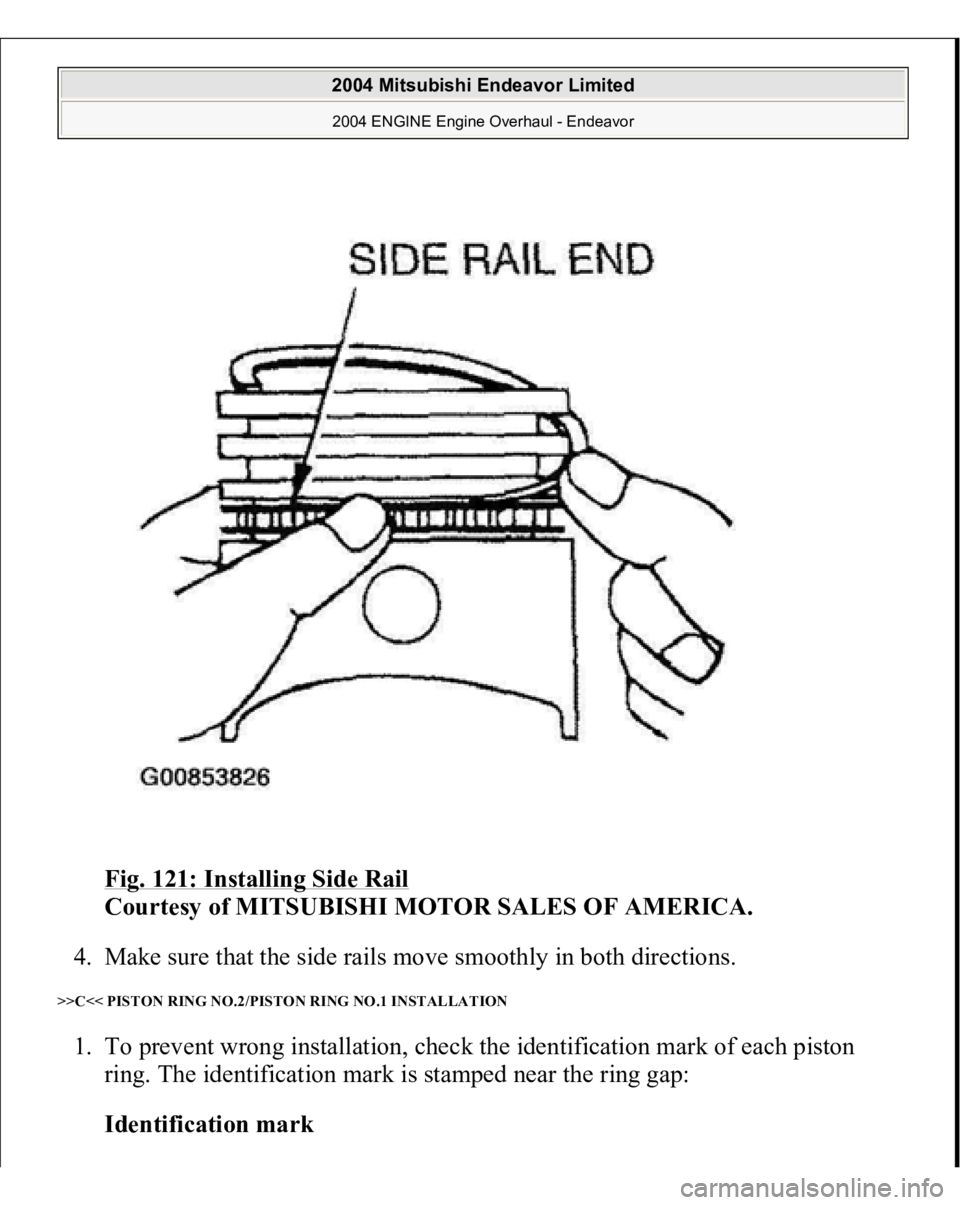

Fig. 121: Installing Side Rail
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Make sure that the side rails move smoothly in both directions.
>>C<< PISTON RING NO.2/PISTON RING NO.1 INSTALLATION 1. To prevent wrong installation, check the identification mark of each piston
ring. The identification mark is stamped near the ring gap:
Identification mark
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1459 of 3870

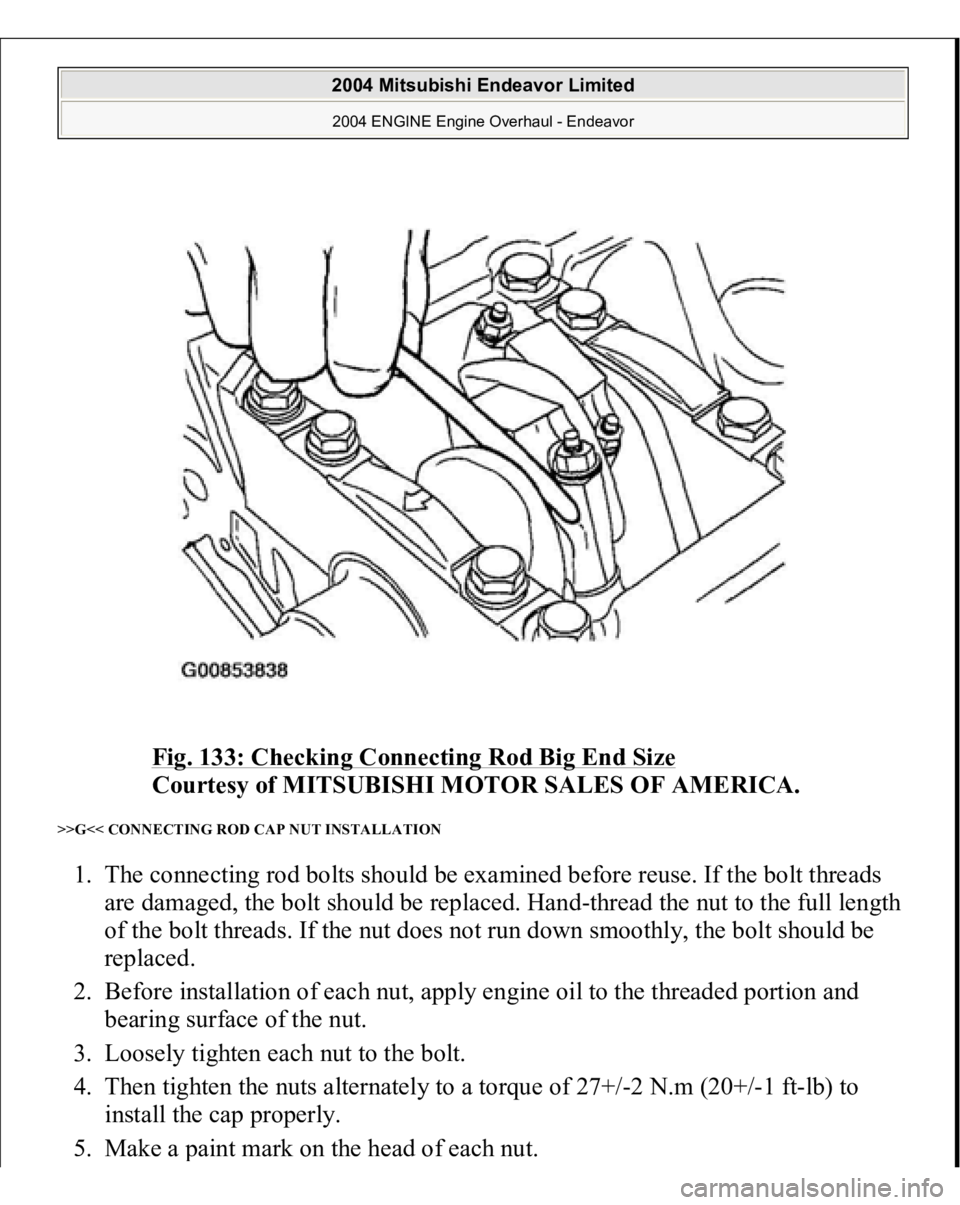

Fig. 133: Checking Connecting Rod Big End Size
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>G<< CONNECTING ROD CAP NUT INSTALLATION 1. The connecting rod bolts should be examined before reuse. If the bolt threads
are damaged, the bolt should be replaced. Hand-thread the nut to the full length
of the bolt threads. If the nut does not run down smoothly, the bolt should be
replaced.
2. Before installation of each nut, apply engine oil to the threaded portion and
bearing surface of the nut.
3. Loosely tighten each nut to the bolt.
4. Then tighten the nuts alternately to a torque of 27+/-2 N.m (20+/-1 ft-lb) to
install the cap properly.
5. Make a
paint mark on the head of each nut.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1461 of 3870

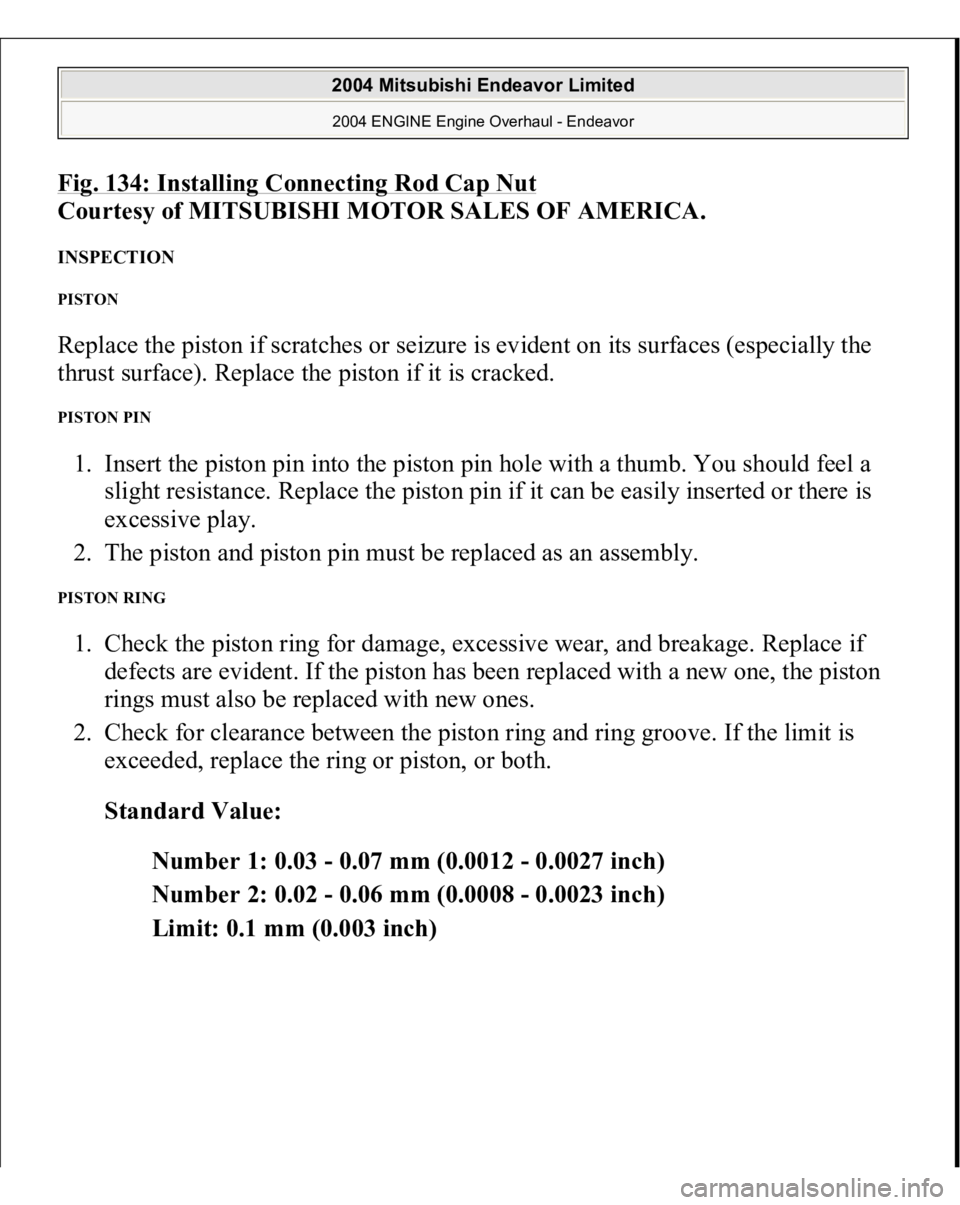

Fig. 134: Installing Connecting Rod Cap Nu
t
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION PISTON Replace the piston if scratches or seizure is evident on its surfaces (especially the
thrust surface). Replace the piston if it is cracked. PISTON PIN 1. Insert the piston pin into the piston pin hole with a thumb. You should feel a
slight resistance. Replace the piston pin if it can be easily inserted or there is
excessive play.
2. The piston and piston pin must be replaced as an assembly. PISTON RING 1. Check the piston ring for damage, excessive wear, and breakage. Replace if
defects are evident. If the piston has been replaced with a new one, the piston
rings must also be replaced with new ones.
2. Check for clearance between the piston ring and ring groove. If the limit is
exceeded, replace the ring or piston, or both.
Standard Value:
Number 1: 0.03 - 0.07 mm (0.0012 - 0.0027 inch)
Number 2: 0.02 - 0.06 mm (0.0008 - 0.0023 inch)
Limit: 0.1 mm (0.003 inch)
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1462 of 3870

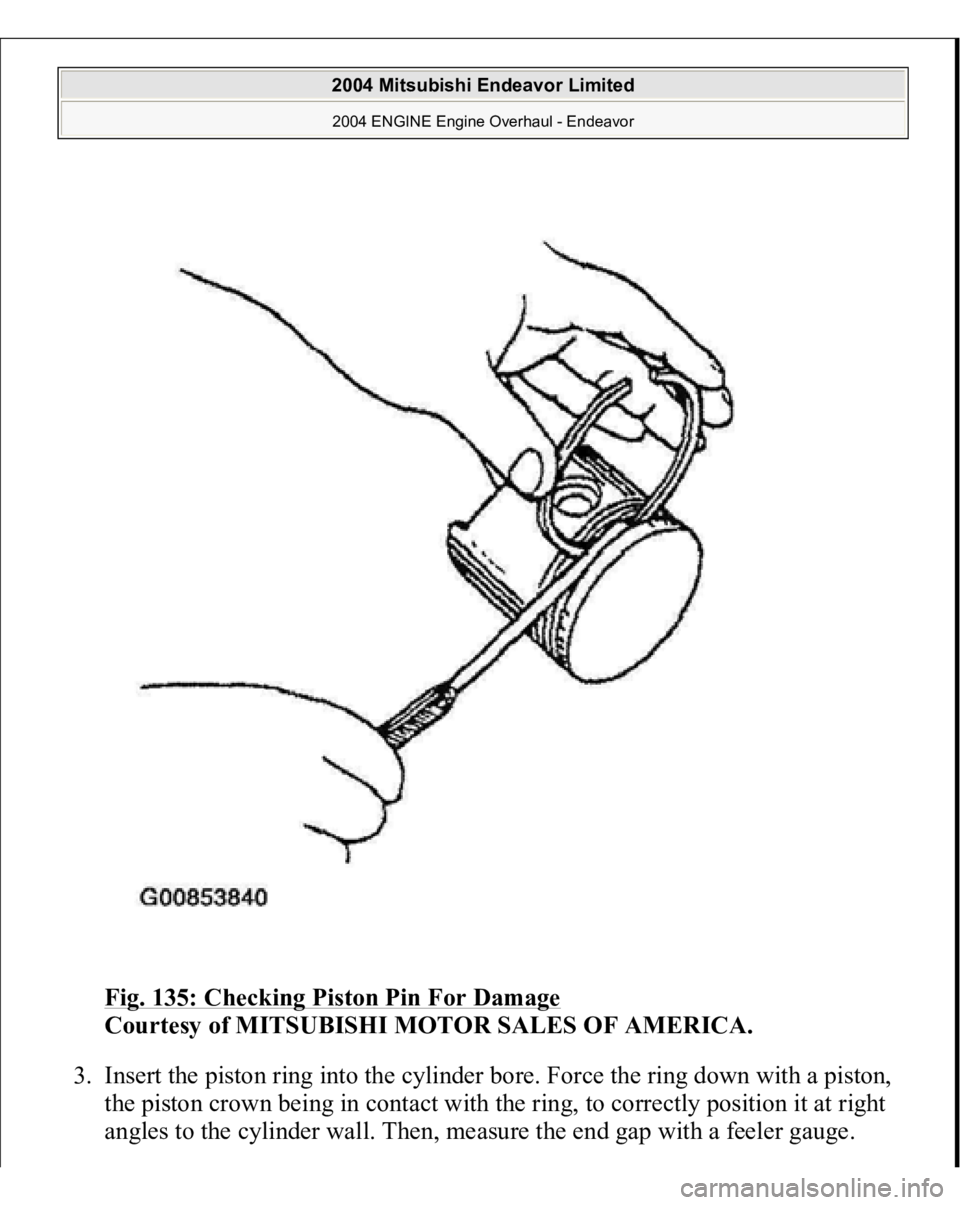

Fig. 135: Checking Piston Pin For Damage
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Insert the piston ring into the cylinder bore. Force the ring down with a piston,
the piston crown being in contact with the ring, to correctly position it at right
angles to the cylinder wall. Then, measure the end gap with a feeler gauge.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1465 of 3870
1. Remove oil from the crankshaft pin and the bearing inner surface.
2. Cut plastic gauging material to the same length as the width of the bearing and
place it on the pin in parallel with its axis.
3. Install the connecting rod cap carefully and tighten the nuts to the specified
torque.
4. Carefully remove the connecting rod cap.
5. Measure the width of the smashed plastic gauging material at its widest section
by using a scale printed on the plastic gauging material bag.
Standard value: 0.02 - 0.04 mm (0.0008 - 0.0016 inch)
Limit: 0.1 mm (0.003 inch)
Fig. 137: Checking Crankshaft Pin Oil Clearance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1470 of 3870
Fig. 139: Installing Block Heater
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< KNOCK SENSOR BRACKET INSTALLATION Check that the bracket is in proper contact with the cylinder block boss and tighten
to the specified torque in the order shown.
Tightening torque: 28+/-2 N.m (21+/-1 ft-lb)
Fig. 140: Installing Knock Sensor Bracket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>C<< CRANKSHAFT BEARING INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1476 of 3870

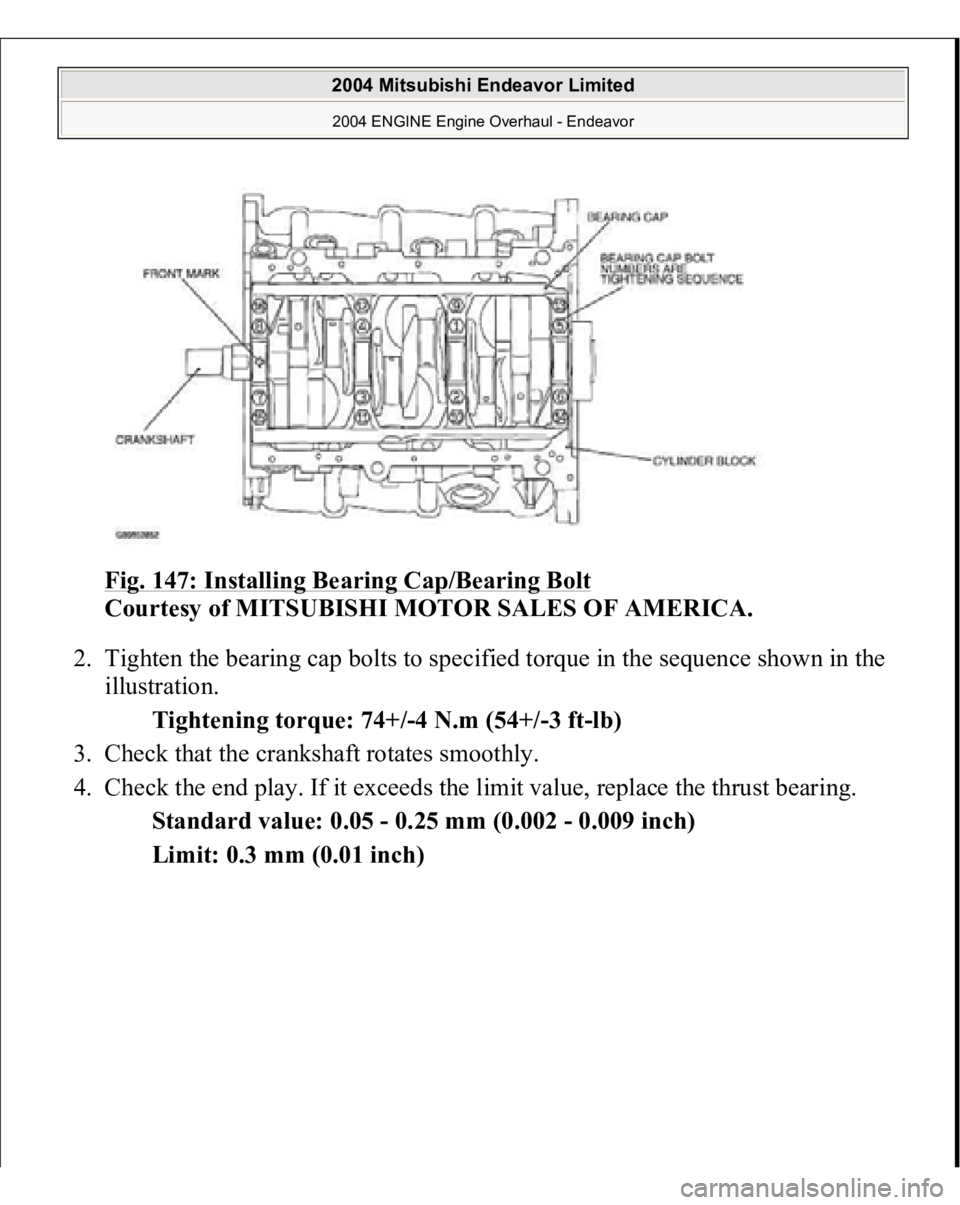

Fig. 147: Installing Bearing Cap/Bearing Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Tighten the bearing cap bolts to specified torque in the sequence shown in the
illustration.
Tightening torque: 74+/-4 N.m (54+/-3 ft-lb)
3. Check that the crankshaft rotates smoothly.
4. Check the end play. If it exceeds the limit value, replace the thrust bearing.
Standard value: 0.05 - 0.25 mm (0.002 - 0.009 inch)
Limit: 0.3 mm (0.01 inch)
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1477 of 3870

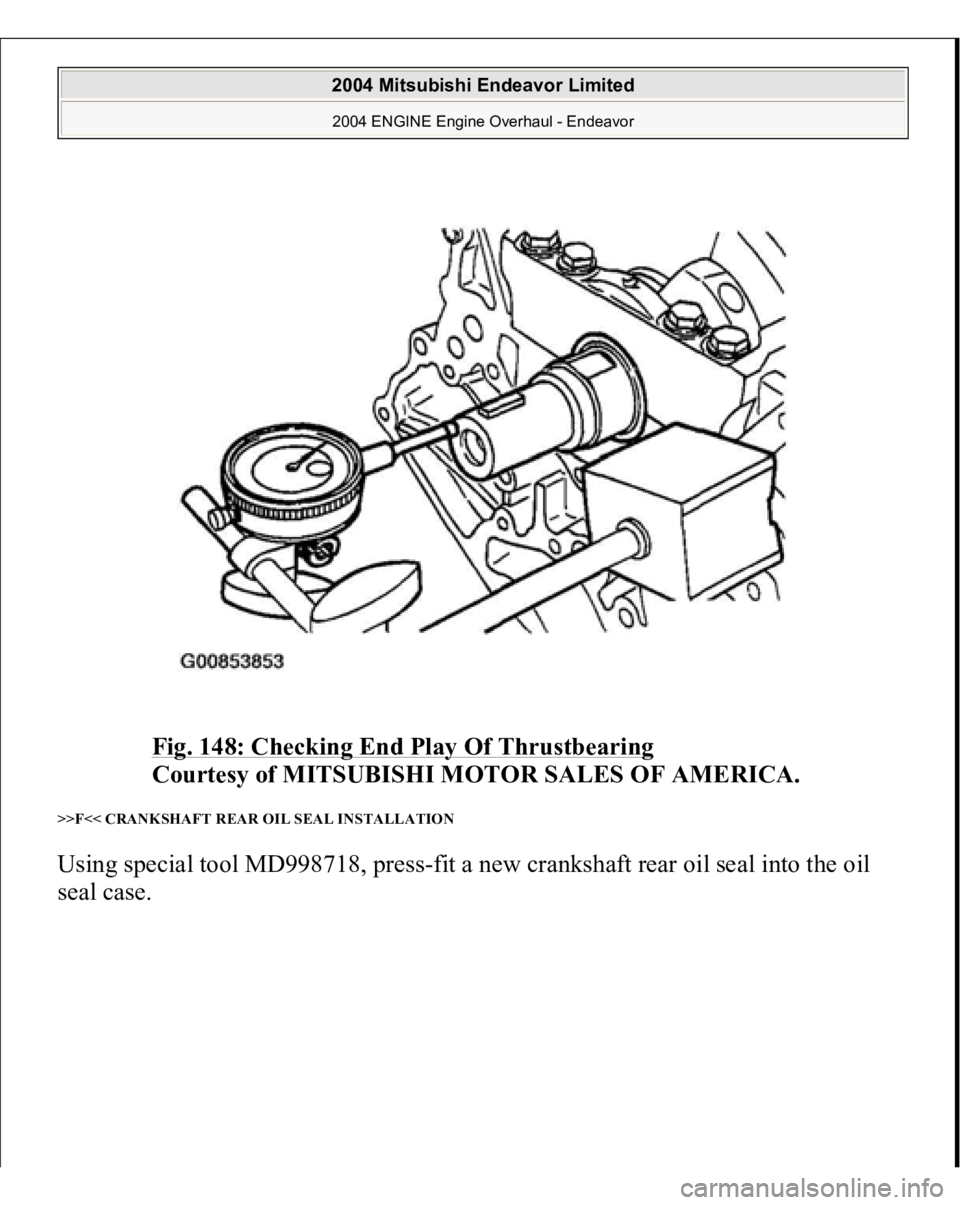

Fig. 148: Checking End Play Of Thrustbearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>F<< CRANKSHAFT REAR OIL SEAL INSTALLATION Using special tool MD998718, press-fit a new crankshaft rear oil seal into the oil
seal case.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
