Fig. 83: Checking Valve Face And Margin

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. If the margin exceeds the service minimum limit, replace the valve.
Standard value:
< Intake > 1.0 mm (0.04 inch)
< Exhaust > 1.2 mm (0.05 inch)
Minimum limit:
< Intake > 0.5 mm (0.02 inch)
< Exhaust > 0.7 mm (0.03 inch)
3. Measure the valve's total length. If the measurement is less than specified,
replace the valve.
Standard value:

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

VALVE SEAT RECONDITIONING PROCEDURE1. Correct to that the valve seat width and angle are as specified in the illustration.
Fig. 88: Identifying Valve Seat Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. After correcting the valve seat, lap the valve and valve seat using lapping
compound. Then, check the valve stem projection.
VALVE SEAT REPLACEMENT PROCEDURE
CAUTION: Before correcting the valve seat, check the clearance
between the valve guide and valve and, if necessary,
replace the valve guide.CAUTION: Before replacing the valve seat, check the valve
guide and, if necessary, replace the valve guide.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

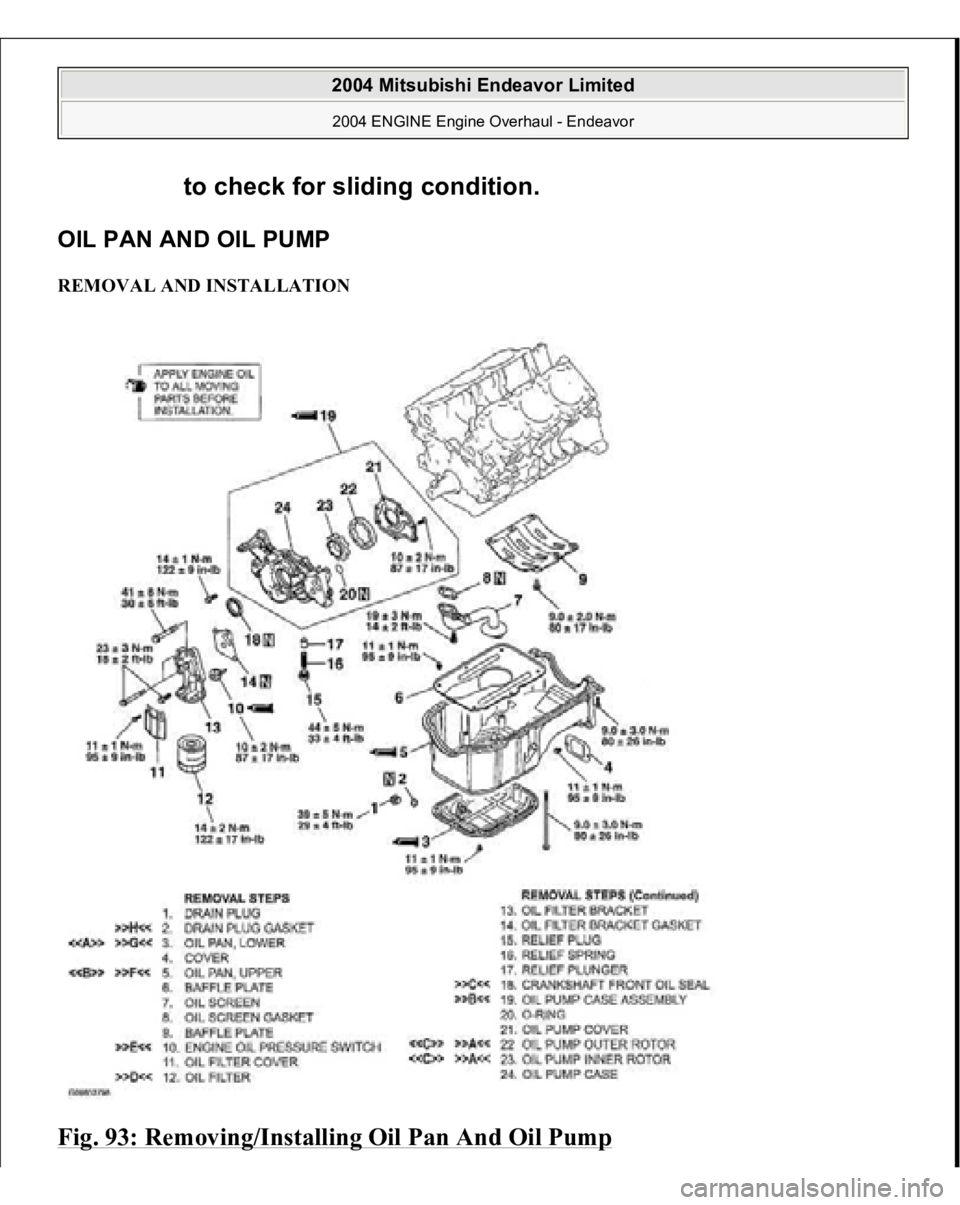

OIL PAN AND OIL PUMP REMOVAL AND INSTALLATION Fig. 93: Removing/Installing Oil Pan And Oil Pump

to check for sliding condition.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 108: Installing Drain Plug Gaske
t
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION OIL PUMP 1. Check the tip clearance.
Standard value: 0.06 - 0.18 mm (0.003 - 0.007 inch)

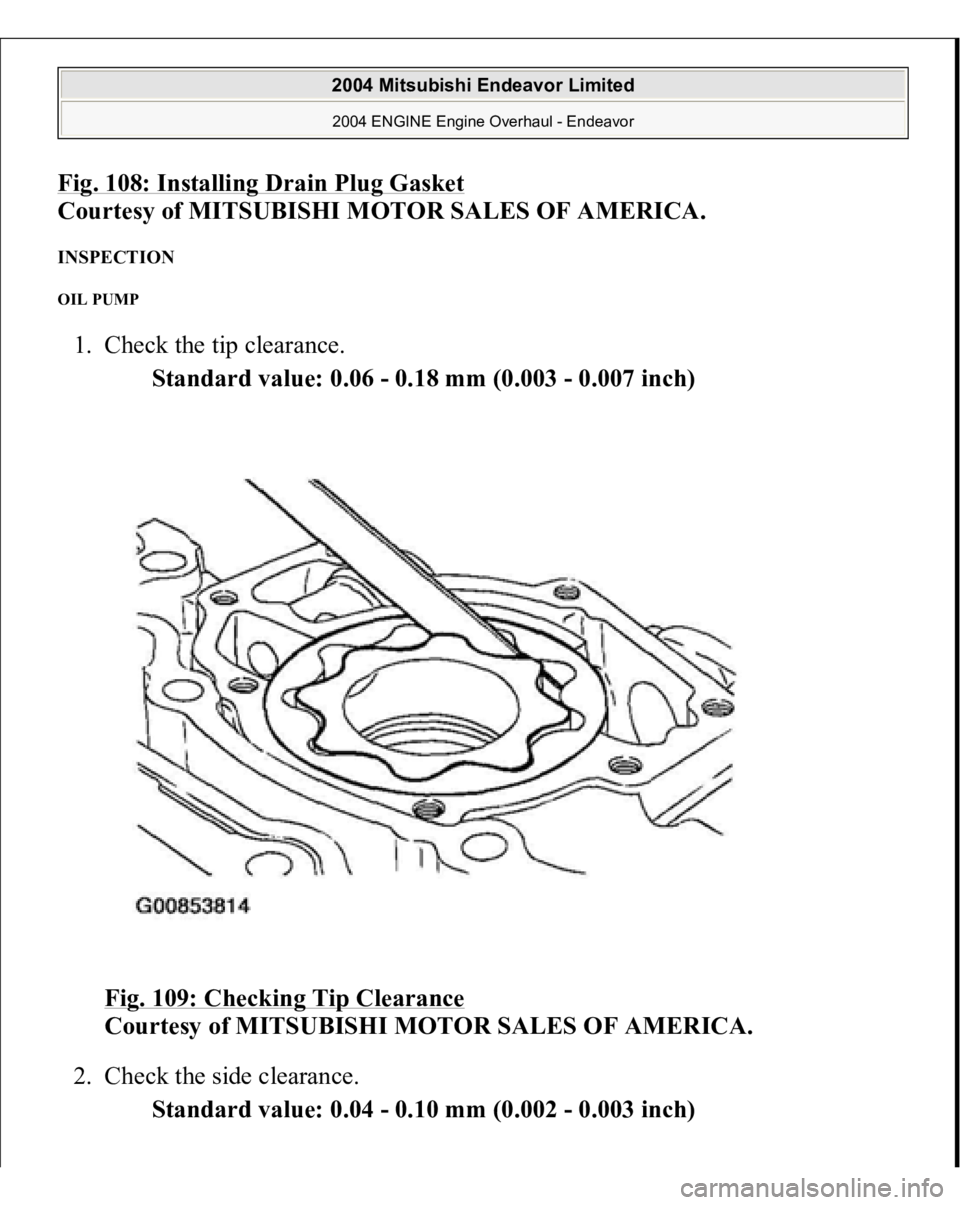

Fig. 109: Checking Tip Clearance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check the side clearance.
Standard value: 0.04 - 0.10 mm (0.002 - 0.003 inch)

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

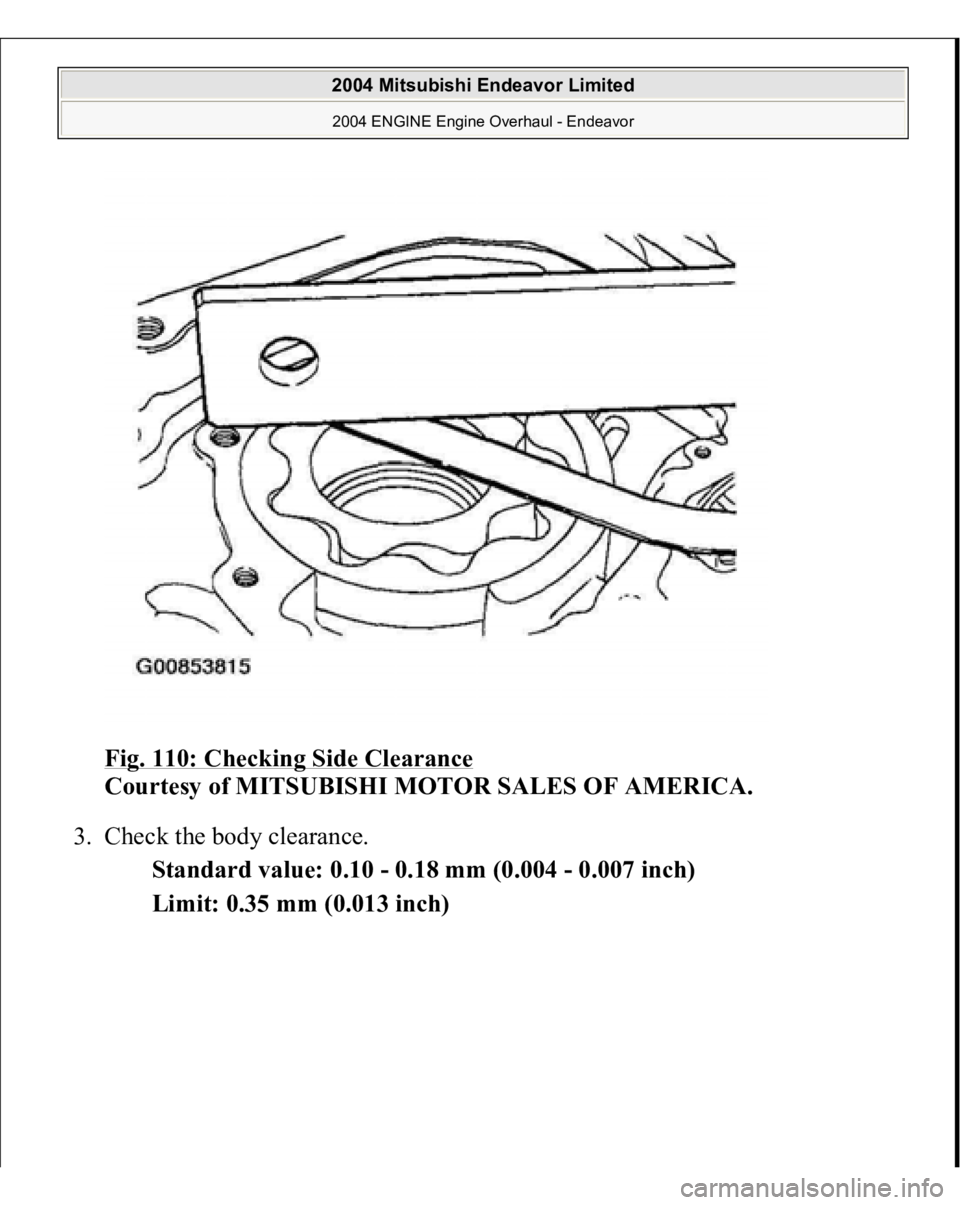

Fig. 110: Checking Side Clearance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check the body clearance.
Standard value: 0.10 - 0.18 mm (0.004 - 0.007 inch)
Limit: 0.35 mm (0.013 inch)

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

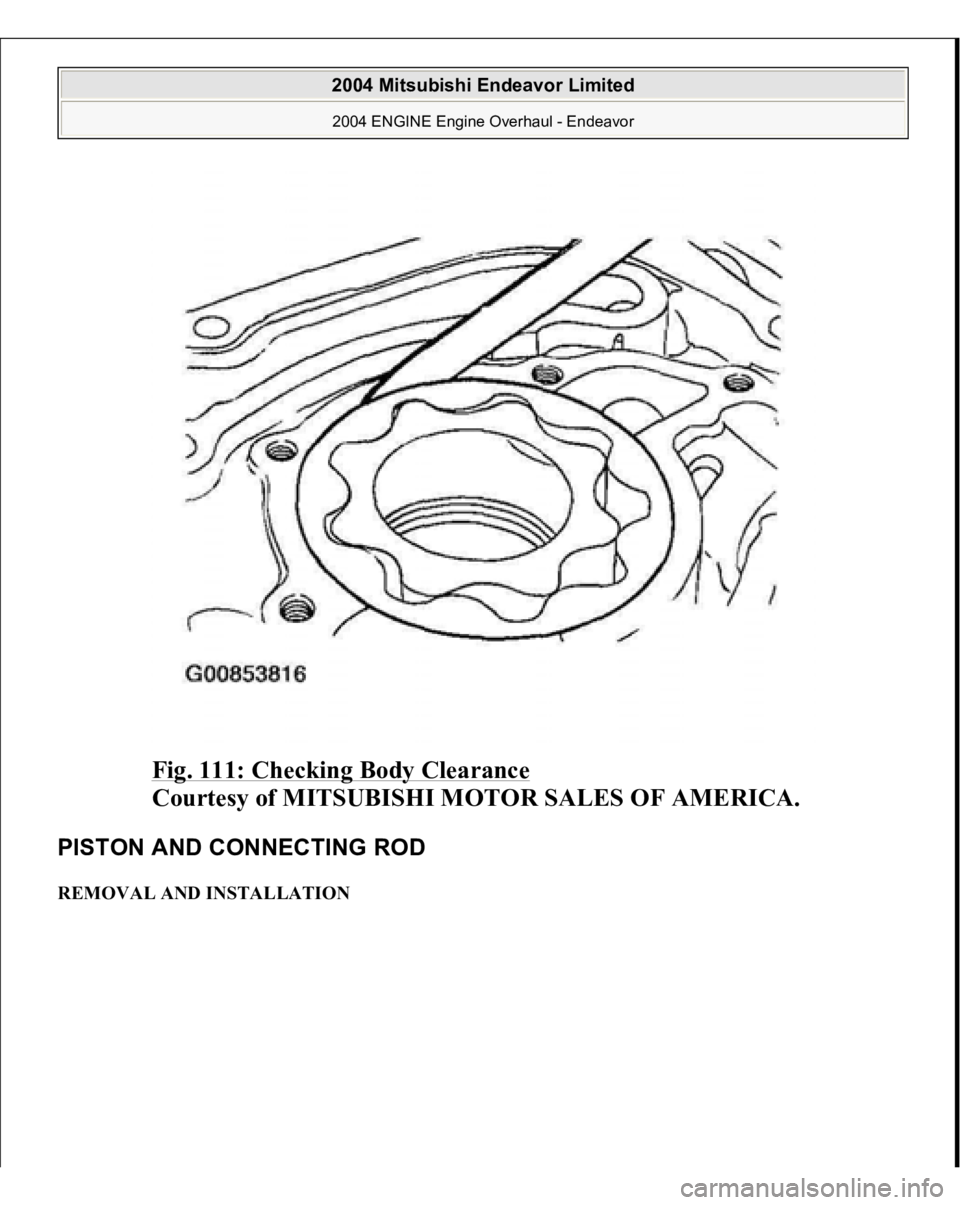

Fig. 111: Checking Body Clearance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
PISTON AND CONNECTING ROD REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

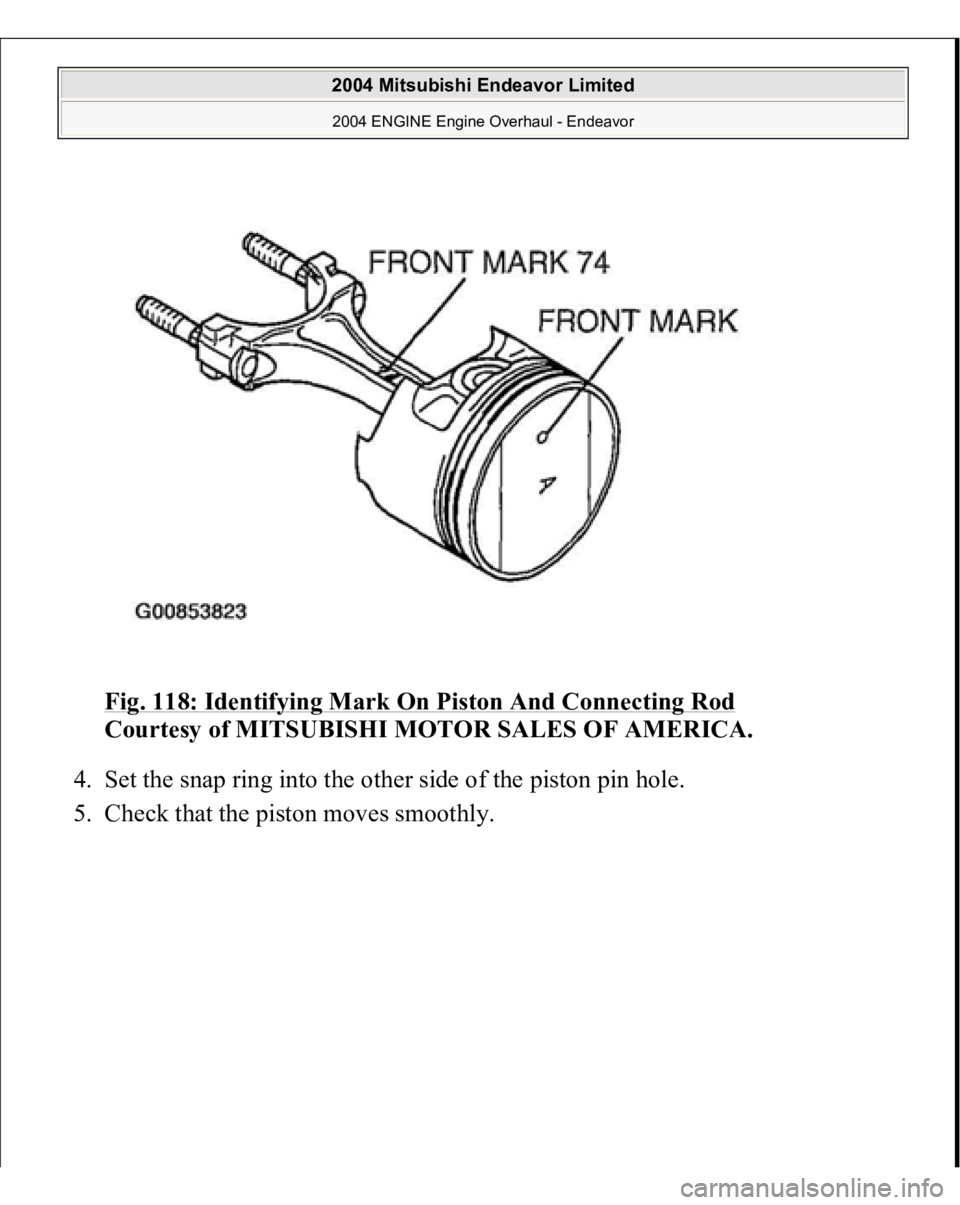

Fig. 118: Identifying Mark On Piston And Connecting Rod

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Set the snap ring into the other side of the piston pin hole.
5. Check that the
piston moves smoothl
y.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

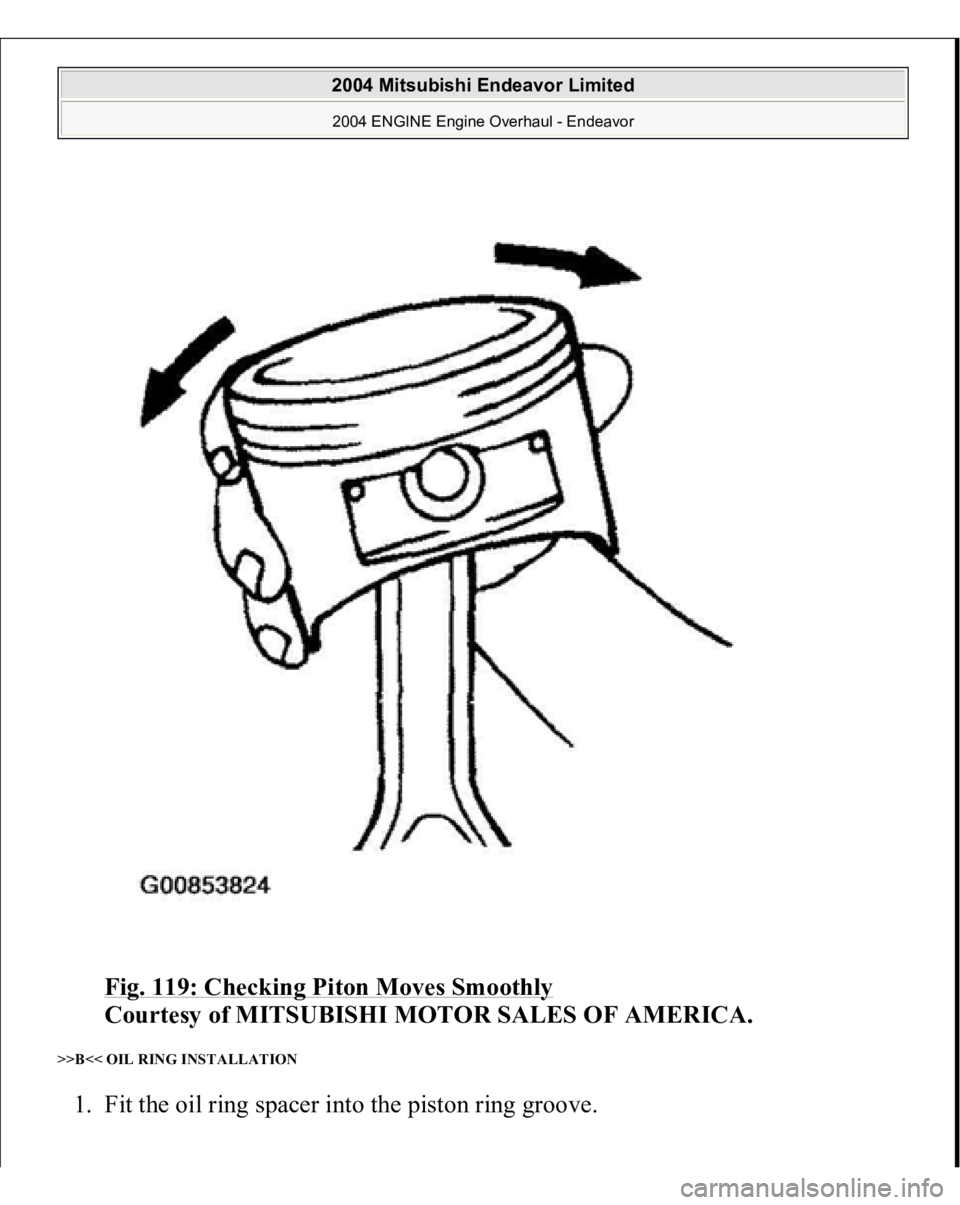

Fig. 119: Checking Piton Moves Smoothly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< OIL RING INSTALLATION 1. Fit the oil ring spacer into the piston ring groove.
