Page 2508 of 3870
REAR BLOWER RELAY CONTINUITY CHEC
K
REAR BLOWER UNIT REMOVAL AND INSTALLATION Fig. 70: Removing And Installing Rear Blower Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
BATTERY VOLTAGE
TESTER
CONNECTION
SPECIFIED
CONDITION
Not applied
1 - 4
Open circuit
Connect terminal 3 to the
positive battery terminal
Connect terminal 2 to the
negative battery terminal
1 - 4
Less than 2 ohms
2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor
Page 2578 of 3870

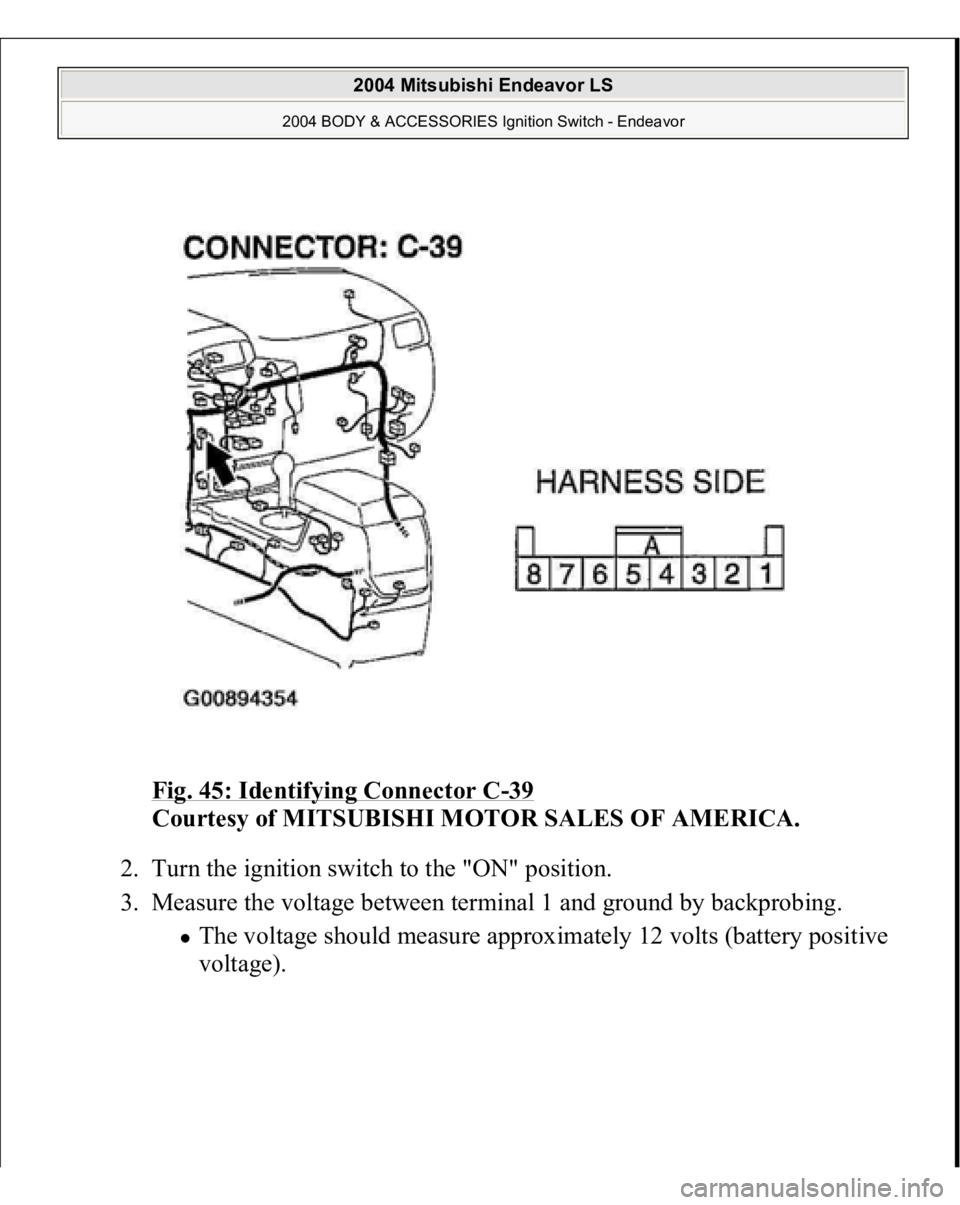

Fig. 45: Identifying Connector C
-39
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 1 and ground by backprobing.
The voltage should measure approximately 12 volts (battery positive
volta
ge).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2579 of 3870
Fig. 46: Measuring Voltage Between Terminal 1 And Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured voltage approximately 12 volts (battery positive
voltage)?
YES: Go to Step 5.
NO: Go to Step 3.
STEP 3. Check immobilizer-ECU connector C-39 and MFI relay
connector B-15X for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2616 of 3870
Fig. 76: Disconnecting Connector C
-102
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the voltage between terminal 1 and ground.
The measured value should be approximately 12 volts (battery
positive voltage).
Fig. 77: Measuring Voltage Between Terminal 1 And Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does the measured voltage correspond with this range?
YES: Go to Step 8.
NO: Go to Step 6.
STEP 6. Check combination meter connector C-102 for loose, corroded or
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2635 of 3870
Fig. 89: Identifying Connector C102
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the voltage between terminal 1 and ground.
The measured value should be approximately 12 volts (battery
positive voltage).
Fig. 90: Measuring Voltage Between Terminal 1 And Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does the measured voltage correspond with this range?
YES: Go to Step 8.
NO: Go to Step 6.
STEP 6. Check combination meter connector C-102 for loose, corroded or
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2781 of 3870
Connect terminal 4 to the positive battery
terminal.
upward
Connect terminal 4 to the positive battery
terminal. Connect terminal 6 to the negative battery
terminal.
Mirror glass should face
downward
Connect terminal 6 to the negative battery
terminal. Connect terminal 5 to the positive battery
terminal.
Mirror glass should face to the
right
Connect terminal 5 to the positive battery
terminal. Connect terminal 6 to the negative battery
terminal.
Mirror glass should face to the
left
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 3249 of 3870
Q: Is the voltage approximately 12 volts (battery positive voltage)?
YES: Go to Step 5.
NO: Go to Step 4.
STEP 4. Check TCL/ASC-ECU connector A-32 for loose, corroded or
dama
ged terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3267 of 3870
Q: Is the voltage approximately 12 volts (battery positive voltage)?
YES: Go to Step 5.
NO: Go to Step 4.
STEP 4. Check TCL/ASC-ECU connector A-32 for loose, corroded or
dama
ged terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
